[AI] Holds per-node animation data for a model's animation tree. More...

#include <legoanim.h>

Inheritance diagram for LegoAnimNodeData:

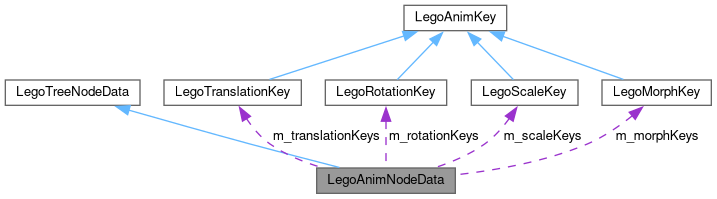

Collaboration diagram for LegoAnimNodeData:

[legend]

Public Member Functions
	LegoAnimNodeData ()
	[AI] Default-initializes all animation key counts to zero and pointers to NULL. [AI] More...

	~LegoAnimNodeData () override
	[AI] Cleans up all allocated animation key arrays and the node name. [AI] More...

LegoResult	Read (LegoStorage *p_storage) override
	[AI] Reads all node keyframe arrays, name, and meta from storage. More...

LegoResult	Write (LegoStorage *p_storage) override
	[AI] Writes all node keyframe arrays, name, and meta to storage. More...

void	SetName (LegoChar *p_name)
	[AI] Sets the node's name (deep-copies string). More...

LegoResult	CreateLocalTransform (LegoFloat p_time, Matrix4 &p_matrix)
	[AI] Computes the interpolated local transformation matrix for this node at the given animation time. More...

LegoBool	FUN_100a0990 (LegoFloat p_time)
	[AI] Evaluates morph keys at the given animation time and returns result (typically affects mesh shape or blend shape state). More...

LegoChar *	GetName ()
	[AI] Name of this animation node (used for lookup/mapping to scene graph). More...

LegoU16	GetNumTranslationKeys ()
	[AI] Number of translation keys for this node. More...

LegoU16	GetNumRotationKeys ()
	[AI] Number of rotation keys for this node. More...

void	SetNumRotationKeys (LegoU16 p_numRotationKeys)
	[AI] Sets the number of rotation keys for this node. More...

void	SetRotationKeys (LegoRotationKey *p_keys)
	[AI] Sets the node's rotation keys array, resets rotation index. More...

LegoU32	GetTranslationIndex ()
	[AI] Gets last used/optimized translation index for interpolation. More...

LegoU32	GetRotationIndex ()
	[AI] Gets last used/optimized rotation index for interpolation. More...

LegoU32	GetScaleIndex ()
	[AI] Gets last used/optimized scale index for interpolation. More...

LegoU32	GetMorphIndex ()
	[AI] Gets last used/optimized morph index for interpolation. More...

LegoU16	GetUnknown0x20 ()
	[AI] Unknown, used in scene/camera calculations (purpose unclear). More...

LegoU16	GetUnknown0x22 ()
	[AI] Unknown, used in scene/camera calculations (purpose unclear). More...

LegoRotationKey *	GetRotationKey (MxS32 index)
	[AI] Access a pointer to the i-th rotation key. More...

void	SetTranslationIndex (LegoU32 p_translationIndex)
	[AI] Sets last used translation index. More...

void	SetRotationIndex (LegoU32 p_rotationIndex)
	[AI] Sets last used rotation index. More...

void	SetScaleIndex (LegoU32 p_scaleIndex)
	[AI] Sets last used scale index. More...

void	SetMorphIndex (LegoU32 p_morphIndex)
	[AI] Sets last used morph index. More...

LegoMorphKey *	GetMorphKeys ()
	[AI] Returns pointer to morph keyframes array. More...

void	SetMorphKeys (LegoMorphKey *p_morphKeys)

void	SetNumMorphKeys (LegoU16 p_numMorphKeys)
	[AI] Sets morph key count. More...

void	SetUnknown0x20 (LegoU16 p_unk0x20)
	[AI] Sets unknown parameter (possibly camera/scene state). More...

void	SetUnknown0x22 (LegoU16 p_unk0x22)
	[AI] Sets unknown parameter (possibly camera/scene state). More...

LegoResult	CreateLocalTransform (LegoTime p_time, Matrix4 &p_matrix)
	[AI] Convenience: overloaded CreateLocalTransform for time in integer time units. More...

LegoBool	FUN_100a0990 (LegoTime p_time)
	[AI] Convenience: evaluate morph state at integer time value. More...

Public Member Functions inherited from LegoTreeNodeData
	LegoTreeNodeData ()
	[AI] Default constructor. More...

virtual	~LegoTreeNodeData ()
	[AI] Virtual destructor for safe polymorphic deletion of derived classes. More...

virtual LegoResult	Read (LegoStorage *p_storage)
	[AI] Virtual function for deserializing node data from a generic LegoStorage device. More...

virtual LegoResult	Write (LegoStorage *p_storage)
	[AI] Virtual function for serializing node data to a generic LegoStorage device. More...

Static Public Member Functions
static void	GetTranslation (LegoU16 p_numTranslationKeys, LegoTranslationKey *p_translationKeys, LegoFloat p_time, Matrix4 &p_matrix, LegoU32 &p_old_index)
	[AI] Computes interpolated translation for a node at specified time, filling p_matrix. More...

static void	GetRotation (LegoU16 p_numRotationKeys, LegoRotationKey *p_rotationKeys, LegoFloat p_time, Matrix4 &p_matrix, LegoU32 &p_old_index)
	[AI] Computes interpolated rotation at a given time, filling p_matrix. More...

static void	GetScale (LegoU16 p_numScaleKeys, LegoScaleKey *p_scaleKeys, LegoFloat p_time, Matrix4 &p_matrix, LegoU32 &p_old_index)
	[AI] Computes interpolated scaling on a node at given time, updating p_matrix. More...

static LegoFloat	Interpolate (LegoFloat p_time, LegoAnimKey &p_key1, LegoFloat p_value1, LegoAnimKey &p_key2, LegoFloat p_value2)
	[AI] Performs linear interpolation between two key values for the given time. More...

static LegoAnimKey &	GetKey (LegoU32 p_i, LegoAnimKey *p_keys, LegoU32 p_size)
	[AI] Retrieves a reference to the p_i-th LegoAnimKey of given size. More...

static LegoU32	FindKeys (LegoFloat p_time, LegoU32 p_numKeys, LegoAnimKey *p_keys, LegoU32 p_size, LegoU32 &p_new_index, LegoU32 &p_old_index)
	[AI] Finds surrounding key(s) for interpolation at p_time. More...

Protected Attributes
LegoChar *	m_name
	[AI] Animation node name. More...

LegoU16	m_numTranslationKeys
	[AI] Number of translation keyframes. More...

LegoU16	m_numRotationKeys
	[AI] Number of rotation keyframes. More...

LegoU16	m_numScaleKeys
	[AI] Number of scale keyframes. More...

LegoU16	m_numMorphKeys
	[AI] Number of morph keyframes. More...

LegoTranslationKey *	m_translationKeys
	[AI] Array of translation keyframes. More...

LegoRotationKey *	m_rotationKeys
	[AI] Array of rotation keyframes. More...

LegoScaleKey *	m_scaleKeys
	[AI] Array of scale keyframes. More...

LegoMorphKey *	m_morphKeys
	[AI] Array of morph keyframes. More...

LegoU16	m_unk0x20
	[AI] Unknown, used in camera/scene morph/rotation (purpose unclear). More...

LegoU16	m_unk0x22
	[AI] Unknown, used in camera/scene morph/rotation (purpose unclear). More...

LegoU32	m_translationIndex
	[AI] Index cache for optimized translation lookup/interpolation. More...

LegoU32	m_rotationIndex
	[AI] Index cache for optimized rotation lookup/interpolation. More...

LegoU32	m_scaleIndex
	[AI] Index cache for optimized scale lookup/interpolation. More...

LegoU32	m_morphIndex
	[AI] Index cache for optimized morph lookup/interpolation. More...

Detailed Description

[AI] Holds per-node animation data for a model's animation tree.

[AI] Contains keyframe arrays for translation, rotation, scale, and morph animations, plus per-node name and anonymous flags. Provides transformation generation for a given time. Inherits from LegoTreeNodeData, fitting into a hierarchical animation structure.

Definition at line 144 of file legoanim.h.

Constructor & Destructor Documentation

◆ LegoAnimNodeData()

LegoAnimNodeData::LegoAnimNodeData ( )

[AI] Default-initializes all animation key counts to zero and pointers to NULL. [AI]

Definition at line 516 of file legoanim.cpp.

◆ ~LegoAnimNodeData()

LegoAnimNodeData::~LegoAnimNodeData ( )

override

[AI] Cleans up all allocated animation key arrays and the node name. [AI]

Definition at line 537 of file legoanim.cpp.

Member Function Documentation

◆ CreateLocalTransform() [1/2]

LegoResult LegoAnimNodeData::CreateLocalTransform	(	LegoFloat	p_time,
		Matrix4 &	p_matrix
	)

[AI] Computes the interpolated local transformation matrix for this node at the given animation time.

Parameters

p_time	Time to evaluate animation at [AI]
p_matrix	Resulting local transformation matrix [AI]

Definition at line 728 of file legoanim.cpp.

◆ CreateLocalTransform() [2/2]

LegoResult LegoAnimNodeData::CreateLocalTransform	(	LegoTime	p_time,
		Matrix4 &	p_matrix
	)

inline

[AI] Convenience: overloaded CreateLocalTransform for time in integer time units.

Parameters

p_time	Animation time (integer) [AI]
p_matrix	Result matrix [AI]

Definition at line 206 of file legoanim.h.

◆ FindKeys()

LegoU32 LegoAnimNodeData::FindKeys	(	LegoFloat	p_time,
		LegoU32	p_numKeys,
		LegoAnimKey *	p_keys,
		LegoU32	p_size,
		LegoU32 &	p_new_index,
		LegoU32 &	p_old_index
	)

static

[AI] Finds surrounding key(s) for interpolation at p_time.

Parameters

p_time	Current animation time [AI]
p_numKeys	Number of keys in array [AI]
p_keys	Key array [AI]
p_size	Stride/size of keys [AI]
p_new_index	Resulting key index [AI]
p_old_index	Key search starting index (in/out) [AI]

Returns: Number of keys found: 0 (none), 1 (exact), or 2 (between) [AI]

Definition at line 946 of file legoanim.cpp.

◆ FUN_100a0990() [1/2]

LegoBool LegoAnimNodeData::FUN_100a0990 ( LegoFloat p_time )

[AI] Evaluates morph keys at the given animation time and returns result (typically affects mesh shape or blend shape state).

Parameters

p_time Time to evaluate morph at [AI]

Definition at line 923 of file legoanim.cpp.

◆ FUN_100a0990() [2/2]

LegoBool LegoAnimNodeData::FUN_100a0990 ( LegoTime p_time )

inline

[AI] Convenience: evaluate morph state at integer time value.

Definition at line 212 of file legoanim.h.

◆ GetKey()

LegoAnimKey & LegoAnimNodeData::GetKey	(	LegoU32	p_i,
		LegoAnimKey *	p_keys,
		LegoU32	p_size
	)

inlinestatic

[AI] Retrieves a reference to the p_i-th LegoAnimKey of given size.

Parameters

p_i	Array index [AI]
p_keys	Start of keyframe array [AI]
p_size	Stride/size of each keyframe [AI]

Definition at line 1007 of file legoanim.cpp.

◆ GetMorphIndex()

LegoU32 LegoAnimNodeData::GetMorphIndex ( )

inline

[AI] Gets last used/optimized morph index for interpolation.

Definition at line 178 of file legoanim.h.

◆ GetMorphKeys()

LegoMorphKey * LegoAnimNodeData::GetMorphKeys ( )

inline

[AI] Returns pointer to morph keyframes array.

Definition at line 192 of file legoanim.h.

◆ GetName()

LegoChar * LegoAnimNodeData::GetName ( )

inline

[AI] Name of this animation node (used for lookup/mapping to scene graph).

Definition at line 163 of file legoanim.h.

◆ GetNumRotationKeys()

LegoU16 LegoAnimNodeData::GetNumRotationKeys ( )

inline

[AI] Number of rotation keys for this node.

Definition at line 165 of file legoanim.h.

◆ GetNumTranslationKeys()

LegoU16 LegoAnimNodeData::GetNumTranslationKeys ( )

inline

[AI] Number of translation keys for this node.

Definition at line 164 of file legoanim.h.

◆ GetRotation()

void LegoAnimNodeData::GetRotation	(	LegoU16	p_numRotationKeys,
		LegoRotationKey *	p_rotationKeys,
		LegoFloat	p_time,
		Matrix4 &	p_matrix,
		LegoU32 &	p_old_index
	)

static

[AI] Computes interpolated rotation at a given time, filling p_matrix.

Parameters

p_numRotationKeys	Count of rotation keys [AI]
p_rotationKeys	Rotation keys array [AI]
p_time	Animation time [AI]
p_matrix	Matrix to set [AI]
p_old_index	Key search starting index (pass in/out) [AI]

Definition at line 829 of file legoanim.cpp.

◆ GetRotationIndex()

LegoU32 LegoAnimNodeData::GetRotationIndex ( )

inline

[AI] Gets last used/optimized rotation index for interpolation.

Definition at line 176 of file legoanim.h.

◆ GetRotationKey()

LegoRotationKey * LegoAnimNodeData::GetRotationKey ( MxS32 index )

inline

[AI] Access a pointer to the i-th rotation key.

Parameters

index Array index (0-based) [AI]

Definition at line 185 of file legoanim.h.

◆ GetScale()

void LegoAnimNodeData::GetScale	(	LegoU16	p_numScaleKeys,
		LegoScaleKey *	p_scaleKeys,
		LegoFloat	p_time,
		Matrix4 &	p_matrix,
		LegoU32 &	p_old_index
	)

inlinestatic

[AI] Computes interpolated scaling on a node at given time, updating p_matrix.

Parameters

p_numScaleKeys	Number of scale keys [AI]
p_scaleKeys	Scale keys array [AI]
p_time	Animation time [AI]
p_matrix	Matrix to update [AI]
p_old_index	Key search starting index (pass in/out) [AI]

Definition at line 892 of file legoanim.cpp.

◆ GetScaleIndex()

LegoU32 LegoAnimNodeData::GetScaleIndex ( )

inline

[AI] Gets last used/optimized scale index for interpolation.

Definition at line 177 of file legoanim.h.

◆ GetTranslation()

void LegoAnimNodeData::GetTranslation	(	LegoU16	p_numTranslationKeys,
		LegoTranslationKey *	p_translationKeys,
		LegoFloat	p_time,
		Matrix4 &	p_matrix,
		LegoU32 &	p_old_index
	)

inlinestatic

[AI] Computes interpolated translation for a node at specified time, filling p_matrix.

Parameters

p_numTranslationKeys	Count of translation keys in array [AI]
p_translationKeys	Translation keys array [AI]
p_time	Animation time [AI]
p_matrix	Matrix to be set [AI]
p_old_index	Key search starting index (pass in/out optimized for playback) [AI]

Definition at line 765 of file legoanim.cpp.

◆ GetTranslationIndex()

LegoU32 LegoAnimNodeData::GetTranslationIndex ( )

inline

[AI] Gets last used/optimized translation index for interpolation.

Definition at line 175 of file legoanim.h.

◆ GetUnknown0x20()

LegoU16 LegoAnimNodeData::GetUnknown0x20 ( )

inline

[AI] Unknown, used in scene/camera calculations (purpose unclear).

Definition at line 180 of file legoanim.h.

◆ GetUnknown0x22()

LegoU16 LegoAnimNodeData::GetUnknown0x22 ( )

inline

[AI] Unknown, used in scene/camera calculations (purpose unclear).

Definition at line 181 of file legoanim.h.

◆ Interpolate()

LegoFloat LegoAnimNodeData::Interpolate	(	LegoFloat	p_time,
		LegoAnimKey &	p_key1,
		LegoFloat	p_value1,
		LegoAnimKey &	p_key2,
		LegoFloat	p_value2
	)

inlinestatic

[AI] Performs linear interpolation between two key values for the given time.

Parameters

p_time	Current animation time [AI]
p_key1	First keyframe [AI]
p_value1	Value at first keyframe [AI]
p_key2	Second keyframe [AI]
p_value2	Value at second keyframe [AI]

Definition at line 996 of file legoanim.cpp.

◆ Read()

LegoResult LegoAnimNodeData::Read ( LegoStorage * p_storage )

overridevirtual

[AI] Reads all node keyframe arrays, name, and meta from storage.

Parameters

p_storage Storage to read from. [AI]

Reimplemented from LegoTreeNodeData.

Definition at line 558 of file legoanim.cpp.

◆ SetMorphIndex()

void LegoAnimNodeData::SetMorphIndex ( LegoU32 p_morphIndex )

inline

[AI] Sets last used morph index.

Definition at line 190 of file legoanim.h.

◆ SetMorphKeys()

void LegoAnimNodeData::SetMorphKeys ( LegoMorphKey * p_morphKeys )

inline

Definition at line 193 of file legoanim.h.

◆ SetName()

void LegoAnimNodeData::SetName ( LegoChar * p_name )

[AI] Sets the node's name (deep-copies string).

Definition at line 717 of file legoanim.cpp.

◆ SetNumMorphKeys()

void LegoAnimNodeData::SetNumMorphKeys ( LegoU16 p_numMorphKeys )

inline

[AI] Sets morph key count.

Definition at line 199 of file legoanim.h.

◆ SetNumRotationKeys()

void LegoAnimNodeData::SetNumRotationKeys ( LegoU16 p_numRotationKeys )

inline

[AI] Sets the number of rotation keys for this node.

Definition at line 166 of file legoanim.h.

◆ SetRotationIndex()

void LegoAnimNodeData::SetRotationIndex ( LegoU32 p_rotationIndex )

inline

[AI] Sets last used rotation index.

Definition at line 188 of file legoanim.h.

◆ SetRotationKeys()

void LegoAnimNodeData::SetRotationKeys ( LegoRotationKey * p_keys )

inline

[AI] Sets the node's rotation keys array, resets rotation index.

Definition at line 169 of file legoanim.h.

◆ SetScaleIndex()

void LegoAnimNodeData::SetScaleIndex ( LegoU32 p_scaleIndex )

inline

[AI] Sets last used scale index.

Definition at line 189 of file legoanim.h.

◆ SetTranslationIndex()

void LegoAnimNodeData::SetTranslationIndex ( LegoU32 p_translationIndex )

inline

[AI] Sets last used translation index.

Definition at line 187 of file legoanim.h.

◆ SetUnknown0x20()

void LegoAnimNodeData::SetUnknown0x20 ( LegoU16 p_unk0x20 )

inline

[AI] Sets unknown parameter (possibly camera/scene state).

Definition at line 200 of file legoanim.h.

◆ SetUnknown0x22()

void LegoAnimNodeData::SetUnknown0x22 ( LegoU16 p_unk0x22 )

inline

[AI] Sets unknown parameter (possibly camera/scene state).

Definition at line 201 of file legoanim.h.

◆ Write()

LegoResult LegoAnimNodeData::Write ( LegoStorage * p_storage )

overridevirtual

[AI] Writes all node keyframe arrays, name, and meta to storage.

Parameters

p_storage Storage to write to. [AI]

Reimplemented from LegoTreeNodeData.

Definition at line 650 of file legoanim.cpp.

Member Data Documentation

◆ m_morphIndex

LegoU32 LegoAnimNodeData::m_morphIndex

protected

[AI] Index cache for optimized morph lookup/interpolation.

Definition at line 308 of file legoanim.h.

◆ m_morphKeys

LegoMorphKey* LegoAnimNodeData::m_morphKeys

protected

[AI] Array of morph keyframes.

Definition at line 302 of file legoanim.h.

◆ m_name

LegoChar* LegoAnimNodeData::m_name

protected

[AI] Animation node name.

Definition at line 294 of file legoanim.h.

◆ m_numMorphKeys

LegoU16 LegoAnimNodeData::m_numMorphKeys

protected

[AI] Number of morph keyframes.

Definition at line 298 of file legoanim.h.

◆ m_numRotationKeys

LegoU16 LegoAnimNodeData::m_numRotationKeys

protected

[AI] Number of rotation keyframes.

Definition at line 296 of file legoanim.h.

◆ m_numScaleKeys

LegoU16 LegoAnimNodeData::m_numScaleKeys

protected

[AI] Number of scale keyframes.

Definition at line 297 of file legoanim.h.

◆ m_numTranslationKeys

LegoU16 LegoAnimNodeData::m_numTranslationKeys

protected

[AI] Number of translation keyframes.

Definition at line 295 of file legoanim.h.

◆ m_rotationIndex

LegoU32 LegoAnimNodeData::m_rotationIndex

protected

[AI] Index cache for optimized rotation lookup/interpolation.

Definition at line 306 of file legoanim.h.

◆ m_rotationKeys

LegoRotationKey* LegoAnimNodeData::m_rotationKeys

protected

[AI] Array of rotation keyframes.

Definition at line 300 of file legoanim.h.

◆ m_scaleIndex

LegoU32 LegoAnimNodeData::m_scaleIndex

protected

[AI] Index cache for optimized scale lookup/interpolation.

Definition at line 307 of file legoanim.h.

◆ m_scaleKeys

LegoScaleKey* LegoAnimNodeData::m_scaleKeys

protected

[AI] Array of scale keyframes.

Definition at line 301 of file legoanim.h.

◆ m_translationIndex

LegoU32 LegoAnimNodeData::m_translationIndex

protected

[AI] Index cache for optimized translation lookup/interpolation.

Definition at line 305 of file legoanim.h.

◆ m_translationKeys

LegoTranslationKey* LegoAnimNodeData::m_translationKeys

protected

[AI] Array of translation keyframes.

Definition at line 299 of file legoanim.h.

◆ m_unk0x20

LegoU16 LegoAnimNodeData::m_unk0x20

protected

[AI] Unknown, used in camera/scene morph/rotation (purpose unclear).

Definition at line 303 of file legoanim.h.

◆ m_unk0x22

LegoU16 LegoAnimNodeData::m_unk0x22

protected

[AI] Unknown, used in camera/scene morph/rotation (purpose unclear).

Definition at line 304 of file legoanim.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LegoAnimNodeData()

◆ ~LegoAnimNodeData()

Member Function Documentation

◆ CreateLocalTransform() [1/2]

◆ CreateLocalTransform() [2/2]

◆ FindKeys()

◆ FUN_100a0990() [1/2]

◆ FUN_100a0990() [2/2]

◆ GetKey()

◆ GetMorphIndex()

◆ GetMorphKeys()

◆ GetName()

◆ GetNumRotationKeys()

◆ GetNumTranslationKeys()

◆ GetRotation()

◆ GetRotationIndex()

◆ GetRotationKey()

◆ GetScale()

◆ GetScaleIndex()

◆ GetTranslation()

◆ GetTranslationIndex()

◆ GetUnknown0x20()

◆ GetUnknown0x22()

◆ Interpolate()

◆ Read()

◆ SetMorphIndex()

◆ SetMorphKeys()

◆ SetName()

◆ SetNumMorphKeys()

◆ SetNumRotationKeys()

◆ SetRotationIndex()

◆ SetRotationKeys()

◆ SetScaleIndex()

◆ SetTranslationIndex()

◆ SetUnknown0x20()

◆ SetUnknown0x22()

◆ Write()

Member Data Documentation

◆ m_morphIndex

◆ m_morphKeys

◆ m_name

◆ m_numMorphKeys

◆ m_numRotationKeys

◆ m_numScaleKeys

◆ m_numTranslationKeys

◆ m_rotationIndex

◆ m_rotationKeys

◆ m_scaleIndex

◆ m_scaleKeys

◆ m_translationIndex

◆ m_translationKeys

◆ m_unk0x20

◆ m_unk0x22
