Notification parameter class for LEGO event notifications such as mouse events and modifier keys. More...

#include <legoeventnotificationparam.h>

Inheritance diagram for LegoEventNotificationParam:

[legend]

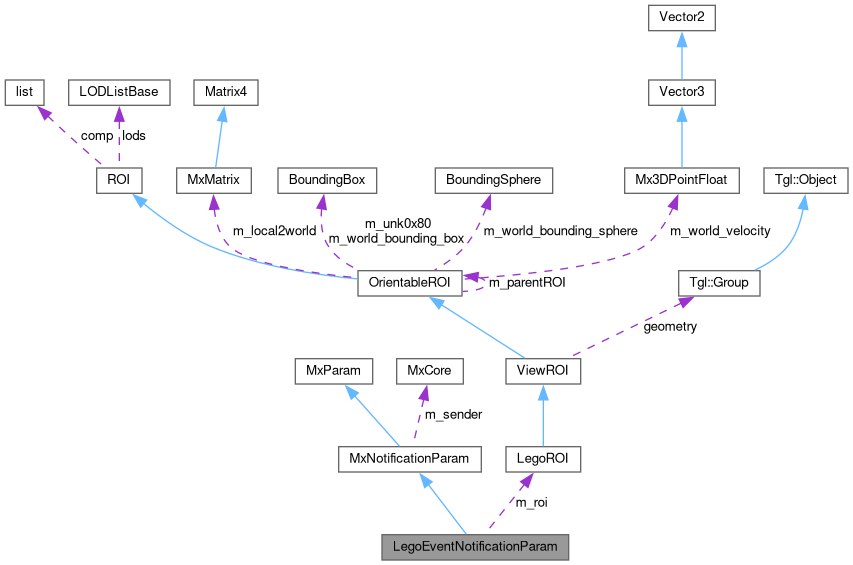

Collaboration diagram for LegoEventNotificationParam:

[legend]

Public Types
enum	{ c_lButtonState = 1 , c_rButtonState = 2 , c_modKey1 = 4 , c_modKey2 = 8 }
	Modifier and mouse button state bit-flag values for user input. More...

Public Member Functions
MxNotificationParam *	Clone () const override
	Creates a deep copy of this notification parameter object. More...

	LegoEventNotificationParam ()
	Default constructor. More...

	LegoEventNotificationParam (NotificationId p_type, MxCore *p_sender, MxU8 p_modifier, MxS32 p_x, MxS32 p_y, MxU8 p_key)
	Constructor with all parameter fields for event reporting. More...

LegoROI *	GetROI ()
	Returns the ROI (3D Object) associated with this event, if any. More...

MxU8	GetModifier ()
	Returns modifier bitmask for this event (mouse/keyboard state). More...

MxU8	GetKey () const
	Returns the keycode for this event, or 0 if not used. More...

MxS32	GetX () const
	Returns X (horizontal) coordinate for the event, usually screen-relative in pixels. More...

MxS32	GetY () const
	Returns Y (vertical) coordinate for the event, usually screen-relative in pixels. More...

void	SetROI (LegoROI *p_roi)
	Sets the ROI reference (object involved in the event). More...

void	SetModifier (MxU8 p_modifier)
	Sets the modifier state bitmask for the event. More...

void	SetKey (MxU8 p_key)
	Sets the keycode for the event. More...

void	SetX (MxS32 p_x)
	Sets the X (horizontal) coordinate for the event. More...

void	SetY (MxS32 p_y)
	Sets the Y (vertical) coordinate for the event. More...

Public Member Functions inherited from MxNotificationParam
	MxNotificationParam ()
	[AI] Constructs a default notification parameter with type c_notificationType0 and no sender. More...

	MxNotificationParam (NotificationId p_type, MxCore *p_sender)
	[AI] Constructs a notification parameter with a specific type and sender. More...

virtual MxNotificationParam *	Clone () const
	[AI] Creates a copy of this notification parameter object on the heap. More...

NotificationId	GetNotification () const
	[AI] Retrieves the current notification type of this parameter. More...

MxCore *	GetSender () const
	[AI] Retrieves the sender pointer associated with this notification. More...

void	SetNotification (NotificationId p_type)
	[AI] Sets the notification type for this parameter object. More...

void	SetSender (MxCore *p_sender)
	[AI] Sets the sender pointer for this notification parameter. More...

Public Member Functions inherited from MxParam
virtual	~MxParam ()
	[AI] Virtual destructor for safe polymorphic deletion of derived parameter objects. More...

Protected Attributes
MxU8	m_modifier
	Bitmask of button/modifier state at the time of the event. More...

MxS32	m_x
	X position (horizontal pixel coordinate) for event, typically relative to window/screen. More...

MxS32	m_y
	Y position (vertical pixel coordinate) for event, typically relative to window/screen. More...

MxU8	m_key
	Key code of event, if any (else 0). More...

LegoROI *	m_roi
	Reference to involved world object (ROI), if any (else NULL). More...

Protected Attributes inherited from MxNotificationParam
NotificationId	m_type
	[AI] Type of notification/event carried by this object (see NotificationId). More...

MxCore *	m_sender
	[AI] Pointer to the MxCore instance that sent or originated this notification. More...

Detailed Description

Notification parameter class for LEGO event notifications such as mouse events and modifier keys.

[AI]

[AI] Handles mouse position, button/modifier state, key events, and optionally associates with a LegoROI for the event. Used to pass user input details through the event/notification systems of the LEGO Island engine.

Definition at line 18 of file legoeventnotificationparam.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Modifier and mouse button state bit-flag values for user input.

[AI]

[AI] Used in m_modifier: left/right mouse buttons and up to two modifier keys can be represented. c_lButtonState: Indicates (bit 0) left mouse button is pressed. c_rButtonState: Indicates (bit 1) right mouse button is pressed. c_modKey1: Indicates (bit 2) a modifier key (e.g., Shift) is pressed. c_modKey2: Indicates (bit 3) another modifier key (e.g., Ctrl) is pressed.

Enumerator
c_lButtonState
c_rButtonState
c_modKey1
c_modKey2

Definition at line 29 of file legoeventnotificationparam.h.

Constructor & Destructor Documentation

◆ LegoEventNotificationParam() [1/2]

LegoEventNotificationParam::LegoEventNotificationParam ( )

inline

Default constructor.

Sets type to c_notificationType0 and sender to NULL; all data to default/zero. [AI]

Definition at line 53 of file legoeventnotificationparam.h.

◆ LegoEventNotificationParam() [2/2]

LegoEventNotificationParam::LegoEventNotificationParam	(	NotificationId	p_type,
		MxCore *	p_sender,
		MxU8	p_modifier,
		MxS32	p_x,
		MxS32	p_y,
		MxU8	p_key
	)

inline

Constructor with all parameter fields for event reporting.

[AI]

Parameters

p_type	Notification type (event type enum, e.g. mouse, key event) [AI]
p_sender	Pointer to the sender object (usually the input handler or direct control object) [AI]
p_modifier	Modifier bitmask (from enum, combines l/r mouse and modifiers) [AI]
p_x	Mouse X coordinate [AI]
p_y	Mouse Y coordinate [AI]
p_key	Keycode for the key event; 0 if unused [AI]

Definition at line 64 of file legoeventnotificationparam.h.

Member Function Documentation

◆ Clone()

MxNotificationParam * LegoEventNotificationParam::Clone ( ) const

inlineoverridevirtual

Creates a deep copy of this notification parameter object.

[AI]

[AI] Returns a new LegoEventNotificationParam with identical members, including the associated ROI pointer. Used for forwarding or queuing input events. [AI]

Returns: A heap-allocated clone of this instance as MxNotificationParam*. [AI]

Reimplemented from MxNotificationParam.

Definition at line 42 of file legoeventnotificationparam.h.

◆ GetKey()

MxU8 LegoEventNotificationParam::GetKey ( ) const

inline

Returns the keycode for this event, or 0 if not used.

[AI]

[AI] Represents keyboard input; if not a key event, will be 0. [AI]

Definition at line 90 of file legoeventnotificationparam.h.

◆ GetModifier()

MxU8 LegoEventNotificationParam::GetModifier ( )

inline

Returns modifier bitmask for this event (mouse/keyboard state).

[AI]

[AI] Bitmask with possible bit flags from enum {c_lButtonState, ...}. [AI]

Definition at line 85 of file legoeventnotificationparam.h.

◆ GetROI()

LegoROI * LegoEventNotificationParam::GetROI ( )

inline

Returns the ROI (3D Object) associated with this event, if any.

[AI]

[AI] May be null. Used if the event occurred on a specific world object. [AI]

Definition at line 80 of file legoeventnotificationparam.h.

◆ GetX()

MxS32 LegoEventNotificationParam::GetX ( ) const

inline

Returns X (horizontal) coordinate for the event, usually screen-relative in pixels.

[AI]

Definition at line 95 of file legoeventnotificationparam.h.

◆ GetY()

MxS32 LegoEventNotificationParam::GetY ( ) const

inline

Returns Y (vertical) coordinate for the event, usually screen-relative in pixels.

[AI]

Definition at line 100 of file legoeventnotificationparam.h.

◆ SetKey()

void LegoEventNotificationParam::SetKey ( MxU8 p_key )

inline

Sets the keycode for the event.

[AI]

Parameters

p_key Keycode to assign. [AI]

Definition at line 118 of file legoeventnotificationparam.h.

◆ SetModifier()

void LegoEventNotificationParam::SetModifier ( MxU8 p_modifier )

inline

Sets the modifier state bitmask for the event.

[AI]

Parameters

p_modifier Modifier mask (from enum) to set. [AI]

Definition at line 112 of file legoeventnotificationparam.h.

◆ SetROI()

void LegoEventNotificationParam::SetROI ( LegoROI * p_roi )

inline

Sets the ROI reference (object involved in the event).

[AI]

Parameters

p_roi Pointer to a LegoROI to associate; can be NULL. [AI]

Definition at line 106 of file legoeventnotificationparam.h.

◆ SetX()

void LegoEventNotificationParam::SetX ( MxS32 p_x )

inline

Sets the X (horizontal) coordinate for the event.

[AI]

Parameters

p_x	New X coordinate. [AI]

Definition at line 124 of file legoeventnotificationparam.h.

◆ SetY()

void LegoEventNotificationParam::SetY ( MxS32 p_y )

inline

Sets the Y (vertical) coordinate for the event.

[AI]

Parameters

p_y	New Y coordinate. [AI]

Definition at line 130 of file legoeventnotificationparam.h.

Member Data Documentation

◆ m_key

MxU8 LegoEventNotificationParam::m_key

protected

Key code of event, if any (else 0).

[AI]

Definition at line 152 of file legoeventnotificationparam.h.

◆ m_modifier

MxU8 LegoEventNotificationParam::m_modifier

protected

Bitmask of button/modifier state at the time of the event.

[AI]

[AI] See enum above for interpretation: lButton, rButton, modKey1, modKey2. [AI]

Definition at line 137 of file legoeventnotificationparam.h.

◆ m_roi

LegoROI* LegoEventNotificationParam::m_roi

protected

Reference to involved world object (ROI), if any (else NULL).

[AI]

Definition at line 157 of file legoeventnotificationparam.h.

◆ m_x

MxS32 LegoEventNotificationParam::m_x

protected

X position (horizontal pixel coordinate) for event, typically relative to window/screen.

[AI]

Definition at line 142 of file legoeventnotificationparam.h.

◆ m_y

MxS32 LegoEventNotificationParam::m_y

protected

Y position (vertical pixel coordinate) for event, typically relative to window/screen.

[AI]

Definition at line 147 of file legoeventnotificationparam.h.

The documentation for this class was generated from the following file:

legoeventnotificationparam.h
