MxEntity is a base class for game entities which are uniquely identified by an integer ID and an AtomId. More...

#include <mxentity.h>

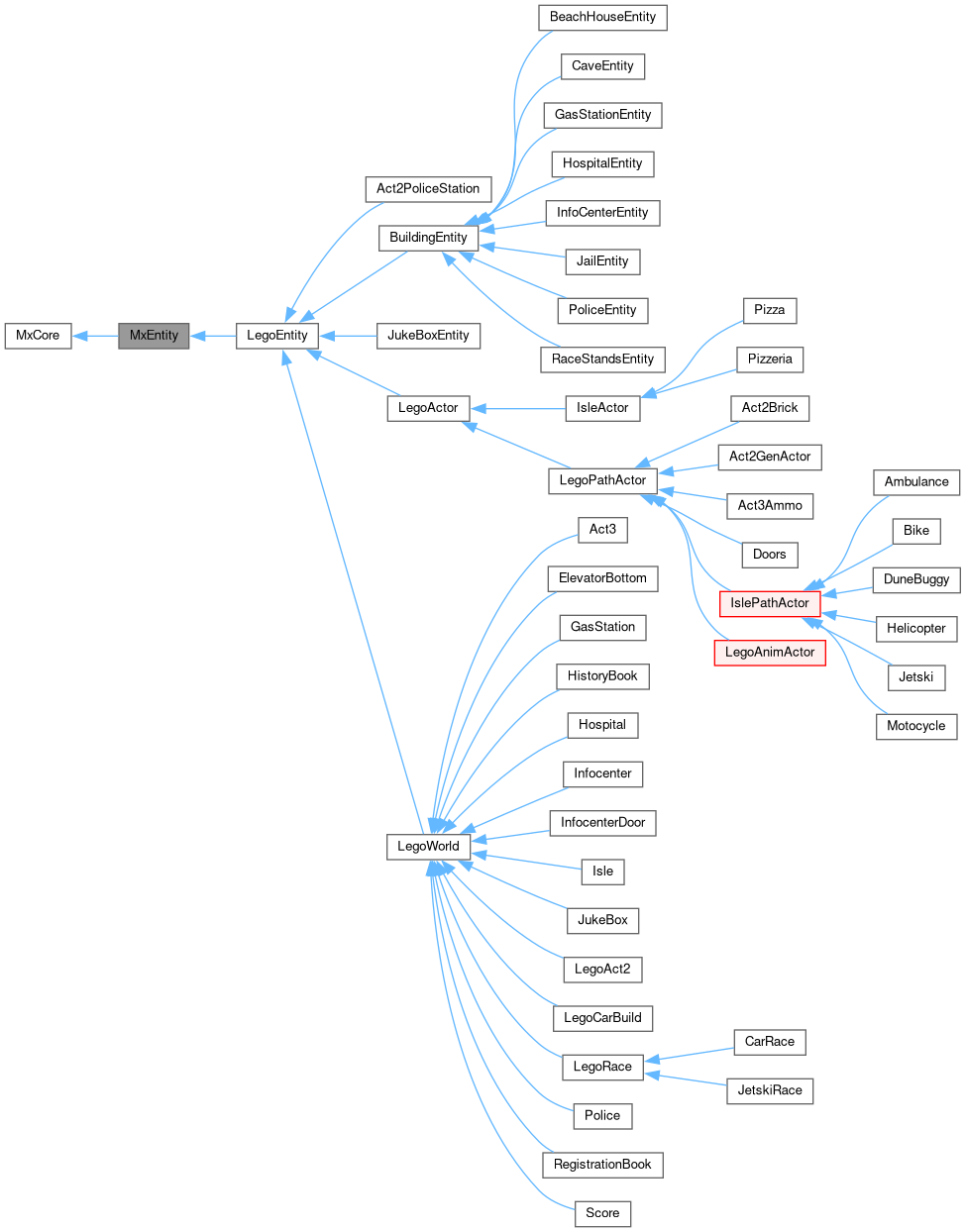

Inheritance diagram for MxEntity:

[legend]

Collaboration diagram for MxEntity:

Public Member Functions
	MxEntity ()
	Default constructor. More...

	~MxEntity () override
	Virtual destructor for MxEntity. More...

const char *	ClassName () const override
	Returns the class name for type introspection. More...

MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...

virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...

MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...

MxS32	GetEntityId ()
	Returns the current entity ID. More...

MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...

void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...

void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Protected Attributes
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...

MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

MxEntity is a base class for game entities which are uniquely identified by an integer ID and an AtomId.

[AI]

[AI] MxEntity provides a unified interface for all world entities and supplies mechanisms for type information, unique identity, and entity initialization from basic parameters or from a data action (MxDSAction). Used as an ancestor for most LEGO Island actor and entity classes.

Definition at line 22 of file mxentity.h.

Constructor & Destructor Documentation

◆ MxEntity()

MxEntity::MxEntity ( )

inline

Default constructor.

Initializes entity ID to -1 (invalid). [AI]

Definition at line 28 of file mxentity.h.

◆ ~MxEntity()

MxEntity::~MxEntity ( )

inlineoverride

Virtual destructor for MxEntity.

[AI]

Definition at line 34 of file mxentity.h.

Member Function Documentation

◆ ClassName()

const char * MxEntity::ClassName ( ) const

inlineoverridevirtual

Returns the class name for type introspection.

[AI]

Returns: String literal "MxEntity" [AI]

Reimplemented from MxCore.

Definition at line 42 of file mxentity.h.

◆ Create() [1/2]

MxResult MxEntity::Create ( MxDSAction & p_dsAction )

inline

Initializes the entity from a MxDSAction object.

[AI]

Parameters

p_dsAction Reference to action with object identification data. [AI]

Returns: SUCCESS on completion. [AI]

[AI] Sets m_entityId and m_atomId to the values from the DSAction.

Definition at line 82 of file mxentity.h.

◆ Create() [2/2]

virtual MxResult MxEntity::Create	(	MxS32	p_entityId,
		const MxAtomId &	p_atomId
	)

inlinevirtual

Initializes the entity from a given entity ID and AtomId.

[AI]

Parameters

p_entityId	The integer entity ID to assign. [AI]
p_atomId	The AtomId to assign. [AI]

Returns: SUCCESS on completion. [AI]

Definition at line 69 of file mxentity.h.

◆ GetAtomId()

MxAtomId & MxEntity::GetAtomId ( )

inline

Returns a reference to the entity AtomId.

[AI]

Definition at line 98 of file mxentity.h.

◆ GetEntityId()

MxS32 MxEntity::GetEntityId ( )

inline

Returns the current entity ID.

[AI]

Definition at line 93 of file mxentity.h.

◆ IsA()

MxBool MxEntity::IsA ( const char * p_name ) const

inlineoverridevirtual

Checks if the object is of the given class name or a parent type.

[AI]

Parameters

p_name The class name to compare against. [AI]

[AI] Returns true if the name matches the MxEntity class or matches any parent class via MxCore::IsA.

Reimplemented from MxCore.

Definition at line 56 of file mxentity.h.

◆ SetAtomId()

void MxEntity::SetAtomId ( const MxAtomId & p_atomId )

inline

Sets the AtomId to the given value.

[AI]

Parameters

p_atomId Value to assign to m_atomId. [AI]

Definition at line 110 of file mxentity.h.

◆ SetEntityId()

void MxEntity::SetEntityId ( MxS32 p_entityId )

inline

Sets the entity ID to the given value.

[AI]

Parameters

p_entityId New ID value to set. [AI]

Definition at line 104 of file mxentity.h.

Member Data Documentation

◆ m_atomId

MxAtomId MxEntity::m_atomId

protected

The AtomId associated with this entity, used for resource and script identification.

[AI]

Definition at line 124 of file mxentity.h.

◆ m_entityId

MxS32 MxEntity::m_entityId

protected

The unique entity ID, typically used for lookup and reference.

[AI]

Definition at line 119 of file mxentity.h.

The documentation for this class was generated from the following file:

mxentity.h
