[AI] Cursor object suitable for traversing all rectangles covered by an MxRegion. More...

#include <mxregion.h>

Inheritance diagram for MxRegionCursor:

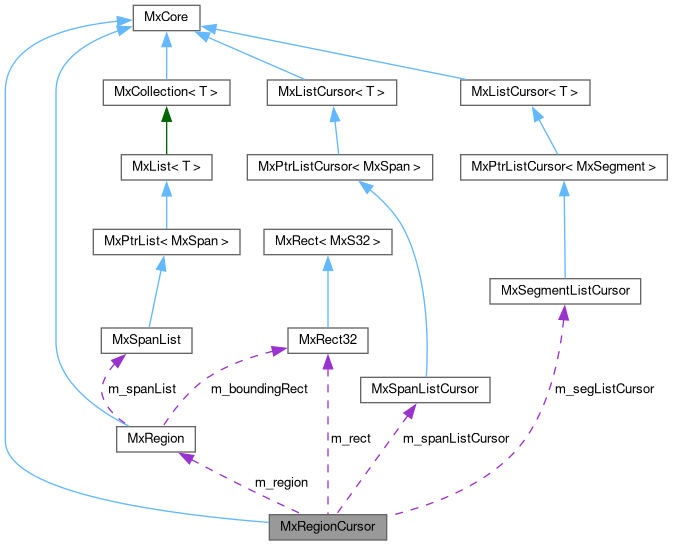

Collaboration diagram for MxRegionCursor:

[legend]

Public Member Functions
	MxRegionCursor (MxRegion *p_region)
	[AI] Constructs a traversal cursor for the specified region. More...

	~MxRegionCursor () override
	[AI] Destructor; releases ownership of current rectangle and cursors. More...

virtual MxRect32 *	Head ()
	[AI] Seeks to and returns the first (topmost, leftmost) rectangle covered by the region. More...

virtual MxRect32 *	Tail ()
	[AI] Seeks to and returns the last (bottommost, rightmost) rectangle covered by the region. More...

virtual MxRect32 *	Next ()
	[AI] Advances to and returns the next rectangle in region sequence. More...

virtual MxRect32 *	Prev ()
	[AI] Steps backward to and returns the previous rectangle in region sequence. More...

virtual MxRect32 *	Head (MxRect32 &p_rect)
	[AI] Filtered: Places at the first rectangle overlapping p_rect and returns it. More...

virtual MxRect32 *	Tail (MxRect32 &p_rect)
	[AI] Filtered: Steps to last rectangle intersecting p_rect. More...

virtual MxRect32 *	Next (MxRect32 &p_rect)
	[AI] Filtered: Advances to next rectangle intersecting p_rect. More...

virtual MxRect32 *	Prev (MxRect32 &p_rect)
	[AI] Filtered: Steps to previous rectangle intersecting p_rect. More...

virtual MxRect32 *	GetRect ()
	[AI] Returns a pointer to the currently referenced rectangle. More...

virtual MxBool	Valid ()
	[AI] Checks if the cursor is currently referencing a valid rectangle (not at end). More...

virtual void	Reset ()
	[AI] Resets the cursor(s) to the initial (uninitialized) state. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Protected Member Functions
void	CreateSegmentListCursor (MxSegmentList *p_segList)
	[AI] Allocates a segment list cursor for the given segment list, replacing any previous segment cursor. More...

void	SetRect (MxS32 p_left, MxS32 p_top, MxS32 p_right, MxS32 p_bottom)
	[AI] Initializes or updates m_rect with the specified coordinates. More...

void	NextSpan (MxRect32 &p_rect)
	[AI] Step to the next span which overlaps p_rect (for filtered/region-clip traversal). More...

void	PrevSpan (MxRect32 &p_rect)
	[AI] Step to the previous span (reverse traversal) intersecting p_rect. More...

Protected Attributes
MxRegion *	m_region
	[AI] The region being traversed. [AI] More...

MxRect32 *	m_rect
	[AI] Current rectangle being referenced. [AI] More...

MxSpanListCursor *	m_spanListCursor
	[AI] Cursor for moving through the span list. [AI] More...

MxSegmentListCursor *	m_segListCursor
	[AI] Cursor for the current segment list. [AI] More...

Detailed Description

[AI] Cursor object suitable for traversing all rectangles covered by an MxRegion.

Supports both sequential and filtered (clipped) traversal. Can return rectangles in scanline order.

Definition at line 389 of file mxregion.h.

Constructor & Destructor Documentation

◆ MxRegionCursor()

MxRegionCursor::MxRegionCursor ( MxRegion * p_region )

[AI] Constructs a traversal cursor for the specified region.

Parameters

p_region The region to be traversed. [AI]

Definition at line 112 of file mxregion.cpp.

◆ ~MxRegionCursor()

MxRegionCursor::~MxRegionCursor ( )

override

[AI] Destructor; releases ownership of current rectangle and cursors.

Definition at line 121 of file mxregion.cpp.

Member Function Documentation

◆ CreateSegmentListCursor()

void MxRegionCursor::CreateSegmentListCursor ( MxSegmentList * p_segList )

protected

[AI] Allocates a segment list cursor for the given segment list, replacing any previous segment cursor.

Parameters

p_segList Segment list to navigate. [AI]

Definition at line 311 of file mxregion.cpp.

◆ GetRect()

virtual MxRect32 * MxRegionCursor::GetRect ( )

inlinevirtual

[AI] Returns a pointer to the currently referenced rectangle.

Returns: Pointer to internal MxRect32 or nullptr if at end. [AI]

Definition at line 491 of file mxregion.h.

◆ Head() [1/2]

MxRect32 * MxRegionCursor::Head ( )

virtual

[AI] Seeks to and returns the first (topmost, leftmost) rectangle covered by the region.

Returns: Pointer to internal MxRect32 (do not delete). [AI]

Definition at line 137 of file mxregion.cpp.

◆ Head() [2/2]

MxRect32 * MxRegionCursor::Head ( MxRect32 & p_rect )

virtual

[AI] Filtered: Places at the first rectangle overlapping p_rect and returns it.

Parameters

p_rect Rectangle defining the filter/clipping region. [AI]

Returns: Pointer to intersection rectangle. [AI]

Definition at line 229 of file mxregion.cpp.

◆ Next() [1/2]

MxRect32 * MxRegionCursor::Next ( )

virtual

[AI] Advances to and returns the next rectangle in region sequence.

Returns: Pointer to internal MxRect32 (do not delete). [AI]

Definition at line 179 of file mxregion.cpp.

◆ Next() [2/2]

MxRect32 * MxRegionCursor::Next ( MxRect32 & p_rect )

virtual

[AI] Filtered: Advances to next rectangle intersecting p_rect.

Parameters

p_rect Filter/clipping rectangle. [AI]

Returns: Pointer to intersection rectangle. [AI]

Definition at line 245 of file mxregion.cpp.

◆ NextSpan()

void MxRegionCursor::NextSpan ( MxRect32 & p_rect )

protected

[AI] Step to the next span which overlaps p_rect (for filtered/region-clip traversal).

Parameters

p_rect Rectangle defining the filter window for the next span. [AI]

Definition at line 334 of file mxregion.cpp.

◆ Prev() [1/2]

MxRect32 * MxRegionCursor::Prev ( )

virtual

[AI] Steps backward to and returns the previous rectangle in region sequence.

Returns: Pointer to internal MxRect32 (do not delete). [AI]

Definition at line 204 of file mxregion.cpp.

◆ Prev() [2/2]

MxRect32 * MxRegionCursor::Prev ( MxRect32 & p_rect )

virtual

[AI] Filtered: Steps to previous rectangle intersecting p_rect.

Parameters

p_rect Rectangle for filtering. [AI]

Returns: Pointer to intersection rectangle. [AI]

Definition at line 270 of file mxregion.cpp.

◆ PrevSpan()

void MxRegionCursor::PrevSpan ( MxRect32 & p_rect )

protected

[AI] Step to the previous span (reverse traversal) intersecting p_rect.

Parameters

p_rect Rectangle used for calculating intersection. [AI]

Definition at line 365 of file mxregion.cpp.

◆ Reset()

void MxRegionCursor::Reset ( )

virtual

[AI] Resets the cursor(s) to the initial (uninitialized) state.

All internal cursors are reset, and no rectangle is selected.

Definition at line 295 of file mxregion.cpp.

◆ SetRect()

void MxRegionCursor::SetRect	(	MxS32	p_left,
		MxS32	p_top,
		MxS32	p_right,
		MxS32	p_bottom
	)

protected

[AI] Initializes or updates m_rect with the specified coordinates.

Parameters

p_left	Left boundary. [AI]
p_top	Top boundary. [AI]
p_right	Right boundary. [AI]
p_bottom	Bottom boundary. [AI]

Definition at line 321 of file mxregion.cpp.

◆ Tail() [1/2]

MxRect32 * MxRegionCursor::Tail ( )

virtual

[AI] Seeks to and returns the last (bottommost, rightmost) rectangle covered by the region.

Returns: Pointer to internal MxRect32 (do not delete). [AI]

Definition at line 158 of file mxregion.cpp.

◆ Tail() [2/2]

MxRect32 * MxRegionCursor::Tail ( MxRect32 & p_rect )

virtual

[AI] Filtered: Steps to last rectangle intersecting p_rect.

Parameters

p_rect Rectangle to limit the search to. [AI]

Returns: Pointer to intersection rectangle. [AI]

Definition at line 237 of file mxregion.cpp.

◆ Valid()

virtual MxBool MxRegionCursor::Valid ( )

inlinevirtual

[AI] Checks if the cursor is currently referencing a valid rectangle (not at end).

Returns: TRUE if valid, FALSE if past end of region. [AI]

Definition at line 497 of file mxregion.h.

Member Data Documentation

◆ m_rect

MxRect32* MxRegionCursor::m_rect

protected

[AI] Current rectangle being referenced. [AI]

Definition at line 392 of file mxregion.h.

◆ m_region

MxRegion* MxRegionCursor::m_region

protected

[AI] The region being traversed. [AI]

Definition at line 391 of file mxregion.h.

◆ m_segListCursor

MxSegmentListCursor* MxRegionCursor::m_segListCursor

protected

[AI] Cursor for the current segment list. [AI]

Definition at line 394 of file mxregion.h.

◆ m_spanListCursor

MxSpanListCursor* MxRegionCursor::m_spanListCursor

protected

[AI] Cursor for moving through the span list. [AI]

Definition at line 393 of file mxregion.h.

The documentation for this class was generated from the following files:
