mxsmk.h File Reference

#include "decomp.h"
#include "mxgeometry.h"
#include "mxtypes.h"
#include <smack.h>

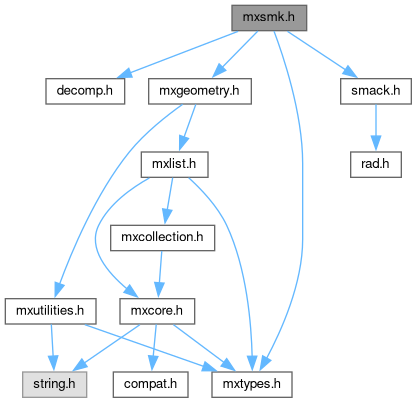

Include dependency graph for mxsmk.h:

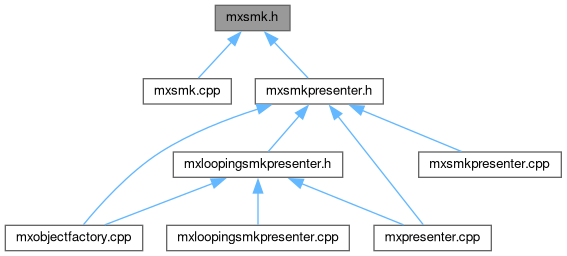

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MxSmk
	[AI] The MxSmk struct encapsulates all data required to decode and display a Smacker (SMK) video stream. More...

Functions
u32	SmackGetSizeTables ()
	[AI] External functions from SMACK.LIB used for decoding Smacker video data. More...
void	SmackDoTables (u8 *p_huffmanTrees, u8 *p_huffmanTables, u32 p_codeSize, u32 p_abSize, u32 p_detailSize, u32 p_typeSize)
	[AI] Generates Huffman tables required for decoding a Smacker frame. More...
void	SmackDoFrameToBuffer (u8 *p_source, u8 *p_huffmanTables, u8 *p_unk0x6b4)
	[AI] Decompress a single Smacker video frame into a provided buffer. More...
u32	SmackGetSizeDeltas (u32 p_width, u32 p_height)
	[AI] Returns the size required for frame delta data given width and height. More...
u8	SmackGetRect (u8 *p_unk0x6b4, u32 *p_rect)
	[AI] Reads a rectangle from the frame update information. More...

Function Documentation

SmackDoFrameToBuffer()

void SmackDoFrameToBuffer	(	u8 *	p_source,
		u8 *	p_huffmanTables,
		u8 *	p_unk0x6b4
	)

[AI] Decompress a single Smacker video frame into a provided buffer.

Parameters

p_source	[AI] Source chunk/frame data to decode.
p_huffmanTables	[AI] Prepared Huffman tables for decompression.
p_unk0x6b4	[AI] Buffer/context for decompression (decoded frame output or working state).

[AI] Called for each frame displayed; decompresses frame from compressed data into output bitmap.

SmackDoTables()

void SmackDoTables	(	u8 *	p_huffmanTrees,
		u8 *	p_huffmanTables,
		u32	p_codeSize,
		u32	p_abSize,
		u32	p_detailSize,
		u32	p_typeSize
	)

[AI] Generates Huffman tables required for decoding a Smacker frame.

Parameters

p_huffmanTrees	[AI] Pointer to the Huffman trees (input).
p_huffmanTables	[AI] Buffer to receive generated Huffman tables (output).
p_codeSize	[AI] Size of the code table.
p_abSize	[AI] Size of the AB table.
p_detailSize	[AI] Size of the detail table.
p_typeSize	[AI] Size of the type table.

[AI] This function prepares the internal coding tables based on Huffman tree input, enabling Smacker frame decompression.

SmackGetRect()

u8 SmackGetRect	(	u8 *	p_unk0x6b4,
		u32 *	p_rect
	)

[AI] Reads a rectangle from the frame update information.

Parameters

p_unk0x6b4	[AI] Frame decoder state/context.
p_rect	[AI] Output array for rectangle dimensions (left,top,width,height).

Returns

[AI] Returns the rectangle descriptor (usually success state).

SmackGetSizeDeltas()

u32 SmackGetSizeDeltas	(	u32	p_width,
		u32	p_height
	)

[AI] Returns the size required for frame delta data given width and height.

Parameters

p_width	[AI] Width of the frame.
p_height	[AI] Height of the frame.

SmackGetSizeTables()

u32 SmackGetSizeTables

(

)

[AI] External functions from SMACK.LIB used for decoding Smacker video data.

[AI] These functions provide access to the internal Huffman table and frame decoding routines of the Smacker codec. They are used to decompress and decode video streams in LEGO Island.

[AI] Returns the required size for Huffman tables used in Smacker video decoding.

Returns

[AI] Size in bytes needed for the tables.
