mxutilities.cpp File Reference

#include "mxutilities.h"
#include "mxcompositepresenter.h"
#include "mxdsaction.h"
#include "mxdsactionlist.h"
#include "mxdsfile.h"
#include "mxdsmultiaction.h"
#include "mxdsobject.h"
#include "mxgeometry.h"
#include "mxpresenterlist.h"
#include <assert.h>

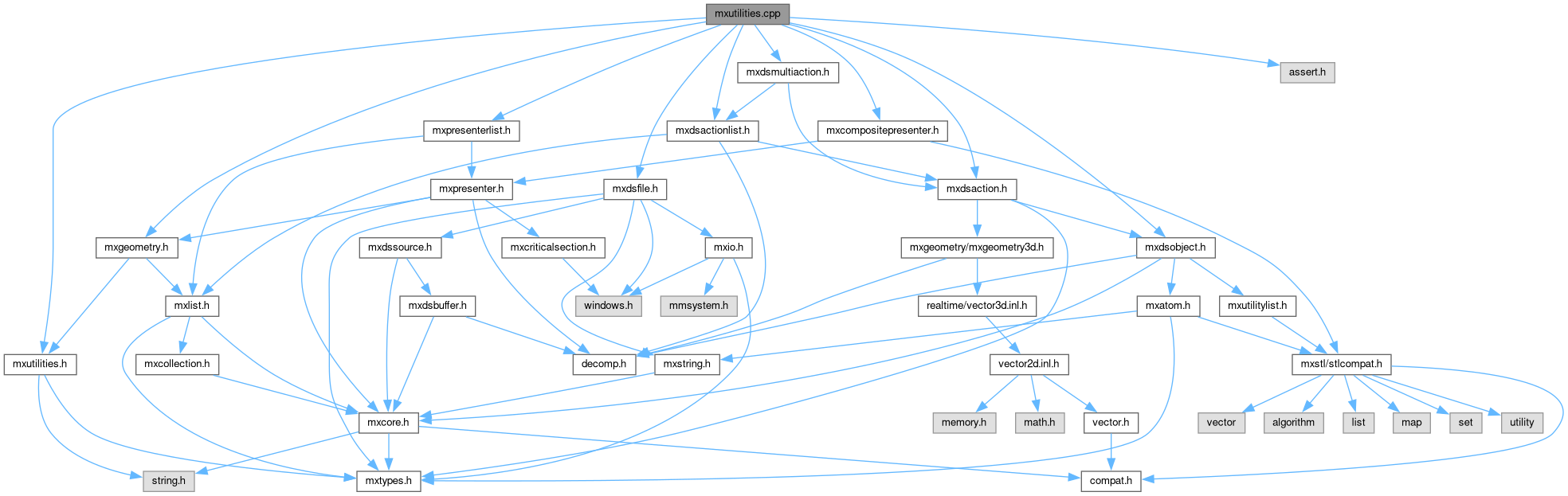

Include dependency graph for mxutilities.cpp:

Go to the source code of this file.

Functions
MxBool	GetRectIntersection (MxS32 p_rect1Width, MxS32 p_rect1Height, MxS32 p_rect2Width, MxS32 p_rect2Height, MxS32 *p_rect1Left, MxS32 *p_rect1Top, MxS32 *p_rect2Left, MxS32 *p_rect2Top, MxS32 *p_width, MxS32 *p_height)
	Computes intersection of two rectangles and modifies their positions and dimensions to the intersection area. More...
void	MakeSourceName (char *p_output, const char *p_input)
	Parses an SI source filename and normalizes it for use in the engine. More...
MxBool	KeyValueStringParse (char *p_output, const char *p_command, const char *p_string)
	Searches p_string for a key command and copies its associated value to p_output. More...
MxBool	ContainsPresenter (MxCompositePresenterList &p_presenterList, MxPresenter *p_presenter)
	Determines if a presenter exists within a composite presenter hierarchy. More...
void	OmniError (const char *p_message, MxS32 p_status)
	Displays or logs an error message using the current user message handler, or aborts on error status if none is set. More...
void	SetOmniUserMessage (void(*p_omniUserMessage)(const char *, MxS32))
	Sets the callback to handle user messages, such as errors or logs, for the OMNI engine. More...
void	FUN_100b7220 (MxDSAction *p_action, MxU32 p_newFlags, MxBool p_setFlags)
	Recursively sets or clears flags for an MxDSAction and all sub-actions if applicable. More...

Variables
void(*	g_omniUserMessage )(const char *, MxS32) = NULL

Function Documentation

ContainsPresenter()

MxBool ContainsPresenter	(	MxCompositePresenterList &	p_presenterList,
		MxPresenter *	p_presenter
	)

Determines if a presenter exists within a composite presenter hierarchy.

[AI]

[AI] Searches recursively within all composite presenters for an exact pointer match or type match.

Parameters

p_presenterList	[AI] Reference to list of composite presenters.
p_presenter	[AI] Presenter to look for.

Returns

TRUE if found, FALSE otherwise. [AI]

Definition at line 122 of file mxutilities.cpp.

FUN_100b7220()

void FUN_100b7220	(	MxDSAction *	p_action,
		MxU32	p_newFlags,
		MxBool	p_setFlags
	)

Recursively sets or clears flags for an MxDSAction and all sub-actions if applicable.

[AI]

[AI] If the object is a MxDSMultiAction, recurses into its action list, updating flags for all contained actions.

Parameters

p_action	[AI] The root action to update.
p_newFlags	[AI] Flags to set or clear.
p_setFlags	[AI] TRUE to set bits, FALSE to clear bits in the action's flags. [AI_SUGGESTED_NAME: SetActionFlagsRecursive]

Definition at line 153 of file mxutilities.cpp.

GetRectIntersection()

MxBool GetRectIntersection	(	MxS32	p_rect1Width,
		MxS32	p_rect1Height,
		MxS32	p_rect2Width,
		MxS32	p_rect2Height,
		MxS32 *	p_rect1Left,
		MxS32 *	p_rect1Top,
		MxS32 *	p_rect2Left,
		MxS32 *	p_rect2Top,
		MxS32 *	p_width,
		MxS32 *	p_height
	)

Computes intersection of two rectangles and modifies their positions and dimensions to the intersection area.

[AI]

[AI] Used to find overlapping portions when rendering or handling collision/visibility in 2D screen/UI contexts. Modifies parameters in-place.

Parameters

p_rect1Width	[AI] Width of first rectangle.
p_rect1Height	[AI] Height of first rectangle.
p_rect2Width	[AI] Width of second rectangle.
p_rect2Height	[AI] Height of second rectangle.
p_rect1Left	[AI] Pointer to X of top-left of first rectangle (modified to intersection).
p_rect1Top	[AI] Pointer to Y of top-left of first rectangle (modified to intersection).
p_rect2Left	[AI] Pointer to X of top-left of second rectangle (modified to intersection).
p_rect2Top	[AI] Pointer to Y of top-left of second rectangle (modified to intersection).
p_width	[AI] Pointer to width of the intersection area.
p_height	[AI] Pointer to height of the intersection area.

Returns

TRUE if the rectangles intersect, FALSE otherwise. [AI]

Definition at line 19 of file mxutilities.cpp.

KeyValueStringParse()

MxBool KeyValueStringParse	(	char *	p_output,
		const char *	p_command,
		const char *	p_string
	)

Searches p_string for a key command and copies its associated value to p_output.

[AI]

[AI] For commands like "foo:123, bar:456", if p_command is "bar" then p_output becomes "456". Used in config or SI parsing.

Parameters

p_output	[AI] Buffer for found value.
p_command	[AI] Key to search for.
p_string	[AI] String to search in.

Returns

TRUE if key is found, FALSE otherwise. [AI]

Definition at line 85 of file mxutilities.cpp.

MakeSourceName()

void MakeSourceName	(	char *	p_output,
		const char *	p_input
	)

Parses an SI source filename and normalizes it for use in the engine.

[AI]

[AI] Removes any disk designator (e.g., 'C:') and ".si" extension, and makes string lowercase.

Parameters

p_output	[AI] Output buffer for source name.
p_input	[AI] Input filename (may include drive, extension, etc.).

Definition at line 66 of file mxutilities.cpp.

OmniError()

void OmniError	(	const char *	p_message,
		MxS32	p_status
	)

Displays or logs an error message using the current user message handler, or aborts on error status if none is set.

[AI]

[AI] If the callback is not set and status is non-zero, aborts process. Otherwise, invokes callback.

Parameters

p_message	[AI] Null-terminated error message.
p_status	[AI] Status code or severity.

Definition at line 135 of file mxutilities.cpp.

SetOmniUserMessage()

void SetOmniUserMessage

(

void(*)(const char *, MxS32)

p_omniUserMessage

)

Sets the callback to handle user messages, such as errors or logs, for the OMNI engine.

[AI]

[AI] The callback is a function pointer invoked by OmniError.

Parameters

p_omniUserMessage

[AI] Callback function accepting a string message and status integer.

Definition at line 146 of file mxutilities.cpp.

Variable Documentation

g_omniUserMessage

void(* g_omniUserMessage) (const char *, MxS32)	(	const char *	,
		MxS32
	)		= NULL

Definition at line 15 of file mxutilities.cpp.
