#include "mxtypes.h"
#include <string.h>

Include dependency graph for mxutilities.h:

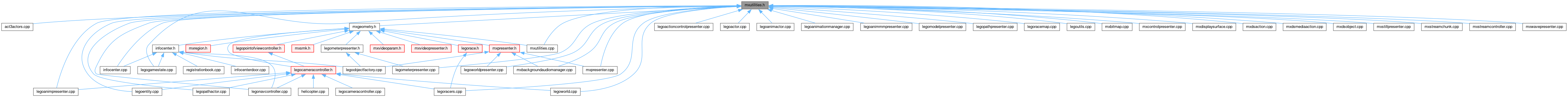

This graph shows which files directly or indirectly include this file:

Functions
template<class T >
T	Abs (T p_t)
	Returns the absolute value of a value. More...

template<class T >
T	Min (T p_t1, T p_t2)
	Returns the minimum of two values. More...

template<class T >
T	Max (T p_t1, T p_t2)
	Returns the maximum of two values. More...

template<class T >
void	GetScalar (MxU8 *&p_source, T &p_dest)
	Reads a value of type T from a memory buffer and advances the pointer. More...

template<class T >
T	GetScalar (T *&p_source)
	Reads a single value from a pointer and advances the pointer. More...

template<class T >
void	GetDouble (MxU8 *&p_source, T &p_dest)
	Reads a double-precision value from memory and advances the pointer. More...

template<class T >
void	GetString (MxU8 &p_source, char &p_dest, T p_obj, void(T::p_setter)(const char *))
	Extracts a string from a buffer and assigns it using a setter function on an object. More...

MxBool	GetRectIntersection (MxS32 p_rect1Width, MxS32 p_rect1Height, MxS32 p_rect2Width, MxS32 p_rect2Height, MxS32 p_rect1Left, MxS32 p_rect1Top, MxS32 p_rect2Left, MxS32 p_rect2Top, MxS32 p_width, MxS32 p_height)
	Computes intersection of two rectangles and modifies their positions and dimensions to the intersection area. More...

void	MakeSourceName (char , const char )
	Parses an SI source filename and normalizes it for use in the engine. More...

void	OmniError (const char *p_message, MxS32 p_status)
	Displays or logs an error message using the current user message handler, or aborts on error status if none is set. More...

void	SetOmniUserMessage (void(p_omniUserMessage)(const char , MxS32))
	Sets the callback to handle user messages, such as errors or logs, for the OMNI engine. More...

MxBool	ContainsPresenter (MxCompositePresenterList &p_presenterList, MxPresenter *p_presenter)
	Determines if a presenter exists within a composite presenter hierarchy. More...

void	FUN_100b7220 (MxDSAction *p_action, MxU32 p_newFlags, MxBool p_setFlags)
	Recursively sets or clears flags for an MxDSAction and all sub-actions if applicable. More...

MxBool	KeyValueStringParse (char , const char , const char *)
	Searches p_string for a key command and copies its associated value to p_output. More...

Function Documentation

◆ Abs()

template<class T >

T Abs ( T p_t )

inline

Returns the absolute value of a value.

[AI]

[AI] Templated utility function to compute the absolute value for any arithmetic type.

Template Parameters

T	[AI] Any type supporting comparison and negation.

Parameters

p_t	[AI] Value to compute the absolute value of.

Returns: Absolute value of p_t. [AI]

Definition at line 22 of file mxutilities.h.

◆ ContainsPresenter()

MxBool ContainsPresenter	(	MxCompositePresenterList &	p_presenterList,
		MxPresenter *	p_presenter
	)

Determines if a presenter exists within a composite presenter hierarchy.

[AI]

[AI] Searches recursively within all composite presenters for an exact pointer match or type match.

Parameters

p_presenterList	[AI] Reference to list of composite presenters.
p_presenter	[AI] Presenter to look for.

Returns: TRUE if found, FALSE otherwise. [AI]

Definition at line 122 of file mxutilities.cpp.

◆ FUN_100b7220()

void FUN_100b7220	(	MxDSAction *	p_action,
		MxU32	p_newFlags,
		MxBool	p_setFlags
	)

Recursively sets or clears flags for an MxDSAction and all sub-actions if applicable.

[AI]

[AI] If the object is a MxDSMultiAction, recurses into its action list, updating flags for all contained actions.

Parameters

p_action	[AI] The root action to update.
p_newFlags	[AI] Flags to set or clear.
p_setFlags	[AI] TRUE to set bits, FALSE to clear bits in the action's flags. [AI_SUGGESTED_NAME: SetActionFlagsRecursive]

Definition at line 153 of file mxutilities.cpp.

◆ GetDouble()

template<class T >

void GetDouble	(	MxU8 *&	p_source,
		T &	p_dest
	)

inline

Reads a double-precision value from memory and advances the pointer.

[AI]

[AI] Specialized for double reads, as some SI chunks may pack doubles specially.

Template Parameters

T	[AI] Target type to store the double into (usually double).

Parameters

p_source	[AI] Reference to pointer in buffer, will be incremented by sizeof(double).
p_dest	[AI] Destination to store the value.

Definition at line 92 of file mxutilities.h.

◆ GetRectIntersection()

MxBool GetRectIntersection	(	MxS32	p_rect1Width,
		MxS32	p_rect1Height,
		MxS32	p_rect2Width,
		MxS32	p_rect2Height,
		MxS32 *	p_rect1Left,
		MxS32 *	p_rect1Top,
		MxS32 *	p_rect2Left,
		MxS32 *	p_rect2Top,
		MxS32 *	p_width,
		MxS32 *	p_height
	)

Computes intersection of two rectangles and modifies their positions and dimensions to the intersection area.

[AI]

[AI] Used to find overlapping portions when rendering or handling collision/visibility in 2D screen/UI contexts. Modifies parameters in-place.

Parameters

p_rect1Width	[AI] Width of first rectangle.
p_rect1Height	[AI] Height of first rectangle.
p_rect2Width	[AI] Width of second rectangle.
p_rect2Height	[AI] Height of second rectangle.
p_rect1Left	[AI] Pointer to X of top-left of first rectangle (modified to intersection).
p_rect1Top	[AI] Pointer to Y of top-left of first rectangle (modified to intersection).
p_rect2Left	[AI] Pointer to X of top-left of second rectangle (modified to intersection).
p_rect2Top	[AI] Pointer to Y of top-left of second rectangle (modified to intersection).
p_width	[AI] Pointer to width of the intersection area.
p_height	[AI] Pointer to height of the intersection area.

Returns: TRUE if the rectangles intersect, FALSE otherwise. [AI]

Definition at line 19 of file mxutilities.cpp.

◆ GetScalar() [1/2]

template<class T >

void GetScalar	(	MxU8 *&	p_source,
		T &	p_dest
	)

inline

Reads a value of type T from a memory buffer and advances the pointer.

[AI]

[AI] Used for deserialization from a byte buffer, e.g. for loading chunked SI data.

Template Parameters

T	[AI] Type to extract.

Parameters

p_source	[AI] Reference to pointer in buffer to read from. Will be incremented by sizeof(T).
p_dest	[AI] Destination to store the extracted value.

Definition at line 63 of file mxutilities.h.

◆ GetScalar() [2/2]

template<class T >

T GetScalar ( T *& p_source )

inline

Reads a single value from a pointer and advances the pointer.

[AI]

[AI] Convenience version for types already aligned in memory.

Template Parameters

T	[AI] Type to extract.

Parameters

p_source [AI] Reference to pointer to T to read from. Increments pointer by one element.

Returns: The extracted value. [AI]

Definition at line 77 of file mxutilities.h.

◆ GetString()

template<class T >

void GetString	(	MxU8 *&	p_source,
		char *&	p_dest,
		T *	p_obj,
		void(T::)(const char )	p_setter
	)

inline

Extracts a string from a buffer and assigns it using a setter function on an object.

[AI]

[AI] Reads a NUL-terminated string, uses p_setter member function to consume it, then advances buffer pointer past string.

Template Parameters

T	[AI] Type of the object with the setter member function.

Parameters

p_source	[AI] Reference to buffer pointer, advanced past the string.
p_dest	[AI] The string pointer assigned by the setter.
p_obj	[AI] Object to call member function on.
p_setter	[AI] Member function accepting a const char* as parameter. Typically sets a property on the object.

Definition at line 108 of file mxutilities.h.

◆ KeyValueStringParse()

MxBool KeyValueStringParse	(	char *	p_output,
		const char *	p_command,
		const char *	p_string
	)

Searches p_string for a key command and copies its associated value to p_output.

[AI]

[AI] For commands like "foo:123, bar:456", if p_command is "bar" then p_output becomes "456". Used in config or SI parsing.

Parameters

p_output	[AI] Buffer for found value.
p_command	[AI] Key to search for.
p_string	[AI] String to search in.

Returns: TRUE if key is found, FALSE otherwise. [AI]

Definition at line 85 of file mxutilities.cpp.

◆ MakeSourceName()

void MakeSourceName	(	char *	p_output,
		const char *	p_input
	)

Parses an SI source filename and normalizes it for use in the engine.

[AI]

[AI] Removes any disk designator (e.g., 'C:') and ".si" extension, and makes string lowercase.

Parameters

p_output	[AI] Output buffer for source name.
p_input	[AI] Input filename (may include drive, extension, etc.).

Definition at line 66 of file mxutilities.cpp.

◆ Max()

template<class T >

T Max	(	T	p_t1,
		T	p_t2
	)

inline

Returns the maximum of two values.

[AI]

[AI] Templated utility function to select the greater of two values.

Template Parameters

T	[AI] Any type supporting comparison.

Parameters

p_t1	[AI] First value.
p_t2	[AI] Second value.

Returns: Largest of p_t1 and p_t2. [AI]

Definition at line 50 of file mxutilities.h.

◆ Min()

template<class T >

T Min	(	T	p_t1,
		T	p_t2
	)

inline

Returns the minimum of two values.

[AI]

[AI] Templated utility function to select the smaller of two values.

Template Parameters

T	[AI] Any type supporting comparison.

Parameters

p_t1	[AI] First value.
p_t2	[AI] Second value.

Returns: Smallest of p_t1 and p_t2. [AI]

Definition at line 36 of file mxutilities.h.

◆ OmniError()

void OmniError	(	const char *	p_message,
		MxS32	p_status
	)

Displays or logs an error message using the current user message handler, or aborts on error status if none is set.

[AI]

[AI] If the callback is not set and status is non-zero, aborts process. Otherwise, invokes callback.

Parameters

p_message	[AI] Null-terminated error message.
p_status	[AI] Status code or severity.

Definition at line 135 of file mxutilities.cpp.

◆ SetOmniUserMessage()

void SetOmniUserMessage ( void(*)(const char *, MxS32) p_omniUserMessage )

Sets the callback to handle user messages, such as errors or logs, for the OMNI engine.

[AI]

[AI] The callback is a function pointer invoked by OmniError.

Parameters

p_omniUserMessage [AI] Callback function accepting a string message and status integer.

Definition at line 146 of file mxutilities.cpp.
