[AI] Notification parameter for the LegoControlManager, used to propagate information about control events (like clicks) to listeners. More...

#include <legocontrolmanager.h>

Inheritance diagram for LegoControlManagerNotificationParam:

[legend]

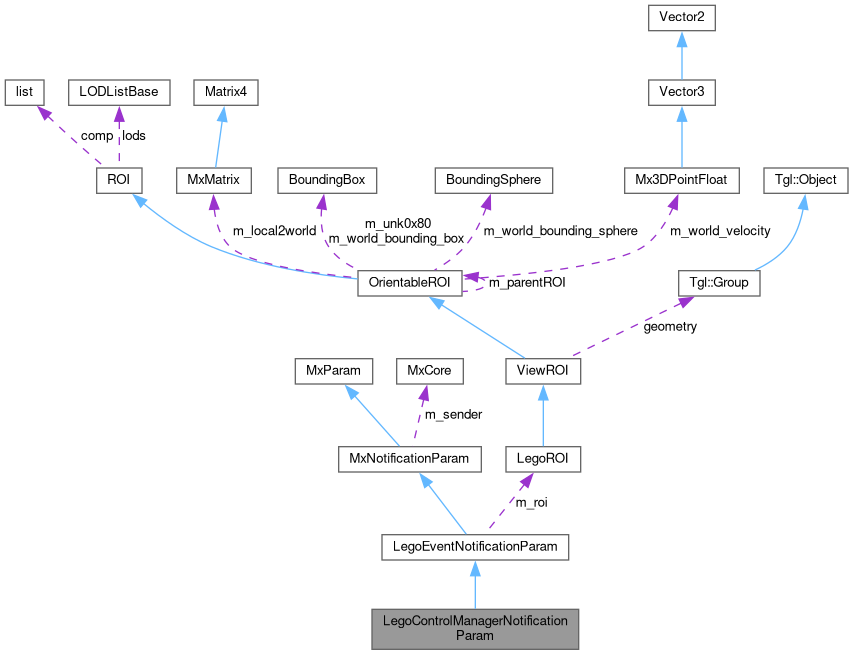

Collaboration diagram for LegoControlManagerNotificationParam:

[legend]

Public Member Functions
	LegoControlManagerNotificationParam ()
	[AI] Default constructor initializing members to their default invalid states. More...

const char *	GetClickedAtom () const
	[AI] Returns the atom string associated with the control event. More...

void	SetClickedObjectId (MxS32 p_clickedObjectId)
	[AI] Sets the object ID of the clicked control/presenter. More...

void	SetClickedAtom (const char *p_clickedAtom)
	[AI] Sets the atom string that identifies the clicked control. More...

void	SetUnknown0x28 (MxS16 p_unk0x28)
	[AI] Sets the value of the unknown field at offset 0x28. More...

Public Member Functions inherited from LegoEventNotificationParam
MxNotificationParam *	Clone () const override
	Creates a deep copy of this notification parameter object. More...

	LegoEventNotificationParam ()
	Default constructor. More...

	LegoEventNotificationParam (NotificationId p_type, MxCore *p_sender, MxU8 p_modifier, MxS32 p_x, MxS32 p_y, MxU8 p_key)
	Constructor with all parameter fields for event reporting. More...

LegoROI *	GetROI ()
	Returns the ROI (3D Object) associated with this event, if any. More...

MxU8	GetModifier ()
	Returns modifier bitmask for this event (mouse/keyboard state). More...

MxU8	GetKey () const
	Returns the keycode for this event, or 0 if not used. More...

MxS32	GetX () const
	Returns X (horizontal) coordinate for the event, usually screen-relative in pixels. More...

MxS32	GetY () const
	Returns Y (vertical) coordinate for the event, usually screen-relative in pixels. More...

void	SetROI (LegoROI *p_roi)
	Sets the ROI reference (object involved in the event). More...

void	SetModifier (MxU8 p_modifier)
	Sets the modifier state bitmask for the event. More...

void	SetKey (MxU8 p_key)
	Sets the keycode for the event. More...

void	SetX (MxS32 p_x)
	Sets the X (horizontal) coordinate for the event. More...

void	SetY (MxS32 p_y)
	Sets the Y (vertical) coordinate for the event. More...

Public Member Functions inherited from MxNotificationParam
	MxNotificationParam ()
	[AI] Constructs a default notification parameter with type c_notificationType0 and no sender. More...

	MxNotificationParam (NotificationId p_type, MxCore *p_sender)
	[AI] Constructs a notification parameter with a specific type and sender. More...

virtual MxNotificationParam *	Clone () const
	[AI] Creates a copy of this notification parameter object on the heap. More...

NotificationId	GetNotification () const
	[AI] Retrieves the current notification type of this parameter. More...

MxCore *	GetSender () const
	[AI] Retrieves the sender pointer associated with this notification. More...

void	SetNotification (NotificationId p_type)
	[AI] Sets the notification type for this parameter object. More...

void	SetSender (MxCore *p_sender)
	[AI] Sets the sender pointer for this notification parameter. More...

Public Member Functions inherited from MxParam
virtual	~MxParam ()
	[AI] Virtual destructor for safe polymorphic deletion of derived parameter objects. More...

Public Attributes
MxS32	m_clickedObjectId
	[AI] Object ID of the clicked control/presenter (or -1 if not set). [AI] More...

const char *	m_clickedAtom
	[AI] Atom string for the clicked control (unique string identifier; may be NULL). [AI] More...

MxS16	m_unk0x28
	[AI] Undetermined; settable via SetUnknown0x28. [AI] More...

Additional Inherited Members
Public Types inherited from LegoEventNotificationParam
enum	{ c_lButtonState = 1 , c_rButtonState = 2 , c_modKey1 = 4 , c_modKey2 = 8 }
	Modifier and mouse button state bit-flag values for user input. More...

Protected Attributes inherited from LegoEventNotificationParam
MxU8	m_modifier
	Bitmask of button/modifier state at the time of the event. More...

MxS32	m_x
	X position (horizontal pixel coordinate) for event, typically relative to window/screen. More...

MxS32	m_y
	Y position (vertical pixel coordinate) for event, typically relative to window/screen. More...

MxU8	m_key
	Key code of event, if any (else 0). More...

LegoROI *	m_roi
	Reference to involved world object (ROI), if any (else NULL). More...

Protected Attributes inherited from MxNotificationParam
NotificationId	m_type
	[AI] Type of notification/event carried by this object (see NotificationId). More...

MxCore *	m_sender
	[AI] Pointer to the MxCore instance that sent or originated this notification. More...

Detailed Description

[AI] Notification parameter for the LegoControlManager, used to propagate information about control events (like clicks) to listeners.

[AI] This class extends LegoEventNotificationParam and adds additional info about the control object involved (such as the object ID and a related 'atom' string). Used by LegoControlManager to notify interested parties about control-related actions, e.g. UI button clicks. The class also provides setters to customize notification details before broadcasting. [AI]

Definition at line 15 of file legocontrolmanager.h.

Constructor & Destructor Documentation

◆ LegoControlManagerNotificationParam()

LegoControlManagerNotificationParam::LegoControlManagerNotificationParam ( )

inline

[AI] Default constructor initializing members to their default invalid states.

[AI] Sets m_clickedObjectId to -1 to indicate no object, and m_clickedAtom to NULL. [AI]

Definition at line 21 of file legocontrolmanager.h.

Member Function Documentation

◆ GetClickedAtom()

const char * LegoControlManagerNotificationParam::GetClickedAtom ( ) const

inline

[AI] Returns the atom string associated with the control event.

Returns: [AI] Pointer to the atom string of the clicked control (may be NULL if unset).

Definition at line 31 of file legocontrolmanager.h.

◆ SetClickedAtom()

void LegoControlManagerNotificationParam::SetClickedAtom ( const char * p_clickedAtom )

inline

[AI] Sets the atom string that identifies the clicked control.

Parameters

p_clickedAtom [AI] The null-terminated string to set as the atom.

Definition at line 43 of file legocontrolmanager.h.

◆ SetClickedObjectId()

void LegoControlManagerNotificationParam::SetClickedObjectId ( MxS32 p_clickedObjectId )

inline

[AI] Sets the object ID of the clicked control/presenter.

Parameters

p_clickedObjectId [AI] The object ID to set.

Definition at line 37 of file legocontrolmanager.h.

◆ SetUnknown0x28()

void LegoControlManagerNotificationParam::SetUnknown0x28 ( MxS16 p_unk0x28 )

inline

[AI] Sets the value of the unknown field at offset 0x28.

Parameters

p_unk0x28 [AI] Value to set.

[AI] The purpose of this field is undetermined at this time.

Definition at line 50 of file legocontrolmanager.h.

Member Data Documentation

◆ m_clickedAtom

const char* LegoControlManagerNotificationParam::m_clickedAtom

[AI] Atom string for the clicked control (unique string identifier; may be NULL). [AI]

Definition at line 53 of file legocontrolmanager.h.

◆ m_clickedObjectId

MxS32 LegoControlManagerNotificationParam::m_clickedObjectId

[AI] Object ID of the clicked control/presenter (or -1 if not set). [AI]

Definition at line 52 of file legocontrolmanager.h.

◆ m_unk0x28

MxS16 LegoControlManagerNotificationParam::m_unk0x28

[AI] Undetermined; settable via SetUnknown0x28. [AI]

Definition at line 54 of file legocontrolmanager.h.

The documentation for this class was generated from the following file:

legocontrolmanager.h
