[AI] Level-Of-Detail (LOD) object used for rendering and managing polygonal mesh data with LOD switching. More...

#include <legolod.h>

Inheritance diagram for LegoLOD:

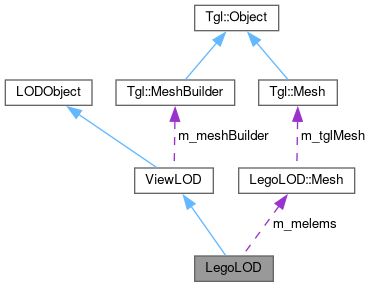

Collaboration diagram for LegoLOD:

[legend]

Classes
struct	Mesh
	[AI] Structure representing a sub-mesh and its texturization flag. More...

Public Member Functions
	LegoLOD (Tgl::Renderer *)
	[AI] Constructor. More...

	~LegoLOD () override
	[AI] Destructor. More...

int	NumPolys () const override
	[AI] Get number of polygons (faces) for this LOD. More...

float	VTable0x10 () override
	[AI] Reserved LOD callback, returns zero. More...

LegoResult	Read (Tgl::Renderer p_renderer, LegoTextureContainer p_textureContainer, LegoStorage *p_storage)
	[AI] Load LOD geometry and material info from storage, building Tgl::Mesh group(s). More...

LegoLOD *	Clone (Tgl::Renderer *p_renderer)
	[AI] Create an exact copy of this LOD, including cloned meshes, for another (or the same) renderer. More...

LegoResult	SetColor (LegoFloat p_red, LegoFloat p_green, LegoFloat p_blue, LegoFloat p_alpha)
	[AI] Overrides the color of all non-textured mesh parts for this LOD. More...

LegoResult	SetTextureInfo (LegoTextureInfo *p_textureInfo)
	[AI] Assigns the same texture group to all textured meshes in this LOD. More...

LegoResult	FUN_100aad70 (LegoTextureInfo *p_textureInfo)
	[AI] Assigns the group texture to all textured meshes, but does NOT override mesh color. More...

void	ClearMeshOffset ()
	[AI] Reset mesh offset index to start at 0, affecting which meshes are updated by future color/texture calls. More...

LegoResult	GetTextureInfo (LegoTextureInfo *&p_textureInfo)
	[AI] Retrieves the texture info/group of the first mesh with group texture in this LOD. More...

Public Member Functions inherited from ViewLOD
	ViewLOD (Tgl::Renderer *pRenderer)
	[AI] Constructs a ViewLOD using the provided Tgl Renderer. More...

	~ViewLOD () override
	[AI] Destructor, deletes the owned mesh builder if present. More...

double	AveragePolyArea () const override
	[AI] Approximates the average area of polygons within this LOD. More...

int	NVerts () const override
	[AI] Returns the estimated number of vertices in this LOD. More...

Tgl::MeshBuilder *	GetMeshBuilder ()
	[AI] Returns a pointer to the mesh builder associated with this LOD. More...

const Tgl::MeshBuilder *	GetMeshBuilder () const
	[AI] Returns a const pointer to the mesh builder for this LOD. More...

undefined4	GetUnknown0x08 ()
	[AI] Returns the internal flag value m_unk0x08. More...

unsigned char	GetUnknown0x08Test4 ()
	[AI] Performs a bitwise AND (mask) with value 0xffffff04 on the internal flag, returning result as an unsigned char. More...

unsigned char	GetUnknown0x08Test8 ()
	[AI] Performs a bitwise AND (mask) with value 0xffffff08 on the internal flag, returning result as an unsigned char. More...

void	SetFlag (unsigned char p_flag)
	[AI] Sets a given flag in the internal flags (m_unk0x08) using bitwise OR. More...

void	ClearFlag (unsigned char p_flag)
	[AI] Clears a given flag in the internal flags (m_unk0x08) using bitwise AND with negated p_flag. More...

Public Member Functions inherited from LODObject
virtual	~LODObject ()

virtual double	AveragePolyArea () const =0
	[AI] Returns the average polygon area for this LOD. More...

virtual int	NVerts () const =0
	[AI] Returns the number of vertices for this LOD. More...

virtual int	NumPolys () const =0
	[AI] Returns the number of polygons for this LOD. More...

virtual float	VTable0x10 ()=0
	[AI] Unknown method related to the LOD. More...

Static Public Member Functions
static LegoBool	FUN_100aae20 (const LegoChar *p_name)
	[AI] Helper to check if a mesh/material name matches the "inh" group, which separates non-inheritable types. More...

Protected Attributes
Mesh *	m_melems
	Array of mesh struct objects representing all mesh parts that make up this LOD. [AI]. More...

LegoU32	m_numMeshes
	Number of sub-meshes held in m_melems. [AI]. More...

LegoU32	m_numVertices
	Total number of vertices across all mesh parts. Used for stats and validation. [AI]. More...

LegoU32	m_numPolys
	Total number of polygons (faces) across all meshes (NumPolys implementation). [AI]. More...

LegoU32	m_meshOffset
	Internal mesh starting index for iteration; used for color/texture selective assignment. [AI]. More...

Protected Attributes inherited from ViewLOD
Tgl::MeshBuilder *	m_meshBuilder
	[AI] Points to a mesh builder instance for constructing or managing polygonal mesh data for this LOD. More...

undefined4	m_unk0x08
	[AI] Internal bitfield for flag/status storage controlling LOD state and behavior. More...

Additional Inherited Members
Public Types inherited from ViewLOD
enum	{ c_bit4 = 0x10 }

Detailed Description

[AI] Level-Of-Detail (LOD) object used for rendering and managing polygonal mesh data with LOD switching.

LegoLOD extends ViewLOD to provide support for handling multiple Tgl::Mesh objects, each potentially representing a different material/texture within a single LOD, as used in LEGO Island's 3D engine. Provides mesh management, LOD data loading, cloning, color and texture assignment. Deserialization from storage populates mesh arrays and applies material/texture as needed.

Typical usage: constructed and filled by the resource system (LegoROI and friends) to store mesh geometry of an object at a specific LOD.

Meshes may be indexed/colorized or texturized depending on geometry/material; supports group color/texture assignment for variants.

Note: [AI] Deletion of this object will clean up allocated meshes and mesh arrays.

Definition at line 27 of file legolod.h.

Constructor & Destructor Documentation

◆ LegoLOD()

LegoLOD::LegoLOD ( Tgl::Renderer * p_renderer )

[AI] Constructor.

Initializes this LOD for a given Tgl::Renderer. Allocates no meshes.

Parameters

p_renderer Renderer to associate materials/meshes with. [AI]

Definition at line 25 of file legolod.cpp.

◆ ~LegoLOD()

LegoLOD::~LegoLOD ( )

override

[AI] Destructor.

Frees all allocated meshes and mesh arrays. [AI]

Definition at line 39 of file legolod.cpp.

Member Function Documentation

◆ ClearMeshOffset()

void LegoLOD::ClearMeshOffset ( )

[AI] Reset mesh offset index to start at 0, affecting which meshes are updated by future color/texture calls.

Definition at line 393 of file legolod.cpp.

◆ Clone()

LegoLOD * LegoLOD::Clone ( Tgl::Renderer * p_renderer )

[AI] Create an exact copy of this LOD, including cloned meshes, for another (or the same) renderer.

All internal meshes are shallow cloned onto the new mesh builder for the target renderer.

Parameters

p_renderer Renderer to use for duplicated resources. [AI]

Returns: New LegoLOD with duplicated (but non-deep) resources. [AI]

Definition at line 306 of file legolod.cpp.

◆ FUN_100aad70()

LegoResult LegoLOD::FUN_100aad70 ( LegoTextureInfo * p_textureInfo )

[AI] Assigns the group texture to all textured meshes, but does NOT override mesh color.

Use when only switching texture, but not the per-mesh color.

Parameters

p_textureInfo Texture group to assign. [AI]

Returns: Success/failure code. [AI]

Definition at line 354 of file legolod.cpp.

◆ FUN_100aae20()

LegoBool LegoLOD::FUN_100aae20 ( const LegoChar * p_name )

static

[AI] Helper to check if a mesh/material name matches the "inh" group, which separates non-inheritable types.

Used internally to split mesh arrays/grouping between texture- and color-based segments.

Parameters

p_name Name to check (usually a mesh or material name). [AI]

Return values

TRUE	if the name matches "inh" group. [AI]

Definition at line 380 of file legolod.cpp.

◆ GetTextureInfo()

LegoResult LegoLOD::GetTextureInfo ( LegoTextureInfo *& p_textureInfo )

[AI] Retrieves the texture info/group of the first mesh with group texture in this LOD.

Used to get the current texture group in use, e.g., for variant logic or serialization.

Parameters

[out] p_textureInfo Reference to pointer that receives the found texture info/group. [AI]

Returns: Success if found and assigned, FAILURE if not present. [AI]

Definition at line 366 of file legolod.cpp.

◆ NumPolys()

int LegoLOD::NumPolys ( ) const

inlineoverridevirtual

[AI] Get number of polygons (faces) for this LOD.

Implements LODObject.

Definition at line 55 of file legolod.h.

◆ Read()

LegoResult LegoLOD::Read	(	Tgl::Renderer *	p_renderer,
		LegoTextureContainer *	p_textureContainer,
		LegoStorage *	p_storage
	)

[AI] Load LOD geometry and material info from storage, building Tgl::Mesh group(s).

Reads geometry/mesh data, materials, textures, palette, and builds meshes as needed. Associates meshes with correct renderer/textures.

Parameters

p_renderer	Renderer to allocate resources for. [AI]
p_textureContainer	Container to look up (by name) textures/material groups. [AI]
p_storage	Stream/storage to read LOD binary data from. [AI]

Returns: Result code indicating success/failure of load. [AI]

Definition at line 56 of file legolod.cpp.

◆ SetColor()

LegoResult LegoLOD::SetColor	(	LegoFloat	p_red,
		LegoFloat	p_green,
		LegoFloat	p_blue,
		LegoFloat	p_alpha
	)

[AI] Overrides the color of all non-textured mesh parts for this LOD.

All sub-meshes without a group texture/m_unk0x04==FALSE will have their color set as provided (RGBA floats).

Parameters

p_red	Red component (0.0 - 1.0). [AI]
p_green	Green component (0.0 - 1.0). [AI]
p_blue	Blue component (0.0 - 1.0). [AI]
p_alpha	Alpha component. [AI]

Returns: Success or failure code. [AI]

Definition at line 328 of file legolod.cpp.

◆ SetTextureInfo()

LegoResult LegoLOD::SetTextureInfo ( LegoTextureInfo * p_textureInfo )

[AI] Assigns the same texture group to all textured meshes in this LOD.

All meshes with m_unk0x04==TRUE will have their group texture set to the provided texture info. Used when switching/animating texture variants. Also sets mesh color to (1,1,1,0) for those meshes.

Parameters

p_textureInfo Pointer to desired texture info/group. [AI]

Returns: Success/failure code. [AI]

Definition at line 340 of file legolod.cpp.

◆ VTable0x10()

float LegoLOD::VTable0x10 ( )

inlineoverridevirtual

[AI] Reserved LOD callback, returns zero.

Implements LODObject.

Definition at line 60 of file legolod.h.

Member Data Documentation

◆ m_melems

Mesh* LegoLOD::m_melems

protected

Array of mesh struct objects representing all mesh parts that make up this LOD. [AI].

Definition at line 147 of file legolod.h.

◆ m_meshOffset

LegoU32 LegoLOD::m_meshOffset

protected

Internal mesh starting index for iteration; used for color/texture selective assignment. [AI].

Definition at line 151 of file legolod.h.

◆ m_numMeshes

LegoU32 LegoLOD::m_numMeshes

protected

Number of sub-meshes held in m_melems. [AI].

Definition at line 148 of file legolod.h.

◆ m_numPolys

LegoU32 LegoLOD::m_numPolys

protected

Total number of polygons (faces) across all meshes (NumPolys implementation). [AI].

Definition at line 150 of file legolod.h.

◆ m_numVertices

LegoU32 LegoLOD::m_numVertices

protected

Total number of vertices across all mesh parts. Used for stats and validation. [AI].

Definition at line 149 of file legolod.h.
