[AI] Represents a "geometry edge" in the LEGO Island world polygon/path system. More...

#include <legowegedge.h>

Inheritance diagram for LegoWEGEdge:

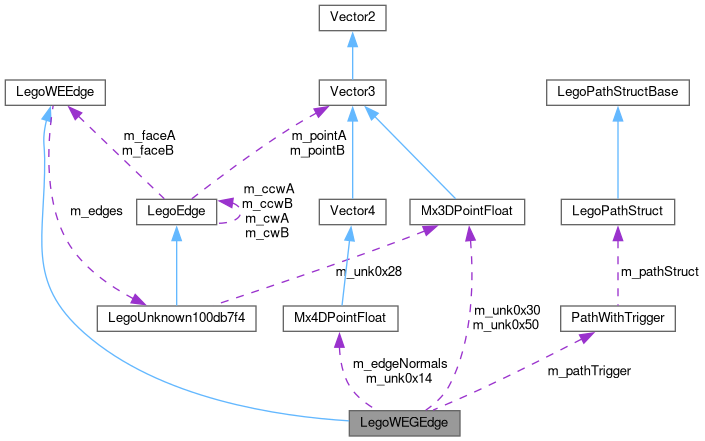

Collaboration diagram for LegoWEGEdge:

[legend]

Public Types
enum	{ c_bit1 = 0x01 , c_bit2 = 0x02 , c_bit3 = 0x04 , c_bit5 = 0x10 }
	[AI] Flags controlling various edge behaviors and states. [AI] More...

Public Member Functions
	LegoWEGEdge ()
	[AI] Constructs a LegoWEGEdge and initializes its member variables. More...

	~LegoWEGEdge () override
	[AI] Destroys this edge instance and properly deallocates memory for associated dynamic members. More...

LegoS32	VTable0x04 () override
	[AI] Performs geometry calculations for the edge, sets up normals, center point, and trigger vectors. More...

LegoU32	GetFlag0x10 ()
	Returns TRUE if the 'disabled' flag is not set, otherwise FALSE. More...

Mx4DPointFloat *	GetUnknown0x14 ()
	[AI] Returns a pointer to the cached 4D normal or reference plane for the edge. More...

Mx4DPointFloat *	GetEdgeNormal (int index)
	[AI] Returns a pointer to the 4D edge normal at the given sub-edge index. More...

const LegoChar *	GetName ()
	[AI] Returns the name string of this edge, typically used for debugging and lookup. More...

void	SetFlag0x10 (LegoU32 p_disable)
	[AI] Sets the enabled/disabled flag for this edge. More...

LegoU8	GetMask0x03 ()
	[AI] Returns a two-bit mask of the first two edge state flags (bit1, bit2). More...

Public Member Functions inherited from LegoWEEdge
	LegoWEEdge ()
	[AI] Constructs a LegoWEEdge with no edges. More...

virtual	~LegoWEEdge ()
	[AI] Destroys the LegoWEEdge object, releasing memory used by its edge list. More...

virtual LegoS32	VTable0x04 ()
	[AI] Connects and links the associated edge objects to set up adjacency across the face. More...

LegoU8	GetNumEdges ()
	[AI] Returns the number of edge elements assigned to this face. More...

LegoUnknown100db7f4 **	GetEdges ()
	[AI] Gets the array of pointers to the edge objects that form this face. More...

LegoU32	IsEqual (LegoWEEdge *p_other)
	[AI] Checks if this face object is the same as another. More...

void	SetEdges (LegoUnknown100db7f4 **p_edges, LegoU8 p_numEdges)
	[AI] Assigns the edge list and count for this face. More...

Protected Member Functions
LegoS32	FUN_1009aea0 ()
	[AI] Internal routine called by VTable0x04 for validity checking of polygon vertices and normal consistency. More...

Protected Attributes
LegoU8	m_flags
	[AI] Flags indicating edge state, enabled/disabled, and type bits. [AI] More...

LegoU8	m_unk0x0d
	[AI] Unknown, used for internal status/tracking. [AI] More...

LegoChar *	m_name
	[AI] Edge's name string, dynamically allocated for debug/lookup. [AI] More...

Mx4DPointFloat	m_unk0x14
	[AI] 4D plane equation or normal used for polygon/edge side tests. [AI] More...

Mx4DPointFloat *	m_edgeNormals
	[AI] Per-edge normals for each polygon segment, allocated dynamically. [AI] More...

Mx3DPointFloat	m_unk0x30
	[AI] Cached center for the edge polygon, used in geometric calculations. [AI] More...

float	m_unk0x44
	[AI] Maximum squared distance from center—polygon bounding radius or similar. [AI] More...

LegoU8	m_numTriggers
	[AI] Number of trigger (path/segment) structures attached to this edge. [AI] More...

PathWithTrigger *	m_pathTrigger
	[AI] Array of triggers influencing entity motion or event logic on this edge. [AI] More...

Mx3DPointFloat *	m_unk0x50
	[AI] Transition direction/unit vector—used for edge trigger geometry. [AI] More...

Protected Attributes inherited from LegoWEEdge
LegoU8	m_numEdges
	[AI] Number of edge elements in m_edges; number of sides of the polygon. [AI] More...

LegoUnknown100db7f4 **	m_edges
	[AI] Array of pointers to edge objects (LegoUnknown100db7f4) comprising this face. [AI] More...

Friends
class	LegoPathController
	[AI] Declares LegoPathController as a friend, allowing it to access internal members for path placement and control. [AI] More...

Detailed Description

[AI] Represents a "geometry edge" in the LEGO Island world polygon/path system.

Extends LegoWEEdge. It contains extra geometry information such as edge normals, flags, triggers, and other geometry metrics. [AI] The class is used in path/boundary computations, LOD edge logic, physics, and geometry-based triggering. [AI] SIZE: 0x54 [AI] VTABLE: LEGO1 0x100db7f8 [AI]

Definition at line 31 of file legowegedge.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

[AI] Flags controlling various edge behaviors and states. [AI]

Enumerator
c_bit1	[AI] Edge-specific flag (purpose determined by logic in edge processing)
c_bit2	[AI]
c_bit3	[AI]
c_bit5	[AI] Disabled flag mask (see GetFlag0x10/SetFlag0x10) [AI]

Definition at line 34 of file legowegedge.h.

Constructor & Destructor Documentation

◆ LegoWEGEdge()

LegoWEGEdge::LegoWEGEdge ( )

[AI] Constructs a LegoWEGEdge and initializes its member variables.

[AI]

Definition at line 12 of file legowegedge.cpp.

◆ ~LegoWEGEdge()

LegoWEGEdge::~LegoWEGEdge ( )

override

[AI] Destroys this edge instance and properly deallocates memory for associated dynamic members.

[AI]

Definition at line 25 of file legowegedge.cpp.

Member Function Documentation

◆ FUN_1009aea0()

LegoS32 LegoWEGEdge::FUN_1009aea0 ( )

protected

[AI] Internal routine called by VTable0x04 for validity checking of polygon vertices and normal consistency.

Returns 0 for OK, negative for degenerate or nonplanar geometry. [AI]

Returns: Result code (0 OK, negative if error on geometry consistency) [AI]

Definition at line 221 of file legowegedge.cpp.

◆ GetEdgeNormal()

Mx4DPointFloat * LegoWEGEdge::GetEdgeNormal ( int index )

inline

[AI] Returns a pointer to the 4D edge normal at the given sub-edge index.

Used for plane intersection/testing. [AI]

Parameters

index Index of the edge normal in the edge's polygonal set [AI]

Returns: Pointer to the normal at the requested index. [AI]

Definition at line 75 of file legowegedge.h.

◆ GetFlag0x10()

LegoU32 LegoWEGEdge::GetFlag0x10 ( )

inline

Returns TRUE if the 'disabled' flag is not set, otherwise FALSE.

Used as a quick status/activation check for edge-flags. [AI]

Returns: TRUE if enabled, FALSE if disabled (bit5 cleared). [AI]

Definition at line 57 of file legowegedge.h.

◆ GetMask0x03()

LegoU8 LegoWEGEdge::GetMask0x03 ( )

inline

[AI] Returns a two-bit mask of the first two edge state flags (bit1, bit2).

Useful for quickly getting the basic state/type of this edge (e.g., path eligibility/state flags). [AI]

Returns: Bitwise OR of c_bit1 and c_bit2 flags. [AI]

Definition at line 98 of file legowegedge.h.

◆ GetName()

const LegoChar * LegoWEGEdge::GetName ( )

inline

[AI] Returns the name string of this edge, typically used for debugging and lookup.

[AI]

Returns: Pointer to a null-terminated string holding the edge name. [AI]

Definition at line 79 of file legowegedge.h.

◆ GetUnknown0x14()

Mx4DPointFloat * LegoWEGEdge::GetUnknown0x14 ( )

inline

[AI] Returns a pointer to the cached 4D normal or reference plane for the edge.

This vector is central for many operations like side detection, collision, and physics. [AI]

Returns: Pointer to m_unk0x14. [AI]

Definition at line 70 of file legowegedge.h.

◆ SetFlag0x10()

void LegoWEGEdge::SetFlag0x10 ( LegoU32 p_disable )

inline

[AI] Sets the enabled/disabled flag for this edge.

If p_disable is TRUE (nonzero), disables the edge (clears bit5). If FALSE, enables it (sets bit5). Used by path logic to dynamically disable/enable edges at runtime. [AI]

Parameters

p_disable Whether to disable (TRUE) or enable (FALSE) this edge. [AI]

Definition at line 85 of file legowegedge.h.

◆ VTable0x04()

LegoS32 LegoWEGEdge::VTable0x04 ( )

overridevirtual

[AI] Performs geometry calculations for the edge, sets up normals, center point, and trigger vectors.

Returns 0 for success, negative values for various errors. See implementation for details on error codes. [AI]

Returns: Result code (0 = OK, negatives = error). [AI]

Reimplemented from LegoWEEdge.

Definition at line 47 of file legowegedge.cpp.

Friends And Related Function Documentation

◆ LegoPathController

friend class LegoPathController

friend

[AI] Declares LegoPathController as a friend, allowing it to access internal members for path placement and control. [AI]

Definition at line 101 of file legowegedge.h.

Member Data Documentation

◆ m_edgeNormals

Mx4DPointFloat* LegoWEGEdge::m_edgeNormals

protected

[AI] Per-edge normals for each polygon segment, allocated dynamically. [AI]

Definition at line 113 of file legowegedge.h.

◆ m_flags

LegoU8 LegoWEGEdge::m_flags

protected

[AI] Flags indicating edge state, enabled/disabled, and type bits. [AI]

Definition at line 109 of file legowegedge.h.

◆ m_name

LegoChar* LegoWEGEdge::m_name

protected

[AI] Edge's name string, dynamically allocated for debug/lookup. [AI]

Definition at line 111 of file legowegedge.h.

◆ m_numTriggers

LegoU8 LegoWEGEdge::m_numTriggers

protected

[AI] Number of trigger (path/segment) structures attached to this edge. [AI]

Definition at line 116 of file legowegedge.h.

◆ m_pathTrigger

PathWithTrigger* LegoWEGEdge::m_pathTrigger

protected

[AI] Array of triggers influencing entity motion or event logic on this edge. [AI]

Definition at line 117 of file legowegedge.h.

◆ m_unk0x0d

LegoU8 LegoWEGEdge::m_unk0x0d

protected

[AI] Unknown, used for internal status/tracking. [AI]

Definition at line 110 of file legowegedge.h.

◆ m_unk0x14

Mx4DPointFloat LegoWEGEdge::m_unk0x14

protected

[AI] 4D plane equation or normal used for polygon/edge side tests. [AI]

Definition at line 112 of file legowegedge.h.

◆ m_unk0x30

Mx3DPointFloat LegoWEGEdge::m_unk0x30

protected

[AI] Cached center for the edge polygon, used in geometric calculations. [AI]

Definition at line 114 of file legowegedge.h.

◆ m_unk0x44

float LegoWEGEdge::m_unk0x44

protected

[AI] Maximum squared distance from center—polygon bounding radius or similar. [AI]

Definition at line 115 of file legowegedge.h.

◆ m_unk0x50

Mx3DPointFloat* LegoWEGEdge::m_unk0x50

protected

[AI] Transition direction/unit vector—used for edge trigger geometry. [AI]

Definition at line 118 of file legowegedge.h.
