[AI] MxDirect3D provides Direct3D (D3D) rendering capabilities layered on top of MxDirectDraw, managing device selection, initialization, and drawing contexts for LEGO Island's 3D rendering. More...

#include <mxdirect3d.h>

Inheritance diagram for MxDirect3D:

[legend]

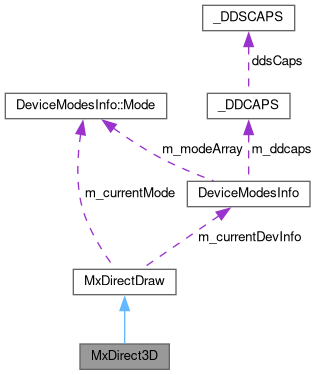

Collaboration diagram for MxDirect3D:

[legend]

Public Member Functions
	MxDirect3D ()
	[AI] Constructs a new MxDirect3D object. More...

	~MxDirect3D () override
	[AI] Destroys the MxDirect3D object, releasing associated Direct3D interfaces and memory for assigned devices. More...

BOOL	Create (HWND hWnd, BOOL fullscreen_1, BOOL surface_fullscreen, BOOL onlySystemMemory, int width, int height, int bpp, const PALETTEENTRY *pPaletteEntries, int paletteEntryCount) override
	[AI] Initializes DirectDraw and Direct3D, prepares primary surfaces and selects the video mode, optionally honoring palette/bit-depth and device selection. More...

void	Destroy () override
	[AI] Tears down the Direct3D environment, including releasing D3D and D3DDevice objects, and destroys allocated context state and surfaces. More...

void	DestroyButNotDirectDraw () override
	[AI] Like Destroy(), but preserves the DirectDraw context; only Direct3D/3DDevice and D3D-specific objects are released. More...

MxAssignedDevice *	AssignedDevice ()
	[AI] Returns the currently selected/active rendering device information for 3D output. More...

IDirect3D2 *	Direct3D ()
	[AI] Provides access to the underlying IDirect3D2 interface for advanced 3D rendering operations. More...

IDirect3DDevice2 *	Direct3DDevice ()
	[AI] Provides access to the currently selected Direct3D device interface. More...

BOOL	SetDevice (MxDeviceEnumerate &p_deviceEnumerate, MxDriver p_driver, Direct3DDeviceInfo p_device)
	[AI] Selects which Direct3D device to be used for rendering, given an enumeration of available devices, a preferred driver, and device info. More...

Public Member Functions inherited from MxDirectDraw
	MxDirectDraw ()
	Constructs a MxDirectDraw instance and initializes its members. More...

virtual	~MxDirectDraw ()
	Virtual destructor. More...

virtual BOOL	Create (HWND hWnd, BOOL fullscreen_1, BOOL surface_fullscreen, BOOL onlySystemMemory, int width, int height, int bpp, const PALETTEENTRY *pPaletteEntries, int paletteEntryCount)
	Creates and initializes the DirectDraw device and associated surfaces/windows/state. More...

virtual void	Destroy ()
	Shuts down DirectDraw and releases all resources, including device and surfaces. More...

virtual void	DestroyButNotDirectDraw ()
	Releases all DirectDraw-related resources except the DirectDraw device itself. More...

IDirectDraw *	DirectDraw ()
	Returns the DirectDraw device interface pointer. More...

IDirectDrawSurface *	FrontBuffer ()
	Returns the surface used as the primary/front buffer. More...

IDirectDrawSurface *	BackBuffer ()
	Returns the back buffer surface. More...

IDirectDrawClipper *	Clipper ()
	Returns the current DirectDraw clipper object used for window clipping. More...

DeviceModesInfo::Mode *	CurrentMode ()
	Provides access to the current selected display mode (width, height, bpp). More...

BOOL	IsFullScreen ()
	Returns TRUE if DirectDraw is currently set in exclusive fullscreen mode. More...

BOOL	IsSupportedMode (int width, int height, int bpp)
	Checks if the given mode (resolution, bpp) is supported by the current device. More...

int	Pause (BOOL)
	Pauses or resumes DirectDraw rendering. More...

BOOL	RestoreSurfaces ()
	Attempts to restore all DirectDraw surfaces that may have been lost. More...

BOOL	TextToTextSurface1 (const char *text)
	Draws the specified text string to the debug "text1" surface. More...

BOOL	TextToTextSurface2 (const char *lpString)
	Draws the specified string to the debug "text2" surface. More...

virtual const char *	ErrorToString (HRESULT p_error)
	Converts DirectDraw error code to a human-readable string. More...

int	FlipToGDISurface ()
	Flips to the Windows GDI surface, restoring the desktop when leaving exclusive fullscreen. More...

Protected Member Functions
BOOL	D3DCreate ()
	[AI] Internal D3D initialization helper: acquires the IDirect3D2 interface from DirectDraw. More...

BOOL	D3DSetMode ()
	[AI] Internal method to initialize D3D video mode, create devices, ZBuffer, and clear surfaces as needed for selected hardware/software settings. More...

int	ZBufferDepth (MxAssignedDevice *p_assignedDevice)
	[AI] Determines the suitable ZBuffer depth for a selected rendering device, according to its capabilities. More...

Protected Member Functions inherited from MxDirectDraw
BOOL	SetPaletteEntries (const PALETTEENTRY *pPaletteEntries, int paletteEntryCount, BOOL fullscreen)
	Sets the DirectDraw palette using the provided palette entries. More...

BOOL	CacheOriginalPaletteEntries ()
	Caches the original Windows/system palette for restoration. More...

BOOL	RestoreOriginalPaletteEntries ()
	Restores the original Windows palette from backup. More...

BOOL	RestorePaletteEntries ()
	Restores the active DirectDraw palette entries from the internal palette array. More...

BOOL	DDInit (BOOL fullscreen)
	Initializes DirectDraw cooperative level for fullscreen or windowed mode. More...

BOOL	DDSetMode (int width, int height, int bpp)
	Changes DirectDraw to the specified display mode and creates relevant surfaces. More...

BOOL	DDCreateSurfaces ()
	Internal: Creates all necessary front/back/offscreen surfaces for rendering. More...

HRESULT	CreateDDSurface (LPDDSURFACEDESC a2, LPDIRECTDRAWSURFACE a3, IUnknown a4)
	Creates a DirectDraw surface with the given surface description. More...

BOOL	GetDDSurfaceDesc (LPDDSURFACEDESC lpDDSurfDesc, LPDIRECTDRAWSURFACE lpDDSurf)
	Retrieves the surface description for the given DirectDraw surface. More...

BOOL	CreateZBuffer (DWORD memorytype, DWORD depth)
	Creates a z-buffer with the given memory type/capabilities and attaches it to the back buffer. More...

BOOL	CreateTextSurfaces ()
	Creates the two offscreen text surfaces used for debug overlay. More...

BOOL	TextToTextSurface (const char text, IDirectDrawSurface pSurface, SIZE &textSizeOnSurface)
	Renders a string to the given surface and fills in its onscreen size. More...

void	Error (const char *p_message, int p_error)
	Invokes the error handler, optionally destroying the device, and outputs the given error message/code. More...

BOOL	RecreateDirectDraw (GUID **a2)
	Recreates the DirectDraw device, deleting and restoring the device object pointer. More...

void	FUN_1009e020 ()
	Internal: Clears the backbuffer(s), locking and filling with zero color, possibly flipping to front. More...

void	FUN_1009d920 ()
	Internal: Restores original palette and resets display mode and cooperative level. More...

Additional Inherited Members
Public Types inherited from MxDirectDraw
typedef void(*	ErrorHandler) (const char , HRESULT, void )
	Function pointer type for error handling callbacks. More...

Static Public Member Functions inherited from MxDirectDraw
static int	GetPrimaryBitDepth ()
	Returns the bit depth (color depth) of the primary display device. More...

Protected Attributes inherited from MxDirectDraw
BOOL	m_bOnlySoftRender
	If TRUE, restricts rendering to software only; disables hardware acceleration. [AI]. More...

BOOL	m_bFlipSurfaces
	TRUE if using DirectDraw flipping (fullscreen buffer swap); windowed disables this. [AI]. More...

IDirectDraw *	m_pDirectDraw
	Pointer to the DirectDraw COM device. [AI]. More...

IDirectDrawSurface *	m_pFrontBuffer
	Primary or front display surface. [AI]. More...

IDirectDrawSurface *	m_pBackBuffer
	Backbuffer for offscreen rendering/flipping. [AI]. More...

IDirectDrawSurface *	m_pZBuffer
	Attached Z-buffer for 3D rendering. [AI]. More...

IDirectDrawSurface *	m_pText1Surface
	Debug overlay surface for "text1". [AI]. More...

IDirectDrawSurface *	m_pText2Surface
	Debug overlay surface for "text2". [AI]. More...

IDirectDrawClipper *	m_pClipper
	Clipper for managing windowed surface boundaries. [AI]. More...

IDirectDrawPalette *	m_pPalette
	DirectDraw palette assigned to the primary/back surfaces. [AI]. More...

PALETTEENTRY	m_paletteEntries [256]
	Active 8-bit palette entries for palettized modes. [AI]. More...

PALETTEENTRY	m_originalPaletteEntries [256]
	Backup of system/Windows palette for restoration. [AI]. More...

SIZE	m_text1SizeOnSurface
	Pixel size of rendered text1 overlay surface. [AI]. More...

SIZE	m_text2SizeOnSurface
	Pixel size of rendered text2 overlay surface. [AI]. More...

HWND	m_hWndMain
	Main window handle on which DirectDraw is initialized. [AI]. More...

HFONT	m_hFont
	Font handle for debug text overlays. [AI]. More...

BOOL	m_bIgnoreWMSIZE
	Internal flag to suppress window resize messages during device switching. [AI]. More...

BOOL	m_bPrimaryPalettized
	TRUE if primary/backbuffer is using 8-bit palettized mode. [AI]. More...

BOOL	m_bFullScreen
	TRUE if device is in exclusive fullscreen mode. [AI]. More...

void *	m_unk0x850
	[AI] Purpose unknown; possibly driver-specific data or reserved. More...

BOOL	m_bOnlySystemMemory
	TRUE for system RAM-only surfaces; disables video memory allocation. [AI]. More...

BOOL	m_bIsOnPrimaryDevice
	TRUE if rendering on Windows' main display; disables windowed mode for other devices. [AI]. More...

ErrorHandler	m_pErrorHandler
	Callback for non-fatal DirectDraw errors. [AI]. More...

ErrorHandler	m_pFatalErrorHandler
	Callback invoked for fatal device errors. [AI]. More...

void *	m_pErrorHandlerArg
	Custom argument pointer for error handler. [AI]. More...

void *	m_pFatalErrorHandlerArg
	Custom argument pointer for fatal error handler. [AI]. More...

int	m_pauseCount
	Count of nested pauses; ensures multiple Pause(TRUE)/Pause(FALSE) work correctly. [AI]. More...

DeviceModesInfo *	m_currentDevInfo
	Device info array for storing supported display modes. [AI]. More...

DeviceModesInfo::Mode	m_currentMode
	Struct with current width, height, and bits per pixel. [AI]. More...

Detailed Description

[AI] MxDirect3D provides Direct3D (D3D) rendering capabilities layered on top of MxDirectDraw, managing device selection, initialization, and drawing contexts for LEGO Island's 3D rendering.

This class manages Direct3D interfaces and connected devices, handles the creation and teardown of Direct3D objects and devices, ZBuffer creation/selection, as well as switching between fullscreen/windowed rendering modes and hardware/software rendering paths. It is also responsible for supporting palette and pixel format handling, and for tracking the availability and type of texture support at runtime.

It is the base rendering system for 3D content in LEGO Island, providing all D3D context and resource management for the rest of the rendering pipeline.

[AI] MxDirect3D wraps DirectX 5's DirectDraw and Direct3D2 interfaces, and stores references to selected D3D devices. It handles choosing the best rendering device based on hardware/software support, managing the device list from enumeration, and setting video modes. It allows toggling textures, manages creation/locking/zeroing of drawing surfaces, and creating the correct ZBuffer format. This class is intended to be used by higher-level abstractions to provide scene rendering services.

Definition at line 24 of file mxdirect3d.h.

Constructor & Destructor Documentation

◆ MxDirect3D()

MxDirect3D::MxDirect3D ( )

[AI] Constructs a new MxDirect3D object.

Initializes member pointers to null and disables texture optimization by default.

Definition at line 16 of file mxdirect3d.cpp.

◆ ~MxDirect3D()

MxDirect3D::~MxDirect3D ( )

override

[AI] Destroys the MxDirect3D object, releasing associated Direct3D interfaces and memory for assigned devices.

Definition at line 26 of file mxdirect3d.cpp.

Member Function Documentation

◆ AssignedDevice()

MxAssignedDevice * MxDirect3D::AssignedDevice ( )

inline

[AI] Returns the currently selected/active rendering device information for 3D output.

Returns: MxAssignedDevice* [AI] Current rendering device context, including flags, GUID, and caps.

Definition at line 75 of file mxdirect3d.h.

◆ Create()

BOOL MxDirect3D::Create	(	HWND	hWnd,
		BOOL	fullscreen_1,
		BOOL	surface_fullscreen,
		BOOL	onlySystemMemory,
		int	width,
		int	height,
		int	bpp,
		const PALETTEENTRY *	pPaletteEntries,
		int	paletteEntryCount
	)

overridevirtual

[AI] Initializes DirectDraw and Direct3D, prepares primary surfaces and selects the video mode, optionally honoring palette/bit-depth and device selection.

Parameters

hWnd	[AI] Window handle to attach DirectDraw/3D context to.
fullscreen_1	[AI] Whether the video mode should be fullscreen.
surface_fullscreen	[AI] Whether drawing surfaces should be fullscreen.
onlySystemMemory	[AI] If TRUE, only use system memory and avoid video memory when creating surfaces.
width	[AI] Width of the desired video mode.
height	[AI] Height of the desired video mode.
bpp	[AI] Bits per pixel for the desired video mode.
pPaletteEntries	[AI] Optional palette entries for indexed color modes.
paletteEntryCount	[AI] Number of palette entries used. May be 0 if not palette-based.

Returns: BOOL [AI] TRUE if creation and initialization succeed, FALSE if any part of DirectDraw or Direct3D setup fails.

Reimplemented from MxDirectDraw.

Definition at line 33 of file mxdirect3d.cpp.

◆ D3DCreate()

BOOL MxDirect3D::D3DCreate ( )

protected

[AI] Internal D3D initialization helper: acquires the IDirect3D2 interface from DirectDraw.

Returns: BOOL [AI] TRUE if D3D is set up, FALSE on error.

Definition at line 110 of file mxdirect3d.cpp.

◆ D3DSetMode()

BOOL MxDirect3D::D3DSetMode ( )

protected

[AI] Internal method to initialize D3D video mode, create devices, ZBuffer, and clear surfaces as needed for selected hardware/software settings.

Returns: BOOL [AI] TRUE if device/mode setup succeeds, FALSE on error.

Definition at line 124 of file mxdirect3d.cpp.

◆ Destroy()

void MxDirect3D::Destroy ( )

overridevirtual

[AI] Tears down the Direct3D environment, including releasing D3D and D3DDevice objects, and destroys allocated context state and surfaces.

Reimplemented from MxDirectDraw.

Definition at line 82 of file mxdirect3d.cpp.

◆ DestroyButNotDirectDraw()

void MxDirect3D::DestroyButNotDirectDraw ( )

overridevirtual

[AI] Like Destroy(), but preserves the DirectDraw context; only Direct3D/3DDevice and D3D-specific objects are released.

Reimplemented from MxDirectDraw.

Definition at line 101 of file mxdirect3d.cpp.

◆ Direct3D()

IDirect3D2 * MxDirect3D::Direct3D ( )

inline

[AI] Provides access to the underlying IDirect3D2 interface for advanced 3D rendering operations.

Returns: IDirect3D2* [AI] Pointer to the IDirect3D2 COM interface; may be NULL if not initialized.

Definition at line 81 of file mxdirect3d.h.

◆ Direct3DDevice()

IDirect3DDevice2 * MxDirect3D::Direct3DDevice ( )

inline

[AI] Provides access to the currently selected Direct3D device interface.

Returns: IDirect3DDevice2* [AI] Pointer to the IDirect3DDevice2 COM interface; may be NULL if not initialized.

Definition at line 87 of file mxdirect3d.h.

◆ SetDevice()

BOOL MxDirect3D::SetDevice	(	MxDeviceEnumerate &	p_deviceEnumerate,
		MxDriver *	p_driver,
		Direct3DDeviceInfo *	p_device
	)

[AI] Selects which Direct3D device to be used for rendering, given an enumeration of available devices, a preferred driver, and device info.

Parameters

p_deviceEnumerate	[AI] Enumerated device/driver/format list to select from.
p_driver	[AI] Specific driver to select.
p_device	[AI] Desired Direct3D device info.

Returns: BOOL [AI] TRUE if device was set successfully, FALSE on failure or not found.

Definition at line 253 of file mxdirect3d.cpp.

◆ ZBufferDepth()

int MxDirect3D::ZBufferDepth ( MxAssignedDevice * p_assignedDevice )

protected

[AI] Determines the suitable ZBuffer depth for a selected rendering device, according to its capabilities.

Parameters

p_assignedDevice [AI] The device for which to query the ZBuffer depth.

Returns: int [AI] Depth in bits (e.g., 8/16/24/32), or -1 on failure.

Definition at line 220 of file mxdirect3d.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MxDirect3D()

◆ ~MxDirect3D()

Member Function Documentation

◆ AssignedDevice()

◆ Create()

◆ D3DCreate()

◆ D3DSetMode()

◆ Destroy()

◆ DestroyButNotDirectDraw()

◆ Direct3D()

◆ Direct3DDevice()

◆ SetDevice()

◆ ZBufferDepth()
