MxDriver Struct Reference

[AI] Holds data about a DirectDraw driver including devices and supported display modes. More...

#include <mxdirectxinfo.h>

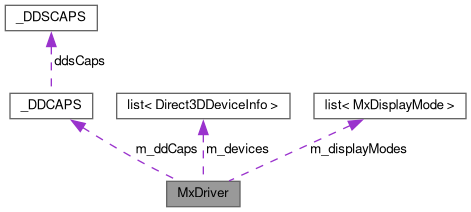

Collaboration diagram for MxDriver:

Public Member Functions
	MxDriver ()
	[AI] Constructs an empty MxDriver structure. More...
	~MxDriver ()
	[AI] Destructor; frees GUID and owned strings. More...
	MxDriver (LPGUID p_guid)
	[AI] Initializes the driver with only its GUID. More...
	MxDriver (LPGUID p_guid, LPSTR p_driverDesc, LPSTR p_driverName)
	[AI] Initializes the driver with GUID, description, and name. More...
void	Init (LPGUID p_guid, LPSTR p_driverDesc, LPSTR p_driverName)
	[AI] Initializes or resets the driver's GUID and strings. More...
int	operator== (MxDriver) const
	[AI] Comparison operator placeholder: returns 0, not implemented. More...
int	operator< (MxDriver) const
	[AI] Comparison operator placeholder: returns 0, not implemented. More...

Public Attributes
LPGUID	m_guid
	[AI] GUID for this DirectDraw driver (heap-allocated and owned). More...
char *	m_driverDesc
	[AI] Driver description string (owned). More...
char *	m_driverName
	[AI] Driver name/identifier string (owned). More...
DDCAPS	m_ddCaps
	[AI] Capabilities structure as reported by the driver. More...
list< Direct3DDeviceInfo >	m_devices
	[AI] List of all Direct3D devices provided by this driver. More...
list< MxDisplayMode >	m_displayModes
	[AI] List of all display modes reported by the driver. More...

Detailed Description

[AI] Holds data about a DirectDraw driver including devices and supported display modes.

[AI] Used during device enumeration to accumulate hardware and software information, capabilities, and available display modes.

Definition at line 213 of file mxdirectxinfo.h.

Constructor & Destructor Documentation

MxDriver() [1/3]

MxDriver::MxDriver ( )

inline

[AI] Constructs an empty MxDriver structure.

Definition at line 217 of file mxdirectxinfo.h.

~MxDriver()

MxDriver::~MxDriver

(

)

[AI] Destructor; frees GUID and owned strings.

Definition at line 57 of file mxdirectxinfo.cpp.

MxDriver() [2/3]

MxDriver::MxDriver

(

LPGUID

p_guid

)

[AI] Initializes the driver with only its GUID.

Parameters

p_guid

GUID (may be null). [AI]

Definition at line 32 of file mxdirectxinfo.cpp.

MxDriver() [3/3]

MxDriver::MxDriver	(	LPGUID	p_guid,
		LPSTR	p_driverDesc,
		LPSTR	p_driverName
	)

[AI] Initializes the driver with GUID, description, and name.

Parameters

p_guid	GUID (may be null). [AI]
p_driverDesc	Driver description string (may be null). [AI]
p_driverName	Name string (may be null). [AI]

Definition at line 44 of file mxdirectxinfo.cpp.

Member Function Documentation

Init()

void MxDriver::Init	(	LPGUID	p_guid,
		LPSTR	p_driverDesc,
		LPSTR	p_driverName
	)

[AI] Initializes or resets the driver's GUID and strings.

Parameters

p_guid	GUID (may be null). [AI]
p_driverDesc	Driver description string. [AI]
p_driverName	Name string. [AI]

Definition at line 73 of file mxdirectxinfo.cpp.

operator<()

int MxDriver::operator< ( MxDriver  ) const

inline

[AI] Comparison operator placeholder: returns 0, not implemented.

Definition at line 257 of file mxdirectxinfo.h.

operator==()

int MxDriver::operator== ( MxDriver  ) const

inline

[AI] Comparison operator placeholder: returns 0, not implemented.

Definition at line 253 of file mxdirectxinfo.h.

Member Data Documentation

m_ddCaps

DDCAPS MxDriver::m_ddCaps

[AI] Capabilities structure as reported by the driver.

Definition at line 246 of file mxdirectxinfo.h.

m_devices

list<Direct3DDeviceInfo> MxDriver::m_devices

[AI] List of all Direct3D devices provided by this driver.

Definition at line 247 of file mxdirectxinfo.h.

m_displayModes

list<MxDisplayMode> MxDriver::m_displayModes

[AI] List of all display modes reported by the driver.

Definition at line 248 of file mxdirectxinfo.h.

m_driverDesc

char* MxDriver::m_driverDesc

[AI] Driver description string (owned).

Definition at line 244 of file mxdirectxinfo.h.

m_driverName

char* MxDriver::m_driverName

[AI] Driver name/identifier string (owned).

Definition at line 245 of file mxdirectxinfo.h.

m_guid

LPGUID MxDriver::m_guid

[AI] GUID for this DirectDraw driver (heap-allocated and owned).

Definition at line 243 of file mxdirectxinfo.h.

---

The documentation for this struct was generated from the following files:

• mxdirectxinfo.h
• mxdirectxinfo.cpp
