[AI] Video subsystem manager for DirectDraw/Direct3D video rendering and presenter control. More...

#include <mxvideomanager.h>

Inheritance diagram for MxVideoManager:

[legend]

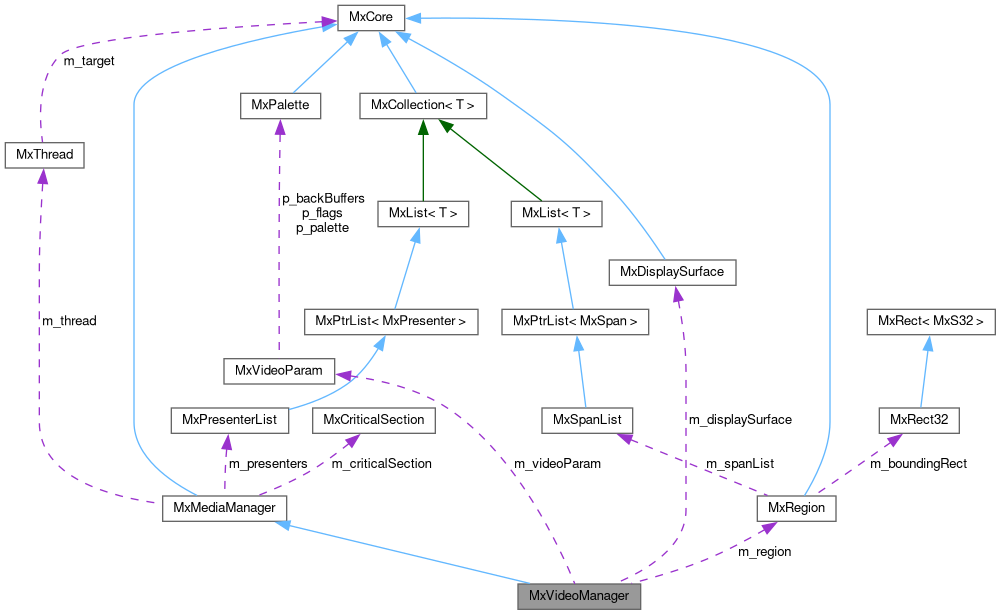

Collaboration diagram for MxVideoManager:

[legend]

Public Member Functions
	MxVideoManager ()
	[AI] Constructs a new MxVideoManager and initializes resources. More...

	~MxVideoManager () override
	[AI] Destructor; cleans up all allocated resources (DirectDraw, display surface, etc.). More...

MxResult	Tickle () override
	[AI] Runs the per-frame tick/update including presenter tickle, surface update, and region display. More...

void	Destroy () override
	[AI] Releases all display/video resources, any DirectDraw/Direct3D handles, and associated objects. More...

virtual MxResult	VTable0x28 (MxVideoParam &p_videoParam, LPDIRECTDRAW p_pDirectDraw, LPDIRECT3D2 p_pDirect3D, LPDIRECTDRAWSURFACE p_ddSurface1, LPDIRECTDRAWSURFACE p_ddSurface2, LPDIRECTDRAWCLIPPER p_ddClipper, MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Main DirectDraw/Direct3D allocator and presenter chain creation. More...

virtual MxResult	Create (MxVideoParam &p_videoParam, MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Similar to VTable0x28, this launches video with a new DirectDraw instance. More...

virtual MxResult	RealizePalette (MxPalette *p_palette)
	[AI] Applies (realizes) the palette to both MxVideoParam and hardware palette, and updates the display surface. More...

virtual void	UpdateView (MxU32 p_x, MxU32 p_y, MxU32 p_width, MxU32 p_height)
	[AI] Updates the visible video sub-rectangle inside the overall frame; typically for sub-region blits. More...

MxResult	Init ()
	[AI] Initializes video resources and zeros pointers for this manager. More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Destroys all resources; called with destruction source information. More...

void	InvalidateRect (MxRect32 &p_rect)
	[AI] Invalidates a rectangular region in the display; marks it for redraw on next tick. More...

void	SortPresenterList ()
	[AI] Sorts presenters in descending Z order for proper overdraw order during tickle (bubble-sort). More...

void	UpdateRegion ()
	[AI] Updates the portion of the display surface that is marked dirty based on m_region, performs the actual onscreen blit. More...

MxVideoParam &	GetVideoParam ()
	[AI] Retrieves the current video parameter configuration used by this manager. More...

LPDIRECTDRAW	GetDirectDraw ()
	[AI] Returns the current DirectDraw COM interface managed by this class (may be owned or external). More...

MxDisplaySurface *	GetDisplaySurface ()
	[AI] Returns the display surface used for video output; for direct drawing and palette operations. More...

MxRegion *	GetRegion ()
	[AI] Gets region-tracking structure managing currently invalidated rectangles. More...

Public Member Functions inherited from MxMediaManager
	MxMediaManager ()
	[AI] Constructor. More...

	~MxMediaManager () override
	[AI] Destructor. More...

MxResult	Tickle () override
	[AI] Called by the tickle manager to step through and update all presenters, and process their output data. More...

virtual MxResult	Create ()
	[AI] Allocates and initializes the internal presenter list for this manager, ensuring thread safety. More...

virtual void	Destroy ()
	[AI] Destroys all registered presenters and resets the internal state, ensuring safe resource disposal. More...

virtual void	RegisterPresenter (MxPresenter &p_presenter)
	[AI] Register a new presenter for tickle management and playback coordination. More...

virtual void	UnregisterPresenter (MxPresenter &p_presenter)
	[AI] Remove a presenter from tickle and managed output lists. More...

virtual void	StopPresenters ()
	[AI] Stops/ends the action on all registered presenters, typically halting all playback and output. More...

MxResult	Init ()
	[AI] Initializes all internal members to their default values. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Protected Attributes
MxVideoParam	m_videoParam
	[AI] Video configuration, containing palette, source/dest rectangles, and other state. [Offset 0x2c] More...

LPDIRECTDRAW	m_pDirectDraw
	[AI] DirectDraw interface pointer. May be allocated here, or passed in/injected. [0x50] More...

LPDIRECT3D2	m_pDirect3D
	[AI] Direct3D2 interface pointer, for 3D presentation and device context. [0x54] More...

MxDisplaySurface *	m_displaySurface
	[AI] Concrete blitting/output surface where final image is copied each frame. [0x58] More...

MxRegion *	m_region
	[AI] Tracks regions that have been invalidated and need to be updated/redrawn. [0x5c] More...

MxBool	m_unk0x60
	[AI] TRUE if manager owns the DirectDraw/Direct3D objects and should release them; FALSE if external. [0x60] More...

Protected Attributes inherited from MxMediaManager
MxPresenterList *	m_presenters
	[AI] Pointer to list of currently registered (active) presenters. More...

MxThread *	m_thread
	[AI] Optional pointer to a worker thread used for media dispatch/IO (if multi-threaded operation is used, otherwise NULL). More...

MxCriticalSection	m_criticalSection
	[AI] Critical section object used for guarding access to the presenter list and internal members for thread safety. More...

Detailed Description

[AI] Video subsystem manager for DirectDraw/Direct3D video rendering and presenter control.

[AI] Forward declaration for the global video manager responsible for media presenter creation/setup.

The MxVideoManager class manages the DirectDraw and Direct3D interfaces, handles display surface allocation, region-based updates and invalidation, and sorts and calls tickle on registered video presenters. It can operate either using a tickle thread or by registering with the tickle manager for manual frame updates. Palette management, presenter sorting (by Z), and region-based redisplay are also handled here.

The video parameters, such as palette and display region, are managed using a MxVideoParam instance. This class is essential for rendering of animated and FMV sequences in LEGO Island and for their associated presenter ticks.

This manager may create its own DirectDraw/Direct3D interfaces, or be configured to use externally provided ones.

[AI]

Definition at line 30 of file mxvideomanager.h.

Constructor & Destructor Documentation

◆ MxVideoManager()

MxVideoManager::MxVideoManager ( )

[AI] Constructs a new MxVideoManager and initializes resources.

Definition at line 16 of file mxvideomanager.cpp.

◆ ~MxVideoManager()

MxVideoManager::~MxVideoManager ( )

override

[AI] Destructor; cleans up all allocated resources (DirectDraw, display surface, etc.).

Definition at line 27 of file mxvideomanager.cpp.

Member Function Documentation

◆ Create()

MxResult MxVideoManager::Create	(	MxVideoParam &	p_videoParam,
		MxU32	p_frequencyMS,
		MxBool	p_createThread
	)

virtual

[AI] Similar to VTable0x28, this launches video with a new DirectDraw instance.

Only used when the manager is responsible for all video resources.

Initializes video, region, palettes, and display surface, with optional thread or tickle interval.

Parameters

p_videoParam	Configuration parameters and palette for the video.
p_frequencyMS	Tickle frequency in ms.
p_createThread	Whether to use internal tickle thread or not.

Returns: MxResult indicating status.

[AI]

Reimplemented in LegoVideoManager.

Definition at line 217 of file mxvideomanager.cpp.

◆ Destroy() [1/2]

void MxVideoManager::Destroy ( )

overridevirtual

[AI] Releases all display/video resources, any DirectDraw/Direct3D handles, and associated objects.

Called by the base destructor.

Reimplemented from MxMediaManager.

Definition at line 295 of file mxvideomanager.cpp.

◆ Destroy() [2/2]

void MxVideoManager::Destroy ( MxBool p_fromDestructor )

[AI] Destroys all resources; called with destruction source information.

Used for finer destructor control.

Parameters

p_fromDestructor TRUE if called from destructor, used for shutdown cleanup order. [AI]

Definition at line 45 of file mxvideomanager.cpp.

◆ GetDirectDraw()

LPDIRECTDRAW MxVideoManager::GetDirectDraw ( )

inline

[AI] Returns the current DirectDraw COM interface managed by this class (may be owned or external).

Definition at line 145 of file mxvideomanager.h.

◆ GetDisplaySurface()

MxDisplaySurface * MxVideoManager::GetDisplaySurface ( )

inline

[AI] Returns the display surface used for video output; for direct drawing and palette operations.

Definition at line 149 of file mxvideomanager.h.

◆ GetRegion()

MxRegion * MxVideoManager::GetRegion ( )

inline

[AI] Gets region-tracking structure managing currently invalidated rectangles.

Definition at line 153 of file mxvideomanager.h.

◆ GetVideoParam()

MxVideoParam & MxVideoManager::GetVideoParam ( )

inline

[AI] Retrieves the current video parameter configuration used by this manager.

Returns: Reference to the video parameter structure in use for this video manager.

Definition at line 141 of file mxvideomanager.h.

◆ Init()

MxResult MxVideoManager::Init ( )

[AI] Initializes video resources and zeros pointers for this manager.

Returns: MxResult indicating success/failure.

Definition at line 33 of file mxvideomanager.cpp.

◆ InvalidateRect()

void MxVideoManager::InvalidateRect ( MxRect32 & p_rect )

[AI] Invalidates a rectangular region in the display; marks it for redraw on next tick.

Parameters

p_rect Region of the display to be marked dirty and queued for redraw.

Definition at line 301 of file mxvideomanager.cpp.

◆ RealizePalette()

MxResult MxVideoManager::RealizePalette ( MxPalette * p_palette )

virtual

[AI] Applies (realizes) the palette to both MxVideoParam and hardware palette, and updates the display surface.

Parameters

p_palette Palette to use, can be NULL. [AI]

Returns: MxResult for operation.

Reimplemented in LegoVideoManager.

Definition at line 339 of file mxvideomanager.cpp.

◆ SortPresenterList()

void MxVideoManager::SortPresenterList ( )

[AI] Sorts presenters in descending Z order for proper overdraw order during tickle (bubble-sort).

Definition at line 101 of file mxvideomanager.cpp.

◆ Tickle()

MxResult MxVideoManager::Tickle ( )

overridevirtual

[AI] Runs the per-frame tick/update including presenter tickle, surface update, and region display.

Also sorts presenters and performs double-buffered region redraw.

Returns: MxResult indicating operation success or failure. [AI]

Reimplemented from MxMediaManager.

Definition at line 313 of file mxvideomanager.cpp.

◆ UpdateRegion()

void MxVideoManager::UpdateRegion ( )

[AI] Updates the portion of the display surface that is marked dirty based on m_region, performs the actual onscreen blit.

Definition at line 88 of file mxvideomanager.cpp.

◆ UpdateView()

void MxVideoManager::UpdateView	(	MxU32	p_x,
		MxU32	p_y,
		MxU32	p_width,
		MxU32	p_height
	)

virtual

[AI] Updates the visible video sub-rectangle inside the overall frame; typically for sub-region blits.

Parameters

p_x	Offset X (left).
p_y	Offset Y (top).
p_width	Display rectangle width.
p_height	Display rectangle height.

[AI]

Reimplemented in LegoVideoManager.

Definition at line 22 of file mxvideomanager.cpp.

◆ VTable0x28()

MxResult MxVideoManager::VTable0x28	(	MxVideoParam &	p_videoParam,
		LPDIRECTDRAW	p_pDirectDraw,
		LPDIRECT3D2	p_pDirect3D,
		LPDIRECTDRAWSURFACE	p_ddSurface1,
		LPDIRECTDRAWSURFACE	p_ddSurface2,
		LPDIRECTDRAWCLIPPER	p_ddClipper,
		MxU32	p_frequencyMS,
		MxBool	p_createThread
	)

virtual

[AI] Main DirectDraw/Direct3D allocator and presenter chain creation.

Creates or assigns all underlying graphics interfaces, regions, palettes, and display surface, then spawns a tickle thread if so configured. p_pDirectDraw/p_pDirect3D are optionally provided externally. Also responsible for double-buffer backbuffer targets, and registering tickle interval.

Parameters

p_videoParam	Video parameters, including palette, display region, etc. [AI]
p_pDirectDraw	The DirectDraw interface, can be external or newly allocated. [AI]
p_pDirect3D	The Direct3D2 interface, can be external or newly allocated. [AI]
p_ddSurface1	Primary DirectDraw surface for backbuffer. [AI]
p_ddSurface2	Secondary DirectDraw surface for double-buffering. [AI]
p_ddClipper	The DirectDraw clipper for region management. [AI]
p_frequencyMS	Tickle frequency in milliseconds. [AI]
p_createThread	TRUE to create a dedicated tickle thread, FALSE to register with the main tickle manager. [AI]

Returns: MxResult indicating success/failure. [AI]

Definition at line 135 of file mxvideomanager.cpp.

Member Data Documentation

◆ m_displaySurface

MxDisplaySurface* MxVideoManager::m_displaySurface

protected

[AI] Concrete blitting/output surface where final image is copied each frame. [0x58]

Definition at line 162 of file mxvideomanager.h.

◆ m_pDirect3D

LPDIRECT3D2 MxVideoManager::m_pDirect3D

protected

[AI] Direct3D2 interface pointer, for 3D presentation and device context. [0x54]

Definition at line 161 of file mxvideomanager.h.

◆ m_pDirectDraw

LPDIRECTDRAW MxVideoManager::m_pDirectDraw

protected

[AI] DirectDraw interface pointer. May be allocated here, or passed in/injected. [0x50]

Definition at line 160 of file mxvideomanager.h.

◆ m_region

MxRegion* MxVideoManager::m_region

protected

[AI] Tracks regions that have been invalidated and need to be updated/redrawn. [0x5c]

Definition at line 163 of file mxvideomanager.h.

◆ m_unk0x60

MxBool MxVideoManager::m_unk0x60

protected

[AI] TRUE if manager owns the DirectDraw/Direct3D objects and should release them; FALSE if external. [0x60]

Definition at line 164 of file mxvideomanager.h.

◆ m_videoParam

MxVideoParam MxVideoManager::m_videoParam

protected

[AI] Video configuration, containing palette, source/dest rectangles, and other state. [Offset 0x2c]

Definition at line 159 of file mxvideomanager.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MxVideoManager()

◆ ~MxVideoManager()

Member Function Documentation

◆ Create()

◆ Destroy() [1/2]

◆ Destroy() [2/2]

◆ GetDirectDraw()

◆ GetDisplaySurface()

◆ GetRegion()

◆ GetVideoParam()

◆ Init()

◆ InvalidateRect()

◆ RealizePalette()

◆ SortPresenterList()

◆ Tickle()

◆ UpdateRegion()

◆ UpdateView()

◆ VTable0x28()

Member Data Documentation

◆ m_displaySurface

◆ m_pDirect3D

◆ m_pDirectDraw

◆ m_region

◆ m_unk0x60

◆ m_videoParam
