[AI] Extends the functionality of MxVideoManager to provide LEGO Island–specific video and 3D graphics management, including interface with DirectDraw/Direct3D, 3D scene composition, custom resource and palette/sky color handling, and in-engine FPS/cursor overlays. More...

#include <legovideomanager.h>

Inheritance diagram for LegoVideoManager:

[legend]

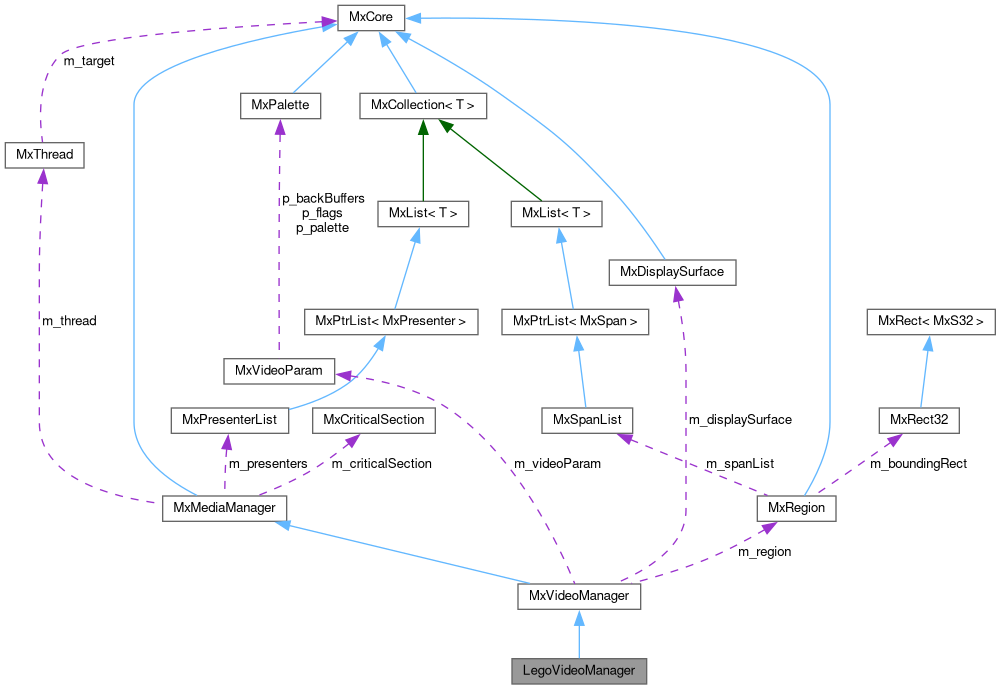

Collaboration diagram for LegoVideoManager:

[legend]

Public Member Functions
	LegoVideoManager ()
	[AI] Constructs a new LegoVideoManager, initializing all graphics, rendering, and state members to default. More...

	~LegoVideoManager () override
	[AI] Releases all allocated resources and restores graphics state. More...

int	EnableRMDevice ()
	[AI] Enables the Direct3D Retained Mode (RM) rendering device, and re-creates the device/viewport if currently paused (e.g. More...

int	DisableRMDevice ()
	[AI] Disables the Direct3D Retained Mode (RM) rendering device and saves/restores 3D state as needed. More...

void	EnableFullScreenMovie (MxBool p_enable)
	[AI] Convenience method to enable or disable fullscreen movie playback with default scaling. More...

void	EnableFullScreenMovie (MxBool p_enable, MxBool p_scale)
	[AI] Enables or disables fullscreen movie playback, with option to scale video content. More...

void	MoveCursor (MxS32 p_cursorX, MxS32 p_cursorY)
	[AI] Updates the position of the custom software cursor overlay, and ensures it renders on the next frame. More...

void	ToggleFPS (MxBool p_visible)
	[AI] Toggles display of the on-screen frames-per-second (FPS) overlay. More...

MxResult	Tickle () override
	[AI] Performs per-frame update for all video, 3D, and interface layers. More...

void	Destroy () override
	[AI] Cleans up graphics resources, disables overlays, removes from 3D scene and releases presenters/lists. More...

MxResult	Create (MxVideoParam &p_videoParam, MxU32 p_frequencyMS, MxBool p_createThread) override
	[AI] Initializes LegoVideoManager with video parameters, creates all Direct3D, 3DManager, and renderer resources, and sets up camera/view state. More...

MxResult	RealizePalette (MxPalette *) override
	[AI] Sets the realized palette to use for rendering and updates the display surface. More...

void	UpdateView (MxU32 p_x, MxU32 p_y, MxU32 p_width, MxU32 p_height) override
	[AI] Notifies the manager of changes in view rectangle, updating the 3D device's viewport as needed. More...

virtual MxPresenter *	GetPresenterAt (MxS32 p_x, MxS32 p_y)
	[AI] Finds a presenter at the specific screen coordinates (for hit testing). More...

virtual LegoPhonemeList *	GetPhonemeList ()
	[AI] Returns the currently installed phoneme list for in-game speech synchronization. More...

void	SetSkyColor (float p_red, float p_green, float p_blue)
	[AI] Sets the RGB color for the sky/background in the 3D view and updates the palette accordingly. More...

void	OverrideSkyColor (MxBool p_shouldOverride)
	[AI] Requests that the palette override the sky color entry, for movie transitions or when re-enabling 3D rendering. More...

MxResult	ResetPalette (MxBool p_ignoreSkyColor)
	[AI] Resets palette entries and re-installs base palette, restoring sky color if requested. More...

MxPresenter *	GetPresenterByActionObjectName (const char *p_char)
	[AI] Searches all active presenters for one associated with the given action object name. More...

void	FUN_1007c520 ()
	[AI] Sets rendering state to allow PutData for all overlay presenters, disables 3D main rendering. More...

Tgl::Renderer *	GetRenderer ()
	[AI] Returns the underlying renderer for this manager; normally a Direct3D Retained Mode wrapper. More...

Lego3DManager *	Get3DManager ()
	[AI] Returns the Lego3DManager for this manager, which owns all 3D scene representations and view control. More...

LegoROI *	GetViewROI ()
	[AI] Returns the viewpoint ROI for the current view/camera. More...

MxDirect3D *	GetDirect3D ()
	[AI] Returns the active Direct3D wrapper (engine/utility) object. More...

MxBool	GetRender3D ()
	[AI] Indicates if 3D rendering is enabled and active (false if paused/fullscreen movie). More...

double	GetElapsedSeconds ()
	[AI] Returns the elapsed wall clock seconds since the last Tickle update (frame time). More...

void	SetRender3D (MxBool p_render3d)
	[AI] Enables or disables main 3D rendering (e.g., used internally on video transitions). More...

void	SetUnk0x554 (MxBool p_unk0x554)
	[AI] Used to control a non-interactive, non-main rendering update (PutData only). More...

Public Member Functions inherited from MxVideoManager
	MxVideoManager ()
	[AI] Constructs a new MxVideoManager and initializes resources. More...

	~MxVideoManager () override
	[AI] Destructor; cleans up all allocated resources (DirectDraw, display surface, etc.). More...

MxResult	Tickle () override
	[AI] Runs the per-frame tick/update including presenter tickle, surface update, and region display. More...

void	Destroy () override
	[AI] Releases all display/video resources, any DirectDraw/Direct3D handles, and associated objects. More...

virtual MxResult	VTable0x28 (MxVideoParam &p_videoParam, LPDIRECTDRAW p_pDirectDraw, LPDIRECT3D2 p_pDirect3D, LPDIRECTDRAWSURFACE p_ddSurface1, LPDIRECTDRAWSURFACE p_ddSurface2, LPDIRECTDRAWCLIPPER p_ddClipper, MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Main DirectDraw/Direct3D allocator and presenter chain creation. More...

virtual MxResult	Create (MxVideoParam &p_videoParam, MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Similar to VTable0x28, this launches video with a new DirectDraw instance. More...

virtual MxResult	RealizePalette (MxPalette *p_palette)
	[AI] Applies (realizes) the palette to both MxVideoParam and hardware palette, and updates the display surface. More...

virtual void	UpdateView (MxU32 p_x, MxU32 p_y, MxU32 p_width, MxU32 p_height)
	[AI] Updates the visible video sub-rectangle inside the overall frame; typically for sub-region blits. More...

MxResult	Init ()
	[AI] Initializes video resources and zeros pointers for this manager. More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Destroys all resources; called with destruction source information. More...

void	InvalidateRect (MxRect32 &p_rect)
	[AI] Invalidates a rectangular region in the display; marks it for redraw on next tick. More...

void	SortPresenterList ()
	[AI] Sorts presenters in descending Z order for proper overdraw order during tickle (bubble-sort). More...

void	UpdateRegion ()
	[AI] Updates the portion of the display surface that is marked dirty based on m_region, performs the actual onscreen blit. More...

MxVideoParam &	GetVideoParam ()
	[AI] Retrieves the current video parameter configuration used by this manager. More...

LPDIRECTDRAW	GetDirectDraw ()
	[AI] Returns the current DirectDraw COM interface managed by this class (may be owned or external). More...

MxDisplaySurface *	GetDisplaySurface ()
	[AI] Returns the display surface used for video output; for direct drawing and palette operations. More...

MxRegion *	GetRegion ()
	[AI] Gets region-tracking structure managing currently invalidated rectangles. More...

Public Member Functions inherited from MxMediaManager
	MxMediaManager ()
	[AI] Constructor. More...

	~MxMediaManager () override
	[AI] Destructor. More...

MxResult	Tickle () override
	[AI] Called by the tickle manager to step through and update all presenters, and process their output data. More...

virtual MxResult	Create ()
	[AI] Allocates and initializes the internal presenter list for this manager, ensuring thread safety. More...

virtual void	Destroy ()
	[AI] Destroys all registered presenters and resets the internal state, ensuring safe resource disposal. More...

virtual void	RegisterPresenter (MxPresenter &p_presenter)
	[AI] Register a new presenter for tickle management and playback coordination. More...

virtual void	UnregisterPresenter (MxPresenter &p_presenter)
	[AI] Remove a presenter from tickle and managed output lists. More...

virtual void	StopPresenters ()
	[AI] Stops/ends the action on all registered presenters, typically halting all playback and output. More...

MxResult	Init ()
	[AI] Initializes all internal members to their default values. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Protected Attributes inherited from MxVideoManager
MxVideoParam	m_videoParam
	[AI] Video configuration, containing palette, source/dest rectangles, and other state. [Offset 0x2c] More...

LPDIRECTDRAW	m_pDirectDraw
	[AI] DirectDraw interface pointer. May be allocated here, or passed in/injected. [0x50] More...

LPDIRECT3D2	m_pDirect3D
	[AI] Direct3D2 interface pointer, for 3D presentation and device context. [0x54] More...

MxDisplaySurface *	m_displaySurface
	[AI] Concrete blitting/output surface where final image is copied each frame. [0x58] More...

MxRegion *	m_region
	[AI] Tracks regions that have been invalidated and need to be updated/redrawn. [0x5c] More...

MxBool	m_unk0x60
	[AI] TRUE if manager owns the DirectDraw/Direct3D objects and should release them; FALSE if external. [0x60] More...

Protected Attributes inherited from MxMediaManager
MxPresenterList *	m_presenters
	[AI] Pointer to list of currently registered (active) presenters. More...

MxThread *	m_thread
	[AI] Optional pointer to a worker thread used for media dispatch/IO (if multi-threaded operation is used, otherwise NULL). More...

MxCriticalSection	m_criticalSection
	[AI] Critical section object used for guarding access to the presenter list and internal members for thread safety. More...

Detailed Description

[AI] Extends the functionality of MxVideoManager to provide LEGO Island–specific video and 3D graphics management, including interface with DirectDraw/Direct3D, 3D scene composition, custom resource and palette/sky color handling, and in-engine FPS/cursor overlays.

[AI]

[AI] This manager is responsible for handling both 2D (video overlays, cursor, movies) and 3D rendering using Direct3D Retained Mode, palette manipulations, and integrating multiple engine components including Lego3DManager, phoneme reference lists for speech, and presenter-layer management. It also manages DirectDraw surfaces for custom overlays like the cursor and FPS meter, handles switching between fullscreen movies and gameplay, and exposes logic for enabling/disabling the 3D device state. [AI]

Definition at line 29 of file legovideomanager.h.

Constructor & Destructor Documentation

◆ LegoVideoManager()

LegoVideoManager::LegoVideoManager ( )

[AI] Constructs a new LegoVideoManager, initializing all graphics, rendering, and state members to default.

[AI]

Definition at line 29 of file legovideomanager.cpp.

◆ ~LegoVideoManager()

LegoVideoManager::~LegoVideoManager ( )

override

[AI] Releases all allocated resources and restores graphics state.

[AI]

Definition at line 57 of file legovideomanager.cpp.

Member Function Documentation

◆ Create()

MxResult LegoVideoManager::Create	(	MxVideoParam &	p_videoParam,
		MxU32	p_frequencyMS,
		MxBool	p_createThread
	)

overridevirtual

[AI] Initializes LegoVideoManager with video parameters, creates all Direct3D, 3DManager, and renderer resources, and sets up camera/view state.

[AI]

Parameters

p_videoParam	Video settings (resolution, palette, etc.) [AI]
p_frequencyMS	Tick/update frequency for rendering. [AI]
p_createThread	If true, creates a separate rendering thread. [AI]

Returns: [AI] SUCCESS if all initialization succeeded; otherwise FAILURE. [AI]

Reimplemented from MxVideoManager.

Definition at line 75 of file legovideomanager.cpp.

◆ Destroy()

void LegoVideoManager::Destroy ( )

overridevirtual

[AI] Cleans up graphics resources, disables overlays, removes from 3D scene and releases presenters/lists.

[AI]

Reimplemented from MxMediaManager.

Definition at line 226 of file legovideomanager.cpp.

◆ DisableRMDevice()

int LegoVideoManager::DisableRMDevice ( )

[AI] Disables the Direct3D Retained Mode (RM) rendering device and saves/restores 3D state as needed.

[AI]

Returns: [AI] Returns 0 on success, -1 if already paused or on error.

Definition at line 733 of file legovideomanager.cpp.

◆ EnableFullScreenMovie() [1/2]

void LegoVideoManager::EnableFullScreenMovie ( MxBool p_enable )

[AI] Convenience method to enable or disable fullscreen movie playback with default scaling.

[AI]

Parameters

p_enable True to enable fullscreen movie, false to disable. [AI]

Definition at line 580 of file legovideomanager.cpp.

◆ EnableFullScreenMovie() [2/2]

void LegoVideoManager::EnableFullScreenMovie	(	MxBool	p_enable,
		MxBool	p_scale
	)

[AI] Enables or disables fullscreen movie playback, with option to scale video content.

[AI]

Parameters

p_enable	True to enable, false to disable. [AI]
p_scale	True to scale movie to window/screen size; false to maintain original size. [AI]

Definition at line 586 of file legovideomanager.cpp.

◆ EnableRMDevice()

int LegoVideoManager::EnableRMDevice ( )

[AI] Enables the Direct3D Retained Mode (RM) rendering device, and re-creates the device/viewport if currently paused (e.g.

after a fullscreen movie). [AI]

Returns: [AI] Returns 0 on success, -1 if not paused or on error.

Definition at line 684 of file legovideomanager.cpp.

◆ FUN_1007c520()

void LegoVideoManager::FUN_1007c520 ( )

[AI] Sets rendering state to allow PutData for all overlay presenters, disables 3D main rendering.

[AI]

Definition at line 670 of file legovideomanager.cpp.

◆ Get3DManager()

Lego3DManager * LegoVideoManager::Get3DManager ( )

inline

[AI] Returns the Lego3DManager for this manager, which owns all 3D scene representations and view control.

[AI]

Definition at line 168 of file legovideomanager.h.

◆ GetDirect3D()

MxDirect3D * LegoVideoManager::GetDirect3D ( )

inline

[AI] Returns the active Direct3D wrapper (engine/utility) object.

[AI]

Definition at line 178 of file legovideomanager.h.

◆ GetElapsedSeconds()

double LegoVideoManager::GetElapsedSeconds ( )

inline

[AI] Returns the elapsed wall clock seconds since the last Tickle update (frame time).

[AI]

Definition at line 188 of file legovideomanager.h.

◆ GetPhonemeList()

virtual LegoPhonemeList * LegoVideoManager::GetPhonemeList ( )

inlinevirtual

[AI] Returns the currently installed phoneme list for in-game speech synchronization.

[AI]

Returns: [AI] The LegoPhonemeList reference pointer. [AI]

Definition at line 124 of file legovideomanager.h.

◆ GetPresenterAt()

MxPresenter * LegoVideoManager::GetPresenterAt	(	MxS32	p_x,
		MxS32	p_y
	)

virtual

[AI] Finds a presenter at the specific screen coordinates (for hit testing).

[AI]

Parameters

p_x	Screen X coordinate. [AI]
p_y	Screen Y coordinate. [AI]

Returns: [AI] The presenter if found (typically for interactive overlays, e.g. buttons), or NULL otherwise. [AI]

Definition at line 517 of file legovideomanager.cpp.

◆ GetPresenterByActionObjectName()

MxPresenter * LegoVideoManager::GetPresenterByActionObjectName ( const char * p_char )

[AI] Searches all active presenters for one associated with the given action object name.

[AI]

Parameters

p_char Object/action name of interest. [AI]

Returns: [AI] Pointer to presenter if found, NULL otherwise. [AI]

Definition at line 533 of file legovideomanager.cpp.

◆ GetRender3D()

MxBool LegoVideoManager::GetRender3D ( )

inline

[AI] Indicates if 3D rendering is enabled and active (false if paused/fullscreen movie).

[AI]

Definition at line 183 of file legovideomanager.h.

◆ GetRenderer()

Tgl::Renderer * LegoVideoManager::GetRenderer ( )

inline

[AI] Returns the underlying renderer for this manager; normally a Direct3D Retained Mode wrapper.

[AI]

Returns: [AI] The Tgl::Renderer pointer. [AI]

Definition at line 163 of file legovideomanager.h.

◆ GetViewROI()

LegoROI * LegoVideoManager::GetViewROI ( )

inline

[AI] Returns the viewpoint ROI for the current view/camera.

[AI]

Definition at line 173 of file legovideomanager.h.

◆ MoveCursor()

void LegoVideoManager::MoveCursor	(	MxS32	p_cursorX,
		MxS32	p_cursorY
	)

[AI] Updates the position of the custom software cursor overlay, and ensures it renders on the next frame.

Caps position within window bounds. [AI]

Parameters

p_cursorX	X pixel coordinate. [AI]
p_cursorY	Y pixel coordinate. [AI]

Definition at line 260 of file legovideomanager.cpp.

◆ OverrideSkyColor()

void LegoVideoManager::OverrideSkyColor ( MxBool p_shouldOverride )

[AI] Requests that the palette override the sky color entry, for movie transitions or when re-enabling 3D rendering.

[AI]

Parameters

p_shouldOverride True to force sky color override; false to allow normal palette. [AI]

Definition at line 649 of file legovideomanager.cpp.

◆ RealizePalette()

MxResult LegoVideoManager::RealizePalette ( MxPalette * p_pallete )

overridevirtual

[AI] Sets the realized palette to use for rendering and updates the display surface.

[AI]

Parameters

p_palette Input palette to realize and install. [AI]

Returns: [AI] Returns SUCCESS if palette set. [AI]

Reimplemented from MxVideoManager.

Definition at line 554 of file legovideomanager.cpp.

◆ ResetPalette()

MxResult LegoVideoManager::ResetPalette ( MxBool p_ignoreSkyColor )

[AI] Resets palette entries and re-installs base palette, restoring sky color if requested.

[AI]

Parameters

p_ignoreSkyColor True to keep current sky color, false to reload from default. [AI]

Returns: [AI] Returns SUCCESS if palette reset. [AI]

Definition at line 566 of file legovideomanager.cpp.

◆ SetRender3D()

void LegoVideoManager::SetRender3D ( MxBool p_render3d )

inline

[AI] Enables or disables main 3D rendering (e.g., used internally on video transitions).

[AI]

Parameters

p_render3d True to enable, false to disable. [AI]

Definition at line 194 of file legovideomanager.h.

◆ SetSkyColor()

void LegoVideoManager::SetSkyColor	(	float	p_red,
		float	p_green,
		float	p_blue
	)

[AI] Sets the RGB color for the sky/background in the 3D view and updates the palette accordingly.

[AI]

Parameters

p_red	Red component (0-1). [AI]
p_green	Green component (0-1). [AI]
p_blue	Blue component (0-1). [AI]

Definition at line 635 of file legovideomanager.cpp.

◆ SetUnk0x554()

void LegoVideoManager::SetUnk0x554 ( MxBool p_unk0x554 )

inline

[AI] Used to control a non-interactive, non-main rendering update (PutData only).

[AI]

Parameters

p_unk0x554 True to enter overlay (PutData-only) mode. [AI]

Definition at line 200 of file legovideomanager.h.

◆ Tickle()

MxResult LegoVideoManager::Tickle ( )

overridevirtual

[AI] Performs per-frame update for all video, 3D, and interface layers.

Includes tickling all presenters, handling overlays, and performing buffer swaps. [AI]

Returns: [AI] Always returns SUCCESS. [AI]

Reimplemented from MxCore.

Definition at line 289 of file legovideomanager.cpp.

◆ ToggleFPS()

void LegoVideoManager::ToggleFPS ( MxBool p_visible )

[AI] Toggles display of the on-screen frames-per-second (FPS) overlay.

[AI]

Parameters

p_visible Show FPS overlay if true, hide if false. [AI]

Definition at line 276 of file legovideomanager.cpp.

◆ UpdateView()

void LegoVideoManager::UpdateView	(	MxU32	p_x,
		MxU32	p_y,
		MxU32	p_width,
		MxU32	p_height
	)

overridevirtual

[AI] Notifies the manager of changes in view rectangle, updating the 3D device's viewport as needed.

[AI]

Parameters

p_x	Left pixel. [AI]
p_y	Top pixel. [AI]
p_width	New width; 0 for unchanged. [AI]
p_height	New height; 0 for unchanged. [AI]

Reimplemented from MxVideoManager.

Definition at line 655 of file legovideomanager.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LegoVideoManager()

◆ ~LegoVideoManager()

Member Function Documentation

◆ Create()

◆ Destroy()

◆ DisableRMDevice()

◆ EnableFullScreenMovie() [1/2]

◆ EnableFullScreenMovie() [2/2]

◆ EnableRMDevice()

◆ FUN_1007c520()

◆ Get3DManager()

◆ GetDirect3D()

◆ GetElapsedSeconds()

◆ GetPhonemeList()

◆ GetPresenterAt()

◆ GetPresenterByActionObjectName()

◆ GetRender3D()

◆ GetRenderer()

◆ GetViewROI()

◆ MoveCursor()

◆ OverrideSkyColor()

◆ RealizePalette()

◆ ResetPalette()

◆ SetRender3D()

◆ SetSkyColor()

◆ SetUnk0x554()

◆ Tickle()

◆ ToggleFPS()

◆ UpdateView()
