#include "actionsfwd.h"
#include "decomp.h"
#include "extra.h"
#include "mxtypes.h"
#include <windows.h>

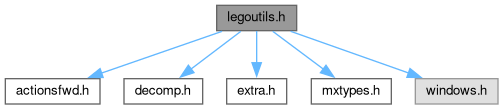

Include dependency graph for legoutils.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	WM_ISLE_SETCURSOR 0x5400
	[AI] Custom Windows message for setting the cursor in LEGO Island. Used with PostMessage. [AI] More...

#define	DS_NOT_A_STREAM -1
	[AI] Special stream ID indicating that the current stream is not valid. More...

Enumerations
enum	Cursor { e_cursorArrow = 0 , e_cursorBusy , e_cursorNo , e_cursorUnused3 , e_cursorUnused4 , e_cursorUnused5 , e_cursorUnused6 , e_cursorUnused7 , e_cursorUnused8 , e_cursorUnused9 , e_cursorUnused10 , e_cursorNone }
	[AI] Enum representing cursor icons usable within the LEGO Island engine for custom cursor management. More...

Functions
LegoEntity *	PickEntity (MxLong p_x, MxLong p_y)
	[AI] Picks the LEGO entity root at the given screen coordinates. More...

LegoROI *	PickROI (MxLong p_x, MxLong p_y)
	[AI] Picks the ROI (Renderable Object Instance) at screen coordinates. More...

LegoROI *	PickRootROI (MxLong p_x, MxLong p_y)
	[AI] Picks the root ROI at the given screen coordinates by traversing up the ROI parent tree. More...

void	RotateY (LegoROI *p_roi, MxFloat p_angle)
	[AI] Rotates the given ROI around the Y axis in world space. More...

MxBool	SpheresIntersect (const BoundingSphere &p_sphere1, const BoundingSphere &p_sphere2)
	[AI] Tests if two bounding spheres in the 3D world intersect. More...

MxBool	FUN_1003ded0 (MxFloat p_param1[2], MxFloat p_param2[3], MxFloat p_param3[3])
	[AI] Calculates a ray starting at a screen location and outputs its world origin and direction. More...

MxBool	TransformWorldToScreen (const MxFloat p_world[3], MxFloat p_screen[4])
	[AI] Projects a world-space point into normalized screen coordinates. More...

MxS16	CountTotalTreeNodes (LegoTreeNode *p_node)
	[AI] Recursively counts the number of nodes (including the root) in a tree hierarchy rooted at the specified LegoTreeNode. More...

LegoTreeNode *	GetTreeNode (LegoTreeNode *p_node, MxU32 p_index)
	[AI] Retrieves the nth node in tree traversal order (preorder) from a LegoTreeNode root. More...

void	FUN_1003e050 (LegoAnimPresenter *p_presenter)
	[AI] Repositions the camera and updates the view matrix using a LegoAnimPresenter's animation nodes named "CAM" and "TARGET". More...

Extra::ActionType	MatchActionString (const char *)
	[AI] Parses an action string to determine the corresponding action type. More...

void	InvokeAction (Extra::ActionType p_actionId, const MxAtomId &p_pAtom, MxS32 p_streamId, LegoEntity *p_sender)
	[AI] Dispatches and triggers a game action on the given script or object. More...

void	SetCameraControllerFromIsle ()
	[AI] Updates the current camera controller to the main ISLE camera specified in the global script. More...

void	ConvertHSVToRGB (float p_h, float p_s, float p_v, float p_rOut, float p_bOut, float *p_gOut)
	[AI] Converts HSV color (hue/saturation/value) to RGB (red/green/blue). More...

void	PlayCamAnim (LegoPathActor *p_actor, MxBool p_unused, MxU32 p_location, MxBool p_bool)
	[AI] Initiates a camera animation for a specific path actor, or falls back to default animation triggers. More...

void	FUN_1003eda0 ()
	[AI] Updates sound listener position to follow the view ROI's transform. More...

MxBool	RemoveFromCurrentWorld (const MxAtomId &p_atomId, MxS32 p_id)
	[AI] Removes an entity or presenter with specified AtomId and ID from the current world; triggers EndAction or deletes it. More...

void	EnableAnimations (MxBool p_enable)
	[AI] Enables or disables animation playback globally. More...

void	SetAppCursor (Cursor p_cursor)
	[AI] Sets the in-game cursor to a specified type. More...

MxBool	FUN_1003ef60 ()
	[AI] Determines if the current actor can exit their area, based on state/zone/vehicle. More...

MxBool	RemoveFromWorld (MxAtomId &p_entityAtom, MxS32 p_entityId, MxAtomId &p_worldAtom, MxS32 p_worldEntityId)
	[AI] Removes a game object referenced by atom/id from a specific world, handling presenters and EndActions. More...

MxS32	UpdateLightPosition (MxS32 p_increase)
	[AI] Steps or resets the in-game light position; wraps and saves in global variables; updates lighting matrix. More...

void	SetLightPosition (MxS32 p_index)
	[AI] Sets the world space position and direction of the in-game directional light, based on a preset index. More...

LegoNamedTexture *	ReadNamedTexture (LegoStorage *p_storage)
	[AI] Reads a named texture and its associated image data from storage. More...

void	WriteDefaultTexture (LegoStorage p_storage, const char p_name)
	[AI] Writes a default texture by name (and its image/palette) to storage for serialization. More...

void	WriteNamedTexture (LegoStorage p_storage, LegoNamedTexture p_namedTexture)
	[AI] Writes a LegoNamedTexture and its associated image to storage. More...

void	FUN_1003f930 (LegoNamedTexture *p_namedTexture)
	[AI] Applies the image bits of a named texture to its associated texture info container entry. More...

MxBool	CheckIfEntityExists (MxBool p_enable, const char *p_filename, MxS32 p_entityId)
	[AI] Parses a string for entity existence and enables/disables it accordingly. More...

void	NotifyEntity (const char p_filename, MxS32 p_entityId, LegoEntity p_sender)
	[AI] Sends a notification to the specified entity in all known worlds. More...

void	StartIsleAction (IsleScript::Script p_objectId)
	[AI] Helper to invoke a 'start' action for an Isle script object by its script ID. More...

Variables
MxAtomId *	g_isleScript
	[AI] Node used in hierarchical scene graphs and animation trees. [AI] More...

Macro Definition Documentation

◆ DS_NOT_A_STREAM

#define DS_NOT_A_STREAM -1

[AI] Special stream ID indicating that the current stream is not valid.

Used to check against invalid stream references. [AI]

Definition at line 16 of file legoutils.h.

◆ WM_ISLE_SETCURSOR

#define WM_ISLE_SETCURSOR 0x5400

[AI] Custom Windows message for setting the cursor in LEGO Island. Used with PostMessage. [AI]

Definition at line 11 of file legoutils.h.

Enumeration Type Documentation

◆ Cursor

enum Cursor

[AI] Enum representing cursor icons usable within the LEGO Island engine for custom cursor management.

[AI]

Enumerator
e_cursorArrow	[AI] Standard arrow cursor. [AI]
e_cursorBusy	[AI] Busy or loading cursor (e.g., hourglass). [AI]
e_cursorNo	[AI] 'Not allowed' cursor. [AI]
e_cursorUnused3	[AI] Reserved slot. Not used. [AI]
e_cursorUnused4	[AI] Reserved slot. Not used. [AI]
e_cursorUnused5	[AI] Reserved slot. Not used. [AI]
e_cursorUnused6	[AI] Reserved slot. Not used. [AI]
e_cursorUnused7	[AI] Reserved slot. Not used. [AI]
e_cursorUnused8	[AI] Reserved slot. Not used. [AI]
e_cursorUnused9	[AI] Reserved slot. Not used. [AI]
e_cursorUnused10	[AI] Reserved slot. Not used. [AI]
e_cursorNone	[AI] No cursor (invisible or hidden). [AI]

Definition at line 22 of file legoutils.h.

Function Documentation

◆ CheckIfEntityExists()

MxBool CheckIfEntityExists	(	MxBool	p_enable,
		const char *	p_filename,
		MxS32	p_entityId
	)

[AI] Parses a string for entity existence and enables/disables it accordingly.

[AI]

Parameters

p_enable	Enable or disable the entity. [AI]
p_filename	Entity resource filename to search. [AI]
p_entityId	Target entity identifier within the world. [AI]

Returns: TRUE if entity was found and enabled/disabled, otherwise FALSE. [AI]

Definition at line 343 of file legoutils.cpp.

◆ ConvertHSVToRGB()

void ConvertHSVToRGB	(	float	p_h,
		float	p_s,
		float	p_v,
		float *	p_rOut,
		float *	p_bOut,
		float *	p_gOut
	)

[AI] Converts HSV color (hue/saturation/value) to RGB (red/green/blue).

[AI]

Parameters

p_h	Hue, float in [0,1]. [AI]
p_s	Saturation, float in [0,1]. [AI]
p_v	Value, float in [0,1]. [AI]
p_rOut	Output pointer for red result. [AI]
p_bOut	Output pointer for blue result. [AI]
p_gOut	Output pointer for green result. [AI]

Definition at line 388 of file legoutils.cpp.

◆ CountTotalTreeNodes()

MxS16 CountTotalTreeNodes ( LegoTreeNode * p_node )

[AI] Recursively counts the number of nodes (including the root) in a tree hierarchy rooted at the specified LegoTreeNode.

[AI]

Parameters

p_node Root node to start counting from. [AI]

Returns: Number of tree nodes including root. [AI]

Definition at line 138 of file legoutils.cpp.

◆ EnableAnimations()

void EnableAnimations ( MxBool p_enable )

[AI] Enables or disables animation playback globally.

Triggers resume and additional handler methods. [AI]

Parameters

p_enable Enable/disable flag for animations. [AI]

Definition at line 554 of file legoutils.cpp.

◆ FUN_1003ded0()

MxBool FUN_1003ded0	(	MxFloat	p_param1[2],
		MxFloat	p_param2[3],
		MxFloat	p_param3[3]
	)

[AI] Calculates a ray starting at a screen location and outputs its world origin and direction.

[AI]

Parameters

p_param1	Screen coordinates (x, y). [AI]
p_param2	Output world-space ray direction (length 3). [AI]
p_param3	Output world-space ray origin (length 3). [AI]

Returns: TRUE always. [AI]

Definition at line 102 of file legoutils.cpp.

◆ FUN_1003e050()

void FUN_1003e050 ( LegoAnimPresenter * p_presenter )

[AI] Repositions the camera and updates the view matrix using a LegoAnimPresenter's animation nodes named "CAM" and "TARGET".

[AI]

Parameters

p_presenter Animation presenter used to locate camera and target. [AI]

Definition at line 176 of file legoutils.cpp.

◆ FUN_1003eda0()

void FUN_1003eda0 ( )

[AI] Updates sound listener position to follow the view ROI's transform.

[AI]

Definition at line 476 of file legoutils.cpp.

◆ FUN_1003ef60()

MxBool FUN_1003ef60 ( )

[AI] Determines if the current actor can exit their area, based on state/zone/vehicle.

[AI]

Returns: TRUE if allowed to leave the area, FALSE otherwise. [AI]

Definition at line 572 of file legoutils.cpp.

◆ FUN_1003f930()

void FUN_1003f930 ( LegoNamedTexture * p_namedTexture )

[AI] Applies the image bits of a named texture to its associated texture info container entry.

[AI]

Parameters

p_namedTexture Target named texture whose data will be uploaded. [AI]

Definition at line 768 of file legoutils.cpp.

◆ GetTreeNode()

LegoTreeNode * GetTreeNode	(	LegoTreeNode *	p_node,
		MxU32	p_index
	)

[AI] Retrieves the nth node in tree traversal order (preorder) from a LegoTreeNode root.

[AI]

Parameters

p_node	Root node to start searching from. [AI]
p_index	The 0-based index into the tree traversal. [AI]

Returns: The LegoTreeNode pointer if found, otherwise NULL. [AI]

Definition at line 151 of file legoutils.cpp.

◆ InvokeAction()

void InvokeAction	(	Extra::ActionType	p_actionId,
		const MxAtomId &	p_pAtom,
		MxS32	p_streamId,
		LegoEntity *	p_sender
	)

[AI] Dispatches and triggers a game action on the given script or object.

[AI]

Parameters

p_actionId	Type of action to invoke. [AI]
p_pAtom	ID of the target script/entity. [AI]
p_streamId	Associated stream ID for the action (if applicable). [AI]
p_sender	Optional pointer to the sender entity (can be NULL). [AI]

Definition at line 271 of file legoutils.cpp.

◆ MatchActionString()

Extra::ActionType MatchActionString ( const char * p_str )

[AI] Parses an action string to determine the corresponding action type.

[AI]

Parameters

Str	Null-terminated string to evaluate. [AI]

Returns: Matching action type. [AI]

Definition at line 228 of file legoutils.cpp.

◆ NotifyEntity()

void NotifyEntity	(	const char *	p_filename,
		MxS32	p_entityId,
		LegoEntity *	p_sender
	)

[AI] Sends a notification to the specified entity in all known worlds.

[AI]

Parameters

p_filename	Entity resource filename. [AI]
p_entityId	ID of the target entity. [AI]
p_sender	Sender entity reference, may be NULL. [AI]

Definition at line 358 of file legoutils.cpp.

◆ PickEntity()

LegoEntity * PickEntity	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Picks the LEGO entity root at the given screen coordinates.

[AI]

Parameters

p_x	X screen coordinate. [AI]
p_y	Y screen coordinate. [AI]

Returns: Pointer to LegoEntity at the location (or nullptr if none). [AI]

Definition at line 62 of file legoutils.cpp.

◆ PickROI()

LegoROI * PickROI	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Picks the ROI (Renderable Object Instance) at screen coordinates.

[AI]

Parameters

p_x	X screen coordinate. [AI]
p_y	Y screen coordinate. [AI]

Returns: Pointer to LegoROI at the location (or nullptr if none). [AI]

Definition at line 39 of file legoutils.cpp.

◆ PickRootROI()

LegoROI * PickRootROI	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Picks the root ROI at the given screen coordinates by traversing up the ROI parent tree.

[AI]

Parameters

p_x	X screen coordinate. [AI]
p_y	Y screen coordinate. [AI]

Returns: Pointer to the root LegoROI (or nullptr if none). [AI]

Definition at line 48 of file legoutils.cpp.

◆ PlayCamAnim()

void PlayCamAnim	(	LegoPathActor *	p_actor,
		MxBool	p_unused,
		MxU32	p_location,
		MxBool	p_bool
	)

[AI] Initiates a camera animation for a specific path actor, or falls back to default animation triggers.

[AI]

Parameters

p_actor	Path actor to play camera animation for. [AI]
p_unused	Not used in logic (placeholder for extended parameters). [AI]
p_location	Camera location index/ID. [AI]
p_bool	Boolean flag, often controlling secondary behavior. [AI]

Definition at line 459 of file legoutils.cpp.

◆ ReadNamedTexture()

LegoNamedTexture * ReadNamedTexture ( LegoStorage * p_storage )

[AI] Reads a named texture and its associated image data from storage.

[AI]

Parameters

p_storage Source storage for reading (disk or memory representation). [AI]

Returns: Pointer to allocated LegoNamedTexture, or NULL if failed. [AI]

Definition at line 665 of file legoutils.cpp.

◆ RemoveFromCurrentWorld()

MxBool RemoveFromCurrentWorld	(	const MxAtomId &	p_atomId,
		MxS32	p_id
	)

[AI] Removes an entity or presenter with specified AtomId and ID from the current world; triggers EndAction or deletes it.

[AI]

Parameters

p_atomId	AtomId of the object to remove. [AI]
p_id	Object identifier within the world. [AI]

Returns: TRUE if object was found and removed, FALSE otherwise. [AI]

Definition at line 495 of file legoutils.cpp.

◆ RemoveFromWorld()

MxBool RemoveFromWorld	(	MxAtomId &	p_entityAtom,
		MxS32	p_entityId,
		MxAtomId &	p_worldAtom,
		MxS32	p_worldEntityId
	)

[AI] Removes a game object referenced by atom/id from a specific world, handling presenters and EndActions.

[AI]

Parameters

p_entityAtom	AtomId for the target object. [AI]
p_entityId	ID for the target object. [AI]
p_worldAtom	AtomId for the world containing the object. [AI]
p_worldEntityId	ID for the world. [AI]

Returns: TRUE if removed, FALSE otherwise. [AI]

Definition at line 524 of file legoutils.cpp.

◆ RotateY()

void RotateY	(	LegoROI *	p_roi,
		MxFloat	p_angle
	)

[AI] Rotates the given ROI around the Y axis in world space.

[AI]

Parameters

p_roi	ROI to rotate. [AI]
p_angle	Angle in radians. [AI]

Definition at line 75 of file legoutils.cpp.

◆ SetAppCursor()

void SetAppCursor ( Cursor p_cursor )

[AI] Sets the in-game cursor to a specified type.

[AI]

Parameters

p_cursor Cursor enum value (e.g., arrow, busy, none). [AI]

Definition at line 566 of file legoutils.cpp.

◆ SetCameraControllerFromIsle()

void SetCameraControllerFromIsle ( )

[AI] Updates the current camera controller to the main ISLE camera specified in the global script.

[AI]

Definition at line 382 of file legoutils.cpp.

◆ SetLightPosition()

void SetLightPosition ( MxS32 p_index )

[AI] Sets the world space position and direction of the in-game directional light, based on a preset index.

[AI]

Parameters

p_index Lighting index (clamped to valid range). [AI]

Definition at line 628 of file legoutils.cpp.

◆ SpheresIntersect()

MxBool SpheresIntersect	(	const BoundingSphere &	p_sphere1,
		const BoundingSphere &	p_sphere2
	)

[AI] Tests if two bounding spheres in the 3D world intersect.

[AI]

Parameters

p_sphere1	First bounding sphere for intersection. [AI]
p_sphere2	Second bounding sphere for intersection. [AI]

Definition at line 93 of file legoutils.cpp.

◆ StartIsleAction()

void StartIsleAction ( IsleScript::Script p_objectId )

inline

[AI] Helper to invoke a 'start' action for an Isle script object by its script ID.

[AI]

Parameters

p_objectId IsleScript script object identifier. [AI]

Definition at line 268 of file legoutils.h.

◆ TransformWorldToScreen()

MxBool TransformWorldToScreen	(	const MxFloat	p_world[3],
		MxFloat	p_screen[4]
	)

[AI] Projects a world-space point into normalized screen coordinates.

[AI]

Parameters

p_world	Input world coordinates (length 3). [AI]
p_screen	Output screen coordinates (length 4 for homogeneous coordinates). [AI]

Returns: TRUE always. [AI]

Definition at line 130 of file legoutils.cpp.

◆ UpdateLightPosition()

MxS32 UpdateLightPosition ( MxS32 p_increase )

[AI] Steps or resets the in-game light position; wraps and saves in global variables; updates lighting matrix.

[AI]

Parameters

p_increase Increments light position if positive; decrements otherwise. [AI]

Returns: Updated light position index. [AI]

Definition at line 599 of file legoutils.cpp.

◆ WriteDefaultTexture()

void WriteDefaultTexture	(	LegoStorage *	p_storage,
		const char *	p_name
	)

[AI] Writes a default texture by name (and its image/palette) to storage for serialization.

[AI]

Parameters

p_storage	Target storage for writing. [AI]
p_name	Name of the texture/resource to write. [AI]

Definition at line 690 of file legoutils.cpp.

◆ WriteNamedTexture()

void WriteNamedTexture	(	LegoStorage *	p_storage,
		LegoNamedTexture *	p_namedTexture
	)

[AI] Writes a LegoNamedTexture and its associated image to storage.

[AI]

Parameters

p_storage	Target storage for writing. [AI]
p_namedTexture	Pointer to the LegoNamedTexture to serialize. [AI]

Definition at line 761 of file legoutils.cpp.

Variable Documentation

◆ g_isleScript

MxAtomId* g_isleScript

extern

[AI] Node used in hierarchical scene graphs and animation trees. [AI]

[AI] Global script identifier for the main Isle game script resource. [AI]

Definition at line 32 of file scripts.cpp.

Macros

Enumerations

Functions

Variables

Macro Definition Documentation

◆ DS_NOT_A_STREAM

◆ WM_ISLE_SETCURSOR

Enumeration Type Documentation

◆ Cursor

Function Documentation

◆ CheckIfEntityExists()

◆ ConvertHSVToRGB()

◆ CountTotalTreeNodes()

◆ EnableAnimations()

◆ FUN_1003ded0()

◆ FUN_1003e050()

◆ FUN_1003eda0()

◆ FUN_1003ef60()

◆ FUN_1003f930()

◆ GetTreeNode()

◆ InvokeAction()

◆ MatchActionString()

◆ NotifyEntity()

◆ PickEntity()

◆ PickROI()

◆ PickRootROI()

◆ PlayCamAnim()

◆ ReadNamedTexture()

◆ RemoveFromCurrentWorld()

◆ RemoveFromWorld()

◆ RotateY()

◆ SetAppCursor()

◆ SetCameraControllerFromIsle()

◆ SetLightPosition()

◆ SpheresIntersect()

◆ StartIsleAction()

◆ TransformWorldToScreen()

◆ UpdateLightPosition()

◆ WriteDefaultTexture()

◆ WriteNamedTexture()

Variable Documentation

◆ g_isleScript
