[AI] Represents a named 3D plane with orientation and position, used to describe places or camera targets in LEGO Island's world. More...

#include <legonamedplane.h>

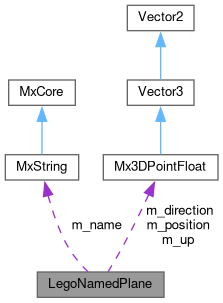

Collaboration diagram for LegoNamedPlane:

[legend]

Public Member Functions
	LegoNamedPlane ()
	[AI] Default constructor that initializes an unnamed plane. More...

const char *	GetName () const
	[AI] Default destructor (implementation likely trivial). More...

const Mx3DPointFloat &	GetPosition ()
	[AI] Get the 3D position of this plane in world coordinates. More...

const Mx3DPointFloat &	GetDirection ()
	[AI] Get the normalized direction (forward) vector of the plane. More...

const Mx3DPointFloat &	GetUp ()
	[AI] Get the normalized "up" vector of the plane, defining its orientation. More...

void	SetName (const char *p_name)
	[AI] Set the name identifier for this plane. More...

void	SetPosition (const Mx3DPointFloat &p_position)
	[AI] Set the 3D position of the plane. More...

void	SetDirection (const Mx3DPointFloat &p_direction)
	[AI] Set the direction (forward) vector of the plane. More...

void	SetUp (const Mx3DPointFloat &p_up)
	[AI] Set the "up" vector of the plane. More...

MxBool	IsPresent ()
	[AI] Determines whether the plane instance is valid (present) based on its name. More...

void	Reset ()
	[AI] Reset the plane to "not present" by clearing its name. More...

MxResult	Serialize (LegoStorage *p_storage)
	[AI] Serialize or deserialize the plane data to or from a LegoStorage object. More...

Public Attributes
MxString	m_name
	[AI] Name identifier for this plane (used for lookups and scripting). More...

Mx3DPointFloat	m_position
	[AI] 3D position of the plane in world space. More...

Mx3DPointFloat	m_direction
	[AI] Direction (forward/facing) vector for the plane orientation. More...

Mx3DPointFloat	m_up
	[AI] "Up" vector for the plane, defines its local up direction. More...

Detailed Description

[AI] Represents a named 3D plane with orientation and position, used to describe places or camera targets in LEGO Island's world.

This structure encapsulates a plane in 3D space by providing a name, a position, a direction vector (the facing/forward vector), and an up vector to fully specify its orientation. It's serializable to and from LegoStorage, making it suitable for game state save/load and scripting purposes. [AI]

Definition at line 19 of file legonamedplane.h.

Constructor & Destructor Documentation

◆ LegoNamedPlane()

LegoNamedPlane::LegoNamedPlane ( )

inline

[AI] Default constructor that initializes an unnamed plane.

[AI]

Definition at line 23 of file legonamedplane.h.

Member Function Documentation

◆ GetDirection()

const Mx3DPointFloat & LegoNamedPlane::GetDirection ( )

inline

[AI] Get the normalized direction (forward) vector of the plane.

[AI]

Returns: Reference to Mx3DPointFloat containing the direction. [AI]

Definition at line 50 of file legonamedplane.h.

◆ GetName()

const char * LegoNamedPlane::GetName ( ) const

inline

[AI] Default destructor (implementation likely trivial).

[AI]

[AI] Retrieve the name identifier for this plane. [AI]

Returns: Pointer to the character array holding the name. [AI]

Definition at line 38 of file legonamedplane.h.

◆ GetPosition()

const Mx3DPointFloat & LegoNamedPlane::GetPosition ( )

inline

[AI] Get the 3D position of this plane in world coordinates.

[AI]

Returns: Reference to Mx3DPointFloat containing position. [AI]

Definition at line 44 of file legonamedplane.h.

◆ GetUp()

const Mx3DPointFloat & LegoNamedPlane::GetUp ( )

inline

[AI] Get the normalized "up" vector of the plane, defining its orientation.

[AI]

Returns: Reference to Mx3DPointFloat containing the up vector. [AI]

Definition at line 56 of file legonamedplane.h.

◆ IsPresent()

MxBool LegoNamedPlane::IsPresent ( )

inline

[AI] Determines whether the plane instance is valid (present) based on its name.

A plane is present if its name is not empty. [AI]

Returns: True if the plane has a non-empty name, false otherwise. [AI]

Definition at line 89 of file legonamedplane.h.

◆ Reset()

void LegoNamedPlane::Reset ( )

inline

[AI] Reset the plane to "not present" by clearing its name.

[AI]

Definition at line 94 of file legonamedplane.h.

◆ Serialize()

MxResult LegoNamedPlane::Serialize ( LegoStorage * p_storage )

inline

[AI] Serialize or deserialize the plane data to or from a LegoStorage object.

If the storage is in write mode, writes the members (name, position, direction, up). In read mode, reads in the same order. Used for saving/loading state and scripting. [AI]

Parameters

p_storage Pointer to the LegoStorage for serialization. [AI]

Returns: SUCCESS on successful read/write. [AI]

Definition at line 105 of file legonamedplane.h.

◆ SetDirection()

void LegoNamedPlane::SetDirection ( const Mx3DPointFloat & p_direction )

inline

[AI] Set the direction (forward) vector of the plane.

[AI]

Parameters

p_direction Reference to the new direction vector. [AI]

Definition at line 74 of file legonamedplane.h.

◆ SetName()

void LegoNamedPlane::SetName ( const char * p_name )

inline

[AI] Set the name identifier for this plane.

[AI]

Parameters

p_name Null-terminated string for the new name. [AI]

Definition at line 62 of file legonamedplane.h.

◆ SetPosition()

void LegoNamedPlane::SetPosition ( const Mx3DPointFloat & p_position )

inline

[AI] Set the 3D position of the plane.

[AI]

Parameters

p_position Reference to the new position value. [AI]

Definition at line 68 of file legonamedplane.h.

◆ SetUp()

void LegoNamedPlane::SetUp ( const Mx3DPointFloat & p_up )

inline

[AI] Set the "up" vector of the plane.

[AI]

Parameters

p_up	Reference to the new up vector. [AI]

Definition at line 80 of file legonamedplane.h.

Member Data Documentation

◆ m_direction

Mx3DPointFloat LegoNamedPlane::m_direction

[AI] Direction (forward/facing) vector for the plane orientation.

[AI]

Definition at line 136 of file legonamedplane.h.

◆ m_name

MxString LegoNamedPlane::m_name

[AI] Name identifier for this plane (used for lookups and scripting).

[AI]

Definition at line 126 of file legonamedplane.h.

◆ m_position

Mx3DPointFloat LegoNamedPlane::m_position

[AI] 3D position of the plane in world space.

[AI]

Definition at line 131 of file legonamedplane.h.

◆ m_up

Mx3DPointFloat LegoNamedPlane::m_up

[AI] "Up" vector for the plane, defines its local up direction.

[AI]

Definition at line 141 of file legonamedplane.h.

The documentation for this struct was generated from the following file:

legonamedplane.h
