[AI] Manages 3D sound effects and music playback for LEGO Island, integrating with DirectSound and providing caching. More...

#include <legosoundmanager.h>

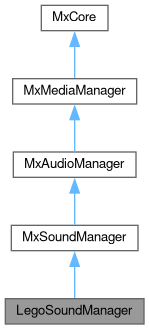

Inheritance diagram for LegoSoundManager:

[legend]

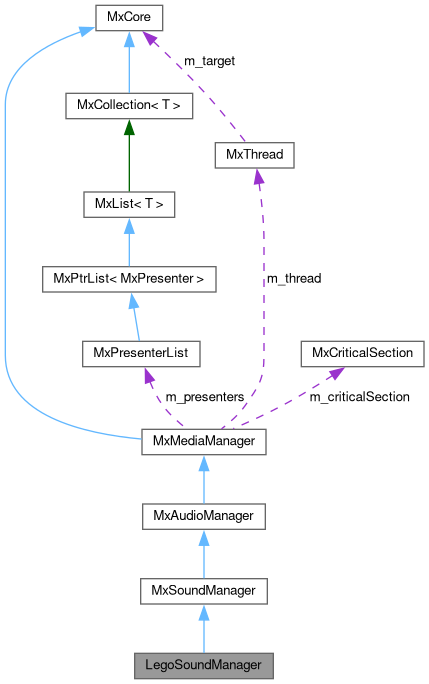

Collaboration diagram for LegoSoundManager:

[legend]

Public Member Functions
	LegoSoundManager ()
	[AI] Constructs the LegoSoundManager and initializes its internal members. More...

	~LegoSoundManager () override
	[AI] Destructor. Cleans up resources, optionally as part of destruction. More...

MxResult	Tickle () override
	[AI] Performs periodic processing, such as updating the cache sound manager. More...

void	Destroy () override
	[AI] Cleans up and releases all resources used by the sound manager and its cache. More...

MxResult	Create (MxU32 p_frequencyMS, MxBool p_createThread) override
	[AI] Initializes the sound manager with a desired tick frequency and threading option. More...

void	UpdateListener (const float p_position, const float p_direction, const float p_up, const float p_velocity)
	[AI] Updates the 3D sound listener properties in DirectSound, reflecting player/world changes. More...

LegoCacheSoundManager *	GetCacheSoundManager ()
	[AI] Returns the cache sound manager used to cache and reuse sound effects. More...

Public Member Functions inherited from MxSoundManager
	MxSoundManager ()
	[AI] Constructs a new MxSoundManager instance. More...

	~MxSoundManager () override
	[AI] Destructor for MxSoundManager. More...

void	Destroy () override
	[AI] Releases sound resources and unregisters from tickle system. More...

void	SetVolume (MxS32 p_volume) override
	[AI] Sets the global audio output volume for all managed sound presenters. More...

virtual MxResult	Create (MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Initializes and sets up the DirectSound environment. More...

virtual void	Pause ()
	[AI] Pauses all currently playing wave presenters. More...

virtual void	Resume ()
	[AI] Resumes all previously paused wave presenters. More...

LPDIRECTSOUND	GetDirectSound ()
	[AI] Gets pointer to internal DirectSound interface. More...

MxS32	GetAttenuation (MxU32 p_volume)
	[AI] Maps a percentage volume (1-100) to a DirectSound-specific attenuation value. More...

MxPresenter *	FUN_100aebd0 (const MxAtomId &p_atomId, MxU32 p_objectId)
	[AI] Finds a presenter matching a specific atom ID and object ID. More...

Public Member Functions inherited from MxAudioManager
	MxAudioManager ()
	[AI] Constructs the audio manager and initializes default volume. More...

	~MxAudioManager () override
	[AI] Destructs the audio manager and handles cleanup of resources. More...

MxResult	Create () override
	[AI] Initializes audio subsystem resources and registers an instance for global audio management. More...

void	Destroy () override
	[AI] Tears down the audio subsystem instance and unregisters it from global management. More...

virtual MxS32	GetVolume ()
	[AI] Gets the current global audio volume. More...

virtual void	SetVolume (MxS32 p_volume)
	[AI] Sets the current global audio volume. More...

Public Member Functions inherited from MxMediaManager
	MxMediaManager ()
	[AI] Constructor. More...

	~MxMediaManager () override
	[AI] Destructor. More...

MxResult	Tickle () override
	[AI] Called by the tickle manager to step through and update all presenters, and process their output data. More...

virtual MxResult	Create ()
	[AI] Allocates and initializes the internal presenter list for this manager, ensuring thread safety. More...

virtual void	Destroy ()
	[AI] Destroys all registered presenters and resets the internal state, ensuring safe resource disposal. More...

virtual void	RegisterPresenter (MxPresenter &p_presenter)
	[AI] Register a new presenter for tickle management and playback coordination. More...

virtual void	UnregisterPresenter (MxPresenter &p_presenter)
	[AI] Remove a presenter from tickle and managed output lists. More...

virtual void	StopPresenters ()
	[AI] Stops/ends the action on all registered presenters, typically halting all playback and output. More...

MxResult	Init ()
	[AI] Initializes all internal members to their default values. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Protected Member Functions inherited from MxSoundManager
void	Init ()
	[AI] Internal initialization routine for member variables and DirectSound pointers. More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Internal destroy logic for use both in destructor and standard resource reset. More...

Protected Member Functions inherited from MxAudioManager
void	Init ()
	[AI] Initializes audio manager state, setting default volume and other relevant fields. More...

Protected Attributes inherited from MxSoundManager
LPDIRECTSOUND	m_directSound
	[AI] Pointer to main DirectSound interface. Needed for all DirectSound operations. More...

LPDIRECTSOUNDBUFFER	m_dsBuffer
	[AI] Primary DirectSound buffer interface for setting output format/volume. More...

undefined	m_unk0x38 [4]
	[AI] Unknown, reserved/unused memory or opaque data per binary compatibility. [AI_SUGGESTED_NAME: reserved] [AI] More...

Protected Attributes inherited from MxAudioManager
MxS32	m_volume
	[AI] Holds the current global audio volume for the game. More...

Protected Attributes inherited from MxMediaManager
MxPresenterList *	m_presenters
	[AI] Pointer to list of currently registered (active) presenters. More...

MxThread *	m_thread
	[AI] Optional pointer to a worker thread used for media dispatch/IO (if multi-threaded operation is used, otherwise NULL). More...

MxCriticalSection	m_criticalSection
	[AI] Critical section object used for guarding access to the presenter list and internal members for thread safety. More...

Detailed Description

[AI] Manages 3D sound effects and music playback for LEGO Island, integrating with DirectSound and providing caching.

[AI] This class extends MxSoundManager to add LEGO-specific sound management, including 3D audio listener control and caching of sound resources through LegoCacheSoundManager. It is responsible for initializing DirectSound interfaces, updating the listener's position/orientation for 3D sound, and coordinating sound resource caches. Size: 0x44 bytes. VTABLE: LEGO1 0x100d6b10 / BETA10 0x101bec30

Definition at line 14 of file legosoundmanager.h.

Constructor & Destructor Documentation

◆ LegoSoundManager()

LegoSoundManager::LegoSoundManager ( )

[AI] Constructs the LegoSoundManager and initializes its internal members.

Definition at line 12 of file legosoundmanager.cpp.

◆ ~LegoSoundManager()

LegoSoundManager::~LegoSoundManager ( )

override

[AI] Destructor. Cleans up resources, optionally as part of destruction.

Definition at line 18 of file legosoundmanager.cpp.

Member Function Documentation

◆ Create()

MxResult LegoSoundManager::Create	(	MxU32	p_frequencyMS,
		MxBool	p_createThread
	)

overridevirtual

[AI] Initializes the sound manager with a desired tick frequency and threading option.

Parameters

p_frequencyMS	[AI] Desired tick/update interval, in milliseconds.
p_createThread	[AI] If TRUE, creates a separate audio thread for updates.

Returns: [AI] Result of the create operation.

Reimplemented from MxSoundManager.

Definition at line 43 of file legosoundmanager.cpp.

◆ Destroy()

void LegoSoundManager::Destroy ( )

overridevirtual

[AI] Cleans up and releases all resources used by the sound manager and its cache.

Reimplemented from MxMediaManager.

Definition at line 91 of file legosoundmanager.cpp.

◆ GetCacheSoundManager()

LegoCacheSoundManager * LegoSoundManager::GetCacheSoundManager ( )

inline

[AI] Returns the cache sound manager used to cache and reuse sound effects.

Returns: [AI] Pointer to the LegoCacheSoundManager instance.

Definition at line 45 of file legosoundmanager.h.

◆ Tickle()

MxResult LegoSoundManager::Tickle ( )

overridevirtual

[AI] Performs periodic processing, such as updating the cache sound manager.

Called by the main tick loop.

Returns: [AI] Status of the tick operation (see underlying tickle logic).

Reimplemented from MxCore.

Definition at line 98 of file legosoundmanager.cpp.

◆ UpdateListener()

void LegoSoundManager::UpdateListener	(	const float *	p_position,
		const float *	p_direction,
		const float *	p_up,
		const float *	p_velocity
	)

[AI] Updates the 3D sound listener properties in DirectSound, reflecting player/world changes.

Parameters

p_position	[AI] 3D position vector of the listener (array of 3 floats). Can be nullptr.
p_direction	[AI] Forward direction vector of the listener (array of 3 floats). Can be nullptr.
p_up	[AI] Up vector of the listener (array of 3 floats). Can be nullptr.
p_velocity	[AI] Velocity vector of the listener (array of 3 floats). Can be nullptr.

[AI] If any vector is not nullptr, applies the change and updates the DirectSound listener object.

Definition at line 108 of file legosoundmanager.cpp.

The documentation for this class was generated from the following files:
