[AI] Manages DirectSound-based sound playback, implementing volume, resource, and device management. More...

#include <mxsoundmanager.h>

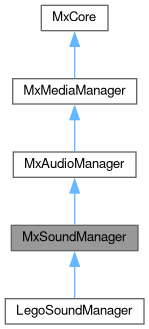

Inheritance diagram for MxSoundManager:

[legend]

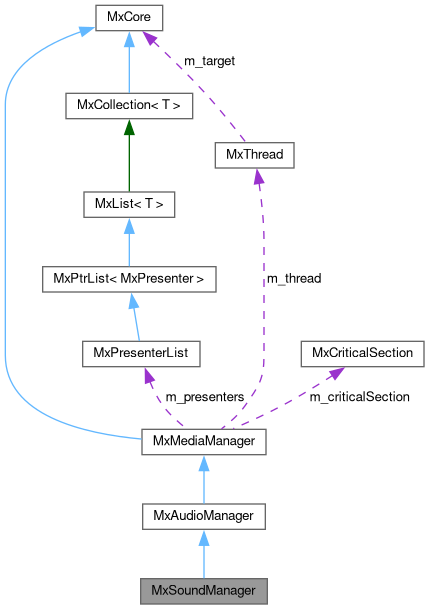

Collaboration diagram for MxSoundManager:

[legend]

Public Member Functions
	MxSoundManager ()
	[AI] Constructs a new MxSoundManager instance. More...

	~MxSoundManager () override
	[AI] Destructor for MxSoundManager. More...

void	Destroy () override
	[AI] Releases sound resources and unregisters from tickle system. More...

void	SetVolume (MxS32 p_volume) override
	[AI] Sets the global audio output volume for all managed sound presenters. More...

virtual MxResult	Create (MxU32 p_frequencyMS, MxBool p_createThread)
	[AI] Initializes and sets up the DirectSound environment. More...

virtual void	Pause ()
	[AI] Pauses all currently playing wave presenters. More...

virtual void	Resume ()
	[AI] Resumes all previously paused wave presenters. More...

LPDIRECTSOUND	GetDirectSound ()
	[AI] Gets pointer to internal DirectSound interface. More...

MxS32	GetAttenuation (MxU32 p_volume)
	[AI] Maps a percentage volume (1-100) to a DirectSound-specific attenuation value. More...

MxPresenter *	FUN_100aebd0 (const MxAtomId &p_atomId, MxU32 p_objectId)
	[AI] Finds a presenter matching a specific atom ID and object ID. More...

Public Member Functions inherited from MxAudioManager
	MxAudioManager ()
	[AI] Constructs the audio manager and initializes default volume. More...

	~MxAudioManager () override
	[AI] Destructs the audio manager and handles cleanup of resources. More...

MxResult	Create () override
	[AI] Initializes audio subsystem resources and registers an instance for global audio management. More...

void	Destroy () override
	[AI] Tears down the audio subsystem instance and unregisters it from global management. More...

virtual MxS32	GetVolume ()
	[AI] Gets the current global audio volume. More...

virtual void	SetVolume (MxS32 p_volume)
	[AI] Sets the current global audio volume. More...

Public Member Functions inherited from MxMediaManager
	MxMediaManager ()
	[AI] Constructor. More...

	~MxMediaManager () override
	[AI] Destructor. More...

MxResult	Tickle () override
	[AI] Called by the tickle manager to step through and update all presenters, and process their output data. More...

virtual MxResult	Create ()
	[AI] Allocates and initializes the internal presenter list for this manager, ensuring thread safety. More...

virtual void	Destroy ()
	[AI] Destroys all registered presenters and resets the internal state, ensuring safe resource disposal. More...

virtual void	RegisterPresenter (MxPresenter &p_presenter)
	[AI] Register a new presenter for tickle management and playback coordination. More...

virtual void	UnregisterPresenter (MxPresenter &p_presenter)
	[AI] Remove a presenter from tickle and managed output lists. More...

virtual void	StopPresenters ()
	[AI] Stops/ends the action on all registered presenters, typically halting all playback and output. More...

MxResult	Init ()
	[AI] Initializes all internal members to their default values. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Protected Member Functions
void	Init ()
	[AI] Internal initialization routine for member variables and DirectSound pointers. More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Internal destroy logic for use both in destructor and standard resource reset. More...

Protected Member Functions inherited from MxAudioManager
void	Init ()
	[AI] Initializes audio manager state, setting default volume and other relevant fields. More...

Protected Attributes
LPDIRECTSOUND	m_directSound
	[AI] Pointer to main DirectSound interface. Needed for all DirectSound operations. More...

LPDIRECTSOUNDBUFFER	m_dsBuffer
	[AI] Primary DirectSound buffer interface for setting output format/volume. More...

undefined	m_unk0x38 [4]
	[AI] Unknown, reserved/unused memory or opaque data per binary compatibility. [AI_SUGGESTED_NAME: reserved] [AI] More...

Protected Attributes inherited from MxAudioManager
MxS32	m_volume
	[AI] Holds the current global audio volume for the game. More...

Protected Attributes inherited from MxMediaManager
MxPresenterList *	m_presenters
	[AI] Pointer to list of currently registered (active) presenters. More...

MxThread *	m_thread
	[AI] Optional pointer to a worker thread used for media dispatch/IO (if multi-threaded operation is used, otherwise NULL). More...

MxCriticalSection	m_criticalSection
	[AI] Critical section object used for guarding access to the presenter list and internal members for thread safety. More...

Detailed Description

[AI] Manages DirectSound-based sound playback, implementing volume, resource, and device management.

[AI] Forward declaration for the global DirectSound or software-mixer manager for sound FX and voice.

[AI] MxSoundManager provides sound output by controlling DirectSound device and primary buffer. It creates, manages, and destroys relevant resources, integrating with the main tickle/timer system for updating sound playback, volume, and pausing/resuming playback, including compatibility with both standard and 3D audio. It is thread-safe for sound playback through critical section management.

Definition at line 18 of file mxsoundmanager.h.

Constructor & Destructor Documentation

◆ MxSoundManager()

MxSoundManager::MxSoundManager ( )

[AI] Constructs a new MxSoundManager instance.

[AI] Initializes all DirectSound pointers and internal state to a safe default.

Definition at line 26 of file mxsoundmanager.cpp.

◆ ~MxSoundManager()

MxSoundManager::~MxSoundManager ( )

override

[AI] Destructor for MxSoundManager.

[AI] Releases all DirectSound resources and unregisters from tickle managers if necessary.

Definition at line 32 of file mxsoundmanager.cpp.

Member Function Documentation

◆ Create()

MxResult MxSoundManager::Create	(	MxU32	p_frequencyMS,
		MxBool	p_createThread
	)

virtual

[AI] Initializes and sets up the DirectSound environment.

Parameters

p_frequencyMS	Tickle/update frequency in milliseconds for updating sound playback. [AI]
p_createThread	If true, runs the tickle loop in a dedicated thread, otherwise uses the tickle manager. [AI]

Returns: SUCCESS if initialization succeeded, otherwise FAILURE.

[AI] Creates the DirectSound interface, sets the cooperative level, and configures the primary buffer (for 3D or regular sound according to the application's setting). Registers for tickle updates either via a thread or the global tickle manager.

Reimplemented in LegoSoundManager.

Definition at line 71 of file mxsoundmanager.cpp.

◆ Destroy() [1/2]

void MxSoundManager::Destroy ( )

overridevirtual

[AI] Releases sound resources and unregisters from tickle system.

[AI] Used to safely clean up all managed resources, either explicitly or from destruction.

Reimplemented from MxAudioManager.

Definition at line 159 of file mxsoundmanager.cpp.

◆ Destroy() [2/2]

void MxSoundManager::Destroy ( MxBool p_fromDestructor )

protected

[AI] Internal destroy logic for use both in destructor and standard resource reset.

Parameters

p_fromDestructor Set true if called from destructor to avoid recursive destruction of base classes. [AI]

[AI] Releases DirectSound resources, primary buffer, and manages tickle registration/threads as appropriate. Optionally cascades to parent class destroy.

Definition at line 45 of file mxsoundmanager.cpp.

◆ FUN_100aebd0()

MxPresenter * MxSoundManager::FUN_100aebd0	(	const MxAtomId &	p_atomId,
		MxU32	p_objectId
	)

[AI] Finds a presenter matching a specific atom ID and object ID.

Parameters

p_atomId	The atom ID corresponding to a resource (audio object identifier). [AI]
p_objectId	Unique object instance identifier used to distinguish between multiple sounds of the same type. [AI]

Returns: A pointer to the matching MxPresenter, or NULL if no match is found.

[AI] Used to locate a currently-active sound presenter for a given asset/object pair.

Definition at line 182 of file mxsoundmanager.cpp.

◆ GetAttenuation()

MxS32 MxSoundManager::GetAttenuation ( MxU32 p_volume )

[AI] Maps a percentage volume (1-100) to a DirectSound-specific attenuation value.

Parameters

p_volume The desired volume as a percentage, 1 (min, not zero) to 100 (max). [AI]

Returns: The corresponding DirectSound attenuation value, ranging from -10000 (silent) to 0 (loudest).

[AI] Returns a lookup from a static table for DirectSound volume attenuation.

Definition at line 200 of file mxsoundmanager.cpp.

◆ GetDirectSound()

LPDIRECTSOUND MxSoundManager::GetDirectSound ( )

inline

[AI] Gets pointer to internal DirectSound interface.

Returns: LPDIRECTSOUND interface pointer for use with low-level DirectSound APIs. [AI]

Definition at line 70 of file mxsoundmanager.h.

◆ Init()

void MxSoundManager::Init ( )

protected

[AI] Internal initialization routine for member variables and DirectSound pointers.

[AI] Sets all internal pointers to NULL, called during construction and resource resets.

Definition at line 38 of file mxsoundmanager.cpp.

◆ Pause()

void MxSoundManager::Pause ( )

virtual

[AI] Pauses all currently playing wave presenters.

[AI] Iterates through all managed presenters and pauses those that are MxWavePresenter. Used for suspending sound playback (e.g., when the game is minimized).

Definition at line 212 of file mxsoundmanager.cpp.

◆ Resume()

void MxSoundManager::Resume ( )

virtual

[AI] Resumes all previously paused wave presenters.

[AI] Iterates through all managed presenters and resumes those that are MxWavePresenter. Used for continuing sound playback after a pause.

Definition at line 227 of file mxsoundmanager.cpp.

◆ SetVolume()

void MxSoundManager::SetVolume ( MxS32 p_volume )

overridevirtual

[AI] Sets the global audio output volume for all managed sound presenters.

Parameters

p_volume Volume level as an integer percentage (0-100). [AI]

[AI] Iterates through all managed sound presenters and sets their individual volumes to match the manager's global volume.

Reimplemented from MxAudioManager.

Definition at line 165 of file mxsoundmanager.cpp.

Member Data Documentation

◆ m_directSound

LPDIRECTSOUND MxSoundManager::m_directSound

protected

[AI] Pointer to main DirectSound interface. Needed for all DirectSound operations.

Definition at line 103 of file mxsoundmanager.h.

◆ m_dsBuffer

LPDIRECTSOUNDBUFFER MxSoundManager::m_dsBuffer

protected

[AI] Primary DirectSound buffer interface for setting output format/volume.

Definition at line 104 of file mxsoundmanager.h.

◆ m_unk0x38

undefined MxSoundManager::m_unk0x38[4]

protected

[AI] Unknown, reserved/unused memory or opaque data per binary compatibility. [AI_SUGGESTED_NAME: reserved] [AI]

Definition at line 105 of file mxsoundmanager.h.
