[AI] Audio subsystem manager for the LEGO Island engine, responsible for managing audio playback and audio resources. More...

#include <mxaudiomanager.h>

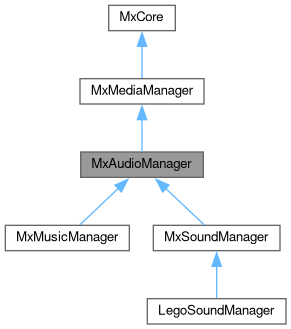

Inheritance diagram for MxAudioManager:

[legend]

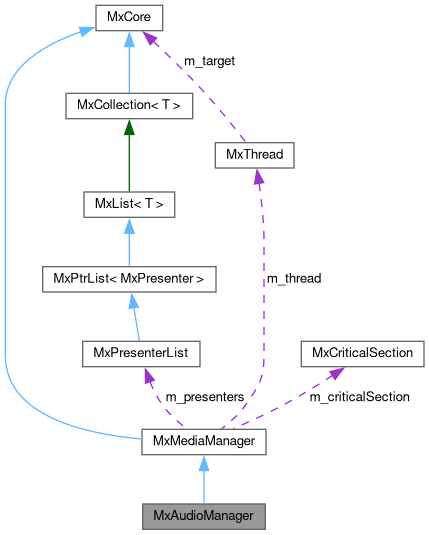

Collaboration diagram for MxAudioManager:

[legend]

Public Member Functions
	MxAudioManager ()
	[AI] Constructs the audio manager and initializes default volume. More...

	~MxAudioManager () override
	[AI] Destructs the audio manager and handles cleanup of resources. More...

MxResult	Create () override
	[AI] Initializes audio subsystem resources and registers an instance for global audio management. More...

void	Destroy () override
	[AI] Tears down the audio subsystem instance and unregisters it from global management. More...

virtual MxS32	GetVolume ()
	[AI] Gets the current global audio volume. More...

virtual void	SetVolume (MxS32 p_volume)
	[AI] Sets the current global audio volume. More...

Public Member Functions inherited from MxMediaManager
	MxMediaManager ()
	[AI] Constructor. More...

	~MxMediaManager () override
	[AI] Destructor. More...

MxResult	Tickle () override
	[AI] Called by the tickle manager to step through and update all presenters, and process their output data. More...

virtual MxResult	Create ()
	[AI] Allocates and initializes the internal presenter list for this manager, ensuring thread safety. More...

virtual void	Destroy ()
	[AI] Destroys all registered presenters and resets the internal state, ensuring safe resource disposal. More...

virtual void	RegisterPresenter (MxPresenter &p_presenter)
	[AI] Register a new presenter for tickle management and playback coordination. More...

virtual void	UnregisterPresenter (MxPresenter &p_presenter)
	[AI] Remove a presenter from tickle and managed output lists. More...

virtual void	StopPresenters ()
	[AI] Stops/ends the action on all registered presenters, typically halting all playback and output. More...

MxResult	Init ()
	[AI] Initializes all internal members to their default values. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Protected Member Functions
void	Init ()
	[AI] Initializes audio manager state, setting default volume and other relevant fields. More...

Protected Attributes
MxS32	m_volume
	[AI] Holds the current global audio volume for the game. More...

Protected Attributes inherited from MxMediaManager
MxPresenterList *	m_presenters
	[AI] Pointer to list of currently registered (active) presenters. More...

MxThread *	m_thread
	[AI] Optional pointer to a worker thread used for media dispatch/IO (if multi-threaded operation is used, otherwise NULL). More...

MxCriticalSection	m_criticalSection
	[AI] Critical section object used for guarding access to the presenter list and internal members for thread safety. More...

Detailed Description

[AI] Audio subsystem manager for the LEGO Island engine, responsible for managing audio playback and audio resources.

[AI] MxAudioManager is derived from MxMediaManager, providing specialized handling for audio initialization, shutdown, and runtime control (e.g., global volume adjustment). It maintains a static instance counter, and performs thread-safe operations via an internal critical section.

Definition at line 14 of file mxaudiomanager.h.

Constructor & Destructor Documentation

◆ MxAudioManager()

MxAudioManager::MxAudioManager ( )

[AI] Constructs the audio manager and initializes default volume.

Definition at line 9 of file mxaudiomanager.cpp.

◆ ~MxAudioManager()

MxAudioManager::~MxAudioManager ( )

override

[AI] Destructs the audio manager and handles cleanup of resources.

Definition at line 15 of file mxaudiomanager.cpp.

Member Function Documentation

◆ Create()

MxResult MxAudioManager::Create ( )

overridevirtual

[AI] Initializes audio subsystem resources and registers an instance for global audio management.

[AI] Thread-safe; increments global audio manager instance count on success.

Returns: MxResult indicating if the creation succeeded. [AI]

Reimplemented from MxMediaManager.

Definition at line 40 of file mxaudiomanager.cpp.

◆ Destroy()

void MxAudioManager::Destroy ( )

overridevirtual

[AI] Tears down the audio subsystem instance and unregisters it from global management.

[AI] Thread-safe; decrements global audio manager instance count and releases resources.

Reimplemented from MxMediaManager.

Reimplemented in MxMusicManager, and MxSoundManager.

Definition at line 64 of file mxaudiomanager.cpp.

◆ GetVolume()

virtual MxS32 MxAudioManager::GetVolume ( )

inlinevirtual

[AI] Gets the current global audio volume.

[AI] Returns the current audio output volume (range and meaning engine-specific, default is 100).

Returns: Current volume value. [AI]

Definition at line 44 of file mxaudiomanager.h.

◆ Init()

void MxAudioManager::Init ( )

protected

[AI] Initializes audio manager state, setting default volume and other relevant fields.

[AI] Called during construction and when resetting state on destroy.

Definition at line 21 of file mxaudiomanager.cpp.

◆ SetVolume()

void MxAudioManager::SetVolume ( MxS32 p_volume )

virtual

[AI] Sets the current global audio volume.

[AI] Thread-safe; updates audio output volume (does not scale individual sound channels).

Parameters

p_volume The desired volume to set. [AI]

Reimplemented in MxMusicManager, and MxSoundManager.

Definition at line 70 of file mxaudiomanager.cpp.

Member Data Documentation

◆ m_volume

MxS32 MxAudioManager::m_volume

protected

[AI] Holds the current global audio volume for the game.

[AI] Thread-safe access (via critical section). Default is 100. [AI_SUGGESTED_NAME: m_volume]

Definition at line 81 of file mxaudiomanager.h.

The documentation for this class was generated from the following files:
