MxDSStill Class Reference
[AI] Represents a "still" media action in the LEGO Island SI script system. More...
#include <mxdsstill.h>

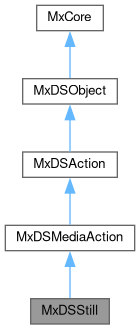

Inheritance diagram for MxDSStill:

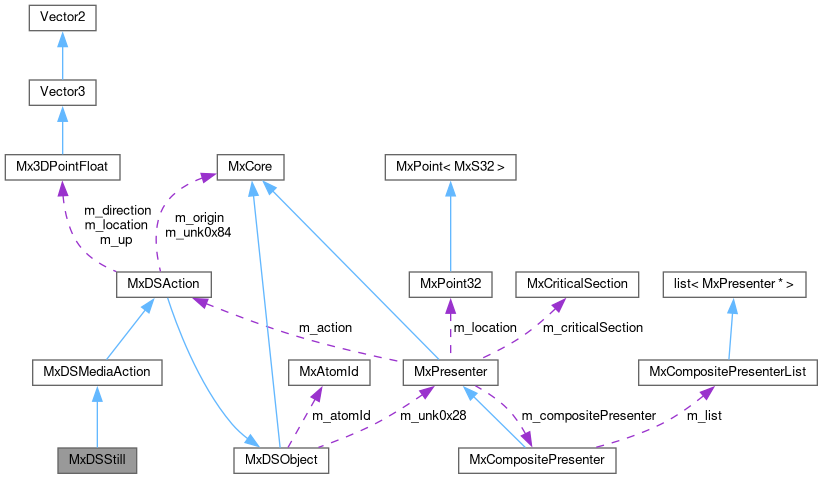

Collaboration diagram for MxDSStill:
Public Member Functions | |
| MxDSStill () | |
| [AI] Default constructor. More... | |
| MxDSStill (MxDSStill &p_dsStill) | |
| [AI] Copy constructor. More... | |
| ~MxDSStill () override | |
| [AI] Destructor. More... | |
| void | CopyFrom (MxDSStill &p_dsStill) |
| [AI] Copies the data from another MxDSStill into this instance. More... | |
| MxDSStill & | operator= (MxDSStill &p_dsStill) |
| [AI] Assignment operator. More... | |
| const char * | ClassName () const override |
| [AI] Returns the runtime class name for this object. More... | |
| MxBool | IsA (const char *p_name) const override |
| [AI] Runtime type check against a string name, supports hierarchy checking. More... | |
| MxDSAction * | Clone () override |
| [AI] Creates a dynamically allocated deep copy of this MxDSStill. More... | |
 Public Member Functions inherited from MxDSMediaAction | |
| MxDSMediaAction () | |
| Constructs a new MxDSMediaAction and initializes all members. More... | |
| MxDSMediaAction (MxDSMediaAction &p_dsMediaAction) | |
| Copy constructor; constructs a new MxDSMediaAction by copying the state of another. More... | |
| ~MxDSMediaAction () override | |
| Destructor. More... | |
| void | CopyFrom (MxDSMediaAction &p_dsMediaAction) |
| Copy the internal state and properties from another MxDSMediaAction. More... | |
| MxDSMediaAction & | operator= (MxDSMediaAction &p_dsMediaAction) |
| Assignment operator. More... | |
| const char * | ClassName () const override |
| Returns the class name string for this object. More... | |
| MxBool | IsA (const char *p_name) const override |
| Checks for class membership. More... | |
| undefined4 | VTable0x14 () override |
| [AI] Implementation-specific vtable placeholder. More... | |
| MxU32 | GetSizeOnDisk () override |
| Calculates size in bytes required to store this object on disk, including strings and additional fields. More... | |
| void | Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) override |
| Deserializes the object data from a binary buffer, restoring state including media source path and configuration. More... | |
| MxDSAction * | Clone () override |
| Creates a deep copy (clone) of this action and returns it. More... | |
| void | CopyMediaSrcPath (const char *p_mediaSrcPath) |
| Deep-copies a new string for the media source path; cleans up previous memory as needed. More... | |
| const char * | GetMediaSrcPath () |
| Provides access to the path string of the media resource used by this action. More... | |
| MxS32 | GetFramesPerSecond () const |
| Gets the frame rate to use for media playback. More... | |
| MxS32 | GetMediaFormat () const |
| Returns the media format code (e.g., FLC, SMK, WAV) for playback and presenter dispatch. More... | |
| MxS32 | GetPaletteManagement () const |
| Gets the palette management mode for playback of this media. More... | |
| MxLong | GetSustainTime () const |
| Returns the sustain time for the media, i.e., time it should remain presented/active. More... | |
| Public Member Functions inherited from MxDSAction | |
| MxDSAction () | |
| [AI] Default constructor. More... | |
| ~MxDSAction () override | |
| [AI] Destructor. More... | |
| MxDSAction (MxDSAction &p_dsAction) | |
| [AI] Copy constructor from another MxDSAction More... | |
| void | CopyFrom (MxDSAction &p_dsAction) |
| [AI] Copies all properties from another MxDSAction (deep copy, including extra data string) More... | |
| MxDSAction & | operator= (MxDSAction &p_dsAction) |
| [AI] Assignment operator: deep-copy from a different MxDSAction, including base class data and extra fields. More... | |
| const char * | ClassName () const override |
| [AI] Returns the class name for RTTI or reflection purposes. More... | |
| MxBool | IsA (const char *p_name) const override |
| [AI] Run-time type check, compares provided name with this or any ancestor type. More... | |
| undefined4 | VTable0x14 () override |
| [AI] Unknown virtual placeholder, possibly for additional interfaces. More... | |
| MxU32 | GetSizeOnDisk () override |
| [AI] Serializes the size on disk of this action (all fields + extra data length) More... | |
| void | Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) override |
| [AI] Deserializes this action's data from a binary buffer. More... | |
| virtual MxLong | GetDuration () |
| [AI] Gets the duration for which this action is intended to run. More... | |
| virtual void | SetDuration (MxLong p_duration) |
| [AI] Sets the duration of this action in ticks or time units. More... | |
| virtual MxDSAction * | Clone () |
| [AI] Clones (deep-copies) this action and returns a new pointer. More... | |
| virtual void | MergeFrom (MxDSAction &p_dsAction) |
| [AI] Copies/merges properties from another action. More... | |
| virtual MxBool | HasId (MxU32 p_objectId) |
| [AI] Checks if this action contains/was created for a specific SI object id. More... | |
| virtual void | SetUnknown90 (MxLong p_unk0x90) |
| [AI] Set unknown value at offset 0x90, used as baseline in GetElapsedTime. More... | |
| virtual MxLong | GetUnknown90 () |
| [AI] Gets the unknown value at offset 0x90, likely a start timestamp. More... | |
| virtual MxLong | GetElapsedTime () |
| [AI] Gets elapsed time for this action since the last time field 0x90 was set. More... | |
| void | AppendExtra (MxU16 p_extraLength, const char *p_extraData) |
| [AI] Concatenates or stores extra data associated with this action, robust for multi-part actions. More... | |
| void | GetExtra (MxU16 &p_extraLength, char *&p_extraData) |
| [AI] Retrieves the extra data and its length for this action. More... | |
| MxU32 | GetFlags () |
| [AI] Returns the flag field for this action (bitmask). More... | |
| void | SetFlags (MxU32 p_flags) |
| [AI] Sets the flag bitmask controlling action logic (enabled, looping, etc). More... | |
| char * | GetExtraData () |
| [AI] Accessor for extra data (not null-terminated). More... | |
| MxU16 | GetExtraLength () const |
| [AI] Returns the length (in bytes) of extra data. More... | |
| MxLong | GetStartTime () const |
| [AI] Gets the nominal start time for the action, as loaded or scheduled. More... | |
| MxS32 | GetLoopCount () |
| [AI] Returns the loop count for this action. More... | |
| void | SetLoopCount (MxS32 p_loopCount) |
| [AI] Sets the loop count for this action. More... | |
| const Vector3 & | GetLocation () |
| [AI] Gets the location vector for this action (world or local space). More... | |
| const Vector3 & | GetDirection () |
| [AI] Gets the direction vector (typically forward vector) for this action. More... | |
| const Vector3 & | GetUp () |
| [AI] Gets the up vector for this action (global or local). More... | |
| void | SetLocation (const Vector3 &p_location) |
| [AI] Sets the location vector for this action. More... | |
| void | SetDirection (const Vector3 &p_direction) |
| [AI] Sets the direction vector for this action. More... | |
| void | SetUp (const Vector3 &p_up) |
| [AI] Sets the up vector for this action. More... | |
| MxCore * | GetUnknown84 () |
| [AI] Returns a pointer to an associated or auxiliary core object. More... | |
| void | SetUnknown84 (MxCore *p_unk0x84) |
| [AI] Sets the auxiliary core pointer for this action. More... | |
| MxCore * | GetOrigin () |
| [AI] Returns a pointer to the "origin" core object, which may be used to localize the action. More... | |
| void | SetOrigin (MxCore *p_origin) |
| [AI] Sets the origin core pointer for this action, if spatially transforming/localizing this action. More... | |
| MxBool | IsLooping () const |
| [AI] Whether this action is set to loop based on current flags. More... | |
| MxBool | IsBit3 () const |
| [AI] Tests for the state of the (unknown purpose) bit 3 flag in m_flags. More... | |
| Public Member Functions inherited from MxDSObject | |
| MxDSObject () | |
| [AI] Default constructor. Initializes to e_object and clears names and pointers. More... | |
| ~MxDSObject () override | |
| [AI] Destructor. Frees allocated objectName/sourceName memory. More... | |
| void | CopyFrom (MxDSObject &p_dsObject) |
| [AI] Copy data from another MxDSObject, performing deep string copy for names. More... | |
| MxDSObject (MxDSObject &p_dsObject) | |
| [AI] Copy constructor. More... | |
| MxDSObject & | operator= (MxDSObject &p_dsObject) |
| [AI] Assignment operator. More... | |
| void | SetObjectName (const char *p_objectName) |
| [AI] Sets object (internal) unique name; deep copies the string. More... | |
| void | SetSourceName (const char *p_sourceName) |
| [AI] Sets the source name (usually source SI file); deep copies the string. More... | |
| const char * | ClassName () const override |
| [AI] Returns the class identifier string for run-time type ID. More... | |
| MxBool | IsA (const char *p_name) const override |
| [AI] Runtime type check; supports derived/parent class lookup by name. More... | |
| virtual undefined4 | VTable0x14 () |
| [AI] Placeholder for early vtable slot (purpose unknown, may be used for RTTI). More... | |
| virtual MxU32 | GetSizeOnDisk () |
| [AI] Calculates serialized size of this object on disk (for buffer allocation). More... | |
| virtual void | Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) |
| [AI] Initializes this object from serialized (memory buffer) data. More... | |
| virtual void | SetAtomId (MxAtomId p_atomId) |
| [AI] Sets the atom id for this object instance, used for indexing or lookup. More... | |
| Type | GetType () const |
| [AI] Returns the object's type enum as stored in m_type. More... | |
| const char * | GetSourceName () const |
| [AI] Returns the source name string (typically the originating SI file). More... | |
| const char * | GetObjectName () const |
| [AI] Returns the object name string. More... | |
| MxU32 | GetObjectId () |
| [AI] Returns the object id numeric value. More... | |
| const MxAtomId & | GetAtomId () |
| [AI] Returns a const-reference to the object's atom identifier. More... | |
| MxS16 | GetUnknown24 () |
| [AI] Returns the unknown 0x24 value (may be data version or usage state). [AI] More... | |
| MxPresenter * | GetUnknown28 () |
| [AI] Returns the pointer stored at 0x28, likely a presenter or handler for this DS object. More... | |
| void | SetType (Type p_type) |
| [AI] Sets the DS object type. More... | |
| void | SetObjectId (MxU32 p_objectId) |
| [AI] Sets the object id (for serialization or lookup). More... | |
| void | SetUnknown24 (MxS16 p_unk0x24) |
| [AI] Sets the unknown field at 0x24 (possibly version/state). More... | |
| void | SetUnknown28 (MxPresenter *p_unk0x28) |
| [AI] Sets the pointer at 0x28 (presenter or handler). More... | |
| void | ClearAtom () |
| [AI] Clears the atom id, releasing its association. More... | |
| Public Member Functions inherited from MxCore | |
| MxCore () | |
| [AI] Constructs a new MxCore object and assigns it a unique id. More... | |
| virtual | ~MxCore () |
| [AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More... | |
| virtual MxLong | Notify (MxParam &p_param) |
| [AI] Virtual callback notification mechanism. More... | |
| virtual MxResult | Tickle () |
| [AI] Called by tickle managers to allow the object to update itself. More... | |
| virtual const char * | ClassName () const |
| [AI] Returns the runtime class name of this object. More... | |
| virtual MxBool | IsA (const char *p_name) const |
| [AI] Checks whether this object's class type or parents match the given name. More... | |
| MxU32 | GetId () |
| [AI] Gets the unique (per-process) id assigned to this object instance. More... | |
Additional Inherited Members | |
| Public Types inherited from MxDSAction | |
| enum | { c_looping = 0x01 , c_bit3 = 0x04 , c_bit4 = 0x08 , c_bit5 = 0x10 , c_enabled = 0x20 , c_bit7 = 0x40 , c_world = 0x80 , c_bit9 = 0x100 , c_bit10 = 0x200 , c_bit11 = 0x400 } |
| [AI] Action bitmask flag options controlling flow (loop, enable, world-space, etc) More... | |
| Public Types inherited from MxDSObject | |
| enum | Type { e_object = 0 , e_action , e_mediaAction , e_anim , e_sound , e_multiAction , e_serialAction , e_parallelAction , e_event , e_selectAction , e_still , e_objectAction } |
| [AI] Enumerated type value for each kind of DS object. More... | |
| Protected Attributes inherited from MxDSAction | |
| MxU32 | m_sizeOnDisk |
| [AI] The size of this action's fields on disk, not counting ancestor size. More... | |
| MxU32 | m_flags |
| [AI] Bitfield for flags (enabled, looping, etc). More... | |
| MxLong | m_startTime |
| [AI] Time at which the action is meant to start, or INT_MIN for unset. More... | |
| MxLong | m_duration |
| [AI] The duration to run the action, or INT_MIN for undefined. More... | |
| MxS32 | m_loopCount |
| [AI] Number of times to repeat the action, or -1 for infinite/not-set. More... | |
| Mx3DPointFloat | m_location |
| [AI] Location in 3D world or local space (x, y, z). More... | |
| Mx3DPointFloat | m_direction |
| [AI] "Forward" direction vector for this action. More... | |
| Mx3DPointFloat | m_up |
| [AI] "Up" vector for this action. More... | |
| char * | m_extraData |
| [AI] Opaque extra data for custom or extended behavior. More... | |
| MxU16 | m_extraLength |
| [AI] Length of extra data in bytes. More... | |
| MxCore * | m_unk0x84 |
| [AI] Pointer to an auxiliary MxCore object, purpose unknown. More... | |
| undefined4 | m_unk0x88 |
| [AI] 4 bytes at 0x88; usage not known. More... | |
| MxCore * | m_origin |
| [AI] Pointer to an "origin" MxCore object, for spatial/ownership reference. More... | |
| MxLong | m_unk0x90 |
| [AI] Unknown field, appears to store a timestamp for GetElapsedTime logics. More... | |
| Protected Attributes inherited from MxDSObject | |
| MxU32 | m_sizeOnDisk |
| [AI] Cached/calculated disk size of object data for serialization. [AI] More... | |
| MxU16 | m_type |
| [AI] Object type enum (see Type) as read from data or set in code. [AI] More... | |
| char * | m_sourceName |
| [AI] Heap copy: SI file or source identifier string. [AI] More... | |
| undefined4 | m_unk0x14 |
| [AI] Unknown usage, possibly flags or reserved SI-format field. [AI] More... | |
| char * | m_objectName |
| [AI] Heap copy: Logical object name as referenced in script/data. [AI] More... | |
| MxU32 | m_objectId |
| [AI] Numeric id (unique per file or context, often -1). [AI] More... | |
| MxAtomId | m_atomId |
| [AI] String/value pair for engine lookup/reference. [AI] More... | |
| MxS16 | m_unk0x24 |
| [AI] Unknown usage, possibly used for context or flags during loading. [AI] More... | |
| MxPresenter * | m_unk0x28 |
| [AI] Presenter or handler associated to this object (may be null). [AI] More... | |
Detailed Description
[AI] Represents a "still" media action in the LEGO Island SI script system.
[AI]
This class (MxDSStill) is a specialized type of MxDSMediaAction for non-animated (static) images or visual objects that do not change over time. Its type is set to 'e_still' in the constructor to denote this role. [AI]
It features copying, assignment, runtime class checking, and cloning for duplication within the script and media system. [AI]
[AI] MxDSStill objects may be used to handle still image sections in SI (script) files within the LEGO Island engine. [AI]
Definition at line 20 of file mxdsstill.h.
Constructor & Destructor Documentation
◆ MxDSStill() [1/2]
| MxDSStill::MxDSStill | ( | ) |
[AI] Default constructor.
Sets the action type to static (still). [AI]
Definition at line 7 of file mxdsstill.cpp.
◆ MxDSStill() [2/2]
| MxDSStill::MxDSStill | ( | MxDSStill & | p_dsStill | ) |
[AI] Copy constructor.
Performs a deep copy from another MxDSStill. [AI]
- Parameters
-
p_dsStill Reference to the source MxDSStill to copy from. [AI]
Definition at line 25 of file mxdsstill.cpp.
◆ ~MxDSStill()
|
override |
[AI] Destructor.
Cleans up resources used by this action. [AI]
Definition at line 14 of file mxdsstill.cpp.
Member Function Documentation
◆ ClassName()
|
inlineoverridevirtual |
[AI] Returns the runtime class name for this object.
[AI]
- Returns
- String constant: "MxDSStill". [AI]
Reimplemented from MxDSMediaAction.
Definition at line 55 of file mxdsstill.h.
◆ Clone()
|
overridevirtual |
[AI] Creates a dynamically allocated deep copy of this MxDSStill.
[AI]
[AI] Used in situations where a duplicate static media action is required, e.g. branching logic in a script. [AI]
- Returns
- Pointer to the cloned MxDSStill, or NULL on failure. [AI]
Reimplemented from MxDSMediaAction.
Definition at line 45 of file mxdsstill.cpp.
◆ CopyFrom()
| void MxDSStill::CopyFrom | ( | MxDSStill & | p_dsStill | ) |
[AI] Copies the data from another MxDSStill into this instance.
[AI]
- Parameters
-
p_dsStill Reference to the source MxDSStill to copy from. [AI]
Definition at line 20 of file mxdsstill.cpp.
◆ IsA()
|
inlineoverridevirtual |
[AI] Runtime type check against a string name, supports hierarchy checking.
[AI]
- Parameters
-
p_name Class name to compare against. [AI]
- Returns
- True if this object or its base matches the given class name. [AI]
Reimplemented from MxDSMediaAction.
Definition at line 66 of file mxdsstill.h.
◆ operator=()
[AI] Assignment operator.
Deeply assigns the values from another MxDSStill. [AI]
- Parameters
-
p_dsStill Reference to the source MxDSStill to assign from. [AI]
- Returns
- Reference to this updated MxDSStill object (for operator chaining). [AI]
Definition at line 32 of file mxdsstill.cpp.
The documentation for this class was generated from the following files:
