realtime.h File Reference

#include "matrix.h"
#include "roi.h"

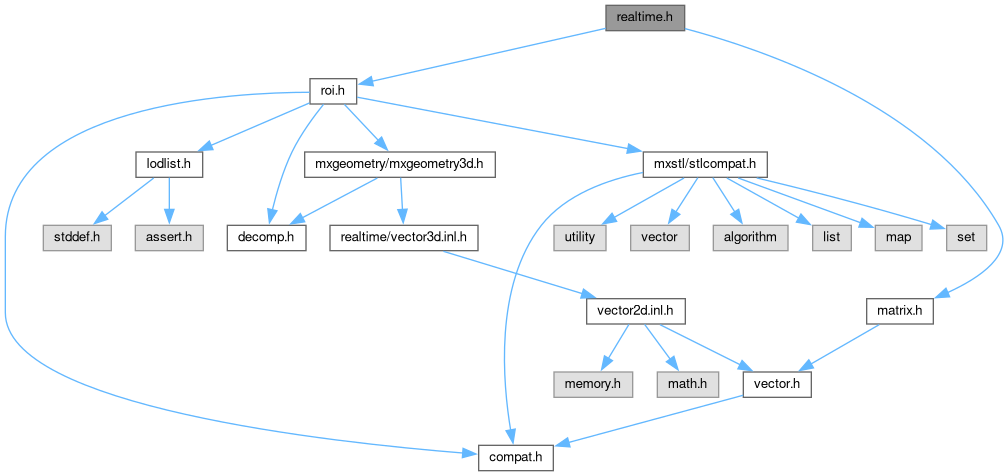

Include dependency graph for realtime.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	NORMVEC3(dst, src)
	[AI] Normalizes the given 3D vector, storing the result in the destination (dst) array. More...

Functions
void	CalcLocalTransform (const Vector3 &p_posVec, const Vector3 &p_dirVec, const Vector3 &p_upVec, Matrix4 &p_outMatrix)
	[AI] Computes a transformation matrix based on a position, direction, and up vector. More...
void	CalcWorldBoundingVolumes (const BoundingSphere &modelling_sphere, const Matrix4 &local2world, BoundingBox &, BoundingSphere &)
	[AI] Computes the world-space bounding box and bounding sphere for an ROI using a modeling sphere and a transformation matrix. More...

Macro Definition Documentation

NORMVEC3

#define NORMVEC3	(		dst,
			src
	)

Value:

    {                                                                                                                  \
        double len = sqrt(NORMSQRD3(src));                                                                             \
        VDS3(dst, src, len);                                                                                           \
    }

[AI] Normalizes the given 3D vector, storing the result in the destination (dst) array.

[AI]

[AI] NORMVEC3(dst, src) calculates the length of 'src', and divides each component of 'src' by its length, writing the normalized vector into 'dst'. [AI]

Definition at line 9 of file realtime.h.

Function Documentation

CalcLocalTransform()

void CalcLocalTransform	(	const Vector3 &	p_posVec,
		const Vector3 &	p_dirVec,
		const Vector3 &	p_upVec,
		Matrix4 &	p_outMatrix
	)

[AI] Computes a transformation matrix based on a position, direction, and up vector.

[AI]

Parameters

p_posVec	World position vector (translation) to use for transformation. [AI]
p_dirVec	World direction vector (Z axis of the matrix). This will be normalized. [AI]
p_upVec	World up vector (Y axis of the matrix). This will be normalized and orthogonalized. [AI]
p_outMatrix	Output parameter to receive the resulting 4x4 transformation matrix, built from the supplied vectors. [AI]

[AI] The resulting matrix is suitable for orienting/repositioning an object in 3D space: the direction is used for the forward axis, up for vertical axis, and the function ensures all axes are orthogonal and normalized. [AI]

Definition at line 7 of file realtime.cpp.

CalcWorldBoundingVolumes()

void CalcWorldBoundingVolumes	(	const BoundingSphere &	modelling_sphere,
		const Matrix4 &	local2world,
		BoundingBox &	world_bounding_box,
		BoundingSphere &	world_bounding_sphere
	)

[AI] Computes the world-space bounding box and bounding sphere for an ROI using a modeling sphere and a transformation matrix.

[AI]

Parameters

	modelling_sphere	The source bounding sphere describing the object in its local/model space. [AI]
	local2world	Transformation matrix converting local coordinates to world coordinates. [AI]
[out]	BoundingBox	Output axis-aligned bounding box computed in world space. [AI]
[out]	BoundingSphere	Output bounding sphere transformed to world space. [AI]

[AI] Helper utility for ROI (Real-time Object Instance) classes, typically used in update_world_bounding_volumes() to create world-space volumes for culling or collision, by transforming an existing modeling sphere. [AI]

Definition at line 163 of file orientableroi.cpp.
