tgl.h File Reference

#include "tglvector.h"
#include <d3d.h>
#include <ddraw.h>
#include <windows.h>

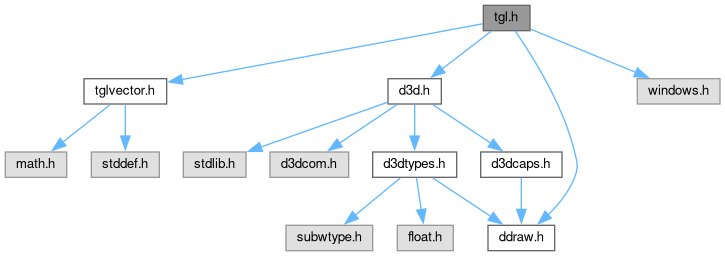

Include dependency graph for tgl.h:

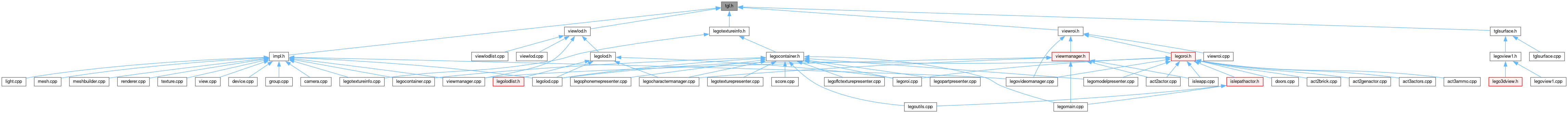

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Tgl::PaletteEntry
	[AI] Represents a single color entry in a palette. More...
struct	Tgl::DeviceDirect3DCreateData
	[AI] Contains Direct3D-specific data needed to create a rendering device. More...
struct	Tgl::DeviceDirectDrawCreateData
	[AI] Contains DirectDraw-specific params for creating a rendering device. More...
class	Tgl::Object
	[AI] Utility for mesh data construction and conversion. [AI] More...
class	Tgl::Renderer
	[AI] Main interface/factory for rendering resources and scene graphs. More...
class	Tgl::Device
	[AI] Represents a rendering device/context for the Tgl renderer. More...
class	Tgl::View
	[AI] Represents a rendering viewport and drawing context. More...
class	Tgl::Camera
	[AI] Represents a viewpoint in the 3D scene. More...
class	Tgl::Light
	[AI] Represents a source of lighting in the 3D scene. More...
class	Tgl::Mesh
	[AI] Represents a renderable 3D mesh. More...
class	Tgl::Group
	[AI] Scene graph node for parental transforms/color/material/texture; can hold meshes or other groups. More...
class	Tgl::MeshBuilder
	[AI] Builder class for assembling mesh data and extracting mesh objects. More...
class	Tgl::Texture
	[AI] Represents a GPU or system memory texture for use in rendering. More...

Namespaces
namespace	Tgl
	[AI] Namespace containing all classes related to the 3D graphics abstraction/rendering engine.

Enumerations
enum	Tgl::ColorModel { Tgl::Ramp , Tgl::RGB }
	[AI] Represents available color models for rendering. More...
enum	Tgl::ShadingModel {   Tgl::Wireframe , Tgl::UnlitFlat , Tgl::Flat , Tgl::Gouraud ,   Tgl::Phong }
	[AI] Represents shading models available for rendering geometry. More...
enum	Tgl::LightType {   Tgl::Ambient , Tgl::Point , Tgl::Spot , Tgl::Directional ,   Tgl::ParallelPoint }
	[AI] Types of lights supported in the renderer. More...
enum	Tgl::ProjectionType { Tgl::Perspective , Tgl::Orthographic }
	[AI] Projection modes for camera/view transforms. More...
enum	Tgl::TextureMappingMode { Tgl::Linear , Tgl::PerspectiveCorrect }
	[AI] Methods for mapping textures onto geometry. More...
enum	Tgl::MaterialMode { Tgl::FromParent , Tgl::FromFrame , Tgl::FromMesh }
	[AI] Determines how material properties are sourced for a group/mesh. More...
enum	Tgl::Result { Tgl::Error = 0 , Tgl::Success = 1 }
	[AI] Result type used throughout the Tgl API to report operation success or failure. More...

Functions
int	Tgl::Succeeded (Result result)
	[AI] Returns whether a Tgl::Result indicates success. More...
Renderer *	Tgl::CreateRenderer ()
	[AI] Instantiates and returns a new Tgl::Renderer implementation. More...
