Represents an ammo object (pizza or donut) used in Act 3 gameplay sequence. More...

#include <act3ammo.h>

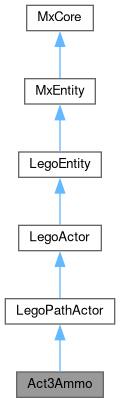

Inheritance diagram for Act3Ammo:

[legend]

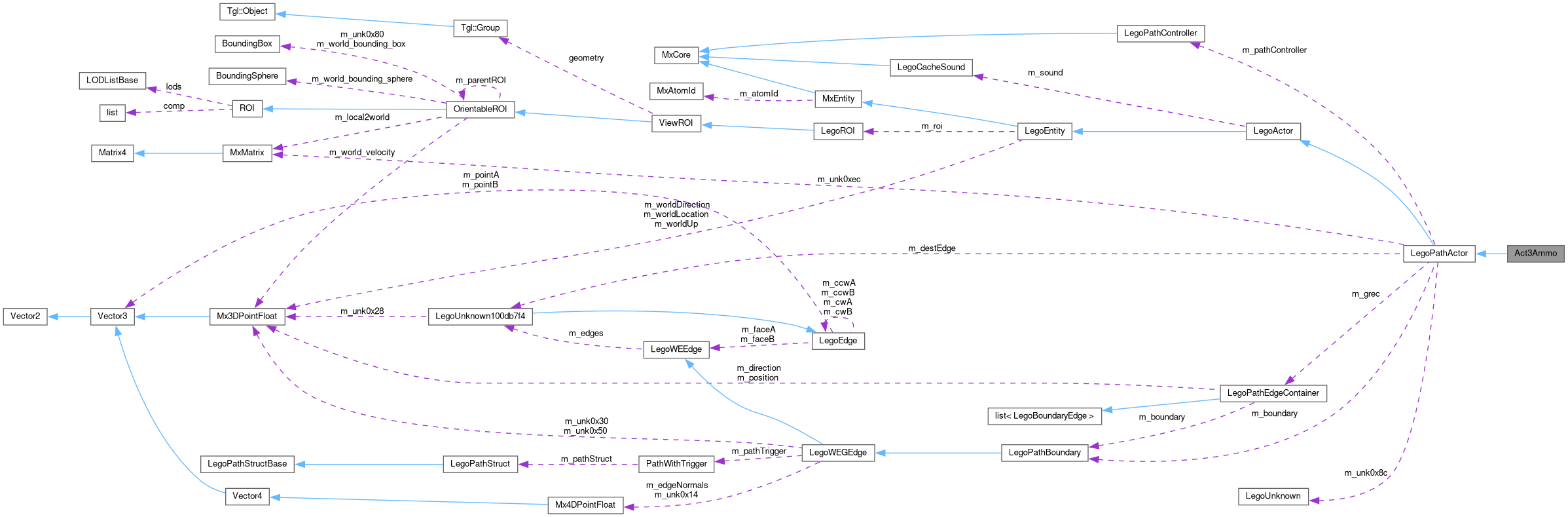

Collaboration diagram for Act3Ammo:

[legend]

Public Types
enum	{ c_pizza = 0x01 , c_donut = 0x02 , c_valid = 0x04 , c_bit4 = 0x08 , c_sharkFood = 0x10 }
	[AI] Internal ammo flags identifying type and various states. [AI] More...

Public Types inherited from LegoPathActor
enum	ActorState { c_initial = 0 , c_one = 1 , c_two = 2 , c_three = 3 , c_disabled = 4 , c_maxState = 255 , c_noCollide = 0x100 }
	[AI] State and flags for a LegoPathActor during navigation along a path. [AI] More...

Public Types inherited from LegoActor
enum	{ c_none = 0 , c_pepper , c_mama , c_papa , c_nick , c_laura , c_brickster }
	[AI] Enumeration of actor IDs for known characters. More...

Public Types inherited from LegoEntity
enum	Type { e_actor = 0 , e_unk1 , e_plant , e_building , e_autoROI }
	[AI] Types of LegoEntity (Actor, Plant, Building, Auto ROI, etc.) [AI] More...

enum	{ c_bit1 = 0x01 , c_managerOwned = 0x02 }
	[AI] Bit flag constants for entity state management [AI] More...

enum	{ c_altBit1 = 0x01 }
	[AI] Secondary bit flag constants [AI] More...

Public Member Functions
	Act3Ammo ()
	Constructs a new Act3Ammo object. More...

	~Act3Ammo () override
	Destructor. More...

void	Destroy (MxBool p_fromDestructor) override
	Completely removes this ammo object from all managers. More...

void	Animate (float p_time) override
	Updates position, animation, and handles collision or end-of-trajectory logic for this ammo. More...

MxU32	IsValid ()
	Returns true if the ammo is valid (active in game/world). More...

Mx3DPointFloat *	GetUnknown0x160 ()
	Returns the pointer to the second control point of the quadratic trajectory equation. More...

MxFloat *	GetUnknown0x19c ()
	Returns pointer to an internal parameter used in trajectory and animation calculations. More...

void	SetValid (MxBool p_valid)
	Set or clear the valid flag for the object, making it active or inactive in the world. More...

MxU32	IsPizza ()
	Returns true if the ammo is a pizza projectile. More...

MxU32	IsDonut ()
	Returns true if the ammo is a donut projectile. More...

void	SetBit4 (MxBool p_bit4)
	Set or clear the bit4 flag, used internally for special state/behavior (e.g. More...

MxU32	IsBit4 ()
	Returns true if the internal bit4 flag is set (special usage, e.g. More...

void	SetSharkFood (MxBool p_sharkFood)
	Sets the "shark food" flag if this ammo should become food for a shark. More...

MxU32	IsSharkFood ()
	Returns true if the ammo became "shark food". More...

MxFloat	GetUnknown0x158 ()
	Returns a time/duration parameter used in animation transitions. More...

void	SetUnknown0x158 (MxFloat p_unk0x158)
	Sets a time/duration parameter used for state transitions after collision. More...

MxResult	Remove ()
	Removes this ammo instance from the world, cleans up path controller/boundary and notifies managers. More...

MxResult	Create (Act3 *p_world, MxU32 p_isPizza, MxS32 p_index)
	Creates an ammo (pizza or donut), initializes its ROI, bounding volumes, and enables it in the world. More...

MxResult	FUN_10053b40 (const Vector3 &p_srcLoc, const Vector3 &p_srcDir, const Vector3 &p_srcUp)
	Sets up trajectory control points for the projectile, calculating a quadratic curve based on origin/direction/up. More...

MxResult	FUN_10053cb0 (LegoPathController p_p, LegoPathBoundary p_boundary, MxFloat p_unk0x19c)
	Initializes the path controller/boundary and sets up animation and sound when ammo is fired. More...

MxResult	FUN_10053d30 (LegoPathController *p_p, MxFloat p_unk0x19c)
	Variant of firing logic (uses only controller and param, also sets bit4). More...

Public Member Functions inherited from LegoPathActor
	LegoPathActor ()
	[AI] Initializes the path actor, setting up default state and references. [AI] More...

	~LegoPathActor () override
	[AI] Destructor, cleans up allocated containers. [AI] More...

void	ParseAction (char *p_extra) override
	[AI] Parses a set of key-value action commands and configures path navigation and collision for this actor. More...

virtual MxS32	VTable0x68 (Vector3 &p_v1, Vector3 &p_v2, Vector3 &p_v3)
	[AI] Checks for collision/intersection with boundaries, geometry, and other actors along a traced segment; assists in advanced pathfinding by propagation. More...

virtual MxU32	VTable0x6c (LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3)
	[AI] Trace movement or collision through presenters (edge test), then through other actors. More...

virtual void	Animate (float p_time)
	[AI] Per-frame animation update. More...

virtual void	VTable0x74 (Matrix4 &p_transform)
	[AI] Updates the ROI's transformation (typically matrix) with new values, applies world position/orientation changes. More...

virtual void	SetUserNavFlag (MxBool p_userNavFlag)
	[AI] Sets whether the actor is controlled by user navigation. More...

virtual MxBool	GetUserNavFlag ()
	[AI] Returns user navigation state (whether actor follows player input). More...

virtual MxResult	VTable0x80 (const Vector3 &p_point1, Vector3 &p_point2, Vector3 &p_point3, Vector3 &p_point4)
	[AI] Calculates path interpolation for a set of points, updates state for path animation, and computes Bezier arc duration. More...

virtual MxResult	VTable0x84 (LegoPathBoundary *p_boundary, float p_time, Vector3 &p_p1, Vector3 &p_p4, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves actor to a destination edge. More...

virtual MxResult	VTable0x88 (LegoPathBoundary *p_boundary, float p_time, LegoEdge &p_srcEdge, float p_srcScale, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves the actor between two edges across a boundary, recalculates placement and orientation. More...

virtual MxS32	VTable0x8c (float p_time, Matrix4 &p_transform)
	[AI] Advance actor's position/state along the path for a given timeslice. More...

virtual MxU32	VTable0x90 (float, Matrix4 &)
	[AI] Placeholder for custom logic during per-timestep simulation for non-user-controlled animation. More...

virtual MxResult	HitActor (LegoPathActor *, MxBool)
	[AI] Handles logic when this actor hits (collides with) another path actor; can be overridden for custom interaction. More...

virtual void	SwitchBoundary (LegoPathBoundary &p_boundary, LegoUnknown100db7f4 &p_edge, float &p_unk0xe4)
	[AI] Switches current path boundary and destination edge, typically called on transitions or respawns. More...

virtual MxResult	VTable0x9c ()
	[AI] Handles exit transition and next-edge search logic; also used for collision reaction and fallback. More...

virtual MxS32	VTable0xa0 ()
	[AI] Placeholder for custom extension. More...

virtual void	VTable0xa4 (MxBool &p_und1, MxS32 &p_und2)
	[AI] Returns information depending on actor type. More...

virtual void	VTable0xa8 ()
	[AI] Re-applies transform to ROI, updates camera if needed, and processes per-actor tick actions. More...

virtual void	SetMaxLinearVel (MxFloat p_maxLinearVel)
	[AI] Sets the maximum linear velocity for actor navigation. More...

virtual MxFloat	GetMaxLinearVel ()
	[AI] Gets the maximum allowed navigation speed for this actor. More...

virtual MxFloat	VTable0xb4 ()
	[AI] Returns an internal value used in fallback collision/velocity calculation (proportional fudge factor). More...

virtual MxFloat	VTable0xb8 ()
	[AI] Returns a damping/multiplier factor used for velocity reduction after collisions. More...

virtual void	VTable0xbc (MxFloat p_unk0x140)
	[AI] Sets the fudge parameter for fallback collision push-back. More...

virtual void	VTable0xc0 (MxFloat p_unk0x144)
	[AI] Sets the velocity damping factor after bump. More...

virtual void	VTable0xc4 ()
	[AI] Empty handler for optional custom per-tick transition logic. More...

virtual void	VTable0xc8 (MxU8 p_unk0x148)
	[AI] Sets the rolling state (animation index, mainly for camera turning/curves). More...

const char *	ClassName () const override
	[AI] Returns the class name string for RTTI-style checks. More...

MxBool	IsA (const char *p_name) const override
	[AI] RTTI-like check, matches against own or base class name for IsA hierarchy checks. More...

LegoPathBoundary *	GetBoundary ()
	[AI] Retrieves the current path boundary associated with this actor. More...

MxU32	GetActorState ()
	[AI] Gets the current navigation/animation state of the actor. More...

LegoPathController *	GetController ()
	[AI] Retrieves pointer to the path controller which governs this actor's movement. More...

MxBool	GetCollideBox ()
	[AI] Gets the actor's collision box flag (if TRUE, actor uses a precise collision shape). More...

MxFloat	GetLastTime ()
	[AI] Gets the previous animation time value from last simulation tick. More...

MxFloat	GetActorTime ()
	[AI] Returns the current animation time of the actor. More...

void	SetBoundary (LegoPathBoundary *p_boundary)
	[AI] Assigns a new boundary for the actor (for path switching). More...

void	SetActorState (MxU32 p_actorState)
	[AI] Sets the navigation/path state of the actor. More...

void	SetController (LegoPathController *p_pathController)
	[AI] Assigns a new path controller (used for actor transitions between paths). More...

void	SetLastTime (MxFloat p_lastTime)
	[AI] Sets the time value for the last performed simulation tick. More...

void	SetActorTime (MxFloat p_actorTime)
	[AI] Sets the global actor animation time value, adjusting how far along the animation is. More...

void	UpdatePlane (LegoNamedPlane &p_namedPlane)
	[AI] Updates a named plane to match this actor's world position, direction, and up vector. More...

void	PlaceActor (LegoNamedPlane &p_namedPlane)
	[AI] Places this actor into the world at the given plane's name, location, and orientation. More...

Public Member Functions inherited from LegoActor
	LegoActor ()
	[AI] Constructs new LegoActor, initializes members. More...

	~LegoActor () override
	[AI] Cleans up LegoActor; stops sound if active. More...

const char *	ClassName () const override
	[AI] Gets the class name of this object. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if the class is or derives from the given name. More...

void	ParseAction (char *p_extra) override
	[AI] Parses an action string and applies parsed behaviors to the actor. More...

void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2) override
	[AI] Sets the Region of Interest (ROI, i.e. More...

virtual MxFloat	GetSoundFrequencyFactor ()
	[AI] Returns the current frequency factor for the actor's sound. More...

virtual void	SetSoundFrequencyFactor (MxFloat p_frequencyFactor)
	[AI] Sets the frequency factor for the actor's sound playback (e.g., to alter pitch). More...

virtual void	VTable0x58 (MxFloat p_unk0x70)
	[AI] Sets a floating point property, unknown usage (possibly animation or audio parameter). More...

virtual MxFloat	VTable0x5c ()
	[AI] Gets the unknown floating point property set by VTable0x58. [AI] [AI_SUGGESTED_NAME: GetVoicePitchModifier] More...

virtual MxU8	GetActorId ()
	[AI] Gets this actor's numeric ID, corresponding to a known enumeration/actor. More...

virtual void	SetActorId (MxU8 p_actorId)
	[AI] Sets the actor's numeric ID. More...

void	Mute (MxBool p_muted)
	[AI] Mutes or unmutes the actor's current sound. More...

Public Member Functions inherited from LegoEntity
	LegoEntity ()
	[AI] Default constructor. Initializes the LegoEntity with default values. [AI] More...

	~LegoEntity () override
	[AI] Destructor. Cleans up resources and ensures ROI and script state are released. [AI] More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles event notification for the entity, most notably user clicks, using polymorphic dispatch. More...

const char *	ClassName () const override
	[AI] Returns the class name string. Used in entity runtime type identification. [AI] More...

MxBool	IsA (const char *p_name) const override
	[AI] Polymorphic type check for this entity given a string. More...

virtual MxResult	Create (MxDSAction &p_dsAction)
	[AI] Initializes the entity from a DSAction object, typically from a script or file load. More...

virtual void	Destroy (MxBool p_fromDestructor)
	[AI] Cleans up the entity, detaching ROI and releasing references. More...

virtual void	ParseAction (char *p_extra)
	[AI] Parses an action description string (usually from script "extra" data) and sets up this entity's action state. More...

virtual void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2)
	[AI] Assigns a 3D ROI (3D object instance) to this entity, controlling how it appears/acts in the world. More...

virtual void	SetWorldTransform (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up)
	[AI] Explicitly sets the world transformation (location, direction, up vector) for this entity. More...

virtual void	ResetWorldTransform (MxBool p_cameraFlag)
	[AI] Resets the transformation for this entity (e.g., used with camera transitions). More...

virtual void	SetWorldSpeed (MxFloat p_worldSpeed)
	[AI] Sets the current world speed value for this entity (used to control motion/animation rate). More...

virtual void	ClickSound (MxBool p_und)
	[AI] Plays a click sound, typically in response to user/AI actions, according to entity type. More...

virtual void	ClickAnimation ()
	[AI] Plays a context-sensitive click animation, driven by current entity type and state. [AI] More...

virtual void	SwitchVariant ()
	[AI] Switches variants for this entity (e.g., different animation, mesh, or texture variant), based on type. [AI] More...

virtual void	SwitchSound ()
	[AI] Triggers a context-dependent audio/sound variant switch for this entity. [AI] More...

virtual void	SwitchMove ()
	[AI] Switches movement/animation variant for this entity, if applicable (e.g., walking/running state). [AI] More...

virtual void	SwitchColor (LegoROI *p_roi)
	[AI] Switches the color or texture variant for this entity (or target ROI). More...

virtual void	SwitchMood ()
	[AI] Triggers a mood/state switch for this entity (if supported), often for characters. [AI] More...

void	FUN_10010c30 ()
	[AI] Updates the camera transformation when this entity is the camera target. Used after movement or position updates. [AI] More...

void	SetType (MxU8 p_type)
	[AI] Sets the entity's type (actor/plant/building/etc.) [AI] More...

void	SetLocation (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up, MxBool p_und)
	[AI] Sets the world-space location, direction, and up, applying normalization and transformation. More...

Mx3DPointFloat	GetWorldDirection ()
	[AI] Gets the normalized world-space direction vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldUp ()
	[AI] Gets the normalized world-space up vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldPosition ()
	[AI] Gets the world-space position vector, optionally updating from ROI. [AI] More...

MxBool	GetUnknown0x10IsSet (MxU8 p_flag)
	[AI] Checks if a bit flag in m_unk0x10 is set (purpose: state/animation suppression lock). More...

MxBool	GetFlagsIsSet (MxU8 p_flag)
	[AI] Checks if a flag is set in the primary flags byte (m_flags). More...

MxU8	GetFlags ()
	[AI] Returns the value of the flag byte. [AI] More...

MxFloat	GetWorldSpeed ()
	[AI] Gets the entity's current world speed state. [AI] More...

LegoROI *	GetROI ()
	[AI] Gets the ROI (Realtime Object Instance) associated with this entity. [AI] More...

MxU8	GetType ()
	[AI] Gets the type of this entity (one of the enum Type values). [AI] More...

MxBool	GetCameraFlag ()
	[AI] Returns whether this entity is flagged as camera (affects world/camera synchronization). [AI] More...

void	SetFlags (MxU8 p_flags)
	[AI] Sets all entity flags at once (replaces previous). More...

void	SetFlag (MxU8 p_flag)
	[AI] Sets the given flag in the flags byte. More...

void	ClearFlag (MxU8 p_flag)
	[AI] Clears the given flag in the flags byte. More...

void	SetUnknown0x10Flag (MxU8 p_flag)
	[AI] Sets the given bit in the unknown (usually internal action suppression) flag byte. More...

void	ClearUnknown0x10Flag (MxU8 p_flag)
	[AI] Clears the given bit in the unknown flag byte. More...

Public Member Functions inherited from MxEntity
	MxEntity ()
	Default constructor. More...

	~MxEntity () override
	Virtual destructor for MxEntity. More...

const char *	ClassName () const override
	Returns the class name for type introspection. More...

MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...

virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...

MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...

MxS32	GetEntityId ()
	Returns the current entity ID. More...

MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...

void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...

void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Static Public Member Functions inherited from LegoActor
static const char *	GetActorName (MxU8 p_id)
	[AI] Gets the static display name of an actor by ID. More...

Protected Member Functions inherited from LegoPathActor
MxU32	FUN_1002edd0 (list< LegoPathBoundary * > &p_boundaries, LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3, MxS32 p_und)
	[AI] Recursively checks boundaries for collisions or collision path propagation up to a certain recursion depth. More...

Protected Member Functions inherited from LegoEntity
void	Init ()
	[AI] Initializes the entity's members to default/neutral values (utility for constructors and resets). [AI] More...

void	SetWorld ()
	[AI] Registers/attaches this entity to the current world if not already; called on create or location change. [AI] More...

Protected Attributes inherited from LegoPathActor
MxFloat	m_BADuration
	[AI] Duration of current Bezier arc (distance along path/current edge). [AI] More...

MxFloat	m_unk0x7c
	[AI] Interpolator/progress state along curve segment. [AI] More...

MxFloat	m_actorTime
	[AI] Animation time for current path segment. [AI] More...

MxFloat	m_lastTime
	[AI] Time of last update (used for delta calculations). [AI] More...

LegoPathBoundary *	m_boundary
	[AI] Current boundary the actor is navigating on. [AI] More...

LegoUnknown	m_unk0x8c
	[AI] Helper object for path curve interpolation and evaluation. [AI] More...

MxU32	m_actorState
	[AI] State and flags bitfield for path following logic. [AI] More...

LegoUnknown100db7f4 *	m_destEdge
	[AI] Current or target edge for path traversal. [AI] More...

MxFloat	m_unk0xe4
	[AI] Position scalar on destination edge (0-1 across the edge). [AI] More...

MxBool	m_collideBox
	[AI] Use bounding-box for more accurate collision. [AI] More...

MxBool	m_unk0xe9
	[AI] Stores latest intersection/collision status/type. [AI] More...

MxBool	m_userNavFlag
	[AI] TRUE if this actor is currently user/player controlled. [AI] More...

MxMatrix	m_unk0xec
	[AI] World-to-local transformation matrix for this actor/ROI. [AI] More...

LegoPathEdgeContainer *	m_grec
	[AI] Edge/boundary helper for tracking transitions and stateful animation. [AI] More...

LegoPathController *	m_pathController
	[AI] Path controller/manages permitted boundaries for transitions. [AI] More...

MxFloat	m_maxLinearVel
	[AI] Maximum speed of actor while moving along path. [AI] More...

MxFloat	m_unk0x140
	[AI] Scaling factor for fallback/collision response logic. [AI] More...

MxFloat	m_unk0x144
	[AI] Damping factor for velocity after collision ("bounce" friction). [AI] More...

MxU8	m_unk0x148
	[AI] Angle/animation mode for rolling/camera tilting. [AI] More...

MxS32	m_unk0x14c
	[AI] Rolling angle delta (variant for camera logic). [AI] More...

MxFloat	m_unk0x150
	[AI] Scalar factor for camera turn velocity logic. [AI] More...

Protected Attributes inherited from LegoActor
MxFloat	m_frequencyFactor
	[AI] The frequency/pitch scaling factor for the actor's sound (default 0 == normal). More...

LegoCacheSound *	m_sound
	[AI] Pointer to a currently active sound instance played by the actor, if any. More...

MxFloat	m_unk0x70
	[AI] Unknown float property, likely used for advanced audio/animation control. [AI_SUGGESTED_NAME: m_voicePitchModifier] More...

MxU8	m_actorId
	[AI] Unique identifier for this actor, corresponding to enum above. More...

Protected Attributes inherited from LegoEntity
MxU8	m_unk0x10
	[AI] Unknown state/flag, used mainly to guard against repeated actions or manage animation/sound state. [AI] More...

MxU8	m_flags
	[AI] Primary entity flags (bitfield); tracks per-entity management status, internal update locks, etc. [AI] More...

Mx3DPointFloat	m_worldLocation
	[AI] Entity location in world coordinates. [AI] More...

Mx3DPointFloat	m_worldDirection
	[AI] Entity direction vector in world space (normalized). [AI] More...

Mx3DPointFloat	m_worldUp
	[AI] Entity up vector in world space (normalized). [AI] More...

MxFloat	m_worldSpeed
	[AI] World-relative speed (can affect animation/movement logic). [AI] More...

LegoROI *	m_roi
	[AI] Pointer to this entity's currently assigned ROI (3D instance in the world). [AI] More...

MxBool	m_cameraFlag
	[AI] Set to TRUE if this entity is currently the camera target. [AI] More...

MxU8	m_type
	[AI] The entity type (Type enum value). [AI] More...

Extra::ActionType	m_actionType
	[AI] Action type, parsed from script/extra string (e.g., openram/run/exit); guides Notify() and click logic. [AI] More...

char *	m_siFile
	[AI] When parsing ACTION command, this is the SI script/filename to execute (owned, heap-allocated). [AI] More...

MxS32	m_targetEntityId
	[AI] When parsing ACTION command, this is the target entity ID for the action (or -1 for none). [AI] More...

Protected Attributes inherited from MxEntity
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...

MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

Represents an ammo object (pizza or donut) used in Act 3 gameplay sequence.

Handles its state, trajectory, animation, and removal logic. [AI]

Act3Ammo manages special ammo (pizzas and donuts) fired by the player or AI in the Act 3 scenario. It can represent pizza or donut projectiles with different properties and behaviors. The class handles creation, animation (including trajectory calculations using quadratic Bezier curves), state changes (valid, bit flags, shark food status), and logic for interacting with the scene and other actors, including collision, removal, and sound effects. [AI]

Definition at line 15 of file act3ammo.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

[AI] Internal ammo flags identifying type and various states. [AI]

Enumerator
c_pizza	[AI] The ammo is a pizza projectile. [AI]
c_donut	[AI] The ammo is a donut projectile. [AI]
c_valid	[AI] The ammo is in a valid/active state and available for interaction. [AI]
c_bit4	[AI] Internal usage (e.g. special event or collision, see SetBit4). [AI]
c_sharkFood	[AI] Marks this ammo as "shark food" (special event/consumed). [AI]

Definition at line 18 of file act3ammo.h.

Constructor & Destructor Documentation

◆ Act3Ammo()

Act3Ammo::Act3Ammo ( )

Constructs a new Act3Ammo object.

[AI]

Definition at line 24 of file act3ammo.cpp.

◆ ~Act3Ammo()

Act3Ammo::~Act3Ammo ( )

override

Destructor.

Cleans up and calls Destroy. [AI]

Definition at line 32 of file act3ammo.cpp.

Member Function Documentation

◆ Animate()

void Act3Ammo::Animate ( float p_time )

overridevirtual

Updates position, animation, and handles collision or end-of-trajectory logic for this ammo.

[AI]

Parameters

p_time Current timer value, used for interpolation and timing events. [AI]

Reimplemented from LegoPathActor.

Definition at line 249 of file act3ammo.cpp.

◆ Create()

MxResult Act3Ammo::Create	(	Act3 *	p_world,
		MxU32	p_isPizza,
		MxS32	p_index
	)

Creates an ammo (pizza or donut), initializes its ROI, bounding volumes, and enables it in the world.

[AI]

Parameters

p_world	Pointer to the owning Act3 game controller/world. [AI]
p_isPizza	TRUE for pizza, FALSE for donut. [AI]
p_index	Index for naming/id purposes. [AI]

Returns: Success status of creation. [AI]

Definition at line 71 of file act3ammo.cpp.

◆ Destroy()

void Act3Ammo::Destroy ( MxBool p_fromDestructor )

overridevirtual

Completely removes this ammo object from all managers.

[AI]

Parameters

p_fromDestructor If called from destructor (must be TRUE or asserts). [AI]

Reimplemented from LegoEntity.

Definition at line 39 of file act3ammo.cpp.

◆ FUN_10053b40()

MxResult Act3Ammo::FUN_10053b40	(	const Vector3 &	p_srcLoc,
		const Vector3 &	p_srcDir,
		const Vector3 &	p_srcUp
	)

Sets up trajectory control points for the projectile, calculating a quadratic curve based on origin/direction/up.

[AI]

Parameters

p_srcLoc	Source location (initial position). [AI]
p_srcDir	Direction vector. [AI]
p_srcUp	Up vector. [AI]

Returns: Success or failure of setup. [AI]

Definition at line 112 of file act3ammo.cpp.

◆ FUN_10053cb0()

MxResult Act3Ammo::FUN_10053cb0	(	LegoPathController *	p_p,
		LegoPathBoundary *	p_boundary,
		MxFloat	p_unk0x19c
	)

Initializes the path controller/boundary and sets up animation and sound when ammo is fired.

[AI]

Parameters

p_p	Path controller (movement controller). [AI]
p_boundary	Path boundary for collision/ownership. [AI]
p_unk0x19c	Animation parameter for curve duration/scaling. [AI]

Returns: Result of operation. [AI]

Definition at line 148 of file act3ammo.cpp.

◆ FUN_10053d30()

MxResult Act3Ammo::FUN_10053d30	(	LegoPathController *	p_p,
		MxFloat	p_unk0x19c
	)

Variant of firing logic (uses only controller and param, also sets bit4).

[AI]

Parameters

p_p	Path controller. [AI]
p_unk0x19c	Animation parameter. [AI]

Returns: Result of operation. [AI]

Definition at line 174 of file act3ammo.cpp.

◆ GetUnknown0x158()

MxFloat Act3Ammo::GetUnknown0x158 ( )

inline

Returns a time/duration parameter used in animation transitions.

[AI]

Definition at line 130 of file act3ammo.h.

◆ GetUnknown0x160()

Mx3DPointFloat * Act3Ammo::GetUnknown0x160 ( )

inline

Returns the pointer to the second control point of the quadratic trajectory equation.

[AI]

Returns: Mx3DPointFloat* Pointer to m_eq (control points for motion curve). [AI]

Definition at line 57 of file act3ammo.h.

◆ GetUnknown0x19c()

MxFloat * Act3Ammo::GetUnknown0x19c ( )

inline

Returns pointer to an internal parameter used in trajectory and animation calculations.

[AI]

Returns: MxFloat* Pointer to m_unk0x19c. [AI]

Definition at line 63 of file act3ammo.h.

◆ IsBit4()

MxU32 Act3Ammo::IsBit4 ( )

inline

Returns true if the internal bit4 flag is set (special usage, e.g.

collision). [AI]

Definition at line 106 of file act3ammo.h.

◆ IsDonut()

MxU32 Act3Ammo::IsDonut ( )

inline

Returns true if the ammo is a donut projectile.

[AI]

Definition at line 87 of file act3ammo.h.

◆ IsPizza()

MxU32 Act3Ammo::IsPizza ( )

inline

Returns true if the ammo is a pizza projectile.

[AI]

Definition at line 82 of file act3ammo.h.

◆ IsSharkFood()

MxU32 Act3Ammo::IsSharkFood ( )

inline

Returns true if the ammo became "shark food".

[AI]

Definition at line 125 of file act3ammo.h.

◆ IsValid()

MxU32 Act3Ammo::IsValid ( )

inline

Returns true if the ammo is valid (active in game/world).

[AI]

Definition at line 51 of file act3ammo.h.

◆ Remove()

MxResult Act3Ammo::Remove ( )

Removes this ammo instance from the world, cleans up path controller/boundary and notifies managers.

[AI]

Used when ammo is consumed, goes out of bounds, or is otherwise removed; disables, unlinks, and sets flag to invalid. [AI]

Definition at line 52 of file act3ammo.cpp.

◆ SetBit4()

void Act3Ammo::SetBit4 ( MxBool p_bit4 )

inline

Set or clear the bit4 flag, used internally for special state/behavior (e.g.

was fired into shark food event). [AI]

Parameters

p_bit4 TRUE to set, FALSE to clear. [AI]

Definition at line 93 of file act3ammo.h.

◆ SetSharkFood()

void Act3Ammo::SetSharkFood ( MxBool p_sharkFood )

inline

Sets the "shark food" flag if this ammo should become food for a shark.

[AI]

Parameters

p_sharkFood TRUE to enable, FALSE to disable. [AI]

Definition at line 112 of file act3ammo.h.

◆ SetUnknown0x158()

void Act3Ammo::SetUnknown0x158 ( MxFloat p_unk0x158 )

inline

Sets a time/duration parameter used for state transitions after collision.

[AI]

Parameters

p_unk0x158 New value for unknown0x158. [AI]

Definition at line 136 of file act3ammo.h.

◆ SetValid()

void Act3Ammo::SetValid ( MxBool p_valid )

inline

Set or clear the valid flag for the object, making it active or inactive in the world.

[AI]

Parameters

p_valid TRUE to set as valid/active, FALSE for inactive. [AI]

Definition at line 69 of file act3ammo.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ Act3Ammo()

◆ ~Act3Ammo()

Member Function Documentation

◆ Animate()

◆ Create()

◆ Destroy()

◆ FUN_10053b40()

◆ FUN_10053cb0()

◆ FUN_10053d30()

◆ GetUnknown0x158()

◆ GetUnknown0x160()

◆ GetUnknown0x19c()

◆ IsBit4()

◆ IsDonut()

◆ IsPizza()

◆ IsSharkFood()

◆ IsValid()

◆ Remove()

◆ SetBit4()

◆ SetSharkFood()

◆ SetUnknown0x158()

◆ SetValid()
