[AI] Represents an entity corresponding to a building within the LEGO Island game world. More...

#include <buildingentity.h>

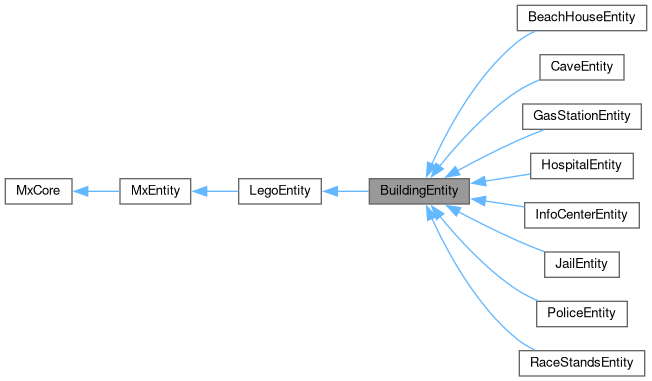

Inheritance diagram for BuildingEntity:

[legend]

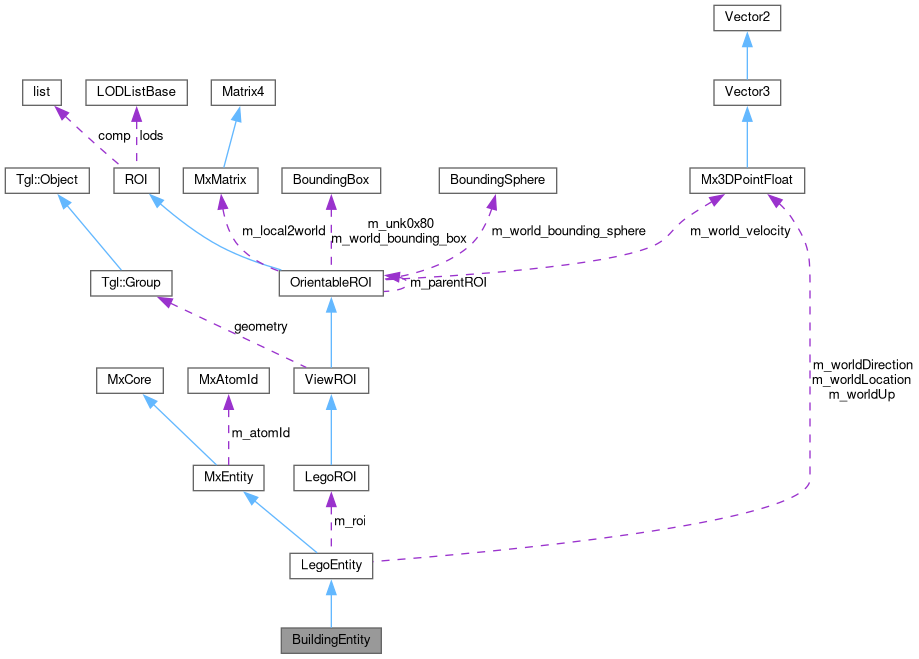

Collaboration diagram for BuildingEntity:

[legend]

Public Member Functions
	BuildingEntity ()
	[AI] Constructs a BuildingEntity and registers it for notification events. [AI] More...

	~BuildingEntity () override
	[AI] Destroys the BuildingEntity and unregisters it from notification events. [AI] More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles notification parameters sent to this entity. More...

const char *	ClassName () const override
	[AI] Returns the class name of this entity type ("BuildingEntity"). More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks if this object is of a given class or one of its superclasses. More...

virtual MxLong	HandleClick (LegoEventNotificationParam &p_param)=0
	[AI] Abstract method called when this building entity receives a click notification. More...

Public Member Functions inherited from LegoEntity
	LegoEntity ()
	[AI] Default constructor. Initializes the LegoEntity with default values. [AI] More...

	~LegoEntity () override
	[AI] Destructor. Cleans up resources and ensures ROI and script state are released. [AI] More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles event notification for the entity, most notably user clicks, using polymorphic dispatch. More...

const char *	ClassName () const override
	[AI] Returns the class name string. Used in entity runtime type identification. [AI] More...

MxBool	IsA (const char *p_name) const override
	[AI] Polymorphic type check for this entity given a string. More...

virtual MxResult	Create (MxDSAction &p_dsAction)
	[AI] Initializes the entity from a DSAction object, typically from a script or file load. More...

virtual void	Destroy (MxBool p_fromDestructor)
	[AI] Cleans up the entity, detaching ROI and releasing references. More...

virtual void	ParseAction (char *p_extra)
	[AI] Parses an action description string (usually from script "extra" data) and sets up this entity's action state. More...

virtual void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2)
	[AI] Assigns a 3D ROI (3D object instance) to this entity, controlling how it appears/acts in the world. More...

virtual void	SetWorldTransform (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up)
	[AI] Explicitly sets the world transformation (location, direction, up vector) for this entity. More...

virtual void	ResetWorldTransform (MxBool p_cameraFlag)
	[AI] Resets the transformation for this entity (e.g., used with camera transitions). More...

virtual void	SetWorldSpeed (MxFloat p_worldSpeed)
	[AI] Sets the current world speed value for this entity (used to control motion/animation rate). More...

virtual void	ClickSound (MxBool p_und)
	[AI] Plays a click sound, typically in response to user/AI actions, according to entity type. More...

virtual void	ClickAnimation ()
	[AI] Plays a context-sensitive click animation, driven by current entity type and state. [AI] More...

virtual void	SwitchVariant ()
	[AI] Switches variants for this entity (e.g., different animation, mesh, or texture variant), based on type. [AI] More...

virtual void	SwitchSound ()
	[AI] Triggers a context-dependent audio/sound variant switch for this entity. [AI] More...

virtual void	SwitchMove ()
	[AI] Switches movement/animation variant for this entity, if applicable (e.g., walking/running state). [AI] More...

virtual void	SwitchColor (LegoROI *p_roi)
	[AI] Switches the color or texture variant for this entity (or target ROI). More...

virtual void	SwitchMood ()
	[AI] Triggers a mood/state switch for this entity (if supported), often for characters. [AI] More...

void	FUN_10010c30 ()
	[AI] Updates the camera transformation when this entity is the camera target. Used after movement or position updates. [AI] More...

void	SetType (MxU8 p_type)
	[AI] Sets the entity's type (actor/plant/building/etc.) [AI] More...

void	SetLocation (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up, MxBool p_und)
	[AI] Sets the world-space location, direction, and up, applying normalization and transformation. More...

Mx3DPointFloat	GetWorldDirection ()
	[AI] Gets the normalized world-space direction vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldUp ()
	[AI] Gets the normalized world-space up vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldPosition ()
	[AI] Gets the world-space position vector, optionally updating from ROI. [AI] More...

MxBool	GetUnknown0x10IsSet (MxU8 p_flag)
	[AI] Checks if a bit flag in m_unk0x10 is set (purpose: state/animation suppression lock). More...

MxBool	GetFlagsIsSet (MxU8 p_flag)
	[AI] Checks if a flag is set in the primary flags byte (m_flags). More...

MxU8	GetFlags ()
	[AI] Returns the value of the flag byte. [AI] More...

MxFloat	GetWorldSpeed ()
	[AI] Gets the entity's current world speed state. [AI] More...

LegoROI *	GetROI ()
	[AI] Gets the ROI (Realtime Object Instance) associated with this entity. [AI] More...

MxU8	GetType ()
	[AI] Gets the type of this entity (one of the enum Type values). [AI] More...

MxBool	GetCameraFlag ()
	[AI] Returns whether this entity is flagged as camera (affects world/camera synchronization). [AI] More...

void	SetFlags (MxU8 p_flags)
	[AI] Sets all entity flags at once (replaces previous). More...

void	SetFlag (MxU8 p_flag)
	[AI] Sets the given flag in the flags byte. More...

void	ClearFlag (MxU8 p_flag)
	[AI] Clears the given flag in the flags byte. More...

void	SetUnknown0x10Flag (MxU8 p_flag)
	[AI] Sets the given bit in the unknown (usually internal action suppression) flag byte. More...

void	ClearUnknown0x10Flag (MxU8 p_flag)
	[AI] Clears the given bit in the unknown flag byte. More...

Public Member Functions inherited from MxEntity
	MxEntity ()
	Default constructor. More...

	~MxEntity () override
	Virtual destructor for MxEntity. More...

const char *	ClassName () const override
	Returns the class name for type introspection. More...

MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...

virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...

MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...

MxS32	GetEntityId ()
	Returns the current entity ID. More...

MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...

void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...

void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Public Types inherited from LegoEntity
enum	Type { e_actor = 0 , e_unk1 , e_plant , e_building , e_autoROI }
	[AI] Types of LegoEntity (Actor, Plant, Building, Auto ROI, etc.) [AI] More...

enum	{ c_bit1 = 0x01 , c_managerOwned = 0x02 }
	[AI] Bit flag constants for entity state management [AI] More...

enum	{ c_altBit1 = 0x01 }
	[AI] Secondary bit flag constants [AI] More...

Protected Member Functions inherited from LegoEntity
void	Init ()
	[AI] Initializes the entity's members to default/neutral values (utility for constructors and resets). [AI] More...

void	SetWorld ()
	[AI] Registers/attaches this entity to the current world if not already; called on create or location change. [AI] More...

Protected Attributes inherited from LegoEntity
MxU8	m_unk0x10
	[AI] Unknown state/flag, used mainly to guard against repeated actions or manage animation/sound state. [AI] More...

MxU8	m_flags
	[AI] Primary entity flags (bitfield); tracks per-entity management status, internal update locks, etc. [AI] More...

Mx3DPointFloat	m_worldLocation
	[AI] Entity location in world coordinates. [AI] More...

Mx3DPointFloat	m_worldDirection
	[AI] Entity direction vector in world space (normalized). [AI] More...

Mx3DPointFloat	m_worldUp
	[AI] Entity up vector in world space (normalized). [AI] More...

MxFloat	m_worldSpeed
	[AI] World-relative speed (can affect animation/movement logic). [AI] More...

LegoROI *	m_roi
	[AI] Pointer to this entity's currently assigned ROI (3D instance in the world). [AI] More...

MxBool	m_cameraFlag
	[AI] Set to TRUE if this entity is currently the camera target. [AI] More...

MxU8	m_type
	[AI] The entity type (Type enum value). [AI] More...

Extra::ActionType	m_actionType
	[AI] Action type, parsed from script/extra string (e.g., openram/run/exit); guides Notify() and click logic. [AI] More...

char *	m_siFile
	[AI] When parsing ACTION command, this is the SI script/filename to execute (owned, heap-allocated). [AI] More...

MxS32	m_targetEntityId
	[AI] When parsing ACTION command, this is the target entity ID for the action (or -1 for none). [AI] More...

Protected Attributes inherited from MxEntity
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...

MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

[AI] Represents an entity corresponding to a building within the LEGO Island game world.

[AI] This is an abstract base class extending LegoEntity, which adds notification handling appropriate for buildings, including click event responses. [AI] BuildingEntity instances are automatically registered and unregistered with the notification system on construction/destruction. [AI] Subclasses must implement HandleClick to define unique click interactions for their specific building type. [AI] SIZE 0x68

Definition at line 13 of file buildingentity.h.

Constructor & Destructor Documentation

◆ BuildingEntity()

BuildingEntity::BuildingEntity ( )

[AI] Constructs a BuildingEntity and registers it for notification events. [AI]

Definition at line 10 of file buildingentity.cpp.

◆ ~BuildingEntity()

BuildingEntity::~BuildingEntity ( )

override

[AI] Destroys the BuildingEntity and unregisters it from notification events. [AI]

Definition at line 16 of file buildingentity.cpp.

Member Function Documentation

◆ ClassName()

const char * BuildingEntity::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the class name of this entity type ("BuildingEntity").

[AI]

Returns: [AI] Static string "BuildingEntity".

Reimplemented from MxCore.

Reimplemented in InfoCenterEntity, GasStationEntity, HospitalEntity, PoliceEntity, and BeachHouseEntity.

Definition at line 29 of file buildingentity.h.

◆ HandleClick()

virtual MxLong BuildingEntity::HandleClick ( LegoEventNotificationParam & p_param )

pure virtual

[AI] Abstract method called when this building entity receives a click notification.

[AI]

[AI] Subclasses must implement this method to define what occurs when the building is clicked (e.g., open, close, interact, etc.).

Parameters

p_param Details about the click event and game context. [AI]

Returns: [AI] Value indicating the outcome of the click event handling.

Implemented in InfoCenterEntity, GasStationEntity, HospitalEntity, PoliceEntity, and BeachHouseEntity.

◆ IsA()

MxBool BuildingEntity::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Checks if this object is of a given class or one of its superclasses.

[AI]

[AI] Allows type-safe checks using string comparison, compatible with the game's dynamic RTTI system.

Parameters

p_name Name or type to check. [AI]

Returns: [AI] True if the class name matches or any parent returns true; otherwise, false.

Reimplemented from MxCore.

Reimplemented in InfoCenterEntity, GasStationEntity, HospitalEntity, PoliceEntity, and BeachHouseEntity.

Definition at line 39 of file buildingentity.h.

◆ Notify()

MxLong BuildingEntity::Notify ( MxParam & p_param )

overridevirtual

[AI] Handles notification parameters sent to this entity.

[AI]

[AI] This override filters for click notifications and dispatches them to HandleClick, allowing building-specific interaction handling. Other notification types result in a no-op.

Parameters

p_param Parameter object describing the notification context. [AI]

Returns: [AI] The result of handle click if notification is a click, otherwise 0.

Reimplemented from MxCore.

Definition at line 23 of file buildingentity.cpp.

The documentation for this class was generated from the following files:
