[AI] Represents a "select" action within a DS (Script/Scene) file, deserialized from SI files to select from a set of available actions at runtime based on a variable or random value. More...

#include <mxdsselectaction.h>

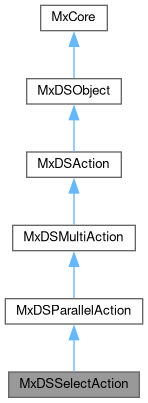

Inheritance diagram for MxDSSelectAction:

[legend]

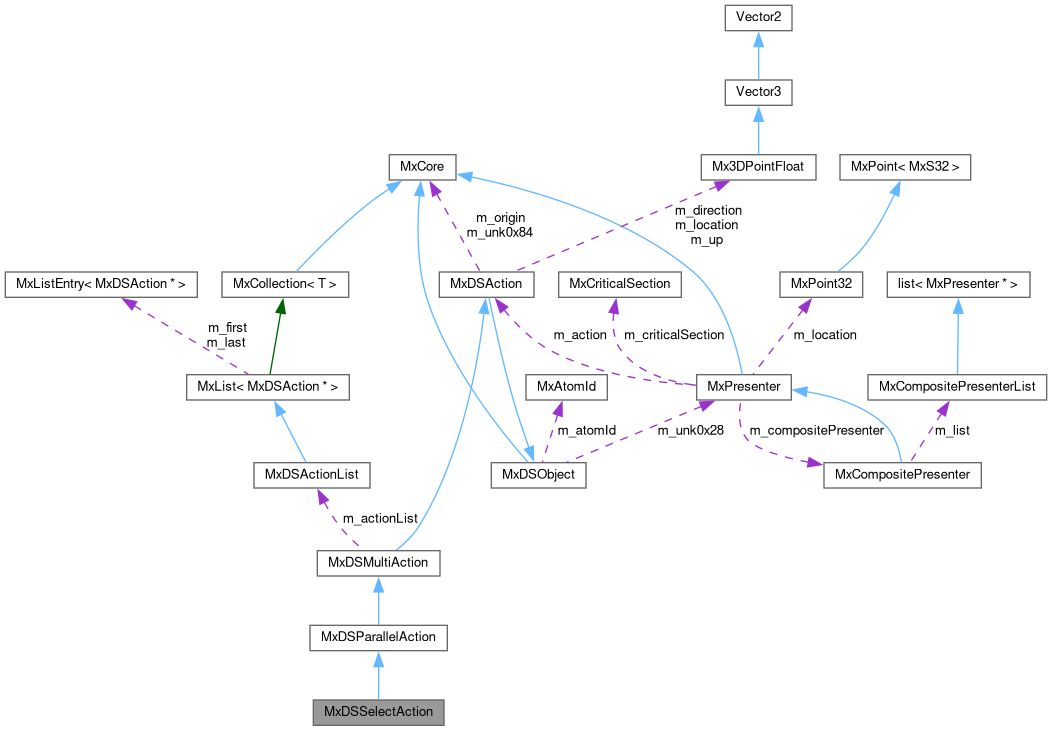

Collaboration diagram for MxDSSelectAction:

[legend]

Public Member Functions
	MxDSSelectAction ()
	[AI] Default constructor. More...

	MxDSSelectAction (MxDSSelectAction &p_dsSelectAction)
	[AI] Copy constructor. More...

	~MxDSSelectAction () override
	[AI] Destructor. More...

void	CopyFrom (MxDSSelectAction &p_dsSelectAction)
	[AI] Copies all internal data from another MxDSSelectAction including string list and selection variable. More...

MxDSSelectAction &	operator= (MxDSSelectAction &p_dsSelectAction)
	[AI] Assignment operator; performs a deep copy of the source select action, including all sub-actions and strings. More...

const char *	ClassName () const override
	[AI] Returns the class name string for runtime type identification. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if the object is of the specified type or derives from it. More...

MxU32	GetSizeOnDisk () override
	[AI] Computes the total size needed to serialize this object to disk, including selection strings and all choices. More...

void	Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) override
	[AI] Loads (deserializes) this action from a binary source buffer. More...

MxDSAction *	Clone () override
	[AI] Creates a deep copy ("clone") of this select action, including its internal strings and selected child action(s). More...

Public Member Functions inherited from MxDSParallelAction
	MxDSParallelAction ()
	[AI] Constructs a parallel action object. More...

	MxDSParallelAction (MxDSParallelAction &p_dsParallelAction)
	[AI] Copy constructor for parallel actions. More...

	~MxDSParallelAction () override
	[AI] Destroys the parallel action. More...

void	CopyFrom (MxDSParallelAction &p_dsParallelAction)
	[AI] Copies all member data from another parallel action into this one. More...

MxDSParallelAction &	operator= (MxDSParallelAction &p_dsParallelAction)
	[AI] Assignment operator. More...

const char *	ClassName () const override
	[AI] Returns the class name identifier for runtime type checking and SI parsing. More...

MxBool	IsA (const char *p_name) const override
	[AI] Performs runtime type checking, including base classes. More...

MxLong	GetDuration () override
	[AI] Fetches the total duration in ticks of the parallel action, including all contained child actions and looping/bit3 logic. More...

void	SetDuration (MxLong p_duration) override
	[AI] Sets the explicit duration for this action, overriding the computed aggregate. More...

MxDSAction *	Clone () override
	[AI] Produces a complete copy (clone) of this parallel action, including deep-copied data members. More...

Public Member Functions inherited from MxDSMultiAction
	MxDSMultiAction ()
	[AI] Constructs an MxDSMultiAction, initializing its type and instantiating an empty action list. More...

	MxDSMultiAction (MxDSMultiAction &p_dsMultiAction)
	[AI] Copy constructor for MxDSMultiAction, performing a deep copy of all actions in the source list. More...

	~MxDSMultiAction () override
	[AI] Destructor. More...

void	CopyFrom (MxDSMultiAction &p_dsMultiAction)
	[AI] Deeply copies all actions from another MxDSMultiAction. More...

MxDSMultiAction &	operator= (MxDSMultiAction &p_dsMultiAction)
	[AI] Assignment operator, deeply copies all state and actions from another MxDSMultiAction. More...

const char *	ClassName () const override
	[AI] Returns the class name for this object ("MxDSMultiAction"). More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks whether a given class name matches this or any parent class. More...

undefined4	VTable0x14 () override
	[AI] Hook for vtable entry 0x14. More...

MxU32	GetSizeOnDisk () override
	[AI] Calculates the total disk size occupied by this multi-action and all its subactions. More...

void	Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) override
	[AI] Reads the object's data from a raw byte buffer. More...

void	SetAtomId (MxAtomId p_atomId) override
	[AI] Propagates the given AtomId to this and all subactions. More...

MxDSAction *	Clone () override
	[AI] Constructs a deep clone of this multi-action, including all subactions. More...

void	MergeFrom (MxDSAction &p_dsAction) override
	[AI] Propagates a merge operation from the provided MxDSAction to all subactions, as well as self. More...

MxBool	HasId (MxU32 p_objectId) override
	[AI] Returns whether this action or any contained subaction matches the provided object id. More...

void	SetUnknown90 (MxLong p_unk0x90) override
	[AI] Propagates an unknown value to this and all subactions. More...

MxDSActionList *	GetActionList () const
	[AI] Returns the internal action list holding all subactions of this multi-action. More...

Public Member Functions inherited from MxDSAction
	MxDSAction ()
	[AI] Default constructor. More...

	~MxDSAction () override
	[AI] Destructor. More...

	MxDSAction (MxDSAction &p_dsAction)
	[AI] Copy constructor from another MxDSAction More...

void	CopyFrom (MxDSAction &p_dsAction)
	[AI] Copies all properties from another MxDSAction (deep copy, including extra data string) More...

MxDSAction &	operator= (MxDSAction &p_dsAction)
	[AI] Assignment operator: deep-copy from a different MxDSAction, including base class data and extra fields. More...

const char *	ClassName () const override
	[AI] Returns the class name for RTTI or reflection purposes. More...

MxBool	IsA (const char *p_name) const override
	[AI] Run-time type check, compares provided name with this or any ancestor type. More...

undefined4	VTable0x14 () override
	[AI] Unknown virtual placeholder, possibly for additional interfaces. More...

MxU32	GetSizeOnDisk () override
	[AI] Serializes the size on disk of this action (all fields + extra data length) More...

void	Deserialize (MxU8 *&p_source, MxS16 p_unk0x24) override
	[AI] Deserializes this action's data from a binary buffer. More...

virtual MxLong	GetDuration ()
	[AI] Gets the duration for which this action is intended to run. More...

virtual void	SetDuration (MxLong p_duration)
	[AI] Sets the duration of this action in ticks or time units. More...

virtual MxDSAction *	Clone ()
	[AI] Clones (deep-copies) this action and returns a new pointer. More...

virtual void	MergeFrom (MxDSAction &p_dsAction)
	[AI] Copies/merges properties from another action. More...

virtual MxBool	HasId (MxU32 p_objectId)
	[AI] Checks if this action contains/was created for a specific SI object id. More...

virtual void	SetUnknown90 (MxLong p_unk0x90)
	[AI] Set unknown value at offset 0x90, used as baseline in GetElapsedTime. More...

virtual MxLong	GetUnknown90 ()
	[AI] Gets the unknown value at offset 0x90, likely a start timestamp. More...

virtual MxLong	GetElapsedTime ()
	[AI] Gets elapsed time for this action since the last time field 0x90 was set. More...

void	AppendExtra (MxU16 p_extraLength, const char *p_extraData)
	[AI] Concatenates or stores extra data associated with this action, robust for multi-part actions. More...

void	GetExtra (MxU16 &p_extraLength, char *&p_extraData)
	[AI] Retrieves the extra data and its length for this action. More...

MxU32	GetFlags ()
	[AI] Returns the flag field for this action (bitmask). More...

void	SetFlags (MxU32 p_flags)
	[AI] Sets the flag bitmask controlling action logic (enabled, looping, etc). More...

char *	GetExtraData ()
	[AI] Accessor for extra data (not null-terminated). More...

MxU16	GetExtraLength () const
	[AI] Returns the length (in bytes) of extra data. More...

MxLong	GetStartTime () const
	[AI] Gets the nominal start time for the action, as loaded or scheduled. More...

MxS32	GetLoopCount ()
	[AI] Returns the loop count for this action. More...

void	SetLoopCount (MxS32 p_loopCount)
	[AI] Sets the loop count for this action. More...

const Vector3 &	GetLocation ()
	[AI] Gets the location vector for this action (world or local space). More...

const Vector3 &	GetDirection ()
	[AI] Gets the direction vector (typically forward vector) for this action. More...

const Vector3 &	GetUp ()
	[AI] Gets the up vector for this action (global or local). More...

void	SetLocation (const Vector3 &p_location)
	[AI] Sets the location vector for this action. More...

void	SetDirection (const Vector3 &p_direction)
	[AI] Sets the direction vector for this action. More...

void	SetUp (const Vector3 &p_up)
	[AI] Sets the up vector for this action. More...

MxCore *	GetUnknown84 ()
	[AI] Returns a pointer to an associated or auxiliary core object. More...

void	SetUnknown84 (MxCore *p_unk0x84)
	[AI] Sets the auxiliary core pointer for this action. More...

MxCore *	GetOrigin ()
	[AI] Returns a pointer to the "origin" core object, which may be used to localize the action. More...

void	SetOrigin (MxCore *p_origin)
	[AI] Sets the origin core pointer for this action, if spatially transforming/localizing this action. More...

MxBool	IsLooping () const
	[AI] Whether this action is set to loop based on current flags. More...

MxBool	IsBit3 () const
	[AI] Tests for the state of the (unknown purpose) bit 3 flag in m_flags. More...

Public Member Functions inherited from MxDSObject
	MxDSObject ()
	[AI] Default constructor. Initializes to e_object and clears names and pointers. More...

	~MxDSObject () override
	[AI] Destructor. Frees allocated objectName/sourceName memory. More...

void	CopyFrom (MxDSObject &p_dsObject)
	[AI] Copy data from another MxDSObject, performing deep string copy for names. More...

	MxDSObject (MxDSObject &p_dsObject)
	[AI] Copy constructor. More...

MxDSObject &	operator= (MxDSObject &p_dsObject)
	[AI] Assignment operator. More...

void	SetObjectName (const char *p_objectName)
	[AI] Sets object (internal) unique name; deep copies the string. More...

void	SetSourceName (const char *p_sourceName)
	[AI] Sets the source name (usually source SI file); deep copies the string. More...

const char *	ClassName () const override
	[AI] Returns the class identifier string for run-time type ID. More...

MxBool	IsA (const char *p_name) const override
	[AI] Runtime type check; supports derived/parent class lookup by name. More...

virtual undefined4	VTable0x14 ()
	[AI] Placeholder for early vtable slot (purpose unknown, may be used for RTTI). More...

virtual MxU32	GetSizeOnDisk ()
	[AI] Calculates serialized size of this object on disk (for buffer allocation). More...

virtual void	Deserialize (MxU8 *&p_source, MxS16 p_unk0x24)
	[AI] Initializes this object from serialized (memory buffer) data. More...

virtual void	SetAtomId (MxAtomId p_atomId)
	[AI] Sets the atom id for this object instance, used for indexing or lookup. More...

Type	GetType () const
	[AI] Returns the object's type enum as stored in m_type. More...

const char *	GetSourceName () const
	[AI] Returns the source name string (typically the originating SI file). More...

const char *	GetObjectName () const
	[AI] Returns the object name string. More...

MxU32	GetObjectId ()
	[AI] Returns the object id numeric value. More...

const MxAtomId &	GetAtomId ()
	[AI] Returns a const-reference to the object's atom identifier. More...

MxS16	GetUnknown24 ()
	[AI] Returns the unknown 0x24 value (may be data version or usage state). [AI] More...

MxPresenter *	GetUnknown28 ()
	[AI] Returns the pointer stored at 0x28, likely a presenter or handler for this DS object. More...

void	SetType (Type p_type)
	[AI] Sets the DS object type. More...

void	SetObjectId (MxU32 p_objectId)
	[AI] Sets the object id (for serialization or lookup). More...

void	SetUnknown24 (MxS16 p_unk0x24)
	[AI] Sets the unknown field at 0x24 (possibly version/state). More...

void	SetUnknown28 (MxPresenter *p_unk0x28)
	[AI] Sets the pointer at 0x28 (presenter or handler). More...

void	ClearAtom ()
	[AI] Clears the atom id, releasing its association. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Public Types inherited from MxDSAction
enum	{ c_looping = 0x01 , c_bit3 = 0x04 , c_bit4 = 0x08 , c_bit5 = 0x10 , c_enabled = 0x20 , c_bit7 = 0x40 , c_world = 0x80 , c_bit9 = 0x100 , c_bit10 = 0x200 , c_bit11 = 0x400 }
	[AI] Action bitmask flag options controlling flow (loop, enable, world-space, etc) More...

Public Types inherited from MxDSObject
enum	Type { e_object = 0 , e_action , e_mediaAction , e_anim , e_sound , e_multiAction , e_serialAction , e_parallelAction , e_event , e_selectAction , e_still , e_objectAction }
	[AI] Enumerated type value for each kind of DS object. More...

Protected Attributes inherited from MxDSMultiAction
MxU32	m_sizeOnDisk
	[AI] Stores the last-computed disk storage size for m_actionList and metadata. More...

MxDSActionList *	m_actionList
	[AI] List of contained actions (ownership: this owns and deletes subactions). More...

Protected Attributes inherited from MxDSAction
MxU32	m_sizeOnDisk
	[AI] The size of this action's fields on disk, not counting ancestor size. More...

MxU32	m_flags
	[AI] Bitfield for flags (enabled, looping, etc). More...

MxLong	m_startTime
	[AI] Time at which the action is meant to start, or INT_MIN for unset. More...

MxLong	m_duration
	[AI] The duration to run the action, or INT_MIN for undefined. More...

MxS32	m_loopCount
	[AI] Number of times to repeat the action, or -1 for infinite/not-set. More...

Mx3DPointFloat	m_location
	[AI] Location in 3D world or local space (x, y, z). More...

Mx3DPointFloat	m_direction
	[AI] "Forward" direction vector for this action. More...

Mx3DPointFloat	m_up
	[AI] "Up" vector for this action. More...

char *	m_extraData
	[AI] Opaque extra data for custom or extended behavior. More...

MxU16	m_extraLength
	[AI] Length of extra data in bytes. More...

MxCore *	m_unk0x84
	[AI] Pointer to an auxiliary MxCore object, purpose unknown. More...

undefined4	m_unk0x88
	[AI] 4 bytes at 0x88; usage not known. More...

MxCore *	m_origin
	[AI] Pointer to an "origin" MxCore object, for spatial/ownership reference. More...

MxLong	m_unk0x90
	[AI] Unknown field, appears to store a timestamp for GetElapsedTime logics. More...

Protected Attributes inherited from MxDSObject
MxU32	m_sizeOnDisk
	[AI] Cached/calculated disk size of object data for serialization. [AI] More...

MxU16	m_type
	[AI] Object type enum (see Type) as read from data or set in code. [AI] More...

char *	m_sourceName
	[AI] Heap copy: SI file or source identifier string. [AI] More...

undefined4	m_unk0x14
	[AI] Unknown usage, possibly flags or reserved SI-format field. [AI] More...

char *	m_objectName
	[AI] Heap copy: Logical object name as referenced in script/data. [AI] More...

MxU32	m_objectId
	[AI] Numeric id (unique per file or context, often -1). [AI] More...

MxAtomId	m_atomId
	[AI] String/value pair for engine lookup/reference. [AI] More...

MxS16	m_unk0x24
	[AI] Unknown usage, possibly used for context or flags during loading. [AI] More...

MxPresenter *	m_unk0x28
	[AI] Presenter or handler associated to this object (may be null). [AI] More...

Detailed Description

[AI] Represents a "select" action within a DS (Script/Scene) file, deserialized from SI files to select from a set of available actions at runtime based on a variable or random value.

MxDSSelectAction introduces selection logic to the standard parallel action, determining which child action to activate based on the input value/variable or randomized choice. The list of possible choices and their associated variable/token are managed internally.

Upon deserialization, the action will parse either a variable name or a random range (RANDOM_x), populate the choice list, and select the matching (or random) action to append to its executable subactions.

Inherits from MxDSParallelAction, and extends it to include variable-driven or random action selection. [AI]

Definition at line 20 of file mxdsselectaction.h.

Constructor & Destructor Documentation

◆ MxDSSelectAction() [1/2]

MxDSSelectAction::MxDSSelectAction ( )

[AI] Default constructor.

Initializes the object as a select action and allocates the choice string list m_unk0xac.

Definition at line 14 of file mxdsselectaction.cpp.

◆ MxDSSelectAction() [2/2]

MxDSSelectAction::MxDSSelectAction ( MxDSSelectAction & p_dsSelectAction )

[AI] Copy constructor.

Deep-copies the source select action, including string and choice list. [AI]

Parameters

p_dsSelectAction The source select action to copy from. [AI]

Definition at line 43 of file mxdsselectaction.cpp.

◆ ~MxDSSelectAction()

MxDSSelectAction::~MxDSSelectAction ( )

override

[AI] Destructor.

Frees any allocated memory for the internal choice list. [AI]

Definition at line 22 of file mxdsselectaction.cpp.

Member Function Documentation

◆ ClassName()

const char * MxDSSelectAction::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the class name string for runtime type identification.

[AI]

Returns: Always "MxDSSelectAction". [AI]

Reimplemented from MxDSParallelAction.

Definition at line 55 of file mxdsselectaction.h.

◆ Clone()

MxDSAction * MxDSSelectAction::Clone ( )

overridevirtual

[AI] Creates a deep copy ("clone") of this select action, including its internal strings and selected child action(s).

[AI]

Returns: Pointer to the newly allocated clone object. [AI]

Reimplemented from MxDSParallelAction.

Definition at line 61 of file mxdsselectaction.cpp.

◆ CopyFrom()

void MxDSSelectAction::CopyFrom ( MxDSSelectAction & p_dsSelectAction )

[AI] Copies all internal data from another MxDSSelectAction including string list and selection variable.

[AI]

Parameters

p_dsSelectAction The source object to copy from. [AI]

Definition at line 29 of file mxdsselectaction.cpp.

◆ Deserialize()

void MxDSSelectAction::Deserialize	(	MxU8 *&	p_source,
		MxS16	p_unk0x24
	)

overridevirtual

[AI] Loads (deserializes) this action from a binary source buffer.

[AI]

[AI] Parses the selection string, determines selection mechanism (variable or randomized/range), loads the associated list of choices, and then deserializes only the selected child action.

Parameters

p_source	Cursor to the start of serialized data. Updated by method. [AI]
p_unk0x24	Flags or extra context for deserialization. [AI]

Reimplemented from MxDSMultiAction.

Definition at line 95 of file mxdsselectaction.cpp.

◆ GetSizeOnDisk()

MxU32 MxDSSelectAction::GetSizeOnDisk ( )

overridevirtual

[AI] Computes the total size needed to serialize this object to disk, including selection strings and all choices.

[AI]

[AI] Sums the base class size, the selection variable/random string, and all items in the string (choice) list.

Reimplemented from MxDSMultiAction.

Definition at line 74 of file mxdsselectaction.cpp.

◆ IsA()

MxBool MxDSSelectAction::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Determines if the object is of the specified type or derives from it.

[AI]

Parameters

p_name Type/class name to compare against. [AI]

Returns: True if type matches or is derived, false otherwise. [AI]

Reimplemented from MxDSParallelAction.

Definition at line 66 of file mxdsselectaction.h.

◆ operator=()

MxDSSelectAction & MxDSSelectAction::operator= ( MxDSSelectAction & p_dsSelectAction )

[AI] Assignment operator; performs a deep copy of the source select action, including all sub-actions and strings.

[AI]

Parameters

p_dsSelectAction The source object to copy from. [AI]

Returns: Reference to this (assigned) object. [AI]

Definition at line 50 of file mxdsselectaction.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MxDSSelectAction() [1/2]

◆ MxDSSelectAction() [2/2]

◆ ~MxDSSelectAction()

Member Function Documentation

◆ ClassName()

◆ Clone()

◆ CopyFrom()

◆ Deserialize()

◆ GetSizeOnDisk()

◆ IsA()

◆ operator=()
