[AI] Abstract base class for presenters that play back continuous media streams such as video or audio. More...

#include <mxmediapresenter.h>

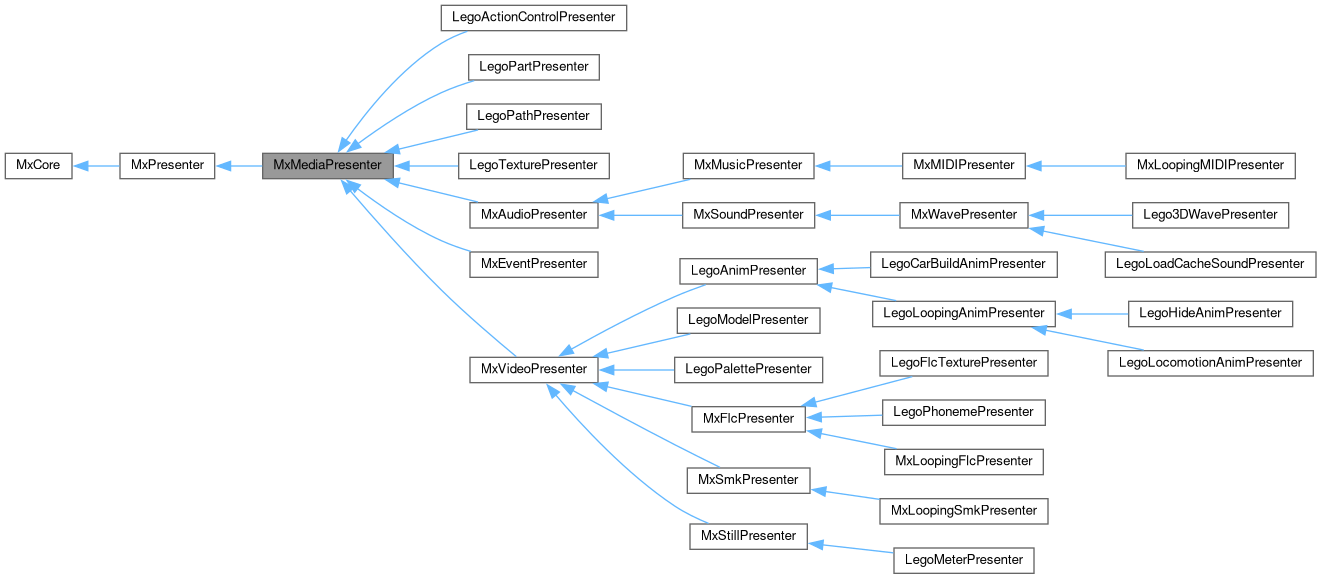

Inheritance diagram for MxMediaPresenter:

[legend]

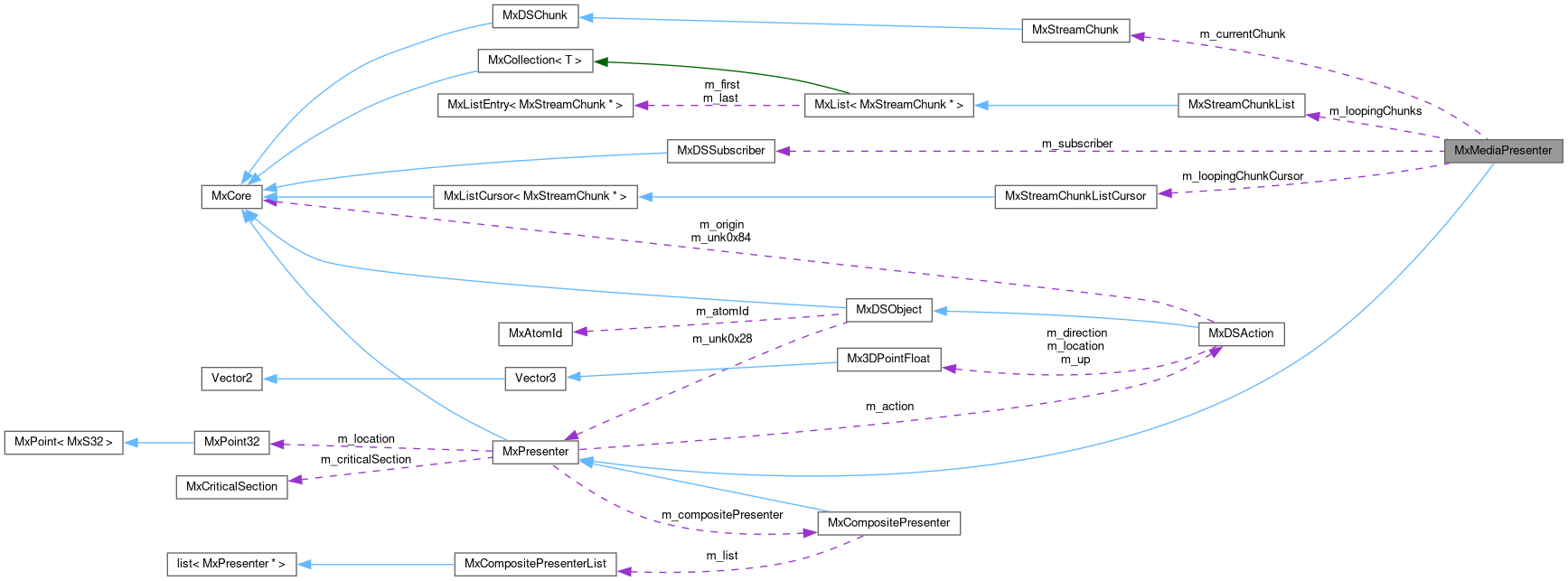

Collaboration diagram for MxMediaPresenter:

[legend]

Public Member Functions
	MxMediaPresenter ()
	[AI] Constructs the presenter, initializing all member variables. More...

	~MxMediaPresenter () override
	[AI] Destructor; cleans up and optionally destroys all internal resources as well as the MxDSSubscriber and chunk list/cursor. More...

void	Destroy () override
	[AI] Cleans up internal resources and resets the presenter to an uninitialized state. More...

MxResult	Tickle () override
	[AI] Advances the presenter's state and media stream, if any, by tickling (i.e., updating) components. More...

const char *	ClassName () const override
	[AI] Returns the class name for this presenter (see HandlerClassName()). More...

MxBool	IsA (const char *p_name) const override
	[AI] Returns TRUE if the provided class name matches this class or any of its parents. More...

void	StreamingTickle () override
	[AI] Per-frame update when streaming the media stream. More...

void	RepeatingTickle () override
	[AI] Per-frame update while looping/repeating over known chunks. More...

void	DoneTickle () override
	[AI] Per-frame update for the "done" state; transitions this presenter to idle and ends the action. More...

MxResult	StartAction (MxStreamController , MxDSAction ) override
	[AI] Begins a new media playback action, wiring up the stream and chunk lists as needed. More...

void	EndAction () override
	[AI] Ends the media playback action, releasing all resources, notifying listeners if necessary. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables media stream playback and transitions state as needed. More...

virtual void	LoopChunk (MxStreamChunk *p_chunk)
	[AI] Adds a chunk to the looping chunk list, making it available for repeated playback. More...

MxStreamChunk *	CurrentChunk ()
	[AI] Returns a pointer to the current data chunk at the head of the stream, without consuming it. More...

MxStreamChunk *	NextChunk ()
	[AI] Returns the next data chunk in the stream, removing it from the stream queue. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Static Public Member Functions
static const char *	HandlerClassName ()
	[AI] Gets the class name string for handler dispatch and RTTI emulation. More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Protected Member Functions
void	Init ()
	[AI] Initializes all member variables to a known default state (NULL pointers, etc). More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Frees all managed resources, owned memory and pointers, optionally preventing destruction of the base class. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Protected Attributes
MxDSSubscriber *	m_subscriber
	[AI] Subscriber that provides the stream data (e.g., audio/video chunks) for this presenter. More...

MxStreamChunkList *	m_loopingChunks
	[AI] Linked list of all chunks available for looping/repeating playback. More...

MxStreamChunkListCursor *	m_loopingChunkCursor
	[AI] Cursor used to iterate through the loopingChunk list during repeat mode. More...

MxStreamChunk *	m_currentChunk
	[AI] Currently active data chunk for playback or processing. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Additional Inherited Members
Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Detailed Description

[AI] Abstract base class for presenters that play back continuous media streams such as video or audio.

[AI] Handles streaming of media chunks, looping, action control, and communicates with a MxDSSubscriber for data provisioning.

Definition at line 17 of file mxmediapresenter.h.

Constructor & Destructor Documentation

◆ MxMediaPresenter()

MxMediaPresenter::MxMediaPresenter ( )

inline

[AI] Constructs the presenter, initializing all member variables.

Definition at line 22 of file mxmediapresenter.h.

◆ ~MxMediaPresenter()

MxMediaPresenter::~MxMediaPresenter ( )

inlineoverride

[AI] Destructor; cleans up and optionally destroys all internal resources as well as the MxDSSubscriber and chunk list/cursor.

[AI] If called from destructor, does not call base class Destroy to avoid double-destruction.

Definition at line 28 of file mxmediapresenter.h.

Member Function Documentation

◆ ClassName()

const char * MxMediaPresenter::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the class name for this presenter (see HandlerClassName()).

Returns: [AI] Class name string for RTTI/dispatch.

Reimplemented from MxCore.

Reimplemented in MxMIDIPresenter, MxMusicPresenter, MxSmkPresenter, MxSoundPresenter, MxStillPresenter, MxVideoPresenter, and MxWavePresenter.

Definition at line 56 of file mxmediapresenter.h.

◆ CurrentChunk()

MxStreamChunk * MxMediaPresenter::CurrentChunk ( )

[AI] Returns a pointer to the current data chunk at the head of the stream, without consuming it.

Returns: [AI] May be NULL if no chunk is available.

Definition at line 63 of file mxmediapresenter.cpp.

◆ Destroy() [1/2]

void MxMediaPresenter::Destroy ( )

inlineoverridevirtual

[AI] Cleans up internal resources and resets the presenter to an uninitialized state.

[AI] This variant is called by the engine or directly to destroy; does NOT call base class destroy (useful for subclass-specific cleanup).

Reimplemented from MxPresenter.

Reimplemented in MxMIDIPresenter, MxMusicPresenter, MxSmkPresenter, MxSoundPresenter, MxStillPresenter, MxVideoPresenter, and MxWavePresenter.

Definition at line 34 of file mxmediapresenter.h.

◆ Destroy() [2/2]

void MxMediaPresenter::Destroy ( MxBool p_fromDestructor )

protected

[AI] Frees all managed resources, owned memory and pointers, optionally preventing destruction of the base class.

Parameters

p_fromDestructor [AI] TRUE if called from the destructor, FALSE if called directly.

Definition at line 26 of file mxmediapresenter.cpp.

◆ DoneTickle()

void MxMediaPresenter::DoneTickle ( )

overridevirtual

[AI] Per-frame update for the "done" state; transitions this presenter to idle and ends the action.

Reimplemented from MxPresenter.

Reimplemented in MxMIDIPresenter, and MxWavePresenter.

Definition at line 225 of file mxmediapresenter.cpp.

◆ Enable()

void MxMediaPresenter::Enable ( MxBool p_enable )

overridevirtual

[AI] Enables or disables media stream playback and transitions state as needed.

Parameters

p_enable [AI] TRUE to enable playback, FALSE to disable and reset.

Reimplemented from MxPresenter.

Reimplemented in MxStillPresenter, and MxWavePresenter.

Definition at line 248 of file mxmediapresenter.cpp.

◆ EndAction()

void MxMediaPresenter::EndAction ( )

overridevirtual

[AI] Ends the media playback action, releasing all resources, notifying listeners if necessary.

Reimplemented from MxPresenter.

Reimplemented in MxMIDIPresenter, MxVideoPresenter, and MxWavePresenter.

Definition at line 134 of file mxmediapresenter.cpp.

◆ HandlerClassName()

static const char * MxMediaPresenter::HandlerClassName ( )

inlinestatic

[AI] Gets the class name string for handler dispatch and RTTI emulation.

Returns: [AI] Static string "MxMediaPresenter"

Definition at line 46 of file mxmediapresenter.h.

◆ Init()

void MxMediaPresenter::Init ( )

protected

[AI] Initializes all member variables to a known default state (NULL pointers, etc).

Definition at line 17 of file mxmediapresenter.cpp.

◆ IsA()

MxBool MxMediaPresenter::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Returns TRUE if the provided class name matches this class or any of its parents.

Parameters

p_name [AI] Class name to check for identity or inheritance

Reimplemented from MxCore.

Reimplemented in MxMIDIPresenter, MxMusicPresenter, MxSmkPresenter, MxSoundPresenter, MxStillPresenter, MxVideoPresenter, and MxWavePresenter.

Definition at line 65 of file mxmediapresenter.h.

◆ LoopChunk()

void MxMediaPresenter::LoopChunk ( MxStreamChunk * p_chunk )

virtual

[AI] Adds a chunk to the looping chunk list, making it available for repeated playback.

Parameters

p_chunk [AI] Chunk to duplicate and append to loopingChunk list.

Reimplemented in MxWavePresenter.

Definition at line 233 of file mxmediapresenter.cpp.

◆ NextChunk()

MxStreamChunk * MxMediaPresenter::NextChunk ( )

[AI] Returns the next data chunk in the stream, removing it from the stream queue.

Returns: [AI] May be NULL if the stream is exhausted.

Definition at line 83 of file mxmediapresenter.cpp.

◆ RepeatingTickle()

void MxMediaPresenter::RepeatingTickle ( )

overridevirtual

[AI] Per-frame update while looping/repeating over known chunks.

[AI] Recirculates through buffered chunks if the action is set to loop mode.

Reimplemented from MxPresenter.

Reimplemented in MxStillPresenter, and MxVideoPresenter.

Definition at line 201 of file mxmediapresenter.cpp.

◆ StartAction()

MxResult MxMediaPresenter::StartAction	(	MxStreamController *	p_controller,
		MxDSAction *	p_action
	)

overridevirtual

[AI] Begins a new media playback action, wiring up the stream and chunk lists as needed.

Parameters

p_controller	[AI] Controller providing the stream data source
p_action	[AI] Data structure describing the action parameters for playback

Reimplemented from MxPresenter.

Definition at line 102 of file mxmediapresenter.cpp.

◆ StreamingTickle()

void MxMediaPresenter::StreamingTickle ( )

overridevirtual

[AI] Per-frame update when streaming the media stream.

[AI] Consumes and processes the next available chunk in the stream as data arrives.

Reimplemented from MxPresenter.

Reimplemented in MxMIDIPresenter, MxStillPresenter, MxVideoPresenter, and MxWavePresenter.

Definition at line 177 of file mxmediapresenter.cpp.

◆ Tickle()

MxResult MxMediaPresenter::Tickle ( )

overridevirtual

[AI] Advances the presenter's state and media stream, if any, by tickling (i.e., updating) components.

[AI] Handles chunk progression and invokes the correct tickle state based on stream state.

Reimplemented from MxCore.

Definition at line 167 of file mxmediapresenter.cpp.

Member Data Documentation

◆ m_currentChunk

MxStreamChunk* MxMediaPresenter::m_currentChunk

protected

[AI] Currently active data chunk for playback or processing.

Definition at line 145 of file mxmediapresenter.h.

◆ m_loopingChunkCursor

MxStreamChunkListCursor* MxMediaPresenter::m_loopingChunkCursor

protected

[AI] Cursor used to iterate through the loopingChunk list during repeat mode.

Definition at line 140 of file mxmediapresenter.h.

◆ m_loopingChunks

MxStreamChunkList* MxMediaPresenter::m_loopingChunks

protected

[AI] Linked list of all chunks available for looping/repeating playback.

Definition at line 135 of file mxmediapresenter.h.

◆ m_subscriber

MxDSSubscriber* MxMediaPresenter::m_subscriber

protected

[AI] Subscriber that provides the stream data (e.g., audio/video chunks) for this presenter.

Definition at line 130 of file mxmediapresenter.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MxMediaPresenter()

◆ ~MxMediaPresenter()

Member Function Documentation

◆ ClassName()

◆ CurrentChunk()

◆ Destroy() [1/2]

◆ Destroy() [2/2]

◆ DoneTickle()

◆ Enable()

◆ EndAction()

◆ HandlerClassName()

◆ Init()

◆ IsA()

◆ LoopChunk()

◆ NextChunk()

◆ RepeatingTickle()

◆ StartAction()

◆ StreamingTickle()

◆ Tickle()

Member Data Documentation

◆ m_currentChunk

◆ m_loopingChunkCursor

◆ m_loopingChunks

◆ m_subscriber
