[AI] Composite presenter that manages a collection of child presenters, orchestrating their actions and notifications as a group. More...

#include <mxcompositepresenter.h>

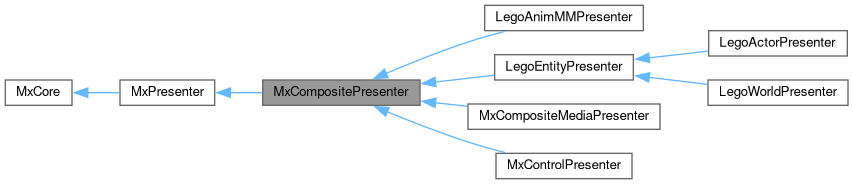

Inheritance diagram for MxCompositePresenter:

[legend]

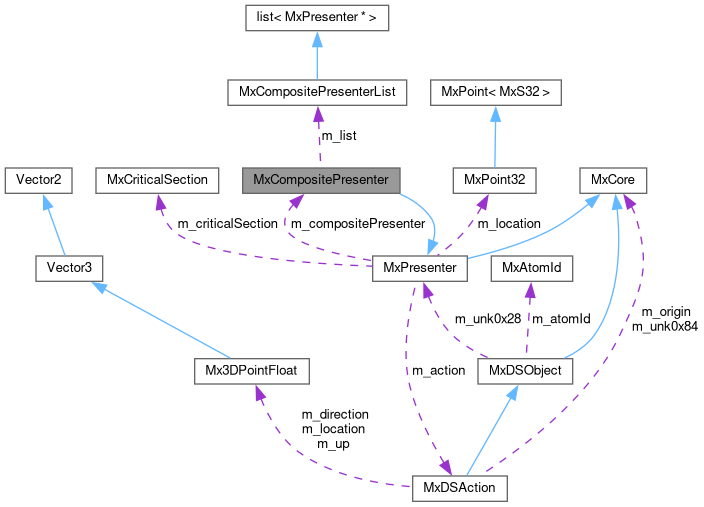

Collaboration diagram for MxCompositePresenter:

[legend]

Public Member Functions
	MxCompositePresenter ()
	[AI] Default constructor; registers the composite presenter with the notification manager. More...

	~MxCompositePresenter () override
	[AI] Destructor, unregisters the presenter from the notification manager and properly cleans up contained presenters. More...

MxLong	Notify (MxParam &p_param) override
	[AI] Notifies the composite presenter of a particular event (such as end of sub-action or notification from a child presenter). More...

const char *	ClassName () const override
	[AI] Returns the dynamic class name; used for runtime type identification. More...

MxBool	IsA (const char *p_name) const override
	[AI] Runtime type checking for presenter class hierarchy, supporting parent/child class checks. More...

MxResult	StartAction (MxStreamController p_controller, MxDSAction p_action) override
	[AI] Starts a composite action by creating child presenters for each action in a MxDSMultiAction list and starting them. More...

void	EndAction () override
	[AI] Ends the composite action, terminating all child presenters and clearing action lists. Sends end notifications if needed. More...

void	SetTickleState (TickleState p_tickleState) override
	[AI] Change the tickle state of this composite presenter and propagate to each child. More...

MxBool	HasTickleStatePassed (TickleState p_tickleState) override
	[AI] Checks if all child presenters have advanced past the given tickle state. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables this presenter and all child presenters. More...

virtual void	VTable0x58 (MxEndActionNotificationParam &p_param)
	[AI] Handler for "end action" notification, invoked when one of the child presenters finishes its assigned sub-action. More...

virtual void	VTable0x5c (MxNotificationParam &p_param)
	[AI] Handler for generic presenter notification, such as state change. More...

virtual void	VTable0x60 (MxPresenter *p_presenter)
	[AI] Advance sequencing for serial multi-actions: promotes the next presenter in sequence to e_ready state after predecessor finishes. More...

virtual MxBool	VTable0x64 (undefined4 p_undefined)
	[AI] Delegated state/mode checking. More...

MxCompositePresenterList *	GetList ()
	[AI] Returns reference to the internal list of child presenters managed by this composite. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Static Public Member Functions
static const char *	HandlerClassName ()
	[AI] Returns the handler class name ("MxCompositePresenter"). More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Protected Attributes
MxCompositePresenterList	m_list
	[AI] List of owned child presenters that are managed by this MxCompositePresenter. Actions are created/shutdown with this list. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Additional Inherited Members
Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Detailed Description

[AI] Composite presenter that manages a collection of child presenters, orchestrating their actions and notifications as a group.

[AI] MxCompositePresenter orchestrates a collection of presenters (typically corresponding to sub-actions in an SI file). It handles dispatching StartAction to each, managing their lifecycles, and relaying notifications such as action-completion, grouping parallel or serial media actions. Used for MxDSMultiAction and derived SI actions. Child presenters are pushed into m_list, and removed as they complete; when all are finished, composite cleanups and forwards notifications.

Definition at line 18 of file mxcompositepresenter.h.

Constructor & Destructor Documentation

◆ MxCompositePresenter()

MxCompositePresenter::MxCompositePresenter ( )

[AI] Default constructor; registers the composite presenter with the notification manager.

Definition at line 16 of file mxcompositepresenter.cpp.

◆ ~MxCompositePresenter()

MxCompositePresenter::~MxCompositePresenter ( )

override

[AI] Destructor, unregisters the presenter from the notification manager and properly cleans up contained presenters.

Definition at line 22 of file mxcompositepresenter.cpp.

Member Function Documentation

◆ ClassName()

const char * MxCompositePresenter::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the dynamic class name; used for runtime type identification.

Returns: [AI] Class name string for this type.

Reimplemented from MxCore.

Definition at line 41 of file mxcompositepresenter.h.

◆ Enable()

void MxCompositePresenter::Enable ( MxBool p_enable )

overridevirtual

[AI] Enables or disables this presenter and all child presenters.

Parameters

p_enable [AI] TRUE to enable, FALSE to disable (pause).

Reimplemented from MxPresenter.

Definition at line 257 of file mxcompositepresenter.cpp.

◆ EndAction()

void MxCompositePresenter::EndAction ( )

overridevirtual

[AI] Ends the composite action, terminating all child presenters and clearing action lists. Sends end notifications if needed.

Reimplemented from MxPresenter.

Definition at line 83 of file mxcompositepresenter.cpp.

◆ GetList()

MxCompositePresenterList * MxCompositePresenter::GetList ( )

inline

[AI] Returns reference to the internal list of child presenters managed by this composite.

Returns: [AI] Pointer to the composite's presenter list (owned by this).

Definition at line 102 of file mxcompositepresenter.h.

◆ HandlerClassName()

static const char * MxCompositePresenter::HandlerClassName ( )

inlinestatic

[AI] Returns the handler class name ("MxCompositePresenter").

Returns: [AI] Static string identifier for this presenter. Used during SI media dispatch and factory creation.

Definition at line 33 of file mxcompositepresenter.h.

◆ HasTickleStatePassed()

MxBool MxCompositePresenter::HasTickleStatePassed ( TickleState p_tickleState )

overridevirtual

[AI] Checks if all child presenters have advanced past the given tickle state.

Parameters

p_tickleState [AI] State to check against for all children.

Returns: [AI] TRUE if every child has passed this state, FALSE otherwise.

Reimplemented from MxPresenter.

Definition at line 268 of file mxcompositepresenter.cpp.

◆ IsA()

MxBool MxCompositePresenter::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Runtime type checking for presenter class hierarchy, supporting parent/child class checks.

Parameters

p_name [AI] The name to compare this class against.

Returns: [AI] True if p_name matches this class or any super class in presenter hierarchy.

Reimplemented from MxCore.

Definition at line 49 of file mxcompositepresenter.h.

◆ Notify()

MxLong MxCompositePresenter::Notify ( MxParam & p_param )

overridevirtual

[AI] Notifies the composite presenter of a particular event (such as end of sub-action or notification from a child presenter).

Parameters

p_param [AI] Reference to a notification parameter, typically specifies sender, notification type, and any action involved.

Returns: [AI] Always returns 0. Dispatches to relevant virtual handlers based on the notification.

Reimplemented from MxCore.

Definition at line 113 of file mxcompositepresenter.cpp.

◆ SetTickleState()

void MxCompositePresenter::SetTickleState ( TickleState p_tickleState )

overridevirtual

[AI] Change the tickle state of this composite presenter and propagate to each child.

Used for sequencing execution (e.g., idle, ready).

Parameters

p_tickleState [AI] New tickle state to set for all managed presenters.

Reimplemented from MxPresenter.

Definition at line 242 of file mxcompositepresenter.cpp.

◆ StartAction()

MxResult MxCompositePresenter::StartAction	(	MxStreamController *	p_controller,
		MxDSAction *	p_action
	)

overridevirtual

[AI] Starts a composite action by creating child presenters for each action in a MxDSMultiAction list and starting them.

Parameters

p_controller	[AI] The controlling stream controller.
p_action	[AI] The composite multi-action (should be or derive from MxDSMultiAction).

Returns: [AI] SUCCESS if all child presenters are created and started, FAILURE on error.

Reimplemented from MxPresenter.

Definition at line 29 of file mxcompositepresenter.cpp.

◆ VTable0x58()

void MxCompositePresenter::VTable0x58 ( MxEndActionNotificationParam & p_param )

virtual

[AI] Handler for "end action" notification, invoked when one of the child presenters finishes its assigned sub-action.

[AI] Removes the corresponding presenter and action, cleans up, and may trigger continuation logic or end itself if all sub-actions done.

Parameters

p_param [AI] EndActionNotification containing sender and finished action information.

Definition at line 134 of file mxcompositepresenter.cpp.

◆ VTable0x5c()

void MxCompositePresenter::VTable0x5c ( MxNotificationParam & p_param )

virtual

[AI] Handler for generic presenter notification, such as state change.

Also used for signaling further sequencing in serial actions.

Parameters

p_param [AI] Notification parameter with sender and type.

Definition at line 180 of file mxcompositepresenter.cpp.

◆ VTable0x60()

void MxCompositePresenter::VTable0x60 ( MxPresenter * p_presenter )

virtual

[AI] Advance sequencing for serial multi-actions: promotes the next presenter in sequence to e_ready state after predecessor finishes.

Parameters

p_presenter [AI] The presenter that triggered the next-in-serial logic.

Reimplemented in LegoAnimMMPresenter, and LegoWorldPresenter.

Definition at line 221 of file mxcompositepresenter.cpp.

◆ VTable0x64()

virtual MxBool MxCompositePresenter::VTable0x64 ( undefined4 p_undefined )

inlinevirtual

[AI] Delegated state/mode checking.

If this presenter is part of another composite, defers the check to parent.

Parameters

p_undefined [AI] Value is opaque; passed along a potential hierarchy. [AI_SUGGESTED_NAME: stateCheckReason]

Returns: [AI] TRUE if allowable for tickle/check to proceed, otherwise composite-specific result.

Reimplemented in MxControlPresenter.

Definition at line 92 of file mxcompositepresenter.h.

Member Data Documentation

◆ m_list

MxCompositePresenterList MxCompositePresenter::m_list

protected

[AI] List of owned child presenters that are managed by this MxCompositePresenter. Actions are created/shutdown with this list.

Definition at line 106 of file mxcompositepresenter.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MxCompositePresenter()

◆ ~MxCompositePresenter()

Member Function Documentation

◆ ClassName()

◆ Enable()

◆ EndAction()

◆ GetList()

◆ HandlerClassName()

◆ HasTickleStatePassed()

◆ IsA()

◆ Notify()

◆ SetTickleState()

◆ StartAction()

◆ VTable0x58()

◆ VTable0x5c()

◆ VTable0x60()

◆ VTable0x64()

Member Data Documentation

◆ m_list
