[AI] Presenter for UI controls, supporting toggles, grids, and "map" style controls with multiple interactive regions. More...

#include <mxcontrolpresenter.h>

Inheritance diagram for MxControlPresenter:

[legend]

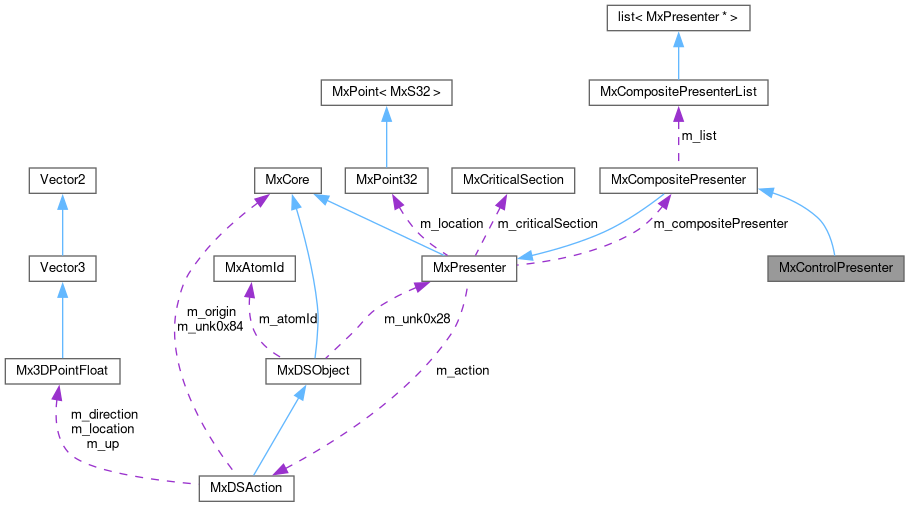

Collaboration diagram for MxControlPresenter:

[legend]

Public Member Functions
	MxControlPresenter ()
	[AI] Constructs an uninitialized control presenter with default state. More...

	~MxControlPresenter () override
	[AI] Destructor, cleans up internal state memory. More...

void	RepeatingTickle () override
	[AI] Override of idle/repeating tickle; does nothing by default in this implementation. More...

MxBool	VTable0x64 (undefined4 p_undefined) override
	[AI] Virtual stub, returns current enabled flag for the presenter. More...

virtual void	VTable0x68 (MxBool p_unk0x50)
	[AI] Changes the enabled state flag. More...

const char *	ClassName () const override
	[AI] Returns the class name string. More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks class ancestry for runtime type information by comparing with this class and parent class names. More...

void	ReadyTickle () override
	[AI] Handles transition into the 'ready' tickle state; disables tickling and advances state. More...

void	ParseExtra () override
	[AI] Parses any configuration/customization provided in the extra data for the action, e.g., style, grid or map definitions, and sets up internal state for the control accordingly. More...

MxResult	AddToManager () override
	[AI] Registers this presenter with the tickle manager and prepares for input handling. More...

MxResult	StartAction (MxStreamController , MxDSAction ) override
	[AI] Starts a new UI control action, configuring sub-presenters as required and enabling/disabling them based on parsed state logic. More...

void	EndAction () override
	[AI] Handles ending of a control's action; may fire notifications and update internal flags. More...

MxBool	HasTickleStatePassed (TickleState p_tickleState) override
	[AI] Checks if a specific tickle state has passed for the currently active sub-presenter, based on the presenter's current control index. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables the control; delegates enable to correct sub-presenter based on current state/index. More...

virtual void	VTable0x6c (MxS16 p_unk0x4e)
	[AI] Selects a state/sub-control by index, or advances the currently selected state if -1 is provided. More...

MxBool	FUN_10044480 (LegoControlManagerNotificationParam p_param, MxPresenter p_presenter)
	[AI] Processes a notification param and presenter, reacting to input or click events; sets notification and updates state/target. More...

MxBool	FUN_10044270 (MxS32 p_x, MxS32 p_y, MxPresenter *p_presenter)
	[AI] Tests if an input event at position (x, y) targets the supplied presenter's region as defined by the control's style (toggle/grid/map). More...

MxS16	GetUnknown0x4e ()
	[AI] Returns the current selected/control state index. More...

Public Member Functions inherited from MxCompositePresenter
	MxCompositePresenter ()
	[AI] Default constructor; registers the composite presenter with the notification manager. More...

	~MxCompositePresenter () override
	[AI] Destructor, unregisters the presenter from the notification manager and properly cleans up contained presenters. More...

MxLong	Notify (MxParam &p_param) override
	[AI] Notifies the composite presenter of a particular event (such as end of sub-action or notification from a child presenter). More...

const char *	ClassName () const override
	[AI] Returns the dynamic class name; used for runtime type identification. More...

MxBool	IsA (const char *p_name) const override
	[AI] Runtime type checking for presenter class hierarchy, supporting parent/child class checks. More...

MxResult	StartAction (MxStreamController p_controller, MxDSAction p_action) override
	[AI] Starts a composite action by creating child presenters for each action in a MxDSMultiAction list and starting them. More...

void	EndAction () override
	[AI] Ends the composite action, terminating all child presenters and clearing action lists. Sends end notifications if needed. More...

void	SetTickleState (TickleState p_tickleState) override
	[AI] Change the tickle state of this composite presenter and propagate to each child. More...

MxBool	HasTickleStatePassed (TickleState p_tickleState) override
	[AI] Checks if all child presenters have advanced past the given tickle state. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables this presenter and all child presenters. More...

virtual void	VTable0x58 (MxEndActionNotificationParam &p_param)
	[AI] Handler for "end action" notification, invoked when one of the child presenters finishes its assigned sub-action. More...

virtual void	VTable0x5c (MxNotificationParam &p_param)
	[AI] Handler for generic presenter notification, such as state change. More...

virtual void	VTable0x60 (MxPresenter *p_presenter)
	[AI] Advance sequencing for serial multi-actions: promotes the next presenter in sequence to e_ready state after predecessor finishes. More...

virtual MxBool	VTable0x64 (undefined4 p_undefined)
	[AI] Delegated state/mode checking. More...

MxCompositePresenterList *	GetList ()
	[AI] Returns reference to the internal list of child presenters managed by this composite. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Static Public Member Functions inherited from MxCompositePresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name ("MxCompositePresenter"). More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Protected Attributes inherited from MxCompositePresenter
MxCompositePresenterList	m_list
	[AI] List of owned child presenters that are managed by this MxCompositePresenter. Actions are created/shutdown with this list. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Detailed Description

[AI] Presenter for UI controls, supporting toggles, grids, and "map" style controls with multiple interactive regions.

Subclass of MxCompositePresenter that manages multiple visual states and user interactions for a complex control (like a button grid or regioned bitmap). [AI]

[AI] MxControlPresenter is responsible for handling user input, state switching, and tickle management for complex GUI controls in LEGO Island. It supports three main modes: toggle, grid, or map (which maps pixel color/values to states for hit detection), and can parse parameters from 'extra' data to configure itself. Clicking or interacting with the control will fire notifications and may change the controlled presenter's state accordingly. [AI]

Definition at line 17 of file mxcontrolpresenter.h.

Constructor & Destructor Documentation

◆ MxControlPresenter()

MxControlPresenter::MxControlPresenter ( )

[AI] Constructs an uninitialized control presenter with default state.

Definition at line 17 of file mxcontrolpresenter.cpp.

◆ ~MxControlPresenter()

MxControlPresenter::~MxControlPresenter ( )

override

[AI] Destructor, cleans up internal state memory.

Definition at line 28 of file mxcontrolpresenter.cpp.

Member Function Documentation

◆ AddToManager()

MxResult MxControlPresenter::AddToManager ( )

overridevirtual

[AI] Registers this presenter with the tickle manager and prepares for input handling.

[AI]

Returns: Always returns SUCCESS.

Reimplemented from MxPresenter.

Definition at line 36 of file mxcontrolpresenter.cpp.

◆ ClassName()

const char * MxControlPresenter::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the class name string.

[AI]

Returns: Pointer to "MxControlPresenter". [AI]

Reimplemented from MxCore.

Definition at line 55 of file mxcontrolpresenter.h.

◆ Enable()

void MxControlPresenter::Enable ( MxBool p_enable )

overridevirtual

[AI] Enables or disables the control; delegates enable to correct sub-presenter based on current state/index.

[AI]

Parameters

p_enable [AI] TRUE to enable, FALSE to disable.

Reimplemented from MxPresenter.

Definition at line 270 of file mxcontrolpresenter.cpp.

◆ EndAction()

void MxControlPresenter::EndAction ( )

overridevirtual

[AI] Handles ending of a control's action; may fire notifications and update internal flags.

[AI]

Reimplemented from MxPresenter.

Definition at line 67 of file mxcontrolpresenter.cpp.

◆ FUN_10044270()

MxBool MxControlPresenter::FUN_10044270	(	MxS32	p_x,
		MxS32	p_y,
		MxPresenter *	p_presenter
	)

[AI] Tests if an input event at position (x, y) targets the supplied presenter's region as defined by the control's style (toggle/grid/map).

Updates hit-state index used by VTable0x6c. [AI]

Parameters

p_x	[AI] X-coordinate of the event.
p_y	[AI] Y-coordinate of the event.
p_presenter	[AI] The presenter involved in hit-testing.

Returns: TRUE if the region is hit/active, FALSE otherwise.

Definition at line 77 of file mxcontrolpresenter.cpp.

◆ FUN_10044480()

MxBool MxControlPresenter::FUN_10044480	(	LegoControlManagerNotificationParam *	p_param,
		MxPresenter *	p_presenter
	)

[AI] Processes a notification param and presenter, reacting to input or click events; sets notification and updates state/target.

[AI]

Parameters

p_param	[AI] Notification parameter object (event/click, etc).
p_presenter	[AI] The target presenter for the input event.

Returns: TRUE if event resulted in a state change or handled input, FALSE otherwise.

Definition at line 147 of file mxcontrolpresenter.cpp.

◆ GetUnknown0x4e()

MxS16 MxControlPresenter::GetUnknown0x4e ( )

inline

[AI] Returns the current selected/control state index.

[AI_SUGGESTED_NAME: GetSelectedState]

Returns: Current state index (usually which button/region/sub-presenter is selected).

Definition at line 134 of file mxcontrolpresenter.h.

◆ HasTickleStatePassed()

MxBool MxControlPresenter::HasTickleStatePassed ( TickleState p_tickleState )

overridevirtual

[AI] Checks if a specific tickle state has passed for the currently active sub-presenter, based on the presenter's current control index.

[AI]

Parameters

p_tickleState [AI] Tickle state to check.

Returns: TRUE if tickle state has passed, FALSE otherwise.

Reimplemented from MxPresenter.

Definition at line 292 of file mxcontrolpresenter.cpp.

◆ IsA()

MxBool MxControlPresenter::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Checks class ancestry for runtime type information by comparing with this class and parent class names.

[AI]

Parameters

p_name [AI] String to compare against.

Returns: TRUE if p_name matches this or any parent class name, otherwise FALSE. [AI]

Reimplemented from MxCore.

Definition at line 67 of file mxcontrolpresenter.h.

◆ ParseExtra()

void MxControlPresenter::ParseExtra ( )

overridevirtual

[AI] Parses any configuration/customization provided in the extra data for the action, e.g., style, grid or map definitions, and sets up internal state for the control accordingly.

[AI]

Reimplemented from MxPresenter.

Definition at line 211 of file mxcontrolpresenter.cpp.

◆ ReadyTickle()

void MxControlPresenter::ReadyTickle ( )

overridevirtual

[AI] Handles transition into the 'ready' tickle state; disables tickling and advances state.

[AI]

Reimplemented from MxPresenter.

Definition at line 202 of file mxcontrolpresenter.cpp.

◆ RepeatingTickle()

void MxControlPresenter::RepeatingTickle ( )

inlineoverridevirtual

[AI] Override of idle/repeating tickle; does nothing by default in this implementation.

[AI]

Reimplemented from MxPresenter.

Definition at line 32 of file mxcontrolpresenter.h.

◆ StartAction()

MxResult MxControlPresenter::StartAction	(	MxStreamController *	p_controller,
		MxDSAction *	p_action
	)

overridevirtual

[AI] Starts a new UI control action, configuring sub-presenters as required and enabling/disabling them based on parsed state logic.

[AI]

Parameters

p_controller	[AI] Stream controller for action.
p_action	[AI] Action to be started.

Returns: Result of MxCompositePresenter's StartAction, usually SUCCESS.

Reimplemented from MxPresenter.

Definition at line 43 of file mxcontrolpresenter.cpp.

◆ VTable0x64()

MxBool MxControlPresenter::VTable0x64 ( undefined4 p_undefined )

inlineoverridevirtual

[AI] Virtual stub, returns current enabled flag for the presenter.

[AI]

Parameters

p_undefined [AI] Unused/meaningless argument; ignored.

Returns: TRUE if control is enabled, FALSE otherwise. [AI]

Reimplemented from MxCompositePresenter.

Definition at line 40 of file mxcontrolpresenter.h.

◆ VTable0x68()

virtual void MxControlPresenter::VTable0x68 ( MxBool p_unk0x50 )

inlinevirtual

[AI] Changes the enabled state flag.

[AI]

Parameters

p_unk0x50 [AI] New enabled flag value.

Definition at line 47 of file mxcontrolpresenter.h.

◆ VTable0x6c()

void MxControlPresenter::VTable0x6c ( MxS16 p_unk0x4e )

virtual

[AI] Selects a state/sub-control by index, or advances the currently selected state if -1 is provided.

Notifies the action and sets tickle/enable state in all sub-presenters. [AI]

Parameters

p_unk0x4e [AI] A state index; if -1, advances state; otherwise, selects the given one. [AI_SUGGESTED_NAME: SetSelectedState]

Definition at line 178 of file mxcontrolpresenter.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MxControlPresenter()

◆ ~MxControlPresenter()

Member Function Documentation

◆ AddToManager()

◆ ClassName()

◆ Enable()

◆ EndAction()

◆ FUN_10044270()

◆ FUN_10044480()

◆ GetUnknown0x4e()

◆ HasTickleStatePassed()

◆ IsA()

◆ ParseExtra()

◆ ReadyTickle()

◆ RepeatingTickle()

◆ StartAction()

◆ VTable0x64()

◆ VTable0x68()

◆ VTable0x6c()
