RaceSkel Class Reference

[AI] Specialized skeleton animation actor for LEGO Island car racing sequences. More...

#include <raceskel.h>

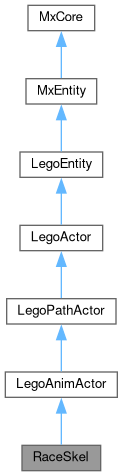

Inheritance diagram for RaceSkel:

Collaboration diagram for RaceSkel:

Public Member Functions
	RaceSkel ()
	[AI] Constructs a RaceSkel instance with animation state reset. More...
	~RaceSkel () override
	[AI] Destructor for RaceSkel, cleans up resources. More...
void	ParseAction (char *p_extra) override
	[AI] Parses a string command to setup the skeleton for the car race, and modifies ROI bounding sphere. More...
MxResult	FUN_1001c360 (float p_und, Matrix4 &p_transform) override
	[AI] Apply race-specific position/orientation adjustment and updates animation position. More...
virtual void	FUN_10071c80 (Vector3 &p_vec)
	[AI] Assigns the skeleton's position in 3D space for the car race sequence. More...
void	GetCurrentAnimData (float *p_outCurAnimPosition, float *p_outCurAnimDuration)
	[AI] Retrieves the current animation position and its duration. More...
Public Member Functions inherited from LegoAnimActor
	LegoAnimActor ()
	[AI] Initializes LegoAnimActor and sets the current animation index to -1. More...
	~LegoAnimActor () override
	[AI] Destructor cleans up all animation map structures. More...
void	ParseAction (char *p_extra) override
	[AI] Handles extra action strings, looks for animation assignments and delegates to presenters (overrides parent). More...
void	SetWorldSpeed (MxFloat p_worldSpeed) override
	[AI] Sets the current world speed and chooses which animation (from the animation map list) should be used; see source for selection logic. More...
void	Animate (float p_time) override
	[AI] Performs per-frame update; applies the appropriate animation to mesh ROIs based on speed and state. More...
void	VTable0x74 (Matrix4 &p_transform) override
	[AI] Applies the current animation's transforms to the provided matrix, propagates to mesh hierarchies. More...
virtual MxResult	FUN_1001c1f0 (float &p_und)
	[AI] Computes the animation phase offset within the current animation, adjusts for looping. More...
virtual MxResult	FUN_1001c360 (float p_und, Matrix4 &p_transform)
	[AI] Applies the animation transform for the current animation at the given phase, writes to matrix. More...
virtual MxResult	FUN_1001c450 (LegoAnim *p_AnimTreePtr, float p_unk0x00, LegoROI **p_roiMap, MxU32 p_numROIs)
	[AI] Adds a new animation mapping (LegoAnimActorStruct) with a tree, threshold, and mesh mapping. More...
virtual void	ClearMaps ()
	[AI] Deallocates all animation map structures and selects no animation; resets current animation index. More...
const char *	ClassName () const override
	[AI] Returns the class name string for RTTI and type checking. More...
MxBool	IsA (const char *p_name) const override
	[AI] Checks for runtime type equality ("IsA" support); matches for this class or parent. More...
Public Member Functions inherited from LegoPathActor
	LegoPathActor ()
	[AI] Initializes the path actor, setting up default state and references. [AI] More...
	~LegoPathActor () override
	[AI] Destructor, cleans up allocated containers. [AI] More...
void	ParseAction (char *p_extra) override
	[AI] Parses a set of key-value action commands and configures path navigation and collision for this actor. More...
virtual MxS32	VTable0x68 (Vector3 &p_v1, Vector3 &p_v2, Vector3 &p_v3)
	[AI] Checks for collision/intersection with boundaries, geometry, and other actors along a traced segment; assists in advanced pathfinding by propagation. More...
virtual MxU32	VTable0x6c (LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3)
	[AI] Trace movement or collision through presenters (edge test), then through other actors. More...
virtual void	Animate (float p_time)
	[AI] Per-frame animation update. More...
virtual void	VTable0x74 (Matrix4 &p_transform)
	[AI] Updates the ROI's transformation (typically matrix) with new values, applies world position/orientation changes. More...
virtual void	SetUserNavFlag (MxBool p_userNavFlag)
	[AI] Sets whether the actor is controlled by user navigation. More...
virtual MxBool	GetUserNavFlag ()
	[AI] Returns user navigation state (whether actor follows player input). More...
virtual MxResult	VTable0x80 (const Vector3 &p_point1, Vector3 &p_point2, Vector3 &p_point3, Vector3 &p_point4)
	[AI] Calculates path interpolation for a set of points, updates state for path animation, and computes Bezier arc duration. More...
virtual MxResult	VTable0x84 (LegoPathBoundary *p_boundary, float p_time, Vector3 &p_p1, Vector3 &p_p4, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves actor to a destination edge. More...
virtual MxResult	VTable0x88 (LegoPathBoundary *p_boundary, float p_time, LegoEdge &p_srcEdge, float p_srcScale, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves the actor between two edges across a boundary, recalculates placement and orientation. More...
virtual MxS32	VTable0x8c (float p_time, Matrix4 &p_transform)
	[AI] Advance actor's position/state along the path for a given timeslice. More...
virtual MxU32	VTable0x90 (float, Matrix4 &)
	[AI] Placeholder for custom logic during per-timestep simulation for non-user-controlled animation. More...
virtual MxResult	HitActor (LegoPathActor *, MxBool)
	[AI] Handles logic when this actor hits (collides with) another path actor; can be overridden for custom interaction. More...
virtual void	SwitchBoundary (LegoPathBoundary *&p_boundary, LegoUnknown100db7f4 *&p_edge, float &p_unk0xe4)
	[AI] Switches current path boundary and destination edge, typically called on transitions or respawns. More...
virtual MxResult	VTable0x9c ()
	[AI] Handles exit transition and next-edge search logic; also used for collision reaction and fallback. More...
virtual MxS32	VTable0xa0 ()
	[AI] Placeholder for custom extension. More...
virtual void	VTable0xa4 (MxBool &p_und1, MxS32 &p_und2)
	[AI] Returns information depending on actor type. More...
virtual void	VTable0xa8 ()
	[AI] Re-applies transform to ROI, updates camera if needed, and processes per-actor tick actions. More...
virtual void	SetMaxLinearVel (MxFloat p_maxLinearVel)
	[AI] Sets the maximum linear velocity for actor navigation. More...
virtual MxFloat	GetMaxLinearVel ()
	[AI] Gets the maximum allowed navigation speed for this actor. More...
virtual MxFloat	VTable0xb4 ()
	[AI] Returns an internal value used in fallback collision/velocity calculation (proportional fudge factor). More...
virtual MxFloat	VTable0xb8 ()
	[AI] Returns a damping/multiplier factor used for velocity reduction after collisions. More...
virtual void	VTable0xbc (MxFloat p_unk0x140)
	[AI] Sets the fudge parameter for fallback collision push-back. More...
virtual void	VTable0xc0 (MxFloat p_unk0x144)
	[AI] Sets the velocity damping factor after bump. More...
virtual void	VTable0xc4 ()
	[AI] Empty handler for optional custom per-tick transition logic. More...
virtual void	VTable0xc8 (MxU8 p_unk0x148)
	[AI] Sets the rolling state (animation index, mainly for camera turning/curves). More...
const char *	ClassName () const override
	[AI] Returns the class name string for RTTI-style checks. More...
MxBool	IsA (const char *p_name) const override
	[AI] RTTI-like check, matches against own or base class name for IsA hierarchy checks. More...
LegoPathBoundary *	GetBoundary ()
	[AI] Retrieves the current path boundary associated with this actor. More...
MxU32	GetActorState ()
	[AI] Gets the current navigation/animation state of the actor. More...
LegoPathController *	GetController ()
	[AI] Retrieves pointer to the path controller which governs this actor's movement. More...
MxBool	GetCollideBox ()
	[AI] Gets the actor's collision box flag (if TRUE, actor uses a precise collision shape). More...
MxFloat	GetLastTime ()
	[AI] Gets the previous animation time value from last simulation tick. More...
MxFloat	GetActorTime ()
	[AI] Returns the current animation time of the actor. More...
void	SetBoundary (LegoPathBoundary *p_boundary)
	[AI] Assigns a new boundary for the actor (for path switching). More...
void	SetActorState (MxU32 p_actorState)
	[AI] Sets the navigation/path state of the actor. More...
void	SetController (LegoPathController *p_pathController)
	[AI] Assigns a new path controller (used for actor transitions between paths). More...
void	SetLastTime (MxFloat p_lastTime)
	[AI] Sets the time value for the last performed simulation tick. More...
void	SetActorTime (MxFloat p_actorTime)
	[AI] Sets the global actor animation time value, adjusting how far along the animation is. More...
void	UpdatePlane (LegoNamedPlane &p_namedPlane)
	[AI] Updates a named plane to match this actor's world position, direction, and up vector. More...
void	PlaceActor (LegoNamedPlane &p_namedPlane)
	[AI] Places this actor into the world at the given plane's name, location, and orientation. More...
Public Member Functions inherited from LegoActor
	LegoActor ()
	[AI] Constructs new LegoActor, initializes members. More...
	~LegoActor () override
	[AI] Cleans up LegoActor; stops sound if active. More...
const char *	ClassName () const override
	[AI] Gets the class name of this object. More...
MxBool	IsA (const char *p_name) const override
	[AI] Determines if the class is or derives from the given name. More...
void	ParseAction (char *p_extra) override
	[AI] Parses an action string and applies parsed behaviors to the actor. More...
void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2) override
	[AI] Sets the Region of Interest (ROI, i.e. More...
virtual MxFloat	GetSoundFrequencyFactor ()
	[AI] Returns the current frequency factor for the actor's sound. More...
virtual void	SetSoundFrequencyFactor (MxFloat p_frequencyFactor)
	[AI] Sets the frequency factor for the actor's sound playback (e.g., to alter pitch). More...
virtual void	VTable0x58 (MxFloat p_unk0x70)
	[AI] Sets a floating point property, unknown usage (possibly animation or audio parameter). More...
virtual MxFloat	VTable0x5c ()
	[AI] Gets the unknown floating point property set by VTable0x58. [AI] [AI_SUGGESTED_NAME: GetVoicePitchModifier] More...
virtual MxU8	GetActorId ()
	[AI] Gets this actor's numeric ID, corresponding to a known enumeration/actor. More...
virtual void	SetActorId (MxU8 p_actorId)
	[AI] Sets the actor's numeric ID. More...
void	Mute (MxBool p_muted)
	[AI] Mutes or unmutes the actor's current sound. More...
Public Member Functions inherited from LegoEntity
	LegoEntity ()
	[AI] Default constructor. Initializes the LegoEntity with default values. [AI] More...
	~LegoEntity () override
	[AI] Destructor. Cleans up resources and ensures ROI and script state are released. [AI] More...
MxLong	Notify (MxParam &p_param) override
	[AI] Handles event notification for the entity, most notably user clicks, using polymorphic dispatch. More...
const char *	ClassName () const override
	[AI] Returns the class name string. Used in entity runtime type identification. [AI] More...
MxBool	IsA (const char *p_name) const override
	[AI] Polymorphic type check for this entity given a string. More...
virtual MxResult	Create (MxDSAction &p_dsAction)
	[AI] Initializes the entity from a DSAction object, typically from a script or file load. More...
virtual void	Destroy (MxBool p_fromDestructor)
	[AI] Cleans up the entity, detaching ROI and releasing references. More...
virtual void	ParseAction (char *p_extra)
	[AI] Parses an action description string (usually from script "extra" data) and sets up this entity's action state. More...
virtual void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2)
	[AI] Assigns a 3D ROI (3D object instance) to this entity, controlling how it appears/acts in the world. More...
virtual void	SetWorldTransform (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up)
	[AI] Explicitly sets the world transformation (location, direction, up vector) for this entity. More...
virtual void	ResetWorldTransform (MxBool p_cameraFlag)
	[AI] Resets the transformation for this entity (e.g., used with camera transitions). More...
virtual void	SetWorldSpeed (MxFloat p_worldSpeed)
	[AI] Sets the current world speed value for this entity (used to control motion/animation rate). More...
virtual void	ClickSound (MxBool p_und)
	[AI] Plays a click sound, typically in response to user/AI actions, according to entity type. More...
virtual void	ClickAnimation ()
	[AI] Plays a context-sensitive click animation, driven by current entity type and state. [AI] More...
virtual void	SwitchVariant ()
	[AI] Switches variants for this entity (e.g., different animation, mesh, or texture variant), based on type. [AI] More...
virtual void	SwitchSound ()
	[AI] Triggers a context-dependent audio/sound variant switch for this entity. [AI] More...
virtual void	SwitchMove ()
	[AI] Switches movement/animation variant for this entity, if applicable (e.g., walking/running state). [AI] More...
virtual void	SwitchColor (LegoROI *p_roi)
	[AI] Switches the color or texture variant for this entity (or target ROI). More...
virtual void	SwitchMood ()
	[AI] Triggers a mood/state switch for this entity (if supported), often for characters. [AI] More...
void	FUN_10010c30 ()
	[AI] Updates the camera transformation when this entity is the camera target. Used after movement or position updates. [AI] More...
void	SetType (MxU8 p_type)
	[AI] Sets the entity's type (actor/plant/building/etc.) [AI] More...
void	SetLocation (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up, MxBool p_und)
	[AI] Sets the world-space location, direction, and up, applying normalization and transformation. More...
Mx3DPointFloat	GetWorldDirection ()
	[AI] Gets the normalized world-space direction vector, optionally updating from ROI. [AI] More...
Mx3DPointFloat	GetWorldUp ()
	[AI] Gets the normalized world-space up vector, optionally updating from ROI. [AI] More...
Mx3DPointFloat	GetWorldPosition ()
	[AI] Gets the world-space position vector, optionally updating from ROI. [AI] More...
MxBool	GetUnknown0x10IsSet (MxU8 p_flag)
	[AI] Checks if a bit flag in m_unk0x10 is set (purpose: state/animation suppression lock). More...
MxBool	GetFlagsIsSet (MxU8 p_flag)
	[AI] Checks if a flag is set in the primary flags byte (m_flags). More...
MxU8	GetFlags ()
	[AI] Returns the value of the flag byte. [AI] More...
MxFloat	GetWorldSpeed ()
	[AI] Gets the entity's current world speed state. [AI] More...
LegoROI *	GetROI ()
	[AI] Gets the ROI (Realtime Object Instance) associated with this entity. [AI] More...
MxU8	GetType ()
	[AI] Gets the type of this entity (one of the enum Type values). [AI] More...
MxBool	GetCameraFlag ()
	[AI] Returns whether this entity is flagged as camera (affects world/camera synchronization). [AI] More...
void	SetFlags (MxU8 p_flags)
	[AI] Sets all entity flags at once (replaces previous). More...
void	SetFlag (MxU8 p_flag)
	[AI] Sets the given flag in the flags byte. More...
void	ClearFlag (MxU8 p_flag)
	[AI] Clears the given flag in the flags byte. More...
void	SetUnknown0x10Flag (MxU8 p_flag)
	[AI] Sets the given bit in the unknown (usually internal action suppression) flag byte. More...
void	ClearUnknown0x10Flag (MxU8 p_flag)
	[AI] Clears the given bit in the unknown flag byte. More...
Public Member Functions inherited from MxEntity
	MxEntity ()
	Default constructor. More...
	~MxEntity () override
	Virtual destructor for MxEntity. More...
const char *	ClassName () const override
	Returns the class name for type introspection. More...
MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...
virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...
MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...
MxS32	GetEntityId ()
	Returns the current entity ID. More...
MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...
void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...
void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...
Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...
virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...
virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...
virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...
virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...
virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...
MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Public Types inherited from LegoPathActor
enum	ActorState {   c_initial = 0 , c_one = 1 , c_two = 2 , c_three = 3 ,   c_disabled = 4 , c_maxState = 255 , c_noCollide = 0x100 }
	[AI] State and flags for a LegoPathActor during navigation along a path. [AI] More...
Public Types inherited from LegoActor
enum	{   c_none = 0 , c_pepper , c_mama , c_papa ,   c_nick , c_laura , c_brickster }
	[AI] Enumeration of actor IDs for known characters. More...
Public Types inherited from LegoEntity
enum	Type {   e_actor = 0 , e_unk1 , e_plant , e_building ,   e_autoROI }
	[AI] Types of LegoEntity (Actor, Plant, Building, Auto ROI, etc.) [AI] More...
enum	{ c_bit1 = 0x01 , c_managerOwned = 0x02 }
	[AI] Bit flag constants for entity state management [AI] More...
enum	{ c_altBit1 = 0x01 }
	[AI] Secondary bit flag constants [AI] More...
Static Public Member Functions inherited from LegoActor
static const char *	GetActorName (MxU8 p_id)
	[AI] Gets the static display name of an actor by ID. More...
Protected Member Functions inherited from LegoPathActor
MxU32	FUN_1002edd0 (list< LegoPathBoundary * > &p_boundaries, LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3, MxS32 p_und)
	[AI] Recursively checks boundaries for collisions or collision path propagation up to a certain recursion depth. More...
Protected Member Functions inherited from LegoEntity
void	Init ()
	[AI] Initializes the entity's members to default/neutral values (utility for constructors and resets). [AI] More...
void	SetWorld ()
	[AI] Registers/attaches this entity to the current world if not already; called on create or location change. [AI] More...
Protected Attributes inherited from LegoAnimActor
vector< LegoAnimActorStruct * >	m_animMaps
	[AI] List of animation structures, each representing a valid animation for different speed/phase ranges. [AI] More...
MxS16	m_curAnim
	[AI] Index of currently selected animation map (-1 if none active). [AI] More...
Protected Attributes inherited from LegoPathActor
MxFloat	m_BADuration
	[AI] Duration of current Bezier arc (distance along path/current edge). [AI] More...
MxFloat	m_unk0x7c
	[AI] Interpolator/progress state along curve segment. [AI] More...
MxFloat	m_actorTime
	[AI] Animation time for current path segment. [AI] More...
MxFloat	m_lastTime
	[AI] Time of last update (used for delta calculations). [AI] More...
LegoPathBoundary *	m_boundary
	[AI] Current boundary the actor is navigating on. [AI] More...
LegoUnknown	m_unk0x8c
	[AI] Helper object for path curve interpolation and evaluation. [AI] More...
MxU32	m_actorState
	[AI] State and flags bitfield for path following logic. [AI] More...
LegoUnknown100db7f4 *	m_destEdge
	[AI] Current or target edge for path traversal. [AI] More...
MxFloat	m_unk0xe4
	[AI] Position scalar on destination edge (0-1 across the edge). [AI] More...
MxBool	m_collideBox
	[AI] Use bounding-box for more accurate collision. [AI] More...
MxBool	m_unk0xe9
	[AI] Stores latest intersection/collision status/type. [AI] More...
MxBool	m_userNavFlag
	[AI] TRUE if this actor is currently user/player controlled. [AI] More...
MxMatrix	m_unk0xec
	[AI] World-to-local transformation matrix for this actor/ROI. [AI] More...
LegoPathEdgeContainer *	m_grec
	[AI] Edge/boundary helper for tracking transitions and stateful animation. [AI] More...
LegoPathController *	m_pathController
	[AI] Path controller/manages permitted boundaries for transitions. [AI] More...
MxFloat	m_maxLinearVel
	[AI] Maximum speed of actor while moving along path. [AI] More...
MxFloat	m_unk0x140
	[AI] Scaling factor for fallback/collision response logic. [AI] More...
MxFloat	m_unk0x144
	[AI] Damping factor for velocity after collision ("bounce" friction). [AI] More...
MxU8	m_unk0x148
	[AI] Angle/animation mode for rolling/camera tilting. [AI] More...
MxS32	m_unk0x14c
	[AI] Rolling angle delta (variant for camera logic). [AI] More...
MxFloat	m_unk0x150
	[AI] Scalar factor for camera turn velocity logic. [AI] More...
Protected Attributes inherited from LegoActor
MxFloat	m_frequencyFactor
	[AI] The frequency/pitch scaling factor for the actor's sound (default 0 == normal). More...
LegoCacheSound *	m_sound
	[AI] Pointer to a currently active sound instance played by the actor, if any. More...
MxFloat	m_unk0x70
	[AI] Unknown float property, likely used for advanced audio/animation control. [AI_SUGGESTED_NAME: m_voicePitchModifier] More...
MxU8	m_actorId
	[AI] Unique identifier for this actor, corresponding to enum above. More...
Protected Attributes inherited from LegoEntity
MxU8	m_unk0x10
	[AI] Unknown state/flag, used mainly to guard against repeated actions or manage animation/sound state. [AI] More...
MxU8	m_flags
	[AI] Primary entity flags (bitfield); tracks per-entity management status, internal update locks, etc. [AI] More...
Mx3DPointFloat	m_worldLocation
	[AI] Entity location in world coordinates. [AI] More...
Mx3DPointFloat	m_worldDirection
	[AI] Entity direction vector in world space (normalized). [AI] More...
Mx3DPointFloat	m_worldUp
	[AI] Entity up vector in world space (normalized). [AI] More...
MxFloat	m_worldSpeed
	[AI] World-relative speed (can affect animation/movement logic). [AI] More...
LegoROI *	m_roi
	[AI] Pointer to this entity's currently assigned ROI (3D instance in the world). [AI] More...
MxBool	m_cameraFlag
	[AI] Set to TRUE if this entity is currently the camera target. [AI] More...
MxU8	m_type
	[AI] The entity type (Type enum value). [AI] More...
Extra::ActionType	m_actionType
	[AI] Action type, parsed from script/extra string (e.g., openram/run/exit); guides Notify() and click logic. [AI] More...
char *	m_siFile
	[AI] When parsing ACTION command, this is the SI script/filename to execute (owned, heap-allocated). [AI] More...
MxS32	m_targetEntityId
	[AI] When parsing ACTION command, this is the target entity ID for the action (or -1 for none). [AI] More...
Protected Attributes inherited from MxEntity
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...
MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

[AI] Specialized skeleton animation actor for LEGO Island car racing sequences.

Inherits from LegoAnimActor and manages the animated skeleton used in car races, synchronizing animation state and position for the race system. During ParseAction, it registers itself as the CarRace skeleton and applies a significant scale-up to its ROI bounding sphere.

[AI] This class is a specific animation actor for handling the racing skeleton (driver/figure) used in LEGO Island's Car Race mini-game. It connects its animation progress to the race logic and ensures proper world-space placement of the skeleton model.

Definition at line 24 of file raceskel.h.

Constructor & Destructor Documentation

RaceSkel()

RaceSkel::RaceSkel

(

)

[AI] Constructs a RaceSkel instance with animation state reset.

Definition at line 13 of file raceskel.cpp.

~RaceSkel()

RaceSkel::~RaceSkel ( )

override

[AI] Destructor for RaceSkel, cleans up resources.

Definition at line 19 of file raceskel.cpp.

Member Function Documentation

FUN_1001c360()

MxResult RaceSkel::FUN_1001c360 ( float  p_und, Matrix4 &  p_transform  )

overridevirtual

[AI] Apply race-specific position/orientation adjustment and updates animation position.

Sets the world-transform translation to a specific location (hardcoded), then updates internal m_animPosition to match p_und (likely animation progress/time), and calls the base implementation (which may advance the actual animation data).

Parameters

p_und	[AI] New animation position (progress/timestamp).
p_transform	[AI] Transform matrix to be overwritten with new skeleton position.

Returns

[AI] Result from the base implementation, typically successful or error status.

Reimplemented from LegoAnimActor.

Definition at line 25 of file raceskel.cpp.

FUN_10071c80()

void RaceSkel::FUN_10071c80 ( Vector3 &  p_vec )

virtual

[AI] Assigns the skeleton's position in 3D space for the car race sequence.

Sets the provided vector to the fixed race skeleton coordinates; used to position the skeleton.

Parameters

p_vec

[AI] Output vector set to the skeleton's world position.

Definition at line 55 of file raceskel.cpp.

GetCurrentAnimData()

void RaceSkel::GetCurrentAnimData	(	float *	p_outCurAnimPosition,
		float *	p_outCurAnimDuration
	)

[AI] Retrieves the current animation position and its duration.

[AI] Outputs the current animation state: the exact position in the animation and its total duration.

Parameters

p_outCurAnimPosition	[AI] (out) Current animation position (progress/time/frame).
p_outCurAnimDuration	[AI] (out) Duration of the current animation being played.

Definition at line 64 of file raceskel.cpp.

ParseAction()

void RaceSkel::ParseAction ( char *  p_extra )

overridevirtual

[AI] Parses a string command to setup the skeleton for the car race, and modifies ROI bounding sphere.

Sets itself as the active skeleton for the CarRace world, then rescales the bounding sphere of its ROI for in-game collision or culling.

Parameters

p_extra

[AI] String containing action parameters or extra commands for initialization.

Reimplemented from LegoAnimActor.

Definition at line 38 of file raceskel.cpp.

---

The documentation for this class was generated from the following files:

• raceskel.h
• raceskel.cpp
