Represents a special actor in the world with additional animation state machines and complex interactions. More...

#include <legoextraactor.h>

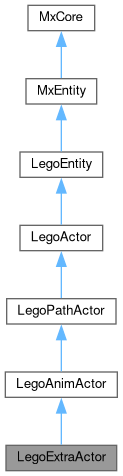

Inheritance diagram for LegoExtraActor:

[legend]

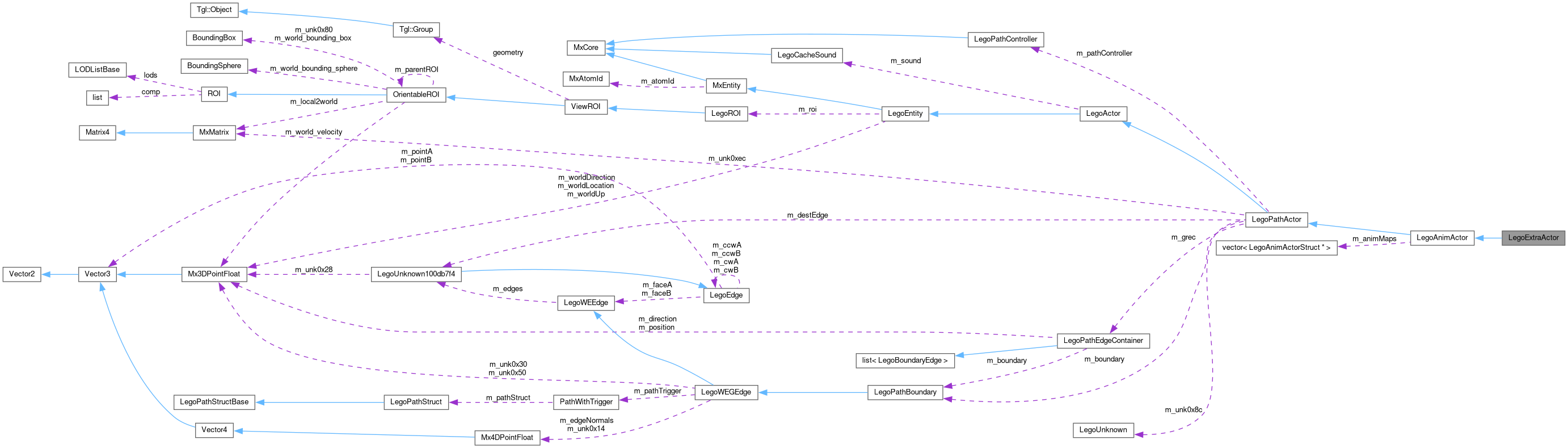

Collaboration diagram for LegoExtraActor:

[legend]

Public Types
enum	Axis { e_posz , e_negz , e_posx , e_negx }
	Used to specify the axis for orientation or effect direction during animation or collision. More...

Public Types inherited from LegoPathActor
enum	ActorState { c_initial = 0 , c_one = 1 , c_two = 2 , c_three = 3 , c_disabled = 4 , c_maxState = 255 , c_noCollide = 0x100 }
	[AI] State and flags for a LegoPathActor during navigation along a path. [AI] More...

Public Types inherited from LegoActor
enum	{ c_none = 0 , c_pepper , c_mama , c_papa , c_nick , c_laura , c_brickster }
	[AI] Enumeration of actor IDs for known characters. More...

Public Types inherited from LegoEntity
enum	Type { e_actor = 0 , e_unk1 , e_plant , e_building , e_autoROI }
	[AI] Types of LegoEntity (Actor, Plant, Building, Auto ROI, etc.) [AI] More...

enum	{ c_bit1 = 0x01 , c_managerOwned = 0x02 }
	[AI] Bit flag constants for entity state management [AI] More...

enum	{ c_altBit1 = 0x01 }
	[AI] Secondary bit flag constants [AI] More...

Public Member Functions
	LegoExtraActor ()
	Constructs a LegoExtraActor with default state and null animation references. More...

	~LegoExtraActor () override
	Destructor, cleans up allocated animation structures. More...

const char *	ClassName () const override
	Returns the class name as "LegoExtraActor". More...

MxBool	IsA (const char *p_name) const override
	Checks if the provided type name matches this class or any parent class. More...

void	SetWorldSpeed (MxFloat p_worldSpeed) override
	Sets the world speed for this actor, factoring in its current animation/interaction state. More...

MxS32	VTable0x68 (Vector3 &p_point1, Vector3 &p_point2, Vector3 &p_point3) override
	(Inherited implementation) Delegates edge update logic to LegoPathActor. More...

MxU32	VTable0x6c (LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3) override
	Tests for and handles collision with other path actors during simulation. More...

void	Animate (float p_time) override
	Performs animation updates for the actor, handling alternate animations and transitions after collisions or scripted triggers. More...

void	VTable0x74 (Matrix4 &p_transform) override
	Updates object transformation if special animation is not active, otherwise delegates to parent class. More...

MxU32	VTable0x90 (float p_time, Matrix4 &p_matrix) override
	Core animation & state tick: handles scheduled events (e.g., switching state after timed delay post-collision) and applies transforms/animations. More...

MxResult	HitActor (LegoPathActor *p_actor, MxBool p_bool) override
	Processes a collision ("hit") with another actor, updating internal animation state and triggering sound effects as needed. More...

MxResult	VTable0x9c () override
	Called when crossing path boundaries, manages transitions to special in-between animation states and disables movement as needed. More...

void	VTable0xa4 (MxBool &p_und1, MxS32 &p_und2) override
	Determines secondary state outputs for randomization or specific internal state flags, used for controlling sub-logic for the extra actor. More...

void	VTable0xc4 () override
	Handles special cleanup or reset behavior for extra actors, often related to secondary animation state. More...

virtual MxResult	FUN_1002aae0 ()
	Handles boundary edge changes and swapping the actor's edge, updating direction and orientation accordingly. More...

void	Restart ()
	Checks whether this actor's previous boundary was "blocked" and re-enables movement if allowed; called after animation freeze at boundary. More...

void	FUN_1002ad8a ()
	Loads or assigns the alternate ("assembly" and "disassembly") animations to this actor as needed. More...

void	SetUnknown0x0c (undefined p_unk0x0c)
	Sets the internal unknown flag (possible randomization/collision state controller). More...

Public Member Functions inherited from LegoAnimActor
	LegoAnimActor ()
	[AI] Initializes LegoAnimActor and sets the current animation index to -1. More...

	~LegoAnimActor () override
	[AI] Destructor cleans up all animation map structures. More...

void	ParseAction (char *p_extra) override
	[AI] Handles extra action strings, looks for animation assignments and delegates to presenters (overrides parent). More...

void	SetWorldSpeed (MxFloat p_worldSpeed) override
	[AI] Sets the current world speed and chooses which animation (from the animation map list) should be used; see source for selection logic. More...

void	Animate (float p_time) override
	[AI] Performs per-frame update; applies the appropriate animation to mesh ROIs based on speed and state. More...

void	VTable0x74 (Matrix4 &p_transform) override
	[AI] Applies the current animation's transforms to the provided matrix, propagates to mesh hierarchies. More...

virtual MxResult	FUN_1001c1f0 (float &p_und)
	[AI] Computes the animation phase offset within the current animation, adjusts for looping. More...

virtual MxResult	FUN_1001c360 (float p_und, Matrix4 &p_transform)
	[AI] Applies the animation transform for the current animation at the given phase, writes to matrix. More...

virtual MxResult	FUN_1001c450 (LegoAnim p_AnimTreePtr, float p_unk0x00, LegoROI *p_roiMap, MxU32 p_numROIs)
	[AI] Adds a new animation mapping (LegoAnimActorStruct) with a tree, threshold, and mesh mapping. More...

virtual void	ClearMaps ()
	[AI] Deallocates all animation map structures and selects no animation; resets current animation index. More...

const char *	ClassName () const override
	[AI] Returns the class name string for RTTI and type checking. More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks for runtime type equality ("IsA" support); matches for this class or parent. More...

Public Member Functions inherited from LegoPathActor
	LegoPathActor ()
	[AI] Initializes the path actor, setting up default state and references. [AI] More...

	~LegoPathActor () override
	[AI] Destructor, cleans up allocated containers. [AI] More...

void	ParseAction (char *p_extra) override
	[AI] Parses a set of key-value action commands and configures path navigation and collision for this actor. More...

virtual MxS32	VTable0x68 (Vector3 &p_v1, Vector3 &p_v2, Vector3 &p_v3)
	[AI] Checks for collision/intersection with boundaries, geometry, and other actors along a traced segment; assists in advanced pathfinding by propagation. More...

virtual MxU32	VTable0x6c (LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3)
	[AI] Trace movement or collision through presenters (edge test), then through other actors. More...

virtual void	Animate (float p_time)
	[AI] Per-frame animation update. More...

virtual void	VTable0x74 (Matrix4 &p_transform)
	[AI] Updates the ROI's transformation (typically matrix) with new values, applies world position/orientation changes. More...

virtual void	SetUserNavFlag (MxBool p_userNavFlag)
	[AI] Sets whether the actor is controlled by user navigation. More...

virtual MxBool	GetUserNavFlag ()
	[AI] Returns user navigation state (whether actor follows player input). More...

virtual MxResult	VTable0x80 (const Vector3 &p_point1, Vector3 &p_point2, Vector3 &p_point3, Vector3 &p_point4)
	[AI] Calculates path interpolation for a set of points, updates state for path animation, and computes Bezier arc duration. More...

virtual MxResult	VTable0x84 (LegoPathBoundary *p_boundary, float p_time, Vector3 &p_p1, Vector3 &p_p4, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves actor to a destination edge. More...

virtual MxResult	VTable0x88 (LegoPathBoundary *p_boundary, float p_time, LegoEdge &p_srcEdge, float p_srcScale, LegoUnknown100db7f4 &p_destEdge, float p_destScale)
	[AI] Moves the actor between two edges across a boundary, recalculates placement and orientation. More...

virtual MxS32	VTable0x8c (float p_time, Matrix4 &p_transform)
	[AI] Advance actor's position/state along the path for a given timeslice. More...

virtual MxU32	VTable0x90 (float, Matrix4 &)
	[AI] Placeholder for custom logic during per-timestep simulation for non-user-controlled animation. More...

virtual MxResult	HitActor (LegoPathActor *, MxBool)
	[AI] Handles logic when this actor hits (collides with) another path actor; can be overridden for custom interaction. More...

virtual void	SwitchBoundary (LegoPathBoundary &p_boundary, LegoUnknown100db7f4 &p_edge, float &p_unk0xe4)
	[AI] Switches current path boundary and destination edge, typically called on transitions or respawns. More...

virtual MxResult	VTable0x9c ()
	[AI] Handles exit transition and next-edge search logic; also used for collision reaction and fallback. More...

virtual MxS32	VTable0xa0 ()
	[AI] Placeholder for custom extension. More...

virtual void	VTable0xa4 (MxBool &p_und1, MxS32 &p_und2)
	[AI] Returns information depending on actor type. More...

virtual void	VTable0xa8 ()
	[AI] Re-applies transform to ROI, updates camera if needed, and processes per-actor tick actions. More...

virtual void	SetMaxLinearVel (MxFloat p_maxLinearVel)
	[AI] Sets the maximum linear velocity for actor navigation. More...

virtual MxFloat	GetMaxLinearVel ()
	[AI] Gets the maximum allowed navigation speed for this actor. More...

virtual MxFloat	VTable0xb4 ()
	[AI] Returns an internal value used in fallback collision/velocity calculation (proportional fudge factor). More...

virtual MxFloat	VTable0xb8 ()
	[AI] Returns a damping/multiplier factor used for velocity reduction after collisions. More...

virtual void	VTable0xbc (MxFloat p_unk0x140)
	[AI] Sets the fudge parameter for fallback collision push-back. More...

virtual void	VTable0xc0 (MxFloat p_unk0x144)
	[AI] Sets the velocity damping factor after bump. More...

virtual void	VTable0xc4 ()
	[AI] Empty handler for optional custom per-tick transition logic. More...

virtual void	VTable0xc8 (MxU8 p_unk0x148)
	[AI] Sets the rolling state (animation index, mainly for camera turning/curves). More...

const char *	ClassName () const override
	[AI] Returns the class name string for RTTI-style checks. More...

MxBool	IsA (const char *p_name) const override
	[AI] RTTI-like check, matches against own or base class name for IsA hierarchy checks. More...

LegoPathBoundary *	GetBoundary ()
	[AI] Retrieves the current path boundary associated with this actor. More...

MxU32	GetActorState ()
	[AI] Gets the current navigation/animation state of the actor. More...

LegoPathController *	GetController ()
	[AI] Retrieves pointer to the path controller which governs this actor's movement. More...

MxBool	GetCollideBox ()
	[AI] Gets the actor's collision box flag (if TRUE, actor uses a precise collision shape). More...

MxFloat	GetLastTime ()
	[AI] Gets the previous animation time value from last simulation tick. More...

MxFloat	GetActorTime ()
	[AI] Returns the current animation time of the actor. More...

void	SetBoundary (LegoPathBoundary *p_boundary)
	[AI] Assigns a new boundary for the actor (for path switching). More...

void	SetActorState (MxU32 p_actorState)
	[AI] Sets the navigation/path state of the actor. More...

void	SetController (LegoPathController *p_pathController)
	[AI] Assigns a new path controller (used for actor transitions between paths). More...

void	SetLastTime (MxFloat p_lastTime)
	[AI] Sets the time value for the last performed simulation tick. More...

void	SetActorTime (MxFloat p_actorTime)
	[AI] Sets the global actor animation time value, adjusting how far along the animation is. More...

void	UpdatePlane (LegoNamedPlane &p_namedPlane)
	[AI] Updates a named plane to match this actor's world position, direction, and up vector. More...

void	PlaceActor (LegoNamedPlane &p_namedPlane)
	[AI] Places this actor into the world at the given plane's name, location, and orientation. More...

Public Member Functions inherited from LegoActor
	LegoActor ()
	[AI] Constructs new LegoActor, initializes members. More...

	~LegoActor () override
	[AI] Cleans up LegoActor; stops sound if active. More...

const char *	ClassName () const override
	[AI] Gets the class name of this object. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if the class is or derives from the given name. More...

void	ParseAction (char *p_extra) override
	[AI] Parses an action string and applies parsed behaviors to the actor. More...

void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2) override
	[AI] Sets the Region of Interest (ROI, i.e. More...

virtual MxFloat	GetSoundFrequencyFactor ()
	[AI] Returns the current frequency factor for the actor's sound. More...

virtual void	SetSoundFrequencyFactor (MxFloat p_frequencyFactor)
	[AI] Sets the frequency factor for the actor's sound playback (e.g., to alter pitch). More...

virtual void	VTable0x58 (MxFloat p_unk0x70)
	[AI] Sets a floating point property, unknown usage (possibly animation or audio parameter). More...

virtual MxFloat	VTable0x5c ()
	[AI] Gets the unknown floating point property set by VTable0x58. [AI] [AI_SUGGESTED_NAME: GetVoicePitchModifier] More...

virtual MxU8	GetActorId ()
	[AI] Gets this actor's numeric ID, corresponding to a known enumeration/actor. More...

virtual void	SetActorId (MxU8 p_actorId)
	[AI] Sets the actor's numeric ID. More...

void	Mute (MxBool p_muted)
	[AI] Mutes or unmutes the actor's current sound. More...

Public Member Functions inherited from LegoEntity
	LegoEntity ()
	[AI] Default constructor. Initializes the LegoEntity with default values. [AI] More...

	~LegoEntity () override
	[AI] Destructor. Cleans up resources and ensures ROI and script state are released. [AI] More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles event notification for the entity, most notably user clicks, using polymorphic dispatch. More...

const char *	ClassName () const override
	[AI] Returns the class name string. Used in entity runtime type identification. [AI] More...

MxBool	IsA (const char *p_name) const override
	[AI] Polymorphic type check for this entity given a string. More...

virtual MxResult	Create (MxDSAction &p_dsAction)
	[AI] Initializes the entity from a DSAction object, typically from a script or file load. More...

virtual void	Destroy (MxBool p_fromDestructor)
	[AI] Cleans up the entity, detaching ROI and releasing references. More...

virtual void	ParseAction (char *p_extra)
	[AI] Parses an action description string (usually from script "extra" data) and sets up this entity's action state. More...

virtual void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2)
	[AI] Assigns a 3D ROI (3D object instance) to this entity, controlling how it appears/acts in the world. More...

virtual void	SetWorldTransform (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up)
	[AI] Explicitly sets the world transformation (location, direction, up vector) for this entity. More...

virtual void	ResetWorldTransform (MxBool p_cameraFlag)
	[AI] Resets the transformation for this entity (e.g., used with camera transitions). More...

virtual void	SetWorldSpeed (MxFloat p_worldSpeed)
	[AI] Sets the current world speed value for this entity (used to control motion/animation rate). More...

virtual void	ClickSound (MxBool p_und)
	[AI] Plays a click sound, typically in response to user/AI actions, according to entity type. More...

virtual void	ClickAnimation ()
	[AI] Plays a context-sensitive click animation, driven by current entity type and state. [AI] More...

virtual void	SwitchVariant ()
	[AI] Switches variants for this entity (e.g., different animation, mesh, or texture variant), based on type. [AI] More...

virtual void	SwitchSound ()
	[AI] Triggers a context-dependent audio/sound variant switch for this entity. [AI] More...

virtual void	SwitchMove ()
	[AI] Switches movement/animation variant for this entity, if applicable (e.g., walking/running state). [AI] More...

virtual void	SwitchColor (LegoROI *p_roi)
	[AI] Switches the color or texture variant for this entity (or target ROI). More...

virtual void	SwitchMood ()
	[AI] Triggers a mood/state switch for this entity (if supported), often for characters. [AI] More...

void	FUN_10010c30 ()
	[AI] Updates the camera transformation when this entity is the camera target. Used after movement or position updates. [AI] More...

void	SetType (MxU8 p_type)
	[AI] Sets the entity's type (actor/plant/building/etc.) [AI] More...

void	SetLocation (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up, MxBool p_und)
	[AI] Sets the world-space location, direction, and up, applying normalization and transformation. More...

Mx3DPointFloat	GetWorldDirection ()
	[AI] Gets the normalized world-space direction vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldUp ()
	[AI] Gets the normalized world-space up vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldPosition ()
	[AI] Gets the world-space position vector, optionally updating from ROI. [AI] More...

MxBool	GetUnknown0x10IsSet (MxU8 p_flag)
	[AI] Checks if a bit flag in m_unk0x10 is set (purpose: state/animation suppression lock). More...

MxBool	GetFlagsIsSet (MxU8 p_flag)
	[AI] Checks if a flag is set in the primary flags byte (m_flags). More...

MxU8	GetFlags ()
	[AI] Returns the value of the flag byte. [AI] More...

MxFloat	GetWorldSpeed ()
	[AI] Gets the entity's current world speed state. [AI] More...

LegoROI *	GetROI ()
	[AI] Gets the ROI (Realtime Object Instance) associated with this entity. [AI] More...

MxU8	GetType ()
	[AI] Gets the type of this entity (one of the enum Type values). [AI] More...

MxBool	GetCameraFlag ()
	[AI] Returns whether this entity is flagged as camera (affects world/camera synchronization). [AI] More...

void	SetFlags (MxU8 p_flags)
	[AI] Sets all entity flags at once (replaces previous). More...

void	SetFlag (MxU8 p_flag)
	[AI] Sets the given flag in the flags byte. More...

void	ClearFlag (MxU8 p_flag)
	[AI] Clears the given flag in the flags byte. More...

void	SetUnknown0x10Flag (MxU8 p_flag)
	[AI] Sets the given bit in the unknown (usually internal action suppression) flag byte. More...

void	ClearUnknown0x10Flag (MxU8 p_flag)
	[AI] Clears the given bit in the unknown flag byte. More...

Public Member Functions inherited from MxEntity
	MxEntity ()
	Default constructor. More...

	~MxEntity () override
	Virtual destructor for MxEntity. More...

const char *	ClassName () const override
	Returns the class name for type introspection. More...

MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...

virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...

MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...

MxS32	GetEntityId ()
	Returns the current entity ID. More...

MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...

void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...

void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Static Public Member Functions inherited from LegoActor
static const char *	GetActorName (MxU8 p_id)
	[AI] Gets the static display name of an actor by ID. More...

Protected Member Functions inherited from LegoPathActor
MxU32	FUN_1002edd0 (list< LegoPathBoundary * > &p_boundaries, LegoPathBoundary *p_boundary, Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3, MxS32 p_und)
	[AI] Recursively checks boundaries for collisions or collision path propagation up to a certain recursion depth. More...

Protected Member Functions inherited from LegoEntity
void	Init ()
	[AI] Initializes the entity's members to default/neutral values (utility for constructors and resets). [AI] More...

void	SetWorld ()
	[AI] Registers/attaches this entity to the current world if not already; called on create or location change. [AI] More...

Protected Attributes inherited from LegoAnimActor
vector< LegoAnimActorStruct * >	m_animMaps
	[AI] List of animation structures, each representing a valid animation for different speed/phase ranges. [AI] More...

MxS16	m_curAnim
	[AI] Index of currently selected animation map (-1 if none active). [AI] More...

Protected Attributes inherited from LegoPathActor
MxFloat	m_BADuration
	[AI] Duration of current Bezier arc (distance along path/current edge). [AI] More...

MxFloat	m_unk0x7c
	[AI] Interpolator/progress state along curve segment. [AI] More...

MxFloat	m_actorTime
	[AI] Animation time for current path segment. [AI] More...

MxFloat	m_lastTime
	[AI] Time of last update (used for delta calculations). [AI] More...

LegoPathBoundary *	m_boundary
	[AI] Current boundary the actor is navigating on. [AI] More...

LegoUnknown	m_unk0x8c
	[AI] Helper object for path curve interpolation and evaluation. [AI] More...

MxU32	m_actorState
	[AI] State and flags bitfield for path following logic. [AI] More...

LegoUnknown100db7f4 *	m_destEdge
	[AI] Current or target edge for path traversal. [AI] More...

MxFloat	m_unk0xe4
	[AI] Position scalar on destination edge (0-1 across the edge). [AI] More...

MxBool	m_collideBox
	[AI] Use bounding-box for more accurate collision. [AI] More...

MxBool	m_unk0xe9
	[AI] Stores latest intersection/collision status/type. [AI] More...

MxBool	m_userNavFlag
	[AI] TRUE if this actor is currently user/player controlled. [AI] More...

MxMatrix	m_unk0xec
	[AI] World-to-local transformation matrix for this actor/ROI. [AI] More...

LegoPathEdgeContainer *	m_grec
	[AI] Edge/boundary helper for tracking transitions and stateful animation. [AI] More...

LegoPathController *	m_pathController
	[AI] Path controller/manages permitted boundaries for transitions. [AI] More...

MxFloat	m_maxLinearVel
	[AI] Maximum speed of actor while moving along path. [AI] More...

MxFloat	m_unk0x140
	[AI] Scaling factor for fallback/collision response logic. [AI] More...

MxFloat	m_unk0x144
	[AI] Damping factor for velocity after collision ("bounce" friction). [AI] More...

MxU8	m_unk0x148
	[AI] Angle/animation mode for rolling/camera tilting. [AI] More...

MxS32	m_unk0x14c
	[AI] Rolling angle delta (variant for camera logic). [AI] More...

MxFloat	m_unk0x150
	[AI] Scalar factor for camera turn velocity logic. [AI] More...

Protected Attributes inherited from LegoActor
MxFloat	m_frequencyFactor
	[AI] The frequency/pitch scaling factor for the actor's sound (default 0 == normal). More...

LegoCacheSound *	m_sound
	[AI] Pointer to a currently active sound instance played by the actor, if any. More...

MxFloat	m_unk0x70
	[AI] Unknown float property, likely used for advanced audio/animation control. [AI_SUGGESTED_NAME: m_voicePitchModifier] More...

MxU8	m_actorId
	[AI] Unique identifier for this actor, corresponding to enum above. More...

Protected Attributes inherited from LegoEntity
MxU8	m_unk0x10
	[AI] Unknown state/flag, used mainly to guard against repeated actions or manage animation/sound state. [AI] More...

MxU8	m_flags
	[AI] Primary entity flags (bitfield); tracks per-entity management status, internal update locks, etc. [AI] More...

Mx3DPointFloat	m_worldLocation
	[AI] Entity location in world coordinates. [AI] More...

Mx3DPointFloat	m_worldDirection
	[AI] Entity direction vector in world space (normalized). [AI] More...

Mx3DPointFloat	m_worldUp
	[AI] Entity up vector in world space (normalized). [AI] More...

MxFloat	m_worldSpeed
	[AI] World-relative speed (can affect animation/movement logic). [AI] More...

LegoROI *	m_roi
	[AI] Pointer to this entity's currently assigned ROI (3D instance in the world). [AI] More...

MxBool	m_cameraFlag
	[AI] Set to TRUE if this entity is currently the camera target. [AI] More...

MxU8	m_type
	[AI] The entity type (Type enum value). [AI] More...

Extra::ActionType	m_actionType
	[AI] Action type, parsed from script/extra string (e.g., openram/run/exit); guides Notify() and click logic. [AI] More...

char *	m_siFile
	[AI] When parsing ACTION command, this is the SI script/filename to execute (owned, heap-allocated). [AI] More...

MxS32	m_targetEntityId
	[AI] When parsing ACTION command, this is the target entity ID for the action (or -1 for none). [AI] More...

Protected Attributes inherited from MxEntity
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...

MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

Represents a special actor in the world with additional animation state machines and complex interactions.

[AI]

This class extends LegoAnimActor and adds extra animation states and transitions triggered by collisions or scripted events, supporting alternate animation tracks such as "disassembly" and "assembly". Used for breakable or multi-state objects/characters in the world. [AI]

Definition at line 23 of file legoextraactor.h.

Member Enumeration Documentation

◆ Axis

enum LegoExtraActor::Axis

Used to specify the axis for orientation or effect direction during animation or collision.

[AI]

Enumerator
e_posz	+Z axis [AI]
e_negz	-Z axis [AI]
e_posx	+X axis [AI]
e_negx	-X axis [AI]

Definition at line 28 of file legoextraactor.h.

Constructor & Destructor Documentation

◆ LegoExtraActor()

LegoExtraActor::LegoExtraActor ( )

Constructs a LegoExtraActor with default state and null animation references.

[AI]

Definition at line 31 of file legoextraactor.cpp.

◆ ~LegoExtraActor()

LegoExtraActor::~LegoExtraActor ( )

override

Destructor, cleans up allocated animation structures.

[AI]

Definition at line 44 of file legoextraactor.cpp.

Member Function Documentation

◆ Animate()

void LegoExtraActor::Animate ( float p_time )

overridevirtual

Performs animation updates for the actor, handling alternate animations and transitions after collisions or scripted triggers.

[AI]

Parameters

p_time Simulation time or animation tick. [AI]

Reimplemented from LegoAnimActor.

Definition at line 325 of file legoextraactor.cpp.

◆ ClassName()

const char * LegoExtraActor::ClassName ( ) const

overridevirtual

Returns the class name as "LegoExtraActor".

Used for runtime type checks and introspection. [AI]

Returns: Name string of this class. [AI]

Reimplemented from LegoAnimActor.

◆ FUN_1002aae0()

MxResult LegoExtraActor::FUN_1002aae0 ( )

virtual

Handles boundary edge changes and swapping the actor's edge, updating direction and orientation accordingly.

Used when actor needs to switch to another path edge (i.e., after collision or path completion).

Returns: Always SUCCESS. [AI]

Definition at line 131 of file legoextraactor.cpp.

◆ FUN_1002ad8a()

void LegoExtraActor::FUN_1002ad8a ( )

inline

Loads or assigns the alternate ("assembly" and "disassembly") animations to this actor as needed.

Called on-demand when state changes require new animations. [AI]

Definition at line 157 of file legoextraactor.cpp.

◆ HitActor()

MxResult LegoExtraActor::HitActor	(	LegoPathActor *	p_actor,
		MxBool	p_bool
	)

overridevirtual

Processes a collision ("hit") with another actor, updating internal animation state and triggering sound effects as needed.

Handles special collision/animation scheduling for breaking/assembling objects. [AI]

Parameters

p_actor	The colliding actor. [AI]
p_bool	TRUE for direct hit, FALSE for overlap. [AI]

Returns: SUCCESS or FAILURE, depending on whether further collision/animation is allowed. [AI]

Reimplemented from LegoPathActor.

Definition at line 194 of file legoextraactor.cpp.

◆ IsA()

MxBool LegoExtraActor::IsA ( const char * p_name ) const

overridevirtual

Checks if the provided type name matches this class or any parent class.

[AI]

Parameters

p_name Type name string to check. [AI]

Reimplemented from LegoAnimActor.

◆ Restart()

void LegoExtraActor::Restart ( )

Checks whether this actor's previous boundary was "blocked" and re-enables movement if allowed; called after animation freeze at boundary.

[AI]

Definition at line 303 of file legoextraactor.cpp.

◆ SetUnknown0x0c()

void LegoExtraActor::SetUnknown0x0c ( undefined p_unk0x0c )

inline

Sets the internal unknown flag (possible randomization/collision state controller).

[AI]

Parameters

p_unk0x0c Value to set. [AI]

Definition at line 165 of file legoextraactor.h.

◆ SetWorldSpeed()

void LegoExtraActor::SetWorldSpeed ( MxFloat p_worldSpeed )

overridevirtual

Sets the world speed for this actor, factoring in its current animation/interaction state.

If the current animation is at rest and speed is set positive, transitions to an active state. [AI]

Parameters

p_worldSpeed Target world speed value. [AI]

Reimplemented from LegoAnimActor.

Definition at line 390 of file legoextraactor.cpp.

◆ VTable0x68()

MxS32 LegoExtraActor::VTable0x68	(	Vector3 &	p_point1,
		Vector3 &	p_point2,
		Vector3 &	p_point3
	)

overridevirtual

(Inherited implementation) Delegates edge update logic to LegoPathActor.

[AI]

Parameters

p_point1	Point parameter for edge. [AI]
p_point2	Point parameter for edge. [AI]
p_point3	Point parameter for edge. [AI]

Returns: S32 result on edge-tick operation. [AI]

Reimplemented from LegoPathActor.

Definition at line 419 of file legoextraactor.cpp.

◆ VTable0x6c()

MxU32 LegoExtraActor::VTable0x6c	(	LegoPathBoundary *	p_boundary,
		Vector3 &	p_v1,
		Vector3 &	p_v2,
		float	p_f1,
		float	p_f2,
		Vector3 &	p_v3
	)

inlineoverridevirtual

Tests for and handles collision with other path actors during simulation.

Checks both animated presenters and actor boundaries for potential collisions, triggers HitActor and animation state transitions where appropriate.

Parameters

p_boundary	The path boundary to check against. [AI]
p_v1	Origin vector. [AI]
p_v2	Velocity vector. [AI]
p_f1	Animation/collision t-min. [AI]
p_f2	Animation/collision t-max. [AI]
p_v3	Out parameter for impact point. [AI]

Returns: 0: No collision, 1: presenter collision, 2: actor collision (with state changes) [AI]

Reimplemented from LegoPathActor.

Definition at line 425 of file legoextraactor.cpp.

◆ VTable0x74()

void LegoExtraActor::VTable0x74 ( Matrix4 & p_transform )

overridevirtual

Updates object transformation if special animation is not active, otherwise delegates to parent class.

Used for position/orientation updates. [AI]

Parameters

p_transform Output transform matrix. [AI]

Reimplemented from LegoAnimActor.

Definition at line 382 of file legoextraactor.cpp.

◆ VTable0x90()

MxU32 LegoExtraActor::VTable0x90	(	float	p_time,
		Matrix4 &	p_matrix
	)

overridevirtual

Core animation & state tick: handles scheduled events (e.g., switching state after timed delay post-collision) and applies transforms/animations.

Triggers rotation and deactivation/reactivation. [AI]

Parameters

p_time	Current time. [AI]
p_matrix	Transform matrix to apply. [AI]

Returns: 1 if state transition occurs, 0 otherwise. [AI]

Reimplemented from LegoPathActor.

Definition at line 51 of file legoextraactor.cpp.

◆ VTable0x9c()

MxResult LegoExtraActor::VTable0x9c ( )

overridevirtual

Called when crossing path boundaries, manages transitions to special in-between animation states and disables movement as needed.

If interaction is ongoing (e.g., post-collision), animates "frozen" state until boundary-relation changes. [AI]

Returns: Result of the base class boundary-crossing logic. [AI]

Reimplemented from LegoPathActor.

Definition at line 275 of file legoextraactor.cpp.

◆ VTable0xa4()

void LegoExtraActor::VTable0xa4	(	MxBool &	p_und1,
		MxS32 &	p_und2
	)

overridevirtual

Determines secondary state outputs for randomization or specific internal state flags, used for controlling sub-logic for the extra actor.

Parameters

p_und1	Output: BOOL result for a given in-state. [AI]
p_und2	Output: Int branch or random result depending on state. [AI]

Reimplemented from LegoPathActor.

Definition at line 112 of file legoextraactor.cpp.

◆ VTable0xc4()

void LegoExtraActor::VTable0xc4 ( )

overridevirtual

Handles special cleanup or reset behavior for extra actors, often related to secondary animation state.

[AI]

Reimplemented from LegoPathActor.

Definition at line 400 of file legoextraactor.cpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Axis

Constructor & Destructor Documentation

◆ LegoExtraActor()

◆ ~LegoExtraActor()

Member Function Documentation

◆ Animate()

◆ ClassName()

◆ FUN_1002aae0()

◆ FUN_1002ad8a()

◆ HitActor()

◆ IsA()

◆ Restart()

◆ SetUnknown0x0c()

◆ SetWorldSpeed()

◆ VTable0x68()

◆ VTable0x6c()

◆ VTable0x74()

◆ VTable0x90()

◆ VTable0x9c()

◆ VTable0xa4()

◆ VTable0xc4()
