[AI] Presents and loads Lego part definitions from SI chunks and manages their installation in ViewLODListManager. More...

#include <legopartpresenter.h>

Inheritance diagram for LegoPartPresenter:

[legend]

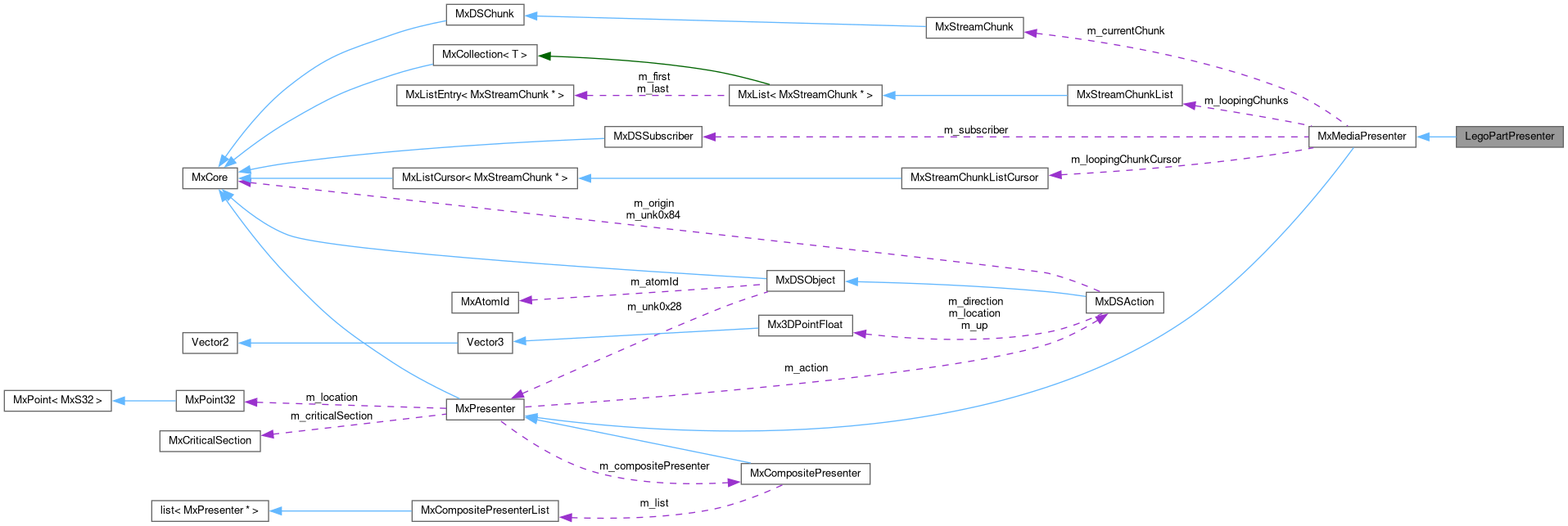

Collaboration diagram for LegoPartPresenter:

[legend]

Public Member Functions
	LegoPartPresenter ()
	[AI] Constructs and resets the LegoPartPresenter state. More...

	~LegoPartPresenter () override
	[AI] Destructor calls Destroy to release resources. More...

void	Destroy () override
	[AI] Virtual destroy method called by framework. More...

const char *	ClassName () const override
	[AI] Returns the name of the concrete class. More...

MxBool	IsA (const char *p_name) const override
	[AI] Type checking: returns true if p_name is this class or a parent class name. More...

void	ReadyTickle () override
	[AI] Called when entering the Ready tickle state: loads and installs parts from the subscriber stream if available. More...

MxResult	AddToManager () override
	[AI] Registers this presenter with the VideoManager. More...

void	Reset ()
	[AI] Resets the LegoPartPresenter by clearing any loaded LegoNamedPartList. More...

MxResult	Read (MxDSChunk &p_chunk)
	[AI] Reads Lego part and texture data from a MxDSChunk and builds internal part list. More...

void	Store ()
	[AI] Transfers all loaded named Lego parts and LODs to the ViewLODListManager. More...

Public Member Functions inherited from MxMediaPresenter
	MxMediaPresenter ()
	[AI] Constructs the presenter, initializing all member variables. More...

	~MxMediaPresenter () override
	[AI] Destructor; cleans up and optionally destroys all internal resources as well as the MxDSSubscriber and chunk list/cursor. More...

void	Destroy () override
	[AI] Cleans up internal resources and resets the presenter to an uninitialized state. More...

MxResult	Tickle () override
	[AI] Advances the presenter's state and media stream, if any, by tickling (i.e., updating) components. More...

const char *	ClassName () const override
	[AI] Returns the class name for this presenter (see HandlerClassName()). More...

MxBool	IsA (const char *p_name) const override
	[AI] Returns TRUE if the provided class name matches this class or any of its parents. More...

void	StreamingTickle () override
	[AI] Per-frame update when streaming the media stream. More...

void	RepeatingTickle () override
	[AI] Per-frame update while looping/repeating over known chunks. More...

void	DoneTickle () override
	[AI] Per-frame update for the "done" state; transitions this presenter to idle and ends the action. More...

MxResult	StartAction (MxStreamController , MxDSAction ) override
	[AI] Begins a new media playback action, wiring up the stream and chunk lists as needed. More...

void	EndAction () override
	[AI] Ends the media playback action, releasing all resources, notifying listeners if necessary. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables media stream playback and transitions state as needed. More...

virtual void	LoopChunk (MxStreamChunk *p_chunk)
	[AI] Adds a chunk to the looping chunk list, making it available for repeated playback. More...

MxStreamChunk *	CurrentChunk ()
	[AI] Returns a pointer to the current data chunk at the head of the stream, without consuming it. More...

MxStreamChunk *	NextChunk ()
	[AI] Returns the next data chunk in the stream, removing it from the stream queue. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Static Public Member Functions
static const char *	HandlerClassName ()
	[AI] Get static name of this handler's class. More...

static void	configureLegoPartPresenter (MxS32 p_partPresenterConfig1, MxS32 p_partPresenterConfig2)
	[AI] Configure global settings for texture loading order and maximum number of LODs. More...

Static Public Member Functions inherited from MxMediaPresenter
static const char *	HandlerClassName ()
	[AI] Gets the class name string for handler dispatch and RTTI emulation. More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Additional Inherited Members
Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Protected Member Functions inherited from MxMediaPresenter
void	Init ()
	[AI] Initializes all member variables to a known default state (NULL pointers, etc). More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Frees all managed resources, owned memory and pointers, optionally preventing destruction of the base class. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Protected Attributes inherited from MxMediaPresenter
MxDSSubscriber *	m_subscriber
	[AI] Subscriber that provides the stream data (e.g., audio/video chunks) for this presenter. More...

MxStreamChunkList *	m_loopingChunks
	[AI] Linked list of all chunks available for looping/repeating playback. More...

MxStreamChunkListCursor *	m_loopingChunkCursor
	[AI] Cursor used to iterate through the loopingChunk list during repeat mode. More...

MxStreamChunk *	m_currentChunk
	[AI] Currently active data chunk for playback or processing. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Detailed Description

[AI] Presents and loads Lego part definitions from SI chunks and manages their installation in ViewLODListManager.

[AI] LegoPartPresenter is a derived presenter that reads Lego part data (geometry, textures, names, LODs) from MxDSChunk binary data supplied by MxDSSubscriber. After parsing and instantiating all LegoNamedParts with their LODs, it stores these into the ViewLODListManager for later use by the renderer. It also manages the resources' proper destruction and deallocation. The loading of textures supports a configurable hardware/software order, based on global config.

Definition at line 13 of file legopartpresenter.h.

Constructor & Destructor Documentation

◆ LegoPartPresenter()

LegoPartPresenter::LegoPartPresenter ( )

inline

[AI] Constructs and resets the LegoPartPresenter state.

Definition at line 18 of file legopartpresenter.h.

◆ ~LegoPartPresenter()

LegoPartPresenter::~LegoPartPresenter ( )

inlineoverride

[AI] Destructor calls Destroy to release resources.

[AI] Ensures all loaded parts and references are deallocated when this presenter is destroyed.

Definition at line 24 of file legopartpresenter.h.

Member Function Documentation

◆ AddToManager()

MxResult LegoPartPresenter::AddToManager ( )

overridevirtual

[AI] Registers this presenter with the VideoManager.

[AI] Called when the presenter is added to the presenter's manager; makes the part presenter available for use.

Returns: [AI] Success status.

Reimplemented from MxPresenter.

Definition at line 31 of file legopartpresenter.cpp.

◆ ClassName()

const char * LegoPartPresenter::ClassName ( ) const

inlineoverridevirtual

[AI] Returns the name of the concrete class.

Returns: [AI] The handler class name.

Reimplemented from MxCore.

Definition at line 45 of file legopartpresenter.h.

◆ configureLegoPartPresenter()

void LegoPartPresenter::configureLegoPartPresenter	(	MxS32	p_partPresenterConfig1,
		MxS32	p_partPresenterConfig2
	)

static

[AI] Configure global settings for texture loading order and maximum number of LODs.

Parameters

p_partPresenterConfig1	[AI] If true, load hardware textures first; otherwise, load software textures first.
p_partPresenterConfig2	[AI] Maximum allowed LODs per part to load (surplus are ignored).

Definition at line 24 of file legopartpresenter.cpp.

◆ Destroy()

void LegoPartPresenter::Destroy ( )

inlineoverridevirtual

[AI] Virtual destroy method called by framework.

Calls Destroy(FALSE).

Reimplemented from MxPresenter.

Definition at line 29 of file legopartpresenter.h.

◆ HandlerClassName()

static const char * LegoPartPresenter::HandlerClassName ( )

inlinestatic

[AI] Get static name of this handler's class.

Returns: [AI] Static string literal "LegoPartPresenter".

Definition at line 35 of file legopartpresenter.h.

◆ IsA()

MxBool LegoPartPresenter::IsA ( const char * p_name ) const

inlineoverridevirtual

[AI] Type checking: returns true if p_name is this class or a parent class name.

Parameters

p_name [AI] Name to compare.

Returns: [AI] True if the name matches this class or a base class.

Reimplemented from MxCore.

Definition at line 55 of file legopartpresenter.h.

◆ Read()

MxResult LegoPartPresenter::Read ( MxDSChunk & p_chunk )

[AI] Reads Lego part and texture data from a MxDSChunk and builds internal part list.

[AI] Parses both texture and geometry definitions for all named parts, creating all necessary objects in memory.

Parameters

p_chunk [AI] SI chunk to be deserialized.

Returns: [AI] Success if all data is parsed and objects are instantiated; failure if any errors occur.

Definition at line 56 of file legopartpresenter.cpp.

◆ ReadyTickle()

void LegoPartPresenter::ReadyTickle ( )

overridevirtual

[AI] Called when entering the Ready tickle state: loads and installs parts from the subscriber stream if available.

[AI] Reads chunk data, parses all contained Lego parts and textures, and stores the results via Store(). Ends the action.

Reimplemented from MxPresenter.

Definition at line 223 of file legopartpresenter.cpp.

◆ Reset()

void LegoPartPresenter::Reset ( )

inline

[AI] Resets the LegoPartPresenter by clearing any loaded LegoNamedPartList.

[AI] Sets the m_parts pointer to NULL and does not deallocate previous objects—it is intended to be used on a freshly constructed object.

Definition at line 87 of file legopartpresenter.h.

◆ Store()

void LegoPartPresenter::Store ( )

[AI] Transfers all loaded named Lego parts and LODs to the ViewLODListManager.

[AI] After calling, the loaded part data is pushed to the centralized LOD manager and this presenter’s local storage is reset.

Definition at line 244 of file legopartpresenter.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LegoPartPresenter()

◆ ~LegoPartPresenter()

Member Function Documentation

◆ AddToManager()

◆ ClassName()

◆ configureLegoPartPresenter()

◆ Destroy()

◆ HandlerClassName()

◆ IsA()

◆ Read()

◆ ReadyTickle()

◆ Reset()

◆ Store()
