[AI] Presenter class for loading and managing path data from scripts/actions, used for actor pathing in the LEGO Island engine. More...

#include <legopathpresenter.h>

Inheritance diagram for LegoPathPresenter:

[legend]

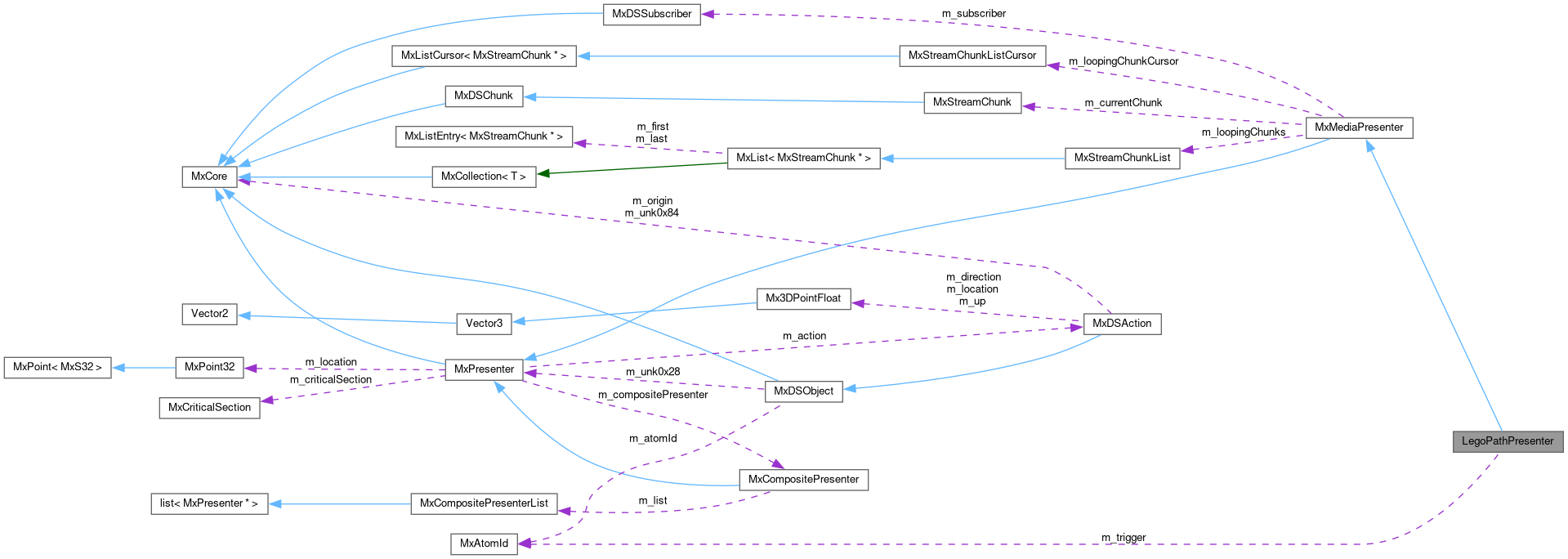

Collaboration diagram for LegoPathPresenter:

[legend]

Public Member Functions
	LegoPathPresenter ()
	[AI] Constructs a LegoPathPresenter, initializing its members and state. More...

	~LegoPathPresenter () override
	[AI] Destroys this presenter, unregistering from the video manager, deleting resources, and restoring critical section safety. More...

const char *	ClassName () const override
	[AI] Returns the class name for this presenter instance, for dynamic type identification. More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks if this instance matches a specified class name in the inheritance hierarchy. More...

void	ReadyTickle () override
	[AI] Handles the transition to the ready state ("ReadyTickle") by consuming streamed path data, creating a LegoPathController, and inserting it into the current world. More...

void	StreamingTickle () override
	[AI] Processes data stream chunks during the streaming tickle phase. More...

void	RepeatingTickle () override
	[AI] Handles the repeating tickle logic, ending the action if the associated duration is not indefinite. More...

void	ParseExtra () override
	[AI] Parses the extra (optional) field from the related media action, searching for a trigger string and assigning it to m_trigger. More...

MxResult	AddToManager () override
	[AI] Registers this presenter instance with the global or world's video manager (LegoVideoManager). More...

void	Destroy () override
	[AI] Unregisters the presenter from the video manager, deallocates managed resources, and resets internal state. More...

Public Member Functions inherited from MxMediaPresenter
	MxMediaPresenter ()
	[AI] Constructs the presenter, initializing all member variables. More...

	~MxMediaPresenter () override
	[AI] Destructor; cleans up and optionally destroys all internal resources as well as the MxDSSubscriber and chunk list/cursor. More...

void	Destroy () override
	[AI] Cleans up internal resources and resets the presenter to an uninitialized state. More...

MxResult	Tickle () override
	[AI] Advances the presenter's state and media stream, if any, by tickling (i.e., updating) components. More...

const char *	ClassName () const override
	[AI] Returns the class name for this presenter (see HandlerClassName()). More...

MxBool	IsA (const char *p_name) const override
	[AI] Returns TRUE if the provided class name matches this class or any of its parents. More...

void	StreamingTickle () override
	[AI] Per-frame update when streaming the media stream. More...

void	RepeatingTickle () override
	[AI] Per-frame update while looping/repeating over known chunks. More...

void	DoneTickle () override
	[AI] Per-frame update for the "done" state; transitions this presenter to idle and ends the action. More...

MxResult	StartAction (MxStreamController , MxDSAction ) override
	[AI] Begins a new media playback action, wiring up the stream and chunk lists as needed. More...

void	EndAction () override
	[AI] Ends the media playback action, releasing all resources, notifying listeners if necessary. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables media stream playback and transitions state as needed. More...

virtual void	LoopChunk (MxStreamChunk *p_chunk)
	[AI] Adds a chunk to the looping chunk list, making it available for repeated playback. More...

MxStreamChunk *	CurrentChunk ()
	[AI] Returns a pointer to the current data chunk at the head of the stream, without consuming it. More...

MxStreamChunk *	NextChunk ()
	[AI] Returns the next data chunk in the stream, removing it from the stream queue. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Static Public Member Functions
static const char *	HandlerClassName ()
	[AI] Returns the static handler class name for this presenter, used for identification and class dispatching. More...

Static Public Member Functions inherited from MxMediaPresenter
static const char *	HandlerClassName ()
	[AI] Gets the class name string for handler dispatch and RTTI emulation. More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Protected Member Functions
void	Destroy (MxBool p_fromDestructor)
	[AI] Internal destroy logic with destructor context flag. More...

Protected Member Functions inherited from MxMediaPresenter
void	Init ()
	[AI] Initializes all member variables to a known default state (NULL pointers, etc). More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Frees all managed resources, owned memory and pointers, optionally preventing destruction of the base class. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Protected Attributes
MxAtomId	m_trigger
	[AI] Atom identifier representing a trigger parsed from the extra string in the associated media action. More...

Protected Attributes inherited from MxMediaPresenter
MxDSSubscriber *	m_subscriber
	[AI] Subscriber that provides the stream data (e.g., audio/video chunks) for this presenter. More...

MxStreamChunkList *	m_loopingChunks
	[AI] Linked list of all chunks available for looping/repeating playback. More...

MxStreamChunkListCursor *	m_loopingChunkCursor
	[AI] Cursor used to iterate through the loopingChunk list during repeat mode. More...

MxStreamChunk *	m_currentChunk
	[AI] Currently active data chunk for playback or processing. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Additional Inherited Members
Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Detailed Description

[AI] Presenter class for loading and managing path data from scripts/actions, used for actor pathing in the LEGO Island engine.

Handles allocation, destruction, and registration of path controllers with the video (presentation) manager, as well as tickle logic for presenting and parsing associated trigger atom identifiers. [AI]

LegoPathPresenter sits atop MxMediaPresenter and is responsible for interpreting and instantiating path data used by entities/actors to follow world paths. On ReadyTickle, it creates LegoPathController objects based on streamed chunk data and registers these with the active world. [AI]

Definition at line 15 of file legopathpresenter.h.

Constructor & Destructor Documentation

◆ LegoPathPresenter()

LegoPathPresenter::LegoPathPresenter ( )

[AI] Constructs a LegoPathPresenter, initializing its members and state.

[AI]

Definition at line 15 of file legopathpresenter.cpp.

◆ ~LegoPathPresenter()

LegoPathPresenter::~LegoPathPresenter ( )

override

[AI] Destroys this presenter, unregistering from the video manager, deleting resources, and restoring critical section safety.

[AI]

Definition at line 26 of file legopathpresenter.cpp.

Member Function Documentation

◆ AddToManager()

MxResult LegoPathPresenter::AddToManager ( )

overridevirtual

[AI] Registers this presenter instance with the global or world's video manager (LegoVideoManager).

Used to ensure update/tickle callbacks are performed. [AI]

Returns: SUCCESS if registered, FAILURE otherwise. [AI]

Reimplemented from MxPresenter.

Definition at line 32 of file legopathpresenter.cpp.

◆ ClassName()

const char * LegoPathPresenter::ClassName ( ) const

overridevirtual

[AI] Returns the class name for this presenter instance, for dynamic type identification.

[AI]

Returns: The handler class name for this presenter. [AI]

Reimplemented from MxCore.

◆ Destroy() [1/2]

void LegoPathPresenter::Destroy ( )

overridevirtual

[AI] Unregisters the presenter from the video manager, deallocates managed resources, and resets internal state.

[AI]

Reimplemented from MxPresenter.

Definition at line 62 of file legopathpresenter.cpp.

◆ Destroy() [2/2]

void LegoPathPresenter::Destroy ( MxBool p_fromDestructor )

protected

[AI] Internal destroy logic with destructor context flag.

Handles resource deallocation, unregisters from video manager, resets state, and calls parent destroy if needed. [AI]

Parameters

p_fromDestructor True if called from destructor context; false otherwise. Prevents redundant deletion. [AI]

Definition at line 45 of file legopathpresenter.cpp.

◆ HandlerClassName()

static const char * LegoPathPresenter::HandlerClassName ( )

static

[AI] Returns the static handler class name for this presenter, used for identification and class dispatching.

[AI]

Returns: The fully-qualified handler class name ("LegoPathPresenter"). [AI]

◆ IsA()

MxBool LegoPathPresenter::IsA ( const char * p_name ) const

overridevirtual

[AI] Checks if this instance matches a specified class name in the inheritance hierarchy.

[AI]

Parameters

p_name The class name to check against. [AI]

Returns: True if p_name matches this class or an ancestor; false otherwise. [AI]

Reimplemented from MxCore.

◆ ParseExtra()

void LegoPathPresenter::ParseExtra ( )

overridevirtual

[AI] Parses the extra (optional) field from the related media action, searching for a trigger string and assigning it to m_trigger.

[AI]

Reimplemented from MxPresenter.

Definition at line 119 of file legopathpresenter.cpp.

◆ ReadyTickle()

void LegoPathPresenter::ReadyTickle ( )

overridevirtual

[AI] Handles the transition to the ready state ("ReadyTickle") by consuming streamed path data, creating a LegoPathController, and inserting it into the current world.

If data is not yet available, operation is deferred. [AI]

Reimplemented from MxPresenter.

Definition at line 68 of file legopathpresenter.cpp.

◆ RepeatingTickle()

void LegoPathPresenter::RepeatingTickle ( )

overridevirtual

[AI] Handles the repeating tickle logic, ending the action if the associated duration is not indefinite.

[AI]

Reimplemented from MxPresenter.

Definition at line 109 of file legopathpresenter.cpp.

◆ StreamingTickle()

void LegoPathPresenter::StreamingTickle ( )

overridevirtual

[AI] Processes data stream chunks during the streaming tickle phase.

Consumes and frees chunks, and triggers repetition state if end-of-stream is reached. [AI]

Reimplemented from MxPresenter.

Definition at line 95 of file legopathpresenter.cpp.

Member Data Documentation

◆ m_trigger

MxAtomId LegoPathPresenter::m_trigger

protected

[AI] Atom identifier representing a trigger parsed from the extra string in the associated media action.

This may be matched to in-world triggers or events by controllers, and is assigned during ParseExtra(). [AI]

Definition at line 96 of file legopathpresenter.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LegoPathPresenter()

◆ ~LegoPathPresenter()

Member Function Documentation

◆ AddToManager()

◆ ClassName()

◆ Destroy() [1/2]

◆ Destroy() [2/2]

◆ HandlerClassName()

◆ IsA()

◆ ParseExtra()

◆ ReadyTickle()

◆ RepeatingTickle()

◆ StreamingTickle()

Member Data Documentation

◆ m_trigger
