[AI] Handles the logic and animation presentation for the LEGO Island car-building activity, providing the main interface for coordinating the step-wise assembly of cars using animated 3D parts. More...

#include <legocarbuildpresenter.h>

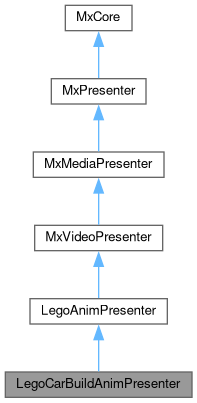

Inheritance diagram for LegoCarBuildAnimPresenter:

[legend]

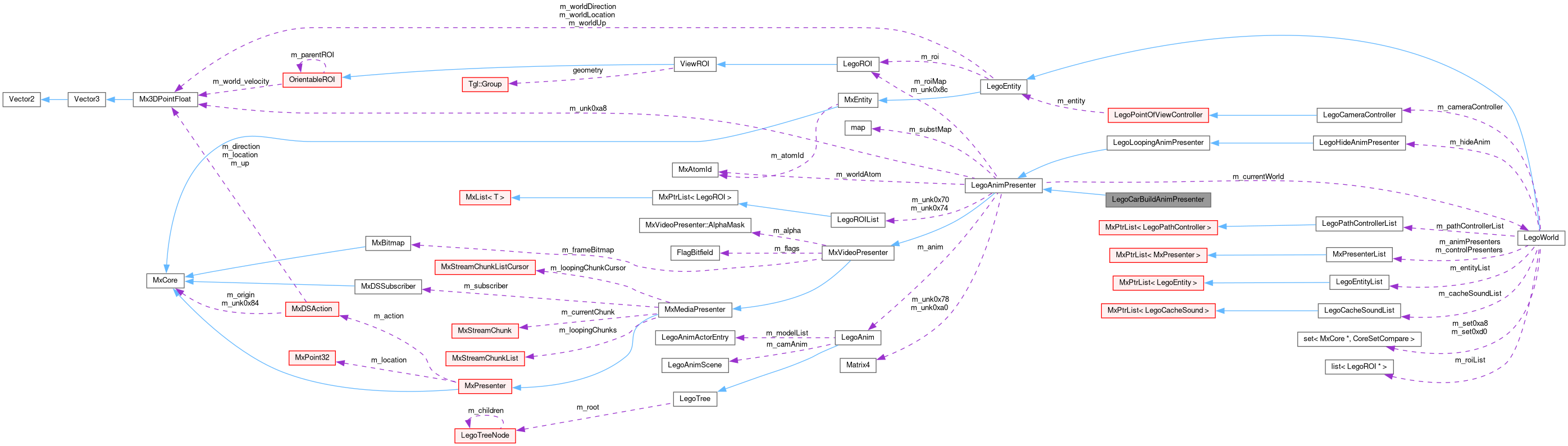

Collaboration diagram for LegoCarBuildAnimPresenter:

[legend]

Classes
struct	UnknownListEntry
	[AI] Represents a single entry in the car assembly sequence ("part list"), providing mapping between display name, internal "wired" 3D representation, and an object id used to identify the animated node in the 3D scene. More...

Public Types
enum	{ c_bit1 = 0x01 }

Public Types inherited from LegoAnimPresenter
enum	{ c_hideOnStop = 0x01 , c_mustSucceed = 0x02 }
	[AI] Animation presenter flags More...

Public Types inherited from MxPresenter
enum	TickleState { e_idle = 0 , e_ready , e_starting , e_streaming , e_repeating , e_freezing , e_done }
	[AI] Represents the state of the presenter's tickle (update) lifecycle. More...

Public Member Functions
	LegoCarBuildAnimPresenter ()
	[AI] Constructs and initializes the presenter, sets up default assembly state, part list, and other fields. More...

	~LegoCarBuildAnimPresenter () override
	[AI] Destroys the presenter, deletes all allocated part information, strings, and detaches nodes from the 3D scene. More...

void	RepeatingTickle () override
	[AI] No-op for car build (repeats do not trigger anything). More...

const char *	ClassName () const override
	[AI] Gets the runtime class name; used for dynamic type checks. More...

MxBool	IsA (const char *p_name) const override
	[AI] Returns TRUE if this object is of, or inherits from, the supplied type name. More...

void	ReadyTickle () override
	[AI] "Ready" tickle for car-building: initializes main entity pointer, updates placed part count, swaps to composite presentation if found. More...

void	StreamingTickle () override
	[AI] Handles streaming phase: More...

void	EndAction () override
	[AI] Ends the current build action safely, stops blinking and unlocks critical section. More...

void	PutFrame () override
	[AI] Called once per displayed animation frame. More...

virtual MxResult	Serialize (LegoStorage *p_storage)
	[AI] Serializes or deserializes the assembly state of the car build. More...

void	FUN_10079050 (MxS16 p_index)
	[AI] Swaps the nodes representing the part at the given index, then hides the 3D node for main (wired) part. More...

void	SwapNodesByName (LegoChar p_param1, LegoChar p_param2)
	[AI] Swaps two animation nodes in the scene tree, exchanging their display names and internal indices. More...

void	FUN_10079160 ()
	[AI] (Re-)initializes internal state from animation root, prepares morph keys for "platform" node and other key data. More...

void	FUN_100795d0 (LegoChar *p_param)
	[AI] Hides the referenced animation node by setting its morph key to invisible. More...

void	FUN_10079680 (LegoChar *p_param)
	[AI] Resets the node's morph key count to zero, restoring/showing the node. More...

LegoAnimNodeData *	FindNodeDataByName (LegoTreeNode p_treeNode, const LegoChar p_name)
	[AI] Recursively searches for a node with the given name and returns its node data. More...

LegoTreeNode *	FindNodeByName (LegoTreeNode p_treeNode, const LegoChar p_name)
	[AI] Recursively searches for a node with the given name and returns the node itself. More...

void	FUN_10079790 (const LegoChar *p_name)
	[AI] Advances current placed part, handles swaps, and updates morph/visibility. More...

void	RotateAroundYAxis (MxFloat p_angle)
	[AI] Rotates the assembly platform (root part) around the Y axis by the given angle (quaternion math). More...

MxBool	FUN_10079c30 (const LegoChar *p_name)
	[AI] Returns true if the part with the given name is not yet placed, but is the current to-be-placed in the sequence. More...

MxBool	PartIsPlaced (const LegoChar *p_name)
	[AI] Returns whether a part (by name) has already been placed in the sequence. More...

void	FUN_10079a90 ()
	[AI] Advances the internal state for the assembly animation (step advancement). More...

MxBool	StringEqualsPlatform (const LegoChar *p_string)
	[AI] Checks if the supplied string matches "PLATFORM" (case-insensitive). More...

MxBool	StringEqualsShelf (const LegoChar *p_string)
	[AI] Checks if the supplied string matches "SHELF" prefix (case-insensitive). More...

MxBool	StringEndsOnY (const LegoChar *p_string)
	[AI] Checks if the supplied string ends with "Y" or "y" in the second-to-last character. More...

MxBool	StringDoesNotEndOnZero (const LegoChar *p_string)
	[AI] Checks if string does not end on the character '0'. More...

const LegoChar *	GetWiredNameByPartName (const LegoChar *p_name)
	[AI] Retrieves the wireframe/scene-graph name associated with the player-facing part name. More...

void	SetPartObjectIdByName (const LegoChar *p_name, MxS16 p_objectId)
	[AI] Sets the object id for the given part name in the assembly state. More...

void	SetUnknown0xbc (undefined2 p_unk0xbc)
	[AI] Sets the internal unknown word at offset 0xbc. More...

Matrix4 &	GetUnknown0xe0 ()
	[AI] Provides access to the internal Matrix4 representing current animation state, typically a transformation matrix. More...

MxBool	StringEndsOnW (LegoChar *p_param)
	[AI] Returns TRUE if the given part's name ends with 'W' or 'w' as the second-to-last character. More...

MxBool	StringEndsOnYOrN (const LegoChar *p_string)
	[AI] Returns TRUE if the given part's name ends with 'Y', 'y', 'N', or 'n' as the second-to-last character. More...

const BoundingSphere &	FUN_10079e20 ()
	[AI] Returns the world bounding sphere of the next part to be placed. More...

const LegoChar *	GetWiredNameOfLastPlacedPart ()
	[AI] Returns the wired part name for the last placed part. More...

MxS16	GetNumberOfParts ()
	[AI] Returns how many assembly parts exist in the current build. More...

MxS16	GetPlacedPartCount ()
	[AI] Returns the count of how many parts have been placed so far. More...

MxBool	AllPartsPlaced ()
	[AI] Returns TRUE if all parts have been placed (i.e., assembly is complete). More...

Public Member Functions inherited from LegoAnimPresenter
	LegoAnimPresenter ()
	[AI] Constructor for LegoAnimPresenter. More...

	~LegoAnimPresenter () override
	[AI] Destructor for LegoAnimPresenter. More...

const char *	ClassName () const override
	[AI] RTTI name for the presenter ("LegoAnimPresenter"), used for string-based identification. More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks if this or a parent class matches the given type name for RTTI. More...

void	ReadyTickle () override
	[AI] Called when the presenter is in the "Ready" tickle state. More...

void	StartingTickle () override
	[AI] Called at the "Starting" tickle state. More...

void	StreamingTickle () override
	[AI] Tickle function during streaming (active animation). More...

void	DoneTickle () override
	[AI] Called when animation streaming completes; triggers notification and wraps up state. More...

void	ParseExtra () override
	[AI] Extra data parser for animation presenter. More...

MxResult	AddToManager () override
	[AI] Adds this presenter instance to the relevant presenter/notification manager. More...

void	Destroy () override
	[AI] Releases all internal resources, actors, maps, and presenter state. More...

MxResult	StartAction (MxStreamController p_controller, MxDSAction p_action) override
	[AI] Begin playback action using a stream and a given action descriptor. More...

void	EndAction () override
	[AI] Completes playback action, triggers world notification and resets/hides all animated actors depending on flags. More...

void	PutFrame () override
	[AI] Called once per frame to push updated animation information (transform, position, etc.) to the ROIs. More...

virtual MxResult	CreateAnim (MxStreamChunk *p_chunk)
	[AI] Creates/loads the LegoAnim resource instance from a stream chunk buffer. More...

virtual void	VTable0x8c ()
	[AI] Virtual callback for future expansion. More...

virtual void	VTable0x90 ()
	[AI] Virtual callback for future expansion. More...

virtual MxU32	VTable0x94 (Vector3 &p_v1, Vector3 &p_v2, float p_f1, float p_f2, Vector3 &p_v3)
	[AI] Tests if a swept segment (defined by v1, v2, f1, f2) collides any of this presenter's animated ROIs. More...

virtual MxResult	VTable0x98 (LegoPathBoundary *p_boundary)
	[AI] Adds all actor ROIs, associated with this animation, to the provided path boundary for grouping or path following. More...

virtual LegoROI **	GetROIMap (MxU32 &p_roiMapSize)
	[AI] Returns the mapping array from animation node index to LegoROI*. More...

virtual void	VTable0xa0 (Matrix4 &p_matrix)
	[AI] Sets the baseline transform for the animation. More...

MxResult	FUN_1006afc0 (MxMatrix *&p_matrix, float p_und)
	[AI] Fills a matrix array with each node's local-to-world transform after animation advance (for state change / blending). More...

MxResult	FUN_1006b140 (LegoROI *p_roi)
	[AI] Calculates a blended transformation for a target ROI and applies as base transform for this animation. More...

void	FUN_1006c7a0 ()
	[AI] Immediately completes this animation, updates all ROIs to their final pose. More...

const char *	GetActionObjectName ()
	[AI] Gets the name of the object associated with the current animation action. More...

void	SetCurrentWorld (LegoWorld *p_currentWorld)
	[AI] Sets the world used by this presenter for actor placement and notification. More...

void	SetUnknown0x0cTo1 ()
	[AI] Sets the value of internal flag m_unk0x9c to 1. More...

void	SetUnknown0xa0 (Matrix4 *p_unk0xa0)
	[AI] Sets a pointer to the baseline animation transform. More...

LegoAnim *	GetAnimation ()
	[AI] Returns the current animation resource in use. More...

Public Member Functions inherited from MxVideoPresenter
	MxVideoPresenter ()
	Constructs a new MxVideoPresenter and initializes internal state. More...

virtual void	LoadHeader (MxStreamChunk *p_chunk)
	Loads and processes header information from a video stream chunk. More...

virtual void	CreateBitmap ()
	Allocates and sets up the display bitmap for video frame data. More...

virtual void	NextFrame ()
	Advances video playback to the next frame, handling decoding and playback progression. More...

virtual void	LoadFrame (MxStreamChunk *p_chunk)
	Loads and processes frame data from a video stream chunk. More...

virtual void	PutFrame ()
	Presents the current frame using the chosen output mechanism (e.g., blitting to screen). More...

virtual void	RealizePalette ()
	Loads or establishes the palette for display from the current video format or media. More...

virtual undefined	VTable0x74 ()
	Unknown/potentially format-specific method (VTable0x74). More...

	~MxVideoPresenter () override
	Destroys the MxVideoPresenter, releasing owned resources and unregistering from the manager. More...

void	Destroy () override
	Destroys internal resources for the presenter. More...

virtual LPDIRECTDRAWSURFACE	VTable0x78 ()
	Retrieves the DirectDraw surface used for hardware-accelerated rendering. More...

virtual MxBool	VTable0x7c ()
	Checks if this presenter has either a video frame bitmap or alpha mask available. More...

virtual MxS32	GetWidth ()
	Returns the width of the current bitmap or alpha mask in pixels. More...

virtual MxS32	GetHeight ()
	Returns the height of the current bitmap or alpha mask in pixels. More...

const char *	ClassName () const override
	Returns the run-time class name of this presenter instance. More...

MxBool	IsA (const char *p_name) const override
	Determines if this object is or derives from a class with the given name. More...

void	ReadyTickle () override
	Advance logic for the "ready" tickle state. More...

void	StartingTickle () override
	Advance logic for the "starting" tickle state (frame setup). More...

void	StreamingTickle () override
	Advance logic for the "streaming" tickle state (typical video playback). More...

void	RepeatingTickle () override
	Advance logic for the "repeating" tickle state (media looping). More...

void	FreezingTickle () override
	Advance logic for the "freezing" tickle state (sustain after playback). More...

MxResult	AddToManager () override
	Adds this presenter to the global video manager. More...

void	EndAction () override
	Signals the end of the current playback action. More...

MxResult	PutData () override
	Writes the frame to the display device if appropriate. More...

MxBool	IsHit (MxS32 p_x, MxS32 p_y) override
	Determines if a point is inside the non-transparent region of frame/alpha. More...

MxS32	PrepareRects (RECT &p_rectDest, RECT &p_rectSrc)
	Utility function to adjust source/dest rectangles to stay within allowed bounds. More...

MxBitmap *	GetBitmap ()
	Returns the frame bitmap currently used for this presenter. More...

AlphaMask *	GetAlphaMask ()
	Returns this presenter's alpha mask for hit testing. More...

MxU8 *	GetBitmapStart (MxS32 p_left, MxS32 p_top)
	Provides a pointer to the start of frame bitmap data at a given coordinate. More...

void	SetBit0 (BOOL p_e)
	Sets internal miscellaneous state flags. More...

void	SetBit1 (BOOL p_e)

void	SetBit2 (BOOL p_e)

void	SetBit3 (BOOL p_e)

void	SetBit4 (BOOL p_e)

BYTE	GetBit0 ()
	Gets internal miscellaneous state flags (bits 0-4). More...

BYTE	GetBit1 ()

BYTE	GetBit2 ()

BYTE	GetBit3 ()

BYTE	GetBit4 ()

Public Member Functions inherited from MxMediaPresenter
	MxMediaPresenter ()
	[AI] Constructs the presenter, initializing all member variables. More...

	~MxMediaPresenter () override
	[AI] Destructor; cleans up and optionally destroys all internal resources as well as the MxDSSubscriber and chunk list/cursor. More...

void	Destroy () override
	[AI] Cleans up internal resources and resets the presenter to an uninitialized state. More...

MxResult	Tickle () override
	[AI] Advances the presenter's state and media stream, if any, by tickling (i.e., updating) components. More...

const char *	ClassName () const override
	[AI] Returns the class name for this presenter (see HandlerClassName()). More...

MxBool	IsA (const char *p_name) const override
	[AI] Returns TRUE if the provided class name matches this class or any of its parents. More...

void	StreamingTickle () override
	[AI] Per-frame update when streaming the media stream. More...

void	RepeatingTickle () override
	[AI] Per-frame update while looping/repeating over known chunks. More...

void	DoneTickle () override
	[AI] Per-frame update for the "done" state; transitions this presenter to idle and ends the action. More...

MxResult	StartAction (MxStreamController , MxDSAction ) override
	[AI] Begins a new media playback action, wiring up the stream and chunk lists as needed. More...

void	EndAction () override
	[AI] Ends the media playback action, releasing all resources, notifying listeners if necessary. More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables media stream playback and transitions state as needed. More...

virtual void	LoopChunk (MxStreamChunk *p_chunk)
	[AI] Adds a chunk to the looping chunk list, making it available for repeated playback. More...

MxStreamChunk *	CurrentChunk ()
	[AI] Returns a pointer to the current data chunk at the head of the stream, without consuming it. More...

MxStreamChunk *	NextChunk ()
	[AI] Returns the next data chunk in the stream, removing it from the stream queue. More...

Public Member Functions inherited from MxPresenter
	MxPresenter ()
	[AI] Constructor. Initializes internal tickle state and other members. More...

MxResult	Tickle () override
	[AI] Main tickle handler, called periodically to progress presenter's internal state. More...

virtual void	VTable0x14 ()
	[AI] Reserved for future or specialized use in derived classes. More...

virtual void	ReadyTickle ()
	[AI] Handles the transition and setup for the Ready state. Parses extra action data and advances state. More...

virtual void	StartingTickle ()
	[AI] Handles actions required when first starting presentation. Advances to streaming state. More...

virtual void	StreamingTickle ()
	[AI] Handles periodic updates during the streaming/presentation stage. Advances to repeating state. More...

virtual void	RepeatingTickle ()
	[AI] Handles updates when in a repeating (looping) stage. Advances to freezing state. More...

virtual void	FreezingTickle ()
	[AI] Handles updates during the freezing/suspended state. Advances to done state. More...

	~MxPresenter () override
	[AI] Destructor, cleans up resources (base class: does nothing beyond Init). More...

virtual MxResult	AddToManager ()
	[AI] Optional registration with a manager (such as TickleManager); by default does nothing. More...

virtual void	Destroy ()
	[AI] Resets presenter state or cleans up resources after completion/removal. More...

virtual MxResult	StartAction (MxStreamController , MxDSAction )
	[AI] Initiates presenter for a new action, setting up context and state. More...

virtual void	EndAction ()
	[AI] Terminates the current action, notifies listeners and resets state. More...

virtual void	SetTickleState (TickleState p_tickleState)
	[AI] Forces the tickle state, advancing to the requested lifecycle stage. More...

virtual MxBool	HasTickleStatePassed (TickleState p_tickleState)
	[AI] Checks if the specified tickle state has ever been passed since last reset. More...

virtual MxResult	PutData ()
	[AI] Allows the presenter to submit pending results or output to the engine. More...

virtual MxBool	IsHit (MxS32 p_x, MxS32 p_y)
	[AI] Returns TRUE if the given (x, y) falls within hit-test bounds for the presenter (e.g. More...

virtual void	Enable (MxBool p_enable)
	[AI] Enables or disables this presenter (controls action flags accordingly). More...

const char *	ClassName () const override
	[AI] Returns the run-time class name for this presenter. More...

MxBool	IsA (const char *p_name) const override
	[AI] Determines if this object is of (or inherits) the specified named class. More...

MxEntity *	CreateEntity (const char *p_defaultName)
	[AI] Creates an entity based on action 'extra' data, or uses the provided default name. More...

void	SendToCompositePresenter (MxOmni *p_omni)
	[AI] Notifies a composite presenter (if one exists) that this presenter wishes to join a group. More...

MxBool	IsEnabled ()
	[AI] Returns whether this presenter is logically enabled (based on the associated action's flags). More...

MxS32	GetCurrentTickleState () const
	[AI] Returns the current tickle state. More...

MxPoint32	GetLocation () const
	[AI] Returns the presenter's screen location (in pixels). More...

MxS32	GetX () const
	[AI] Returns the X coordinate of screen location. More...

MxS32	GetY () const
	[AI] Returns the Y coordinate of screen location. More...

MxS32	GetDisplayZ () const
	[AI] Returns the display Z (depth) order. More...

MxDSAction *	GetAction () const
	[AI] Returns the current action being presented. More...

void	SetAction (MxDSAction *p_action)
	[AI] Sets the action associated with this presenter. More...

void	SetCompositePresenter (MxCompositePresenter *p_compositePresenter)
	[AI] Sets the composite presenter to notify/join on completion. More...

void	SetDisplayZ (MxS32 p_displayZ)
	[AI] Sets the display Z (depth) order for the presenter. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Static Public Member Functions
static const char *	HandlerClassName ()
	[AI] Returns the string class name used by the presenter dispatch mechanism. More...

Static Public Member Functions inherited from LegoAnimPresenter
static const char *	HandlerClassName ()
	[AI] Returns the class name for this presenter ("LegoAnimPresenter"). More...

Static Public Member Functions inherited from MxVideoPresenter
static const char *	HandlerClassName ()
	Returns the class name string for this presenter type. More...

Static Public Member Functions inherited from MxMediaPresenter
static const char *	HandlerClassName ()
	[AI] Gets the class name string for handler dispatch and RTTI emulation. More...

Static Public Member Functions inherited from MxPresenter
static const char *	HandlerClassName ()
	[AI] Returns the handler class name for identification and reflection purposes. More...

Additional Inherited Members
Public Attributes inherited from LegoAnimPresenter
float	m_unk0xa4
	[AI] Animation touch radius for path boundary checks and state (set from resource). More...

Mx3DPointFloat	m_unk0xa8
	[AI] 3D float property, used for animation base position offset. More...

Protected Member Functions inherited from LegoAnimPresenter
void	Init ()
	[AI] Allocates and resets all internal presenter state. More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Releases all dynamic memory, unbinds actors from animation, and resets references. More...

LegoChar *	FUN_10069150 (const LegoChar *p_und1)
	[AI] [Internal] String construction utility used in actor/ROI naming substitution. More...

void	FUN_100692b0 ()
	[AI] Populates m_unk0x74 with all relevant ROIs/actors for this animation by iterating actors in the animation resource. More...

void	FUN_100695c0 ()
	[AI] Scans the world view compound objects to find and collect relevant ROIs for animation, populating m_unk0x70. More...

LegoChar *	FUN_100697c0 (const LegoChar p_und1, const LegoChar p_und2)
	[AI] Returns a composed name string for combining variable substitution and direct actor references for name lookup. More...

LegoBool	FUN_100698b0 (const CompoundObject &p_rois, const LegoChar *p_und2)
	[AI] Locates (and adds to m_unk0x70) an ROI in a compound object by substituted name, matching either direct or indirect name reference. More...

LegoROI *	FUN_100699e0 (const LegoChar *p_und)
	[AI] Looks up an ROI in m_unk0x70 by substituted name. More...

void	FUN_10069b10 ()
	[AI] Builds mapping from animation node data names to ROIs, fills m_roiMap and m_roiMapSize. More...

void	FUN_1006a3c0 (LegoAnimStructMap &p_map, LegoTreeNode p_node, LegoROI p_roi)
	[AI] Recursive helper for building ROI map: walks animation node tree, matching names to ROIs at each node level. More...

void	FUN_1006a4f0 (LegoAnimStructMap &p_map, LegoAnimNodeData p_data, const LegoChar p_und, LegoROI *p_roi)
	[AI] Helper to insert an animation node's data into the map (adding new struct if not already inserted). More...

void	FUN_1006aa60 ()
	[AI] Releases all actors in m_unk0x74 via CharacterManager, respecting state flag m_unk0x96. More...

void	FUN_1006ab70 ()
	[AI] Invokes end-of-animation logic via AnimationManager, depending on mode flag m_unk0x96. More...

LegoBool	FUN_1006aba0 ()
	[AI] Returns TRUE if every animation actor/ROI node is bound successfully. More...

MxBool	FUN_1006abb0 (LegoTreeNode p_node, LegoROI p_roi)
	[AI] Recursively validates correct ROI matching/binding in animation tree (helper for FUN_1006aba0). More...

void	SubstituteVariables ()
	[AI] Applies all queued variable substitutions in the animation resource by setting corresponding VariableTable entries. More...

void	FUN_1006b900 (LegoAnim p_anim, MxLong p_time, Matrix4 p_matrix)
	[AI] Steps animation nodes to 'p_time' using transform 'p_matrix', using fast path for tree traversal. More...

void	FUN_1006b9a0 (LegoAnim p_anim, MxLong p_time, Matrix4 p_matrix)
	[AI] Like FUN_1006b900, but also processes associated camera animation if present. More...

void	FUN_1006c8a0 (MxBool p_bool)
	[AI] Enables or disables internal state (LegoEntity c_altBit1) on all animated entities. More...

Protected Member Functions inherited from MxVideoPresenter
void	Destroy (MxBool p_fromDestructor)
	Releases resources and unregisters presenter from the video manager. More...

Protected Member Functions inherited from MxMediaPresenter
void	Init ()
	[AI] Initializes all member variables to a known default state (NULL pointers, etc). More...

void	Destroy (MxBool p_fromDestructor)
	[AI] Frees all managed resources, owned memory and pointers, optionally preventing destruction of the base class. More...

Protected Member Functions inherited from MxPresenter
virtual void	DoneTickle ()
	[AI] Handles any post-completion logic, resetting to idle state. More...

virtual void	ParseExtra ()
	[AI] Parses additional data from the associated action for configuration or world interaction. More...

void	ProgressTickleState (TickleState p_tickleState)
	[AI] Helper for advancing the presenter's tickle state and updating transition history. More...

void	Init ()
	[AI] Initializes object state to post-construction defaults. More...

Protected Attributes inherited from LegoAnimPresenter
LegoAnim *	m_anim
	[AI] Animation resource currently being played back. More...

LegoROI **	m_roiMap
	[AI] Lookup array to map animation node indices to scene ROIs (1-based index). More...

MxU32	m_roiMapSize
	[AI] Number of valid entries in m_roiMap (excluding 0th index). More...

LegoROIList *	m_unk0x70
	[AI] List of ROIs used during preprocessing, actor matching, or variable substitution (purpose varies). More...

LegoROIList *	m_unk0x74
	[AI] List of actors/ROIs created or acquired for this animation instance. More...

Matrix4 *	m_unk0x78
	[AI] Pointer to root/offset MxMatrix used for transform computations. More...

MxU32	m_flags
	[AI] Animation presenter flags (hide-on-stop, must-succeed, etc). More...

LegoWorld *	m_currentWorld
	[AI] Reference to the world in which this presenter is currently placed/active. More...

MxAtomId	m_worldAtom
	[AI] String identifier for the target world (if set in animation resource via extra data). More...

MxS32	m_worldId
	[AI] Numeric world ID for world selection/lookup. More...

LegoROI **	m_unk0x8c
	[AI] Lookup array for secondary ROI objects (used for e.g. More...

char **	m_unk0x90
	[AI] Array of char* names used for selecting camera attached ROIs (from ptatcam extra parameter). More...

MxU8	m_unk0x94
	[AI] Count of valid camera attached ROI names in m_unk0x90 / m_unk0x8c. More...

MxBool	m_unk0x95
	[AI] Boolean: indicates streaming/animation is finished and presenter should progress to Done state. More...

MxBool	m_unk0x96
	[AI] Boolean/mode: influences actor release vs animation manager cleanup selection (see FUN_1006ab70). More...

undefined	m_unk0x97
	[AI] Unknown/unused byte, for possible explicit alignment or hidden flag. More...

LegoAnimSubstMap *	m_substMap
	[AI] Table of macro/variable substitutions to apply before animation begins (from resource "subst" field). More...

MxS16	m_unk0x9c
	[AI] Int16 state flag, set via SetUnknown0x0cTo1(). More...

Matrix4 *	m_unk0xa0
	[AI] Optional pointer to a matrix storing a blended/baseline local-to-world transform. More...

Protected Attributes inherited from MxVideoPresenter
MxBitmap *	m_frameBitmap
	Bitmap for current video frame. [AI]. More...

AlphaMask *	m_alpha
	Alpha mask for hit testing. May be null. [AI]. More...

LPDIRECTDRAWSURFACE	m_unk0x58
	DirectDraw surface for hardware video rendering. [AI]. More...

MxS16	m_unk0x5c
	Loop/advance/frame decode counter. [AI]. More...

FlagBitfield	m_flags
	Miscellaneous flags for object and UI state. [AI]. More...

MxLong	m_unk0x60
	Last freeze time/start of sustain interval. [AI]. More...

Protected Attributes inherited from MxMediaPresenter
MxDSSubscriber *	m_subscriber
	[AI] Subscriber that provides the stream data (e.g., audio/video chunks) for this presenter. More...

MxStreamChunkList *	m_loopingChunks
	[AI] Linked list of all chunks available for looping/repeating playback. More...

MxStreamChunkListCursor *	m_loopingChunkCursor
	[AI] Cursor used to iterate through the loopingChunk list during repeat mode. More...

MxStreamChunk *	m_currentChunk
	[AI] Currently active data chunk for playback or processing. More...

Protected Attributes inherited from MxPresenter
TickleState	m_currentTickleState
	[AI] Current state in the tickle lifecycle. More...

MxU32	m_previousTickleStates
	[AI] Bitfield representing all tickle states that have already occurred during this lifetime. More...

MxPoint32	m_location
	[AI] 2D display location for the presenter. More...

MxS32	m_displayZ
	[AI] Z-order value for display stacking. More...

MxDSAction *	m_action
	[AI] The associated action currently being presented by this presenter. More...

MxCriticalSection	m_criticalSection
	[AI] Thread synchronization for presenter state and data. More...

MxCompositePresenter *	m_compositePresenter
	[AI] Owner composite presenter, if any. More...

Detailed Description

[AI] Handles the logic and animation presentation for the LEGO Island car-building activity, providing the main interface for coordinating the step-wise assembly of cars using animated 3D parts.

Manages the state of placed parts, handles morph and rotation keys, updates visibility, and syncs the camera based on the animation and 3D world.

[AI] Inherits from LegoAnimPresenter and implements custom logic for car-building animations, including managing a sequence of parts, their placement state, morphological transformations, and animated assembly. It bridges the game logic (placed part count, object ids, step timing) and the interactive 3D world/camera for the activity.

Responsibilities:

Tracks the main "platform", parts, and their sequence
Blinks the next part to place, morphs mesh nodes on placement
Swaps data/nodes in response to player action during assembly
Adjusts camera based on scene nodes ("CAM..." etc)
Serializes/deserializes assembly state for save/load

Known main uses are in the "car build" game room sequence.

Definition at line 30 of file legocarbuildpresenter.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
c_bit1	[AI] Internal bitmask used for blinking animation state and timers.

Definition at line 32 of file legocarbuildpresenter.h.

Constructor & Destructor Documentation

◆ LegoCarBuildAnimPresenter()

LegoCarBuildAnimPresenter::LegoCarBuildAnimPresenter ( )

[AI] Constructs and initializes the presenter, sets up default assembly state, part list, and other fields.

Definition at line 24 of file legocarbuildpresenter.cpp.

◆ ~LegoCarBuildAnimPresenter()

LegoCarBuildAnimPresenter::~LegoCarBuildAnimPresenter ( )

override

[AI] Destroys the presenter, deletes all allocated part information, strings, and detaches nodes from the 3D scene.

[AI] Implements deep cleanup of m_parts and associated dynamically allocated strings, and also cleans up auxiliary animation objects.

Definition at line 44 of file legocarbuildpresenter.cpp.

Member Function Documentation

◆ AllPartsPlaced()

MxBool LegoCarBuildAnimPresenter::AllPartsPlaced ( )

inline

[AI] Returns TRUE if all parts have been placed (i.e., assembly is complete).

Definition at line 297 of file legocarbuildpresenter.h.

◆ ClassName()

const char * LegoCarBuildAnimPresenter::ClassName ( ) const

overridevirtual

[AI] Gets the runtime class name; used for dynamic type checks.

Returns: [AI] Static string "LegoCarBuildAnimPresenter".

Reimplemented from LegoAnimPresenter.

◆ EndAction()

void LegoCarBuildAnimPresenter::EndAction ( )

overridevirtual

[AI] Ends the current build action safely, stops blinking and unlocks critical section.

Reimplemented from LegoAnimPresenter.

Definition at line 282 of file legocarbuildpresenter.cpp.

◆ FindNodeByName()

LegoTreeNode * LegoCarBuildAnimPresenter::FindNodeByName	(	LegoTreeNode *	p_treeNode,
		const LegoChar *	p_name
	)

[AI] Recursively searches for a node with the given name and returns the node itself.

Parameters

p_treeNode	The tree node to search. [AI]
p_name	Node name to search for. [AI]

Returns: [AI] Pointer to matching LegoTreeNode, or NULL.

Definition at line 507 of file legocarbuildpresenter.cpp.

◆ FindNodeDataByName()

LegoAnimNodeData * LegoCarBuildAnimPresenter::FindNodeDataByName	(	LegoTreeNode *	p_treeNode,
		const LegoChar *	p_name
	)

[AI] Recursively searches for a node with the given name and returns its node data.

Parameters

p_treeNode	The tree node to begin search from. [AI]
p_name	Node name to search for. [AI]

Returns: [AI] The node data if found, or NULL.

Definition at line 482 of file legocarbuildpresenter.cpp.

◆ FUN_10079050()

void LegoCarBuildAnimPresenter::FUN_10079050 ( MxS16 p_index )

[AI] Swaps the nodes representing the part at the given index, then hides the 3D node for main (wired) part.

Parameters

p_index Index in m_parts array. [AI]

Definition at line 319 of file legocarbuildpresenter.cpp.

◆ FUN_10079160()

void LegoCarBuildAnimPresenter::FUN_10079160 ( )

[AI] (Re-)initializes internal state from animation root, prepares morph keys for "platform" node and other key data.

[AI] Sets up m_parts, m_unk0xc4 and prepares the morph key state machine for assembly.

Definition at line 347 of file legocarbuildpresenter.cpp.

◆ FUN_100795d0()

void LegoCarBuildAnimPresenter::FUN_100795d0 ( LegoChar * p_param )

[AI] Hides the referenced animation node by setting its morph key to invisible.

Parameters

p_param Wireframe/scenenode part name. [AI]

Definition at line 444 of file legocarbuildpresenter.cpp.

◆ FUN_10079680()

void LegoCarBuildAnimPresenter::FUN_10079680 ( LegoChar * p_param )

[AI] Resets the node's morph key count to zero, restoring/showing the node.

Parameters

p_param Wireframe/scenenode part name. [AI]

Definition at line 466 of file legocarbuildpresenter.cpp.

◆ FUN_10079790()

void LegoCarBuildAnimPresenter::FUN_10079790 ( const LegoChar * p_name )

[AI] Advances current placed part, handles swaps, and updates morph/visibility.

Parameters

p_name Name of the newly placed part. [AI]

Definition at line 533 of file legocarbuildpresenter.cpp.

◆ FUN_10079a90()

void LegoCarBuildAnimPresenter::FUN_10079a90 ( )

[AI] Advances the internal state for the assembly animation (step advancement).

[AI] Controls how quickly the build process animates through its intermediate morph targets.

Definition at line 595 of file legocarbuildpresenter.cpp.

◆ FUN_10079c30()

MxBool LegoCarBuildAnimPresenter::FUN_10079c30 ( const LegoChar * p_name )

[AI] Returns true if the part with the given name is not yet placed, but is the current to-be-placed in the sequence.

Parameters

p_name Name of the part to check. [AI]

Returns: [AI] TRUE if this is the next part and not yet placed.

Definition at line 643 of file legocarbuildpresenter.cpp.

◆ FUN_10079e20()

const BoundingSphere & LegoCarBuildAnimPresenter::FUN_10079e20 ( )

[AI] Returns the world bounding sphere of the next part to be placed.

Returns: [AI] Reference to the bounding sphere.

Definition at line 707 of file legocarbuildpresenter.cpp.

◆ GetNumberOfParts()

MxS16 LegoCarBuildAnimPresenter::GetNumberOfParts ( )

inline

[AI] Returns how many assembly parts exist in the current build.

Definition at line 287 of file legocarbuildpresenter.h.

◆ GetPlacedPartCount()

MxS16 LegoCarBuildAnimPresenter::GetPlacedPartCount ( )

inline

[AI] Returns the count of how many parts have been placed so far.

Definition at line 292 of file legocarbuildpresenter.h.

◆ GetUnknown0xe0()

Matrix4 & LegoCarBuildAnimPresenter::GetUnknown0xe0 ( )

inline

[AI] Provides access to the internal Matrix4 representing current animation state, typically a transformation matrix.

Returns: [AI] Reference to the current transformation matrix.

Definition at line 258 of file legocarbuildpresenter.h.

◆ GetWiredNameByPartName()

const LegoChar * LegoCarBuildAnimPresenter::GetWiredNameByPartName ( const LegoChar * p_name )

[AI] Retrieves the wireframe/scene-graph name associated with the player-facing part name.

Parameters

p_name Player-facing part name. [AI]

Returns: [AI] The corresponding wired (scene-node) name, or NULL if not found.

Definition at line 682 of file legocarbuildpresenter.cpp.

◆ GetWiredNameOfLastPlacedPart()

const LegoChar * LegoCarBuildAnimPresenter::GetWiredNameOfLastPlacedPart ( )

inline

[AI] Returns the wired part name for the last placed part.

Returns: [AI] String name.

Definition at line 282 of file legocarbuildpresenter.h.

◆ HandlerClassName()

static const char * LegoCarBuildAnimPresenter::HandlerClassName ( )

static

[AI] Returns the string class name used by the presenter dispatch mechanism.

[AI] Used for runtime class recognition and deserialization.

◆ IsA()

MxBool LegoCarBuildAnimPresenter::IsA ( const char * p_name ) const

overridevirtual

[AI] Returns TRUE if this object is of, or inherits from, the supplied type name.

Parameters

p_name String name of type to check. [AI]

[AI] Supports run-time type identification for presenter scripting/subsystem.

Reimplemented from LegoAnimPresenter.

◆ PartIsPlaced()

MxBool LegoCarBuildAnimPresenter::PartIsPlaced ( const LegoChar * p_name )

[AI] Returns whether a part (by name) has already been placed in the sequence.

Parameters

p_name Name of the part. [AI]

Definition at line 655 of file legocarbuildpresenter.cpp.

◆ PutFrame()

void LegoCarBuildAnimPresenter::PutFrame ( )

overridevirtual

[AI] Called once per displayed animation frame.

Handles car assembly step advancements and blinking of the next part to be placed; updates the 3D mesh state if needed.

[AI] Main place where car-building animation is stepped forward each tick.

Reimplemented from LegoAnimPresenter.

Definition at line 115 of file legocarbuildpresenter.cpp.

◆ ReadyTickle()

void LegoCarBuildAnimPresenter::ReadyTickle ( )

overridevirtual

[AI] "Ready" tickle for car-building: initializes main entity pointer, updates placed part count, swaps to composite presentation if found.

Fallbacks for non-car-present rooms.

[AI] Also sets up internal state to progress to next assembly phase.

Reimplemented from LegoAnimPresenter.

Definition at line 135 of file legocarbuildpresenter.cpp.

◆ RepeatingTickle()

void LegoCarBuildAnimPresenter::RepeatingTickle ( )

inlineoverridevirtual

[AI] No-op for car build (repeats do not trigger anything).

Reimplemented from MxPresenter.

Definition at line 81 of file legocarbuildpresenter.h.

◆ RotateAroundYAxis()

void LegoCarBuildAnimPresenter::RotateAroundYAxis ( MxFloat p_angle )

[AI] Rotates the assembly platform (root part) around the Y axis by the given angle (quaternion math).

Parameters

p_angle Angle to rotate by (in radians/degrees TBD). [AI]

Definition at line 562 of file legocarbuildpresenter.cpp.

◆ Serialize()

MxResult LegoCarBuildAnimPresenter::Serialize ( LegoStorage * p_storage )

virtual

[AI] Serializes or deserializes the assembly state of the car build.

Parameters

p_storage Storage object (file or memory). [AI]

Returns: [AI] Returns SUCCESS if (de)serialization completes.

[AI] Handles reading/writing which part is placed, object IDs, and animation step state.

Definition at line 293 of file legocarbuildpresenter.cpp.

◆ SetPartObjectIdByName()

void LegoCarBuildAnimPresenter::SetPartObjectIdByName	(	const LegoChar *	p_name,
		MxS16	p_objectId
	)

[AI] Sets the object id for the given part name in the assembly state.

Parameters

p_name	Name of the part to update. [AI]
p_objectId	Object id to set. [AI]

Definition at line 695 of file legocarbuildpresenter.cpp.

◆ SetUnknown0xbc()

void LegoCarBuildAnimPresenter::SetUnknown0xbc ( undefined2 p_unk0xbc )

inline

[AI] Sets the internal unknown word at offset 0xbc.

Parameters

p_unk0xbc The new value. [AI]

Definition at line 252 of file legocarbuildpresenter.h.

◆ StreamingTickle()

void LegoCarBuildAnimPresenter::StreamingTickle ( )

overridevirtual

[AI] Handles streaming phase:

Sets up m_mainSourceId based on current action/scene.
Prepares morph/visibility for each car part node and synchronizes camera according to the nodes found ("CAM...").
Blinks new parts, sets up camera transform, and triggers 3D viewpoint change.

[AI] Called once before continuous animation ticks to set up the scene and presenter state.

Reimplemented from LegoAnimPresenter.

Definition at line 183 of file legocarbuildpresenter.cpp.

◆ StringDoesNotEndOnZero()

MxBool LegoCarBuildAnimPresenter::StringDoesNotEndOnZero ( const LegoChar * p_string )

[AI] Checks if string does not end on the character '0'.

Parameters

p_string String to check. [AI]

Definition at line 675 of file legocarbuildpresenter.cpp.

◆ StringEndsOnW()

MxBool LegoCarBuildAnimPresenter::StringEndsOnW ( LegoChar * p_param )

[AI] Returns TRUE if the given part's name ends with 'W' or 'w' as the second-to-last character.

Parameters

p_param String to check. [AI]

Definition at line 621 of file legocarbuildpresenter.cpp.

◆ StringEndsOnY()

MxBool LegoCarBuildAnimPresenter::StringEndsOnY ( const LegoChar * p_string )

[AI] Checks if the supplied string ends with "Y" or "y" in the second-to-last character.

Parameters

p_string String to check. [AI]

Definition at line 668 of file legocarbuildpresenter.cpp.

◆ StringEndsOnYOrN()

MxBool LegoCarBuildAnimPresenter::StringEndsOnYOrN ( const LegoChar * p_string )

[AI] Returns TRUE if the given part's name ends with 'Y', 'y', 'N', or 'n' as the second-to-last character.

Parameters

p_string String to check. [AI]

Definition at line 628 of file legocarbuildpresenter.cpp.

◆ StringEqualsPlatform()

MxBool LegoCarBuildAnimPresenter::StringEqualsPlatform ( const LegoChar * p_string )

[AI] Checks if the supplied string matches "PLATFORM" (case-insensitive).

Parameters

p_string String to check. [AI]

Definition at line 614 of file legocarbuildpresenter.cpp.

◆ StringEqualsShelf()

MxBool LegoCarBuildAnimPresenter::StringEqualsShelf ( const LegoChar * p_string )

[AI] Checks if the supplied string matches "SHELF" prefix (case-insensitive).

Parameters

p_string String to check. [AI]

Definition at line 636 of file legocarbuildpresenter.cpp.

◆ SwapNodesByName()

void LegoCarBuildAnimPresenter::SwapNodesByName	(	LegoChar *	p_param1,
		LegoChar *	p_param2
	)

[AI] Swaps two animation nodes in the scene tree, exchanging their display names and internal indices.

Parameters

p_param1	First node/part name (wired name). [AI]
p_param2	Second node/part name (placed part name). [AI]

Definition at line 327 of file legocarbuildpresenter.cpp.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ LegoCarBuildAnimPresenter()

◆ ~LegoCarBuildAnimPresenter()

Member Function Documentation

◆ AllPartsPlaced()

◆ ClassName()

◆ EndAction()

◆ FindNodeByName()

◆ FindNodeDataByName()

◆ FUN_10079050()

◆ FUN_10079160()

◆ FUN_100795d0()

◆ FUN_10079680()

◆ FUN_10079790()

◆ FUN_10079a90()

◆ FUN_10079c30()

◆ FUN_10079e20()

◆ GetNumberOfParts()

◆ GetPlacedPartCount()

◆ GetUnknown0xe0()

◆ GetWiredNameByPartName()

◆ GetWiredNameOfLastPlacedPart()

◆ HandlerClassName()

◆ IsA()

◆ PartIsPlaced()

◆ PutFrame()

◆ ReadyTickle()

◆ RepeatingTickle()

◆ RotateAroundYAxis()

◆ Serialize()

◆ SetPartObjectIdByName()

◆ SetUnknown0xbc()

◆ StreamingTickle()

◆ StringDoesNotEndOnZero()

◆ StringEndsOnW()

◆ StringEndsOnY()

◆ StringEndsOnYOrN()

◆ StringEqualsPlatform()

◆ StringEqualsShelf()

◆ SwapNodesByName()
