[AI] World implementation for the LEGO vehicle builder (Racecar, Copter, Dune Car, Jetski), handling UI, input, 3D vehicle assembly, part placement, and all vehicle-specific interactions. More...

#include <legocarbuild.h>

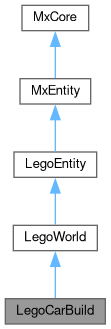

Inheritance diagram for LegoCarBuild:

[legend]

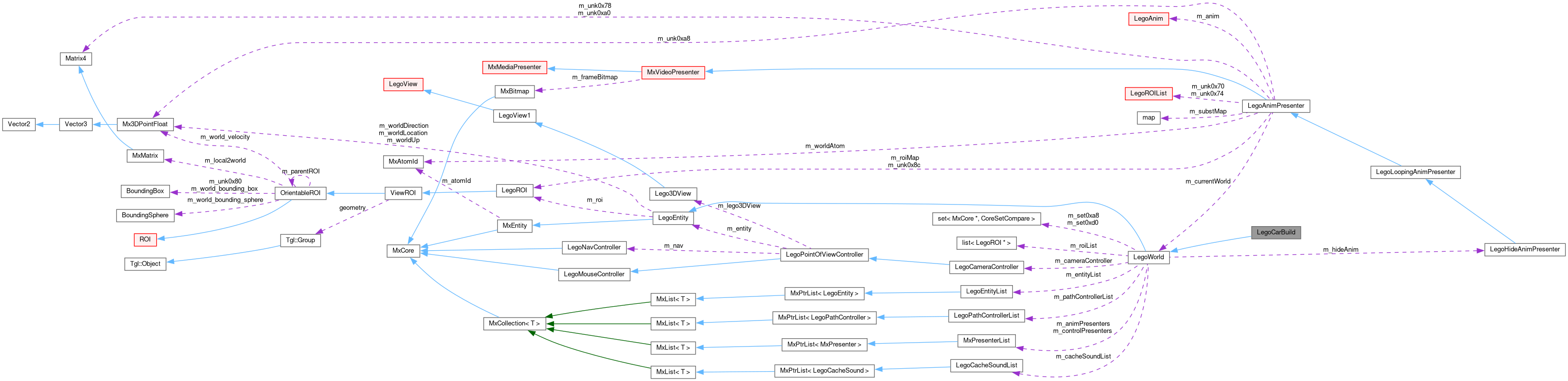

Collaboration diagram for LegoCarBuild:

[legend]

Classes
struct	LookupTableActions
	[AI] Lookup table for animation/action IDs for vehicle types. More...

Public Types
enum	Unknown0xf8 { c_unknownminusone = -1 , c_unknown8 = 8 }
	[AI] Special constants for internal state tracking of the build world. More...

Public Types inherited from LegoWorld
enum	StartupTicks { e_start = 0 , e_one , e_two , e_three , e_four }
	Ticks for world startup sequencing. More...

Public Types inherited from LegoEntity
enum	Type { e_actor = 0 , e_unk1 , e_plant , e_building , e_autoROI }
	[AI] Types of LegoEntity (Actor, Plant, Building, Auto ROI, etc.) [AI] More...

enum	{ c_bit1 = 0x01 , c_managerOwned = 0x02 }
	[AI] Bit flag constants for entity state management [AI] More...

enum	{ c_altBit1 = 0x01 }
	[AI] Secondary bit flag constants [AI] More...

Public Member Functions
	LegoCarBuild ()
	[AI] Constructs a new LegoCarBuild world and initializes all references/UI. More...

	~LegoCarBuild () override
	[AI] Cleans up presenters, unregisters input/notification handlers, and resets world build state. More...

MxBool	VTable0x5c () override
	[AI] Always returns TRUE; signals that this world can be entered. More...

const char *	ClassName () const override
	[AI] Returns the type string for this object. More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles notifications (input, state, animation, world events) for the build world. More...

MxResult	Tickle () override
	[AI] Tickle function (called every frame/tick); processes build logic and part animation. More...

MxBool	IsA (const char *p_name) const override
	[AI] Checks run-time type compatibility. More...

MxResult	Create (MxDSAction &p_dsAction) override
	[AI] Creates world from script action; initializes build and assigns state according to area/car type. More...

void	ReadyWorld () override
	[AI] Prepares UI and scripting when world is ready. More...

MxBool	Escape () override
	[AI] Escapes from the build UI (initiates transition to outside world/menu). More...

void	Enable (MxBool p_enable) override
	[AI] Enables or disables the world, handling both visual and audio states and input registration. More...

virtual void	VTable0x6c ()
	[AI] Internal logic, used during part drag/drop and animation (possibly for placing or updating a part coordinate). More...

virtual void	VTable0x70 ()
	[AI] Computes screen-projected coordinates for picking/placing parts and updates internal pixel locations. More...

virtual void	VTable0x74 (MxFloat p_param1[2], MxFloat p_param2[3])
	[AI] Adjusts transformation for part manipulation based on mouse/drag locations below the "default" part reference. More...

virtual void	VTable0x78 (MxFloat p_param1[2], MxFloat p_param2[3])
	[AI] Adjusts transformation for part manipulation when within the vertical bounds of the reference points. More...

virtual void	VTable0x7c (MxFloat p_param1[2], MxFloat p_param2[3])
	[AI] Adjusts transformation for part manipulation above the "default" reference. More...

virtual void	VTable0x80 (MxFloat p_param1[2], MxFloat p_param2[2], MxFloat p_param3, MxFloat p_param4[2])
	[AI] Used for conversions between projected and real pixel/world space. More...

MxS16	GetPlacedPartCount ()
	[AI] Gets number of parts currently placed in build progress. More...

void	SetPlacedPartCount (MxU8 p_placedPartCount)
	[AI] Sets the number of placed parts in the build state. More...

void	InitPresenters ()
	[AI] Finds and initializes all presenters (UI and sound) used in the car build area. More...

void	FUN_10022f00 ()
	[AI] Internal: handles transition when moving a placed part, possibly triggering state change. More...

void	FUN_10022f30 ()
	[AI] Internal: logic for finalizing or dropping a part at build location, updates sound and UI. More...

void	FUN_10023130 (MxLong p_x, MxLong p_y)
	[AI] Internal: handles interaction when dragging part along projected axis. More...

void	FUN_100236d0 ()
	[AI] Internal: launches the finalization of all parts if build is completed; triggers further game progression or cutscene. More...

undefined4	FUN_10024250 (LegoEventNotificationParam *p_param)
	[AI] Handles keyboard event notifications, most notably the Space key for canceling animations or sounds. More...

void	FUN_100243a0 ()
	[AI] Handles the transition to the next act/location when building is complete. More...

undefined4	FUN_10024480 (MxActionNotificationParam *p_param)
	[AI] Handles animation end notification action (e.g., volume restoration, state reset, triggers exit logic). More...

undefined4	FUN_100244e0 (MxLong p_x, MxLong p_y)
	[AI] Handles mouse click/button down notifications to pick parts or trigger color/decal tools. More...

undefined4	FUN_100246e0 (MxLong p_x, MxLong p_y)
	[AI] Handles mouse button up events; initiates part-finalization or validated placement. More...

MxS32	FUN_10024850 (MxLong p_x, MxLong p_y)
	[AI] Handles mouse move notifications for drag-to-place part. More...

undefined4	FUN_10024890 (MxParam *p_param)
	[AI] Handles UI input/control presenter notifications. More...

undefined4	FUN_10024c20 (LegoEventNotificationParam *p_param)
	[AI] Handles the core event when the build is completed and creation should be finalized. More...

void	FUN_10024ef0 ()
	[AI] Starts the cutscene or music intro for the build with necessary state adjustment. More...

void	FUN_10024f30 ()
	[AI] Internal: Logic for the shelf-up UI animation/response. More...

void	FUN_10024f50 ()
	[AI] Internal: Handles part rotation/y-axis interaction. More...

void	FUN_10024f70 (MxBool p_enabled)
	[AI] Enables/Disables color/decal presenters depending on selected part and part name. More...

void	SetPresentersEnabled (MxBool p_enabled)
	[AI] Controls common set of UI presenters' enabled state at once. More...

void	TogglePresentersEnabled ()
	[AI] Toggles enabled/disabled state for all main presenters (color/decal tools). More...

void	FUN_100250e0 (MxBool p_param)
	[AI] Enables/Disables only the presenter set related to current part, using name pattern. More...

void	FUN_10025350 (MxS32 p_objectId)
	[AI] Handles color/decal actions by object ID, mapping click to appropriate color or updating variables. More...

void	FUN_10025450 ()
	[AI] Updates part transformation matrices and records old/new world/projected positions for drag/drop and manip. More...

void	FUN_10025720 (undefined4 p_param1)
	[AI] Initiates the next world/cutscene/animation step, based on internal build progress and car ID. More...

void	FUN_10025d10 (MxS32 p_param)
	[AI] Starts/stops an animation action for the specified parameter (e.g., cutscene transition, per-action). More...

MxS32	FUN_10025d70 ()
	[AI] Gets next animation/cutscene ID depending on current build stage value. More...

void	FUN_10025db0 (const char *p_param1, undefined4 p_param2)
	[AI] Controls global UI presentations actions (such as blinking or activation), based on progress in animation. More...

void	FUN_10025e40 ()
	[AI] Re-applies enabled/disabled flags on presenters, resetting the last-toggled presenter if needed. More...

MxS32	FUN_10025ee0 (undefined4 p_param1)
	[AI] Gets the appropriate jukebox/music action ID for the current car type, used when leaving the build. More...

void	SetUnknown0x258 (LegoCarBuildAnimPresenter *p_unk0x258)
	[AI] Directly sets the animation presenter for this build world. More...

Public Member Functions inherited from LegoWorld
	LegoWorld ()
	Constructs a LegoWorld, initializing lists and notifying the notification manager. More...

	~LegoWorld () override
	Cleans up the world, destroying all held entities, presenters, and controllers. More...

MxLong	Notify (MxParam &p_param) override
	Notification callback responding to registered events such as EndAction and NewPresenter. More...

MxResult	Tickle () override
	Main world tick/update, especially manages startup countdown. More...

MxResult	Create (MxDSAction &p_dsAction) override
	Initializes the world using an action, creating entity and sound lists, and camera controller. More...

void	Destroy (MxBool p_fromDestructor) override
	Destroys the world and its contents, optionally called from the destructor. More...

virtual void	ReadyWorld ()
	Called when the world is ready to be used—typically for custom scene setup after startup. More...

virtual LegoCameraController *	VTable0x54 ()
	Initializes and returns the camera controller for the world; may create it on-demand. More...

virtual void	Add (MxCore *p_object)
	Adds an object (entity, presenter, ROI, etc.) to the appropriate world-managed list or set. More...

virtual MxBool	VTable0x5c ()
	Potential "escape" action for world; returns FALSE by default, may be overridden in child worlds. More...

virtual void	VTable0x60 ()
	Placeholder/extensible virtual—default does nothing. More...

virtual MxBool	Escape ()
	Handles user-initiated "escape" or exit action. More...

virtual void	Enable (MxBool p_enable)
	Enables or disables (pauses) the world and its main components. More...

const char *	ClassName () const override
	Returns the class name for runtime type information and debugging. More...

MxBool	IsA (const char *p_name) const override
	Runtime type checking; checks class hierarchy. More...

MxBool	PresentersPending ()
	Checks if there are any presenters pending to fully enter their tickle (animation) state. More...

void	Remove (MxCore *p_object)
	Removes an object from all relevant world-managed lists or sets, and also detaches if needed. More...

MxResult	PlaceActor (LegoPathActor p_actor, const char p_name, MxS32 p_src, float p_srcScale, MxS32 p_dest, float p_destScale)
	Places an actor along a path, from source to destination, using named references and scaling. More...

MxResult	PlaceActor (LegoPathActor *p_actor)
	Places an actor using only its reference, using controller logic. More...

MxResult	PlaceActor (LegoPathActor p_actor, LegoAnimPresenter p_presenter, Vector3 &p_position, Vector3 &p_direction)
	Places an actor using detailed presenter, position and direction. More...

void	RemoveActor (LegoPathActor *p_actor)
	Removes an actor from all known path controllers. More...

MxBool	ActorExists (LegoPathActor *p_actor)
	Determines if an actor already exists in any controller in this world. More...

void	FUN_1001fda0 (LegoAnimPresenter *p_presenter)
	Forwards a presenter to all path controllers to perform a custom action (possibly hide, etc.). More...

void	FUN_1001fe90 (LegoAnimPresenter *p_presenter)
	Forwards a presenter to all path controllers for another custom or state change action. More...

LegoPathBoundary *	FindPathBoundary (const char *p_name)
	Finds a path boundary in all path controllers by name. More...

void	AddPath (LegoPathController *p_controller)
	Adds a path controller to the world and calls its initialization with this. More...

MxResult	GetCurrPathInfo (LegoPathBoundary **p_boundaries, MxS32 &p_numL)
	Gets information about the currently active path and boundaries. More...

MxCore *	Find (const char p_class, const char p_name)
	Finds an object of a given class and name in the world. More...

MxCore *	Find (const MxAtomId &p_atom, MxS32 p_entityId)
	Finds an object in the world by its atom id and entity id. More...

LegoCameraController *	GetCameraController ()
	Returns the current camera controller for the world. More...

LegoEntityList *	GetEntityList ()
	Returns the current list of entities. More...

LegoOmni::World	GetWorldId ()
	Gets the world id associated with this world. More...

MxBool	GetUnknown0xd0Empty ()
	Checks if the 'set0xd0' set is empty. More...

list< LegoROI * > &	GetROIList ()
	Gets the list of all ROIs (Real-time Object Instances) in the world. More...

LegoHideAnimPresenter *	GetHideAnimPresenter ()
	Gets the animation presenter responsible for hide animations in this world. More...

void	SetWorldId (LegoOmni::World p_worldId)
	Sets the world id for this world instance. More...

Public Member Functions inherited from LegoEntity
	LegoEntity ()
	[AI] Default constructor. Initializes the LegoEntity with default values. [AI] More...

	~LegoEntity () override
	[AI] Destructor. Cleans up resources and ensures ROI and script state are released. [AI] More...

MxLong	Notify (MxParam &p_param) override
	[AI] Handles event notification for the entity, most notably user clicks, using polymorphic dispatch. More...

const char *	ClassName () const override
	[AI] Returns the class name string. Used in entity runtime type identification. [AI] More...

MxBool	IsA (const char *p_name) const override
	[AI] Polymorphic type check for this entity given a string. More...

virtual MxResult	Create (MxDSAction &p_dsAction)
	[AI] Initializes the entity from a DSAction object, typically from a script or file load. More...

virtual void	Destroy (MxBool p_fromDestructor)
	[AI] Cleans up the entity, detaching ROI and releasing references. More...

virtual void	ParseAction (char *p_extra)
	[AI] Parses an action description string (usually from script "extra" data) and sets up this entity's action state. More...

virtual void	SetROI (LegoROI *p_roi, MxBool p_bool1, MxBool p_bool2)
	[AI] Assigns a 3D ROI (3D object instance) to this entity, controlling how it appears/acts in the world. More...

virtual void	SetWorldTransform (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up)
	[AI] Explicitly sets the world transformation (location, direction, up vector) for this entity. More...

virtual void	ResetWorldTransform (MxBool p_cameraFlag)
	[AI] Resets the transformation for this entity (e.g., used with camera transitions). More...

virtual void	SetWorldSpeed (MxFloat p_worldSpeed)
	[AI] Sets the current world speed value for this entity (used to control motion/animation rate). More...

virtual void	ClickSound (MxBool p_und)
	[AI] Plays a click sound, typically in response to user/AI actions, according to entity type. More...

virtual void	ClickAnimation ()
	[AI] Plays a context-sensitive click animation, driven by current entity type and state. [AI] More...

virtual void	SwitchVariant ()
	[AI] Switches variants for this entity (e.g., different animation, mesh, or texture variant), based on type. [AI] More...

virtual void	SwitchSound ()
	[AI] Triggers a context-dependent audio/sound variant switch for this entity. [AI] More...

virtual void	SwitchMove ()
	[AI] Switches movement/animation variant for this entity, if applicable (e.g., walking/running state). [AI] More...

virtual void	SwitchColor (LegoROI *p_roi)
	[AI] Switches the color or texture variant for this entity (or target ROI). More...

virtual void	SwitchMood ()
	[AI] Triggers a mood/state switch for this entity (if supported), often for characters. [AI] More...

void	FUN_10010c30 ()
	[AI] Updates the camera transformation when this entity is the camera target. Used after movement or position updates. [AI] More...

void	SetType (MxU8 p_type)
	[AI] Sets the entity's type (actor/plant/building/etc.) [AI] More...

void	SetLocation (const Vector3 &p_location, const Vector3 &p_direction, const Vector3 &p_up, MxBool p_und)
	[AI] Sets the world-space location, direction, and up, applying normalization and transformation. More...

Mx3DPointFloat	GetWorldDirection ()
	[AI] Gets the normalized world-space direction vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldUp ()
	[AI] Gets the normalized world-space up vector, optionally updating from ROI. [AI] More...

Mx3DPointFloat	GetWorldPosition ()
	[AI] Gets the world-space position vector, optionally updating from ROI. [AI] More...

MxBool	GetUnknown0x10IsSet (MxU8 p_flag)
	[AI] Checks if a bit flag in m_unk0x10 is set (purpose: state/animation suppression lock). More...

MxBool	GetFlagsIsSet (MxU8 p_flag)
	[AI] Checks if a flag is set in the primary flags byte (m_flags). More...

MxU8	GetFlags ()
	[AI] Returns the value of the flag byte. [AI] More...

MxFloat	GetWorldSpeed ()
	[AI] Gets the entity's current world speed state. [AI] More...

LegoROI *	GetROI ()
	[AI] Gets the ROI (Realtime Object Instance) associated with this entity. [AI] More...

MxU8	GetType ()
	[AI] Gets the type of this entity (one of the enum Type values). [AI] More...

MxBool	GetCameraFlag ()
	[AI] Returns whether this entity is flagged as camera (affects world/camera synchronization). [AI] More...

void	SetFlags (MxU8 p_flags)
	[AI] Sets all entity flags at once (replaces previous). More...

void	SetFlag (MxU8 p_flag)
	[AI] Sets the given flag in the flags byte. More...

void	ClearFlag (MxU8 p_flag)
	[AI] Clears the given flag in the flags byte. More...

void	SetUnknown0x10Flag (MxU8 p_flag)
	[AI] Sets the given bit in the unknown (usually internal action suppression) flag byte. More...

void	ClearUnknown0x10Flag (MxU8 p_flag)
	[AI] Clears the given bit in the unknown flag byte. More...

Public Member Functions inherited from MxEntity
	MxEntity ()
	Default constructor. More...

	~MxEntity () override
	Virtual destructor for MxEntity. More...

const char *	ClassName () const override
	Returns the class name for type introspection. More...

MxBool	IsA (const char *p_name) const override
	Checks if the object is of the given class name or a parent type. More...

virtual MxResult	Create (MxS32 p_entityId, const MxAtomId &p_atomId)
	Initializes the entity from a given entity ID and AtomId. More...

MxResult	Create (MxDSAction &p_dsAction)
	Initializes the entity from a MxDSAction object. More...

MxS32	GetEntityId ()
	Returns the current entity ID. More...

MxAtomId &	GetAtomId ()
	Returns a reference to the entity AtomId. More...

void	SetEntityId (MxS32 p_entityId)
	Sets the entity ID to the given value. More...

void	SetAtomId (const MxAtomId &p_atomId)
	Sets the AtomId to the given value. More...

Public Member Functions inherited from MxCore
	MxCore ()
	[AI] Constructs a new MxCore object and assigns it a unique id. More...

virtual	~MxCore ()
	[AI] Virtual destructor. Required for correct polymorphic cleanup in derived classes. More...

virtual MxLong	Notify (MxParam &p_param)
	[AI] Virtual callback notification mechanism. More...

virtual MxResult	Tickle ()
	[AI] Called by tickle managers to allow the object to update itself. More...

virtual const char *	ClassName () const
	[AI] Returns the runtime class name of this object. More...

virtual MxBool	IsA (const char *p_name) const
	[AI] Checks whether this object's class type or parents match the given name. More...

MxU32	GetId ()
	[AI] Gets the unique (per-process) id assigned to this object instance. More...

Additional Inherited Members
Protected Member Functions inherited from LegoEntity
void	Init ()
	[AI] Initializes the entity's members to default/neutral values (utility for constructors and resets). [AI] More...

void	SetWorld ()
	[AI] Registers/attaches this entity to the current world if not already; called on create or location change. [AI] More...

Protected Attributes inherited from LegoWorld
LegoPathControllerList	m_pathControllerList
	List of all path controllers currently managing pathing in this world. More...

MxPresenterList	m_animPresenters
	List of active animation presenters (anims, hide/show, looping, etc.). More...

LegoCameraController *	m_cameraController
	Camera controller for world's main view. More...

LegoEntityList *	m_entityList
	List of all main world entities, such as actors and objects. More...

LegoCacheSoundList *	m_cacheSoundList
	List of cached sounds for faster access during this world's lifetime. More...

MxBool	m_destroyed
	Indicates if the world has been destroyed or is pending destruction. More...

MxCoreSet	m_set0xa8
	Set of 'auxiliary' objects, including presenters, that aren't core entity or animation, but still must be managed. More...

MxPresenterList	m_controlPresenters
	List of control presenters (UI, input, cutscene control, etc.). More...

MxCoreSet	m_set0xd0
	Set of currently paused/disconnected objects when world is disabled. More...

list< LegoROI * >	m_roiList
	List of all visible LegoROI objects in the world, used for rendering and selection. More...

LegoOmni::World	m_worldId
	Currently assigned world id, corresponding to an enum in LegoOmni. More...

LegoHideAnimPresenter *	m_hideAnim
	Animation presenter for ROI hide (vanish, fade, etc.) sequences. More...

MxS16	m_startupTicks
	Current world startup tick countdown—controls staged world startup logic. More...

MxBool	m_worldStarted
	Indicates if the world has successfully started and is considered active. More...

undefined	m_unk0xf7
	Unknown, probably flags or padding. More...

Protected Attributes inherited from LegoEntity
MxU8	m_unk0x10
	[AI] Unknown state/flag, used mainly to guard against repeated actions or manage animation/sound state. [AI] More...

MxU8	m_flags
	[AI] Primary entity flags (bitfield); tracks per-entity management status, internal update locks, etc. [AI] More...

Mx3DPointFloat	m_worldLocation
	[AI] Entity location in world coordinates. [AI] More...

Mx3DPointFloat	m_worldDirection
	[AI] Entity direction vector in world space (normalized). [AI] More...

Mx3DPointFloat	m_worldUp
	[AI] Entity up vector in world space (normalized). [AI] More...

MxFloat	m_worldSpeed
	[AI] World-relative speed (can affect animation/movement logic). [AI] More...

LegoROI *	m_roi
	[AI] Pointer to this entity's currently assigned ROI (3D instance in the world). [AI] More...

MxBool	m_cameraFlag
	[AI] Set to TRUE if this entity is currently the camera target. [AI] More...

MxU8	m_type
	[AI] The entity type (Type enum value). [AI] More...

Extra::ActionType	m_actionType
	[AI] Action type, parsed from script/extra string (e.g., openram/run/exit); guides Notify() and click logic. [AI] More...

char *	m_siFile
	[AI] When parsing ACTION command, this is the SI script/filename to execute (owned, heap-allocated). [AI] More...

MxS32	m_targetEntityId
	[AI] When parsing ACTION command, this is the target entity ID for the action (or -1 for none). [AI] More...

Protected Attributes inherited from MxEntity
MxS32	m_entityId
	The unique entity ID, typically used for lookup and reference. More...

MxAtomId	m_atomId
	The AtomId associated with this entity, used for resource and script identification. More...

Detailed Description

[AI] World implementation for the LEGO vehicle builder (Racecar, Copter, Dune Car, Jetski), handling UI, input, 3D vehicle assembly, part placement, and all vehicle-specific interactions.

[AI] Inherits from LegoWorld. Maintains state about currently manipulated vehicle/part, responds to input (mouse/key/click), handles animation state transitions, manages presenters for vehicle builder UI and sound, and synchronizes with game/area state.

Definition at line 97 of file legocarbuild.h.

Member Enumeration Documentation

◆ Unknown0xf8

enum LegoCarBuild::Unknown0xf8

[AI] Special constants for internal state tracking of the build world.

Enumerator
c_unknownminusone	[AI] Default/uninitialized
c_unknown8	[AI] Internal marker

Definition at line 115 of file legocarbuild.h.

Constructor & Destructor Documentation

◆ LegoCarBuild()

LegoCarBuild::LegoCarBuild ( )

[AI] Constructs a new LegoCarBuild world and initializes all references/UI.

Definition at line 93 of file legocarbuild.cpp.

◆ ~LegoCarBuild()

LegoCarBuild::~LegoCarBuild ( )

override

[AI] Cleans up presenters, unregisters input/notification handlers, and resets world build state.

Definition at line 135 of file legocarbuild.cpp.

Member Function Documentation

◆ ClassName()

const char * LegoCarBuild::ClassName ( ) const

overridevirtual

[AI] Returns the type string for this object.

Returns: const char* "LegoCarBuild". [AI]

Reimplemented from MxCore.

◆ Create()

MxResult LegoCarBuild::Create ( MxDSAction & p_dsAction )

overridevirtual

[AI] Creates world from script action; initializes build and assigns state according to area/car type.

Parameters

p_dsAction Data source action with world creation parameters. [AI]

Returns: MxResult Success (creates world + build state) or failure. [AI]

Reimplemented from LegoEntity.

Definition at line 159 of file legocarbuild.cpp.

◆ Enable()

void LegoCarBuild::Enable ( MxBool p_enable )

overridevirtual

[AI] Enables or disables the world, handling both visual and audio states and input registration.

Parameters

p_enable If TRUE, enable inputs and reset world state; otherwise, cleans up resources. [AI]

Reimplemented from LegoWorld.

Definition at line 1438 of file legocarbuild.cpp.

◆ Escape()

MxBool LegoCarBuild::Escape ( )

overridevirtual

[AI] Escapes from the build UI (initiates transition to outside world/menu).

Returns: MxBool TRUE if escape logic ran. [AI]

Reimplemented from LegoWorld.

Definition at line 1670 of file legocarbuild.cpp.

◆ FUN_10022f00()

void LegoCarBuild::FUN_10022f00 ( )

[AI] Internal: handles transition when moving a placed part, possibly triggering state change.

Definition at line 287 of file legocarbuild.cpp.

◆ FUN_10022f30()

void LegoCarBuild::FUN_10022f30 ( )

[AI] Internal: logic for finalizing or dropping a part at build location, updates sound and UI.

Definition at line 298 of file legocarbuild.cpp.

◆ FUN_10023130()

void LegoCarBuild::FUN_10023130	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Internal: handles interaction when dragging part along projected axis.

Parameters

p_x	X position in pixels. [AI]
p_y	Y position in pixels. [AI]

Definition at line 359 of file legocarbuild.cpp.

◆ FUN_100236d0()

void LegoCarBuild::FUN_100236d0 ( )

[AI] Internal: launches the finalization of all parts if build is completed; triggers further game progression or cutscene.

Definition at line 475 of file legocarbuild.cpp.

◆ FUN_10024250()

undefined4 LegoCarBuild::FUN_10024250 ( LegoEventNotificationParam * p_param )

[AI] Handles keyboard event notifications, most notably the Space key for canceling animations or sounds.

Parameters

p_param Keyboard notification parameter. [AI]

Returns: undefined4 Result code. [AI]

Definition at line 734 of file legocarbuild.cpp.

◆ FUN_100243a0()

void LegoCarBuild::FUN_100243a0 ( )

[AI] Handles the transition to the next act/location when building is complete.

Definition at line 766 of file legocarbuild.cpp.

◆ FUN_10024480()

undefined4 LegoCarBuild::FUN_10024480 ( MxActionNotificationParam * p_param )

[AI] Handles animation end notification action (e.g., volume restoration, state reset, triggers exit logic).

Parameters

p_param Action notification parameter. [AI]

Returns: undefined4 Status/result code. [AI]

Definition at line 795 of file legocarbuild.cpp.

◆ FUN_100244e0()

undefined4 LegoCarBuild::FUN_100244e0	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Handles mouse click/button down notifications to pick parts or trigger color/decal tools.

Parameters

p_x	X position of click. [AI]
p_y	Y position of click. [AI]

Returns: undefined4 Status/result code. 1 on part touched, 0 otherwise. [AI]

Definition at line 818 of file legocarbuild.cpp.

◆ FUN_100246e0()

undefined4 LegoCarBuild::FUN_100246e0	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Handles mouse button up events; initiates part-finalization or validated placement.

Parameters

p_x	X position of click. [AI]
p_y	Y position of click. [AI]

Returns: undefined4 Status/result code. 1 if part dropped/finalized, 0 otherwise. [AI]

Definition at line 879 of file legocarbuild.cpp.

◆ FUN_10024850()

MxS32 LegoCarBuild::FUN_10024850	(	MxLong	p_x,
		MxLong	p_y
	)

[AI] Handles mouse move notifications for drag-to-place part.

Moves the part.

Parameters

p_x	X pixel position. [AI]
p_y	Y pixel position. [AI]

Returns: MxS32 1 if moved, 0 otherwise. [AI]

Definition at line 928 of file legocarbuild.cpp.

◆ FUN_10024890()

undefined4 LegoCarBuild::FUN_10024890 ( MxParam * p_param )

[AI] Handles UI input/control presenter notifications.

Parameters

p_param Control/action notification parameter. [AI]

Returns: undefined4 Always 1. [AI]

Definition at line 948 of file legocarbuild.cpp.

◆ FUN_10024c20()

undefined4 LegoCarBuild::FUN_10024c20 ( LegoEventNotificationParam * p_param )

[AI] Handles the core event when the build is completed and creation should be finalized.

Parameters

p_param Event notification parameter. [AI]

Returns: undefined4 Status/result code. [AI]

Definition at line 1148 of file legocarbuild.cpp.

◆ FUN_10024ef0()

void LegoCarBuild::FUN_10024ef0 ( )

[AI] Starts the cutscene or music intro for the build with necessary state adjustment.

Definition at line 1248 of file legocarbuild.cpp.

◆ FUN_10024f30()

void LegoCarBuild::FUN_10024f30 ( )

[AI] Internal: Logic for the shelf-up UI animation/response.

Definition at line 1259 of file legocarbuild.cpp.

◆ FUN_10024f50()

void LegoCarBuild::FUN_10024f50 ( )

[AI] Internal: Handles part rotation/y-axis interaction.

Definition at line 1267 of file legocarbuild.cpp.

◆ FUN_10024f70()

void LegoCarBuild::FUN_10024f70 ( MxBool p_enabled )

[AI] Enables/Disables color/decal presenters depending on selected part and part name.

Parameters

p_enabled Whether to enable (TRUE) or disable (FALSE) applicable presenters. [AI]

Definition at line 1275 of file legocarbuild.cpp.

◆ FUN_100250e0()

void LegoCarBuild::FUN_100250e0 ( MxBool p_param )

[AI] Enables/Disables only the presenter set related to current part, using name pattern.

Parameters

p_param Determines enable/disable. [AI]

Definition at line 1310 of file legocarbuild.cpp.

◆ FUN_10025350()

void LegoCarBuild::FUN_10025350 ( MxS32 p_objectId )

[AI] Handles color/decal actions by object ID, mapping click to appropriate color or updating variables.

Parameters

p_objectId Identifier of the clicked object. [AI]

Definition at line 1347 of file legocarbuild.cpp.

◆ FUN_10025450()

void LegoCarBuild::FUN_10025450 ( )

[AI] Updates part transformation matrices and records old/new world/projected positions for drag/drop and manip.

Definition at line 1387 of file legocarbuild.cpp.

◆ FUN_10025720()

void LegoCarBuild::FUN_10025720 ( undefined4 p_param1 )

[AI] Initiates the next world/cutscene/animation step, based on internal build progress and car ID.

Parameters

p_param1 Internal state/cutscene ID. [AI]

Definition at line 1486 of file legocarbuild.cpp.

◆ FUN_10025d10()

void LegoCarBuild::FUN_10025d10 ( MxS32 p_param )

[AI] Starts/stops an animation action for the specified parameter (e.g., cutscene transition, per-action).

Parameters

p_param Animation/cutscene ID. [AI]

Definition at line 1605 of file legocarbuild.cpp.

◆ FUN_10025d70()

MxS32 LegoCarBuild::FUN_10025d70 ( )

[AI] Gets next animation/cutscene ID depending on current build stage value.

Returns: MxS32 Cutscene/animation ID. [AI]

Definition at line 1622 of file legocarbuild.cpp.

◆ FUN_10025db0()

void LegoCarBuild::FUN_10025db0	(	const char *	p_param1,
		undefined4	p_param2
	)

[AI] Controls global UI presentations actions (such as blinking or activation), based on progress in animation.

Parameters

p_param1	Presenter name string/ID. [AI]
p_param2	Animation progress delta. [AI]

Definition at line 1638 of file legocarbuild.cpp.

◆ FUN_10025e40()

void LegoCarBuild::FUN_10025e40 ( )

[AI] Re-applies enabled/disabled flags on presenters, resetting the last-toggled presenter if needed.

Definition at line 1661 of file legocarbuild.cpp.

◆ FUN_10025ee0()

MxS32 LegoCarBuild::FUN_10025ee0 ( undefined4 p_param1 )

[AI] Gets the appropriate jukebox/music action ID for the current car type, used when leaving the build.

Parameters

p_param1 CarId/vehicle type. [AI]

Returns: MxS32 Jukebox/music script ID. [AI]

Definition at line 1683 of file legocarbuild.cpp.

◆ GetPlacedPartCount()

MxS16 LegoCarBuild::GetPlacedPartCount ( )

[AI] Gets number of parts currently placed in build progress.

Returns: MxS16 Number of placed parts, or 0 if build state invalid. [AI]

Definition at line 222 of file legocarbuild.cpp.

◆ InitPresenters()

void LegoCarBuild::InitPresenters ( )

[AI] Finds and initializes all presenters (UI and sound) used in the car build area.

Definition at line 242 of file legocarbuild.cpp.

◆ IsA()

MxBool LegoCarBuild::IsA ( const char * p_name ) const

overridevirtual

[AI] Checks run-time type compatibility.

Parameters

p_name Type/class name to check. [AI]

Returns: MxBool TRUE if matches, otherwise calls base class. [AI]

Reimplemented from MxCore.

◆ Notify()

MxLong LegoCarBuild::Notify ( MxParam & p_param )

overridevirtual

[AI] Handles notifications (input, state, animation, world events) for the build world.

Parameters

p_param Notification/event parameter. [AI]

Returns: MxLong Result of notification handling. [AI]

Reimplemented from MxCore.

Definition at line 649 of file legocarbuild.cpp.

◆ ReadyWorld()

void LegoCarBuild::ReadyWorld ( )

overridevirtual

[AI] Prepares UI and scripting when world is ready.

Introspects audio, shows start animation if enabled.

Reimplemented from LegoWorld.

Definition at line 750 of file legocarbuild.cpp.

◆ SetPlacedPartCount()

void LegoCarBuild::SetPlacedPartCount ( MxU8 p_placedPartCount )

[AI] Sets the number of placed parts in the build state.

Parameters

p_placedPartCount New value. [AI]

Definition at line 233 of file legocarbuild.cpp.

◆ SetPresentersEnabled()

void LegoCarBuild::SetPresentersEnabled ( MxBool p_enabled )

[AI] Controls common set of UI presenters' enabled state at once.

Parameters

p_enabled Whether to enable or disable them. [AI]

Definition at line 1284 of file legocarbuild.cpp.

◆ SetUnknown0x258()

void LegoCarBuild::SetUnknown0x258 ( LegoCarBuildAnimPresenter * p_unk0x258 )

inline

[AI] Directly sets the animation presenter for this build world.

Parameters

p_unk0x258 Animation presenter for part actions. [AI]

Definition at line 417 of file legocarbuild.h.

◆ Tickle()

MxResult LegoCarBuild::Tickle ( )

overridevirtual

[AI] Tickle function (called every frame/tick); processes build logic and part animation.

Returns: MxResult Success or error code. [AI]

Reimplemented from MxCore.

Definition at line 530 of file legocarbuild.cpp.

◆ TogglePresentersEnabled()

void LegoCarBuild::TogglePresentersEnabled ( )

[AI] Toggles enabled/disabled state for all main presenters (color/decal tools).

Definition at line 1297 of file legocarbuild.cpp.

◆ VTable0x5c()

MxBool LegoCarBuild::VTable0x5c ( )

overridevirtual

[AI] Always returns TRUE; signals that this world can be entered.

Used for world transitions.

Returns: MxBool Always TRUE. [AI]

Reimplemented from LegoWorld.

◆ VTable0x6c()

void LegoCarBuild::VTable0x6c ( )

virtual

[AI] Internal logic, used during part drag/drop and animation (possibly for placing or updating a part coordinate).

Definition at line 318 of file legocarbuild.cpp.

◆ VTable0x70()

void LegoCarBuild::VTable0x70 ( )

virtual

[AI] Computes screen-projected coordinates for picking/placing parts and updates internal pixel locations.

Definition at line 329 of file legocarbuild.cpp.

◆ VTable0x74()

void LegoCarBuild::VTable0x74	(	MxFloat	p_param1[2],
		MxFloat	p_param2[3]
	)

virtual

[AI] Adjusts transformation for part manipulation based on mouse/drag locations below the "default" part reference.

Parameters

p_param1	2D pixel coordinates array. [AI]
p_param2	3D transform delta to be updated. [AI]

Definition at line 416 of file legocarbuild.cpp.

◆ VTable0x78()

void LegoCarBuild::VTable0x78	(	MxFloat	p_param1[2],
		MxFloat	p_param2[3]
	)

virtual

[AI] Adjusts transformation for part manipulation when within the vertical bounds of the reference points.

Parameters

p_param1	2D pixel coordinates array. [AI]
p_param2	3D transform delta to be updated. [AI]

Definition at line 432 of file legocarbuild.cpp.

◆ VTable0x7c()

void LegoCarBuild::VTable0x7c	(	MxFloat	p_param1[2],
		MxFloat	p_param2[3]
	)

virtual

[AI] Adjusts transformation for part manipulation above the "default" reference.

Parameters

p_param1	2D pixel coordinates array. [AI]
p_param2	3D transform delta to be updated. [AI]

Definition at line 450 of file legocarbuild.cpp.

◆ VTable0x80()

void LegoCarBuild::VTable0x80	(	MxFloat	p_param1[2],
		MxFloat	p_param2[2],
		MxFloat	p_param3,
		MxFloat	p_param4[2]
	)

virtual

[AI] Used for conversions between projected and real pixel/world space.

Applies linear transformation based on part location.

Parameters

p_param1	Source array for calculation. [AI]
p_param2	Additional mapping array. [AI]
p_param3	Parameter for interpolation or location. [AI]
p_param4	Out: Destination array for result. [AI]

Definition at line 464 of file legocarbuild.cpp.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Unknown0xf8

Constructor & Destructor Documentation

◆ LegoCarBuild()

◆ ~LegoCarBuild()

Member Function Documentation

◆ ClassName()

◆ Create()

◆ Enable()

◆ Escape()

◆ FUN_10022f00()

◆ FUN_10022f30()

◆ FUN_10023130()

◆ FUN_100236d0()

◆ FUN_10024250()

◆ FUN_100243a0()

◆ FUN_10024480()

◆ FUN_100244e0()

◆ FUN_100246e0()

◆ FUN_10024850()

◆ FUN_10024890()

◆ FUN_10024c20()

◆ FUN_10024ef0()

◆ FUN_10024f30()

◆ FUN_10024f50()

◆ FUN_10024f70()

◆ FUN_100250e0()

◆ FUN_10025350()

◆ FUN_10025450()

◆ FUN_10025720()

◆ FUN_10025d10()

◆ FUN_10025d70()

◆ FUN_10025db0()

◆ FUN_10025e40()

◆ FUN_10025ee0()

◆ GetPlacedPartCount()

◆ InitPresenters()

◆ IsA()

◆ Notify()

◆ ReadyWorld()

◆ SetPlacedPartCount()

◆ SetPresentersEnabled()

◆ SetUnknown0x258()

◆ Tickle()

◆ TogglePresentersEnabled()

◆ VTable0x5c()

◆ VTable0x6c()

◆ VTable0x70()

◆ VTable0x74()

◆ VTable0x78()

◆ VTable0x7c()

◆ VTable0x80()
